Reflectance Meter ARM-216

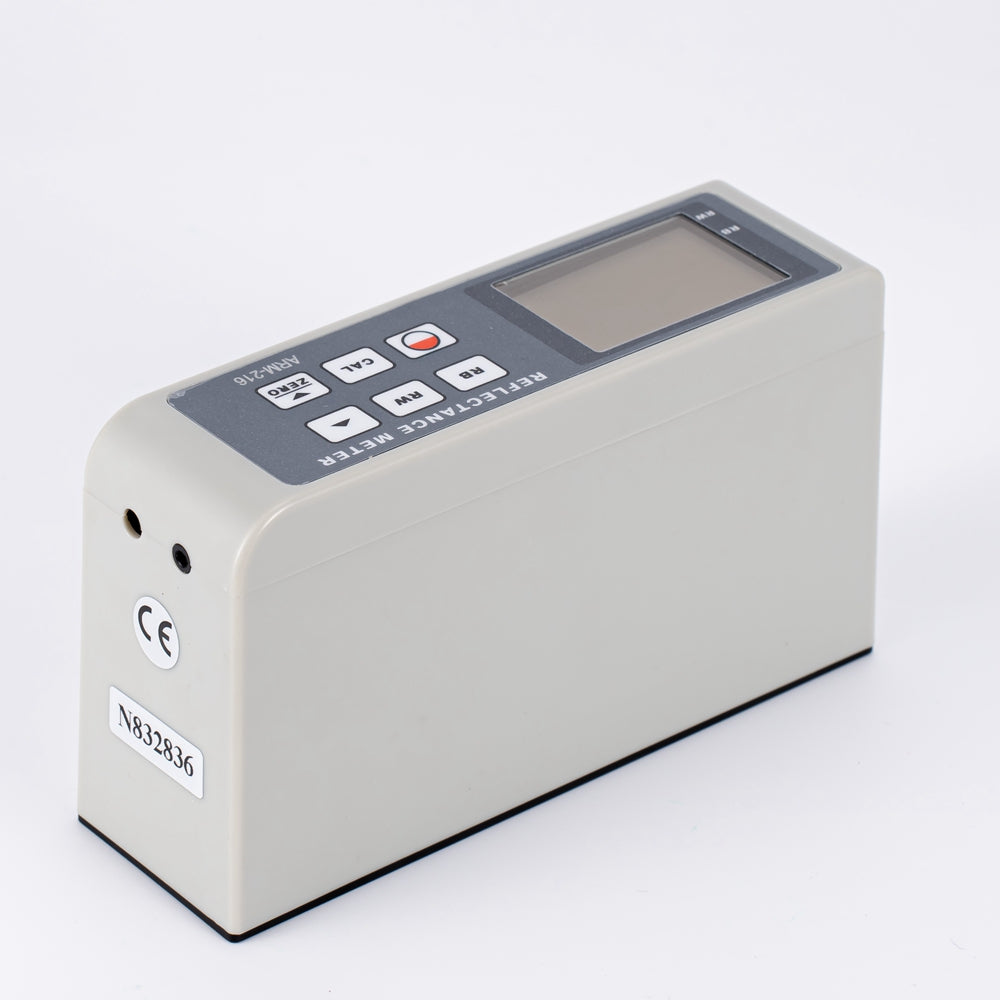

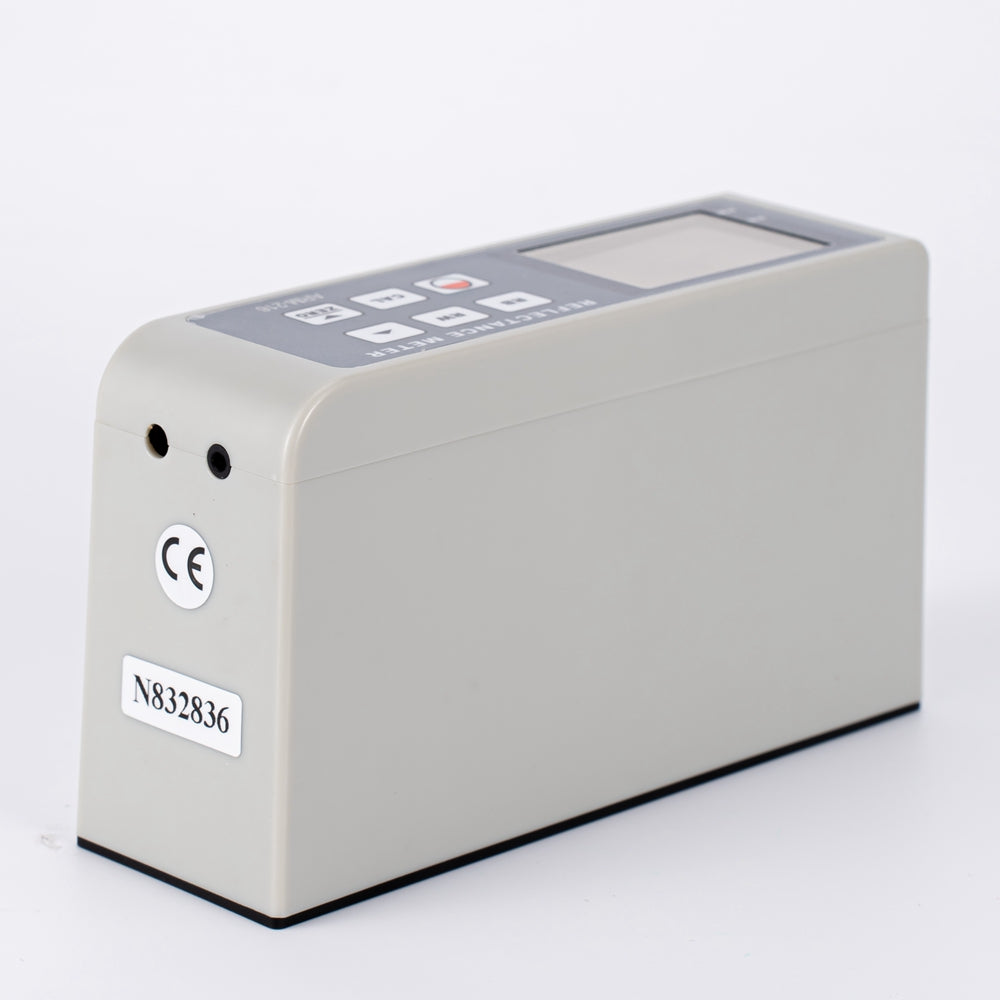

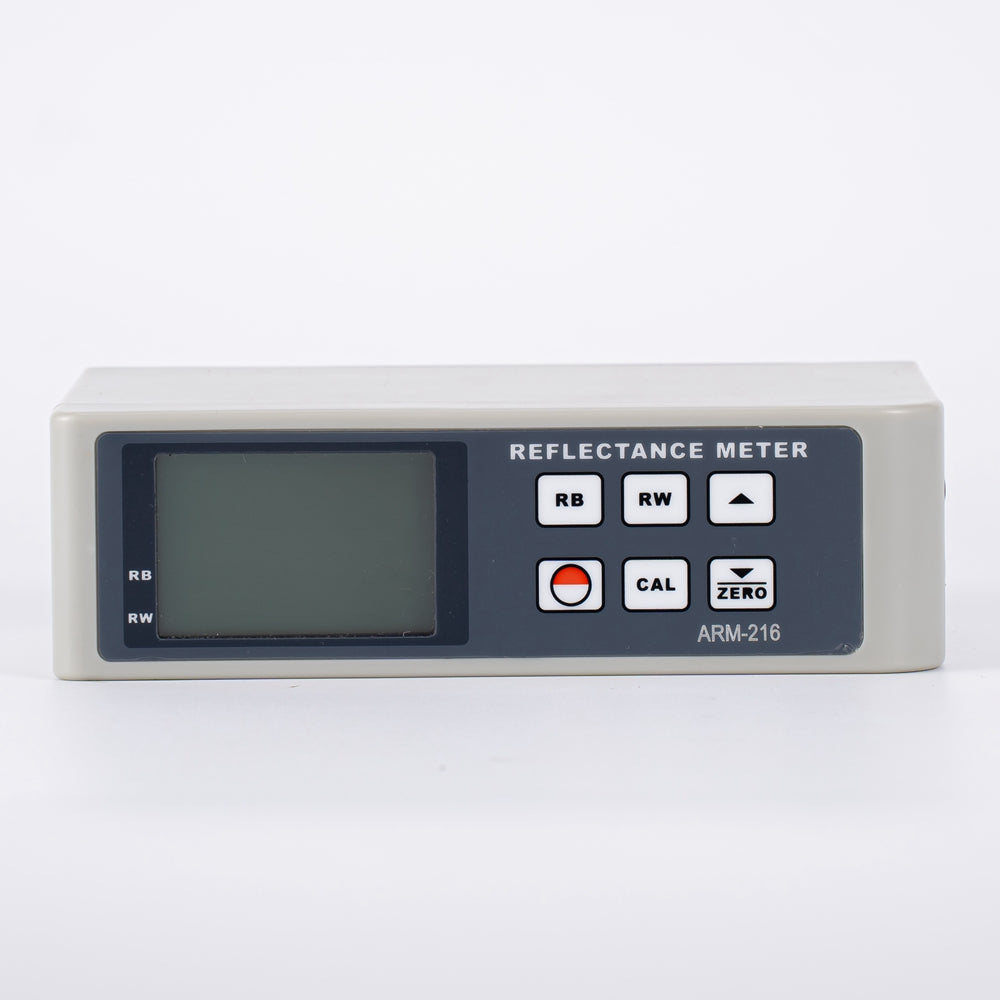

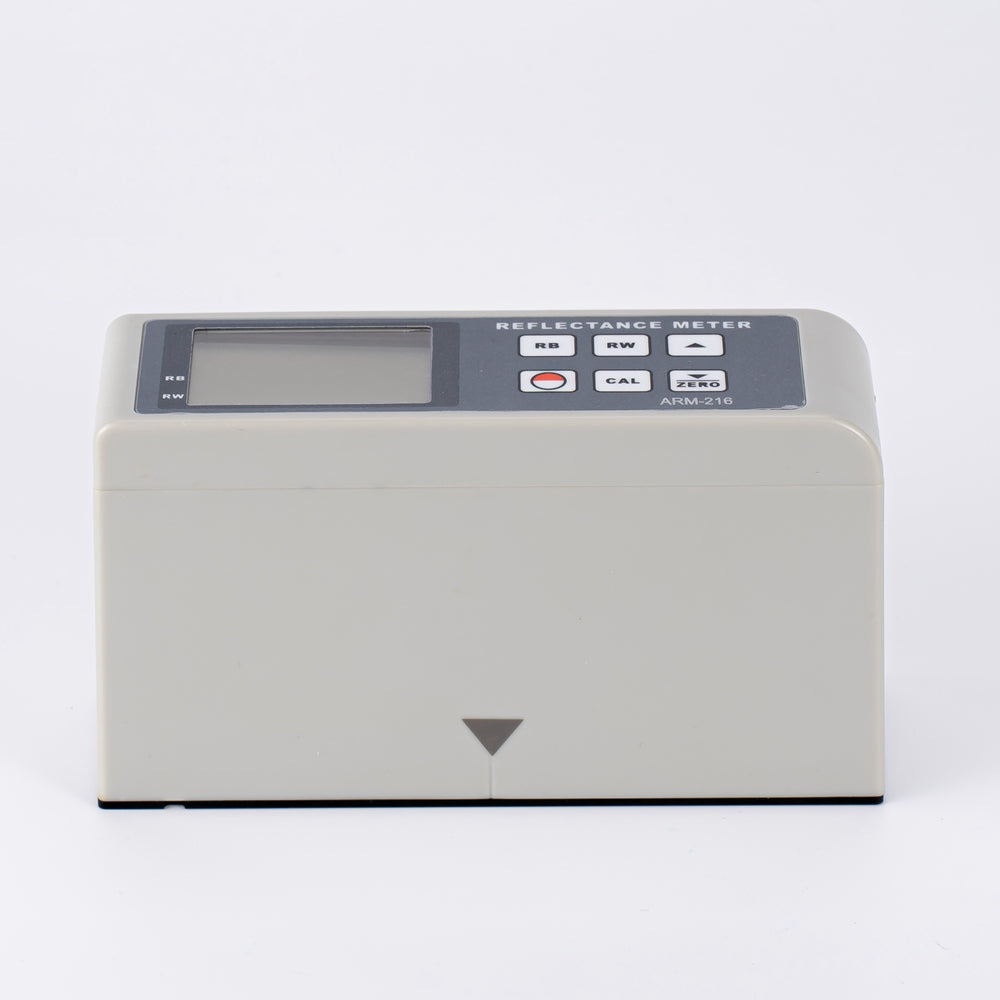

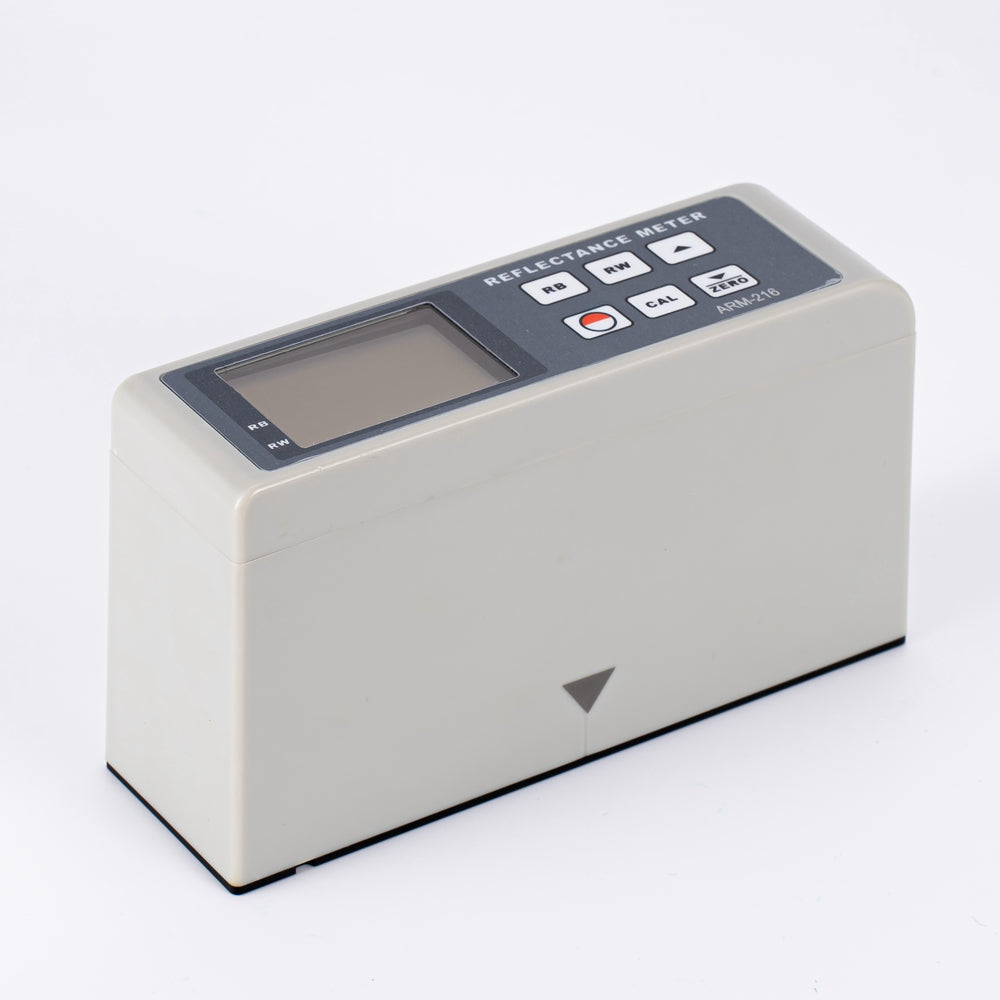

TOMLIN Reflectance Meter / Hiding Power Meter (Model ARM-216)

Description

The TOMLIN Reflectance Meter is a high-precision instrument designed to comply with international coating industry standards. It adheres to ISO3906-1980 (E), ISO3905, ISO2814, and national standards GB/T13452.3-92, GB9270-88, GB5211.17-88, ensuring accurate measurement and reliability. This meter is ideal for measuring the transparency of coatings, grease, films, plastics, and organic products. It is also highly effective for assessing the reflectivity of solid surfaces, such as 3D movie screens.

Applications

The TOMLIN Reflectance Meter is widely used in the following industries:

• Coatings, Pigments, and Inks
• Plastics
• Printing and Dyeing
• Leather
• Film Screening

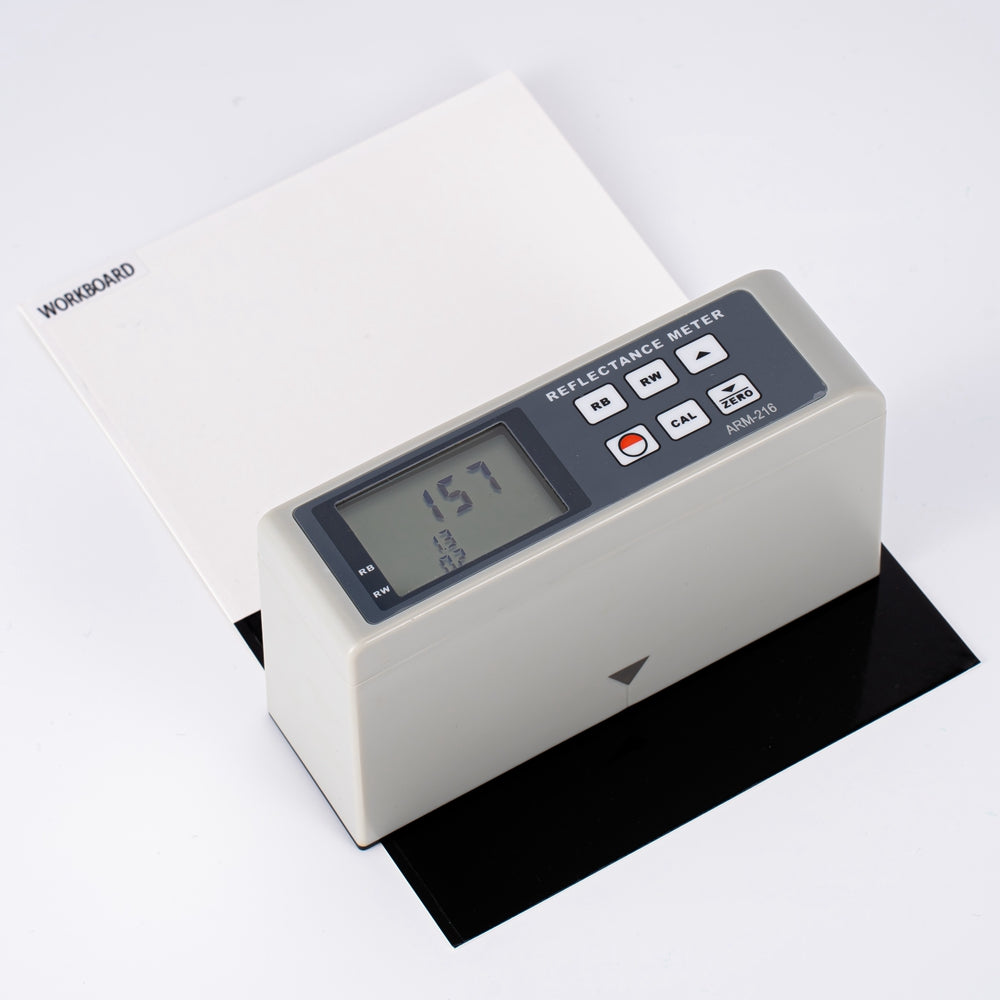

The instrument's design includes a main unit, a standard board, and a testing board. It operates by analyzing light reflected from a sample surface, amplifying the electrical signal for display.

Features

• Lithium-Ion Rechargeable Battery: Ensures extended operation with convenient charging.
• Backlight Display: Provides clear visibility of measurement readings.
• Buzzer Sound Reminder: Notifies users audibly when measurements are complete.
• Low Battery Indicator: Alerts users when the battery is running low.
• Computer Connection: Enables seamless data transfer and analysis via PC.

Specifications

• Measurement Range: 0°~100°
• Resolution: 0.1
• Accuracy: ±1
• Repeatability: 0.3

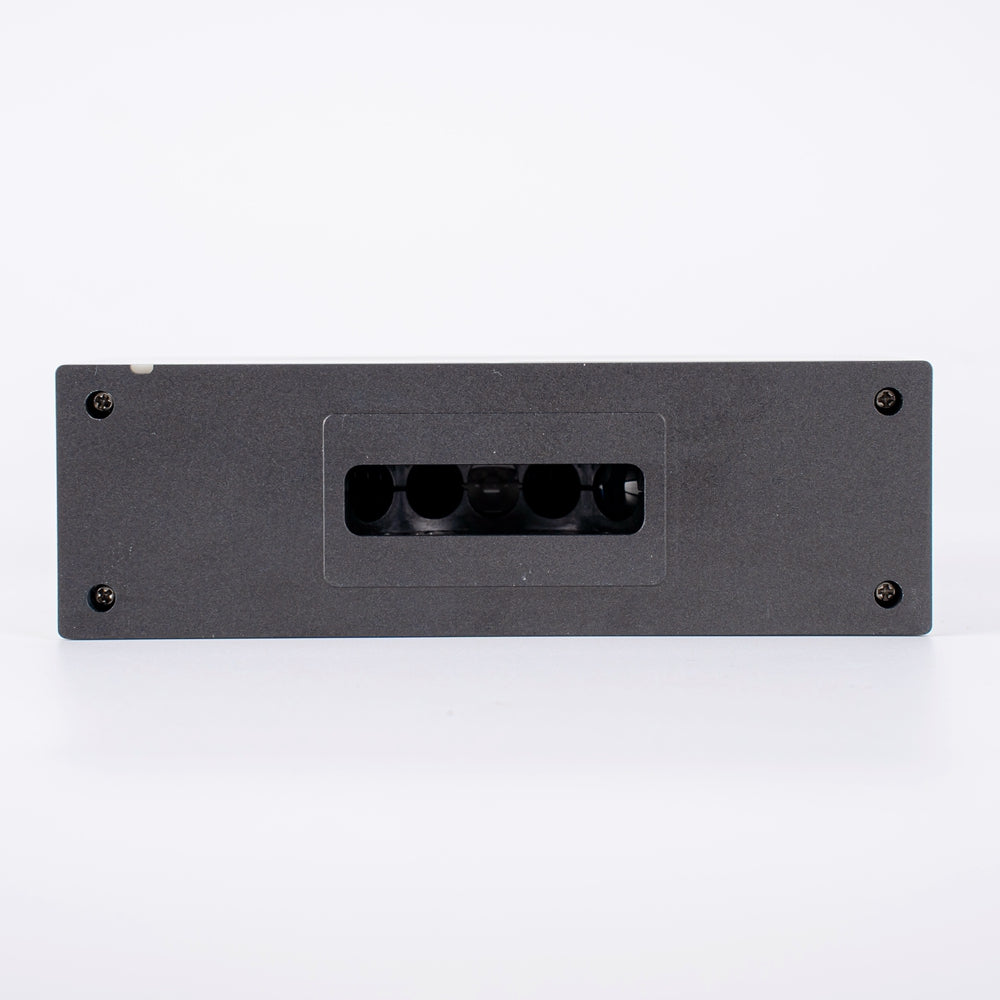

• Measurement Area: 7 x 14 mm (Ellipse)
• Display Data: Directly proportional to the reflected light.
• Operation Temperature: 0°~40°C (32°~104°F)
• Operation Humidity: <85% RH
• Power Supply: 3.7V Lithium Battery
• Size: 140 x 45 x 75 mm (5.5 x 1.8 x 3.0 in)
• Weight (Including Battery): 310 g (10.93 oz)

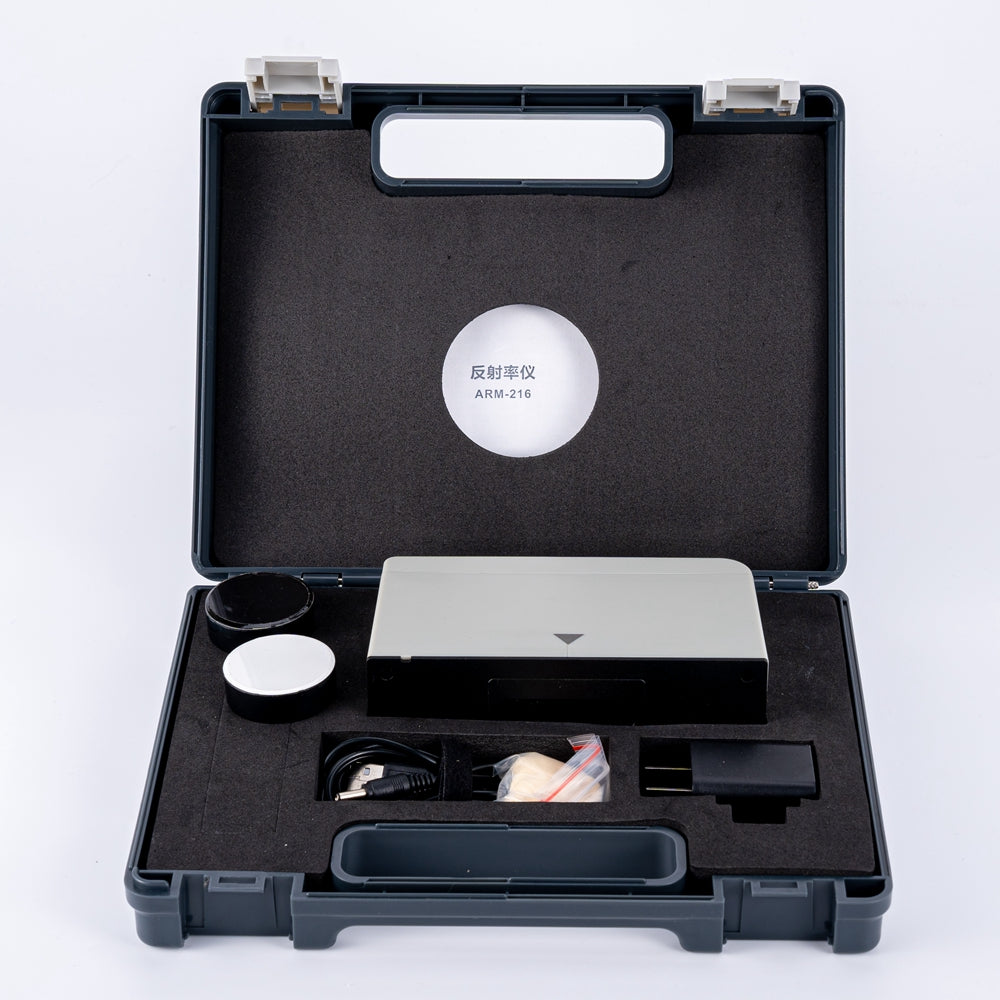

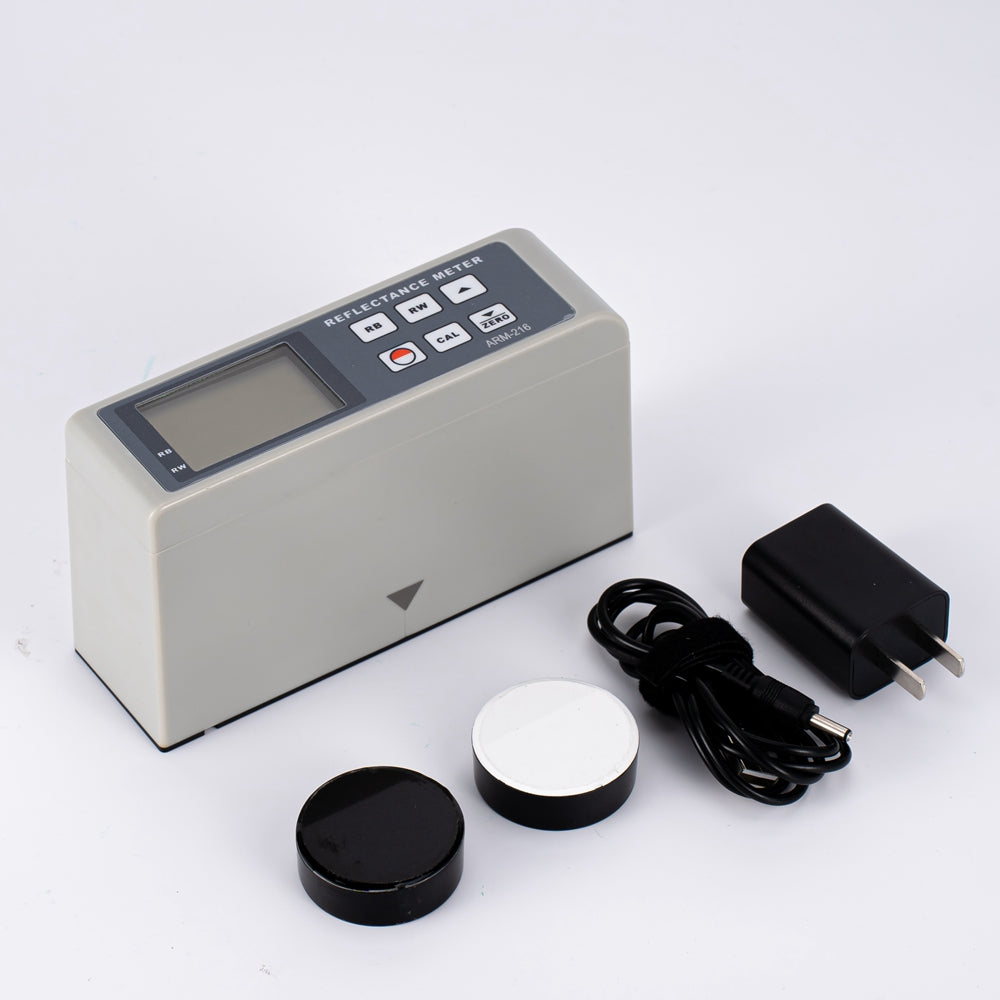

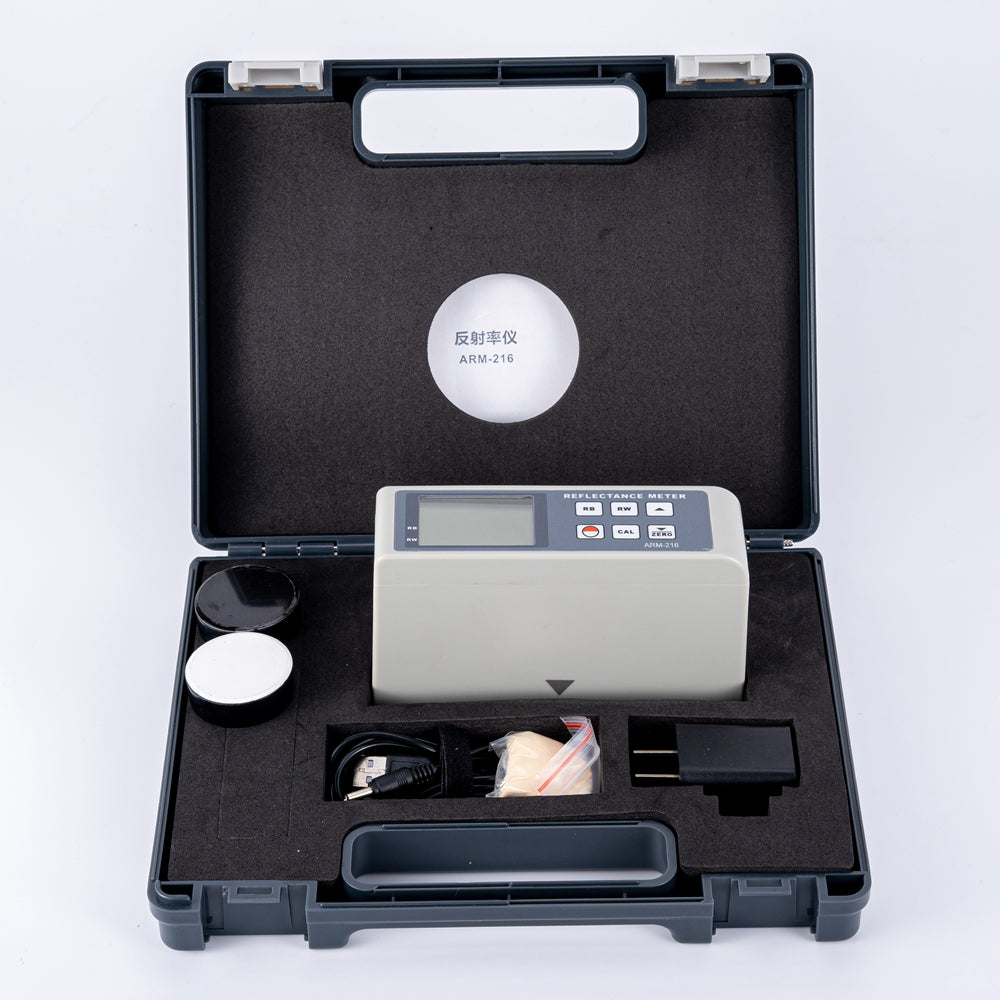

Standard Accessories

• Main Unit
• Standard Board (Black & White)
• Testing Board (Black & White)
• Power Adapter
• Optic Cleaning Cloth
• Carrying Case
• Operation Manual

Optional Accessories

• USB Cable & Software
• Bluetooth Adapter & Software

Alternative Names

• Hiding Power Meter
• Reflectance and Coating Analyzer
• TOMLIN ARM-216 Reflectance Tester
• Surface Reflectivity Meter

Downloads

PDF Specification Sheet - Download Here
