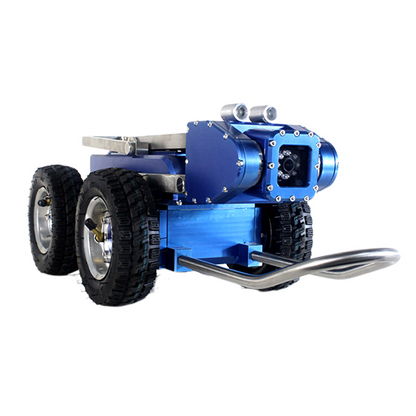

TC-R100 Robotic Pipeline Inspection Crawler

Product Description

The Tomlin TC-R100 is a professional robotic pipeline inspection crawler designed for municipalities, water authorities, drainage contractors and industrial maintenance teams requiring reliable CCTV inspection of large underground pipelines.

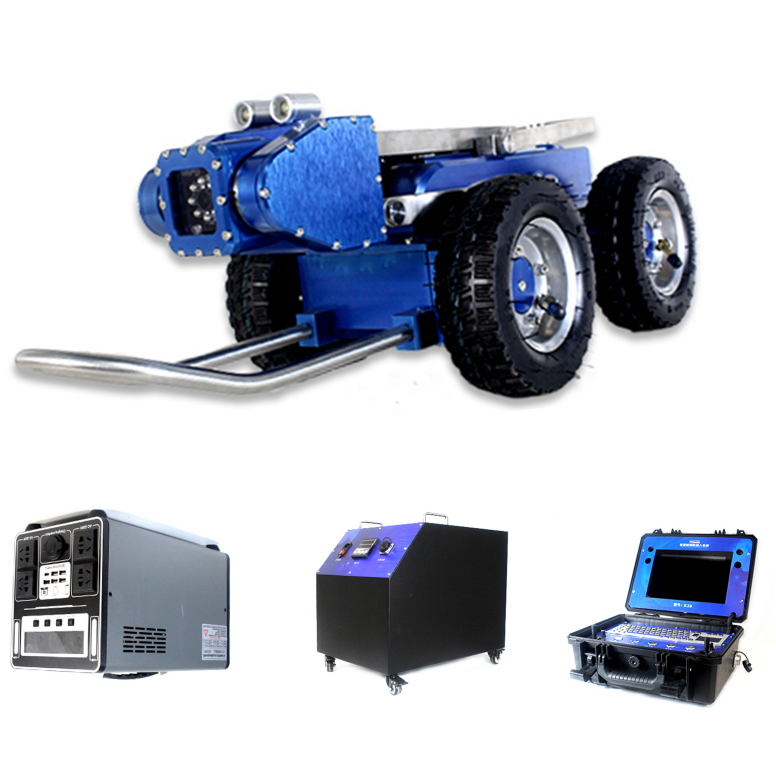

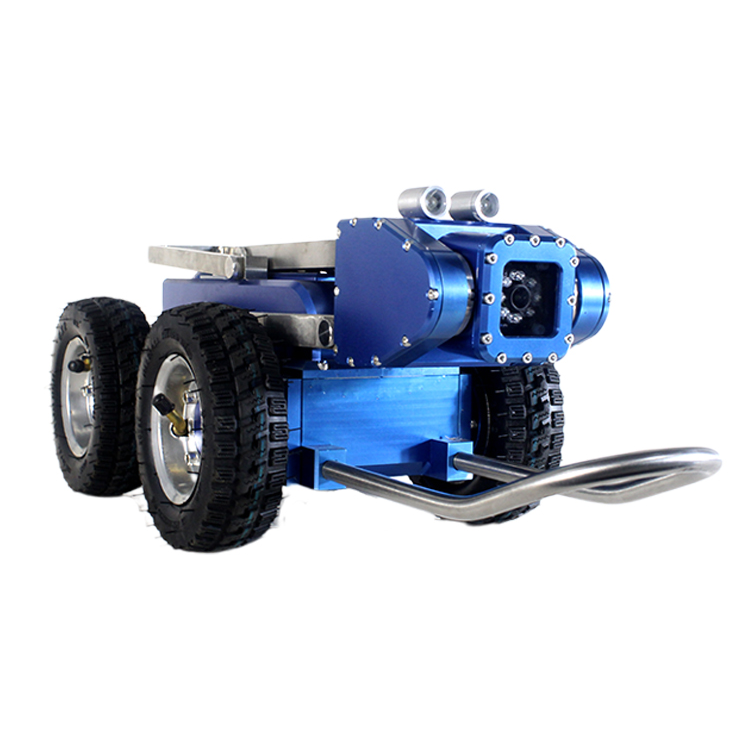

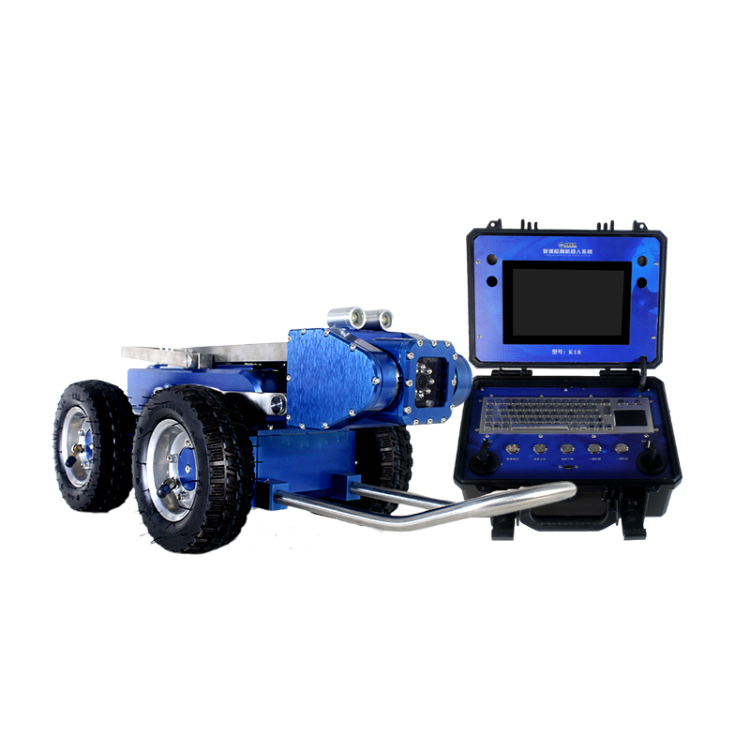

Built around a rugged six-wheel drive crawler, the TC-R100 delivers stable HD video inspections inside pipelines from 300mm to 2000mm in diameter. The system combines a durable crawler, electrically adjustable camera lift, professional control box, 100m cable reel and high-intensity LED lighting to provide clear visual inspections in challenging underground environments.

Designed for sewer networks, stormwater infrastructure, water pipelines, industrial process lines and culverts, the TC-R100 enables operators to safely inspect pipelines without confined space entry while producing high-quality video and image records for reporting and maintenance planning.

Key Features

• Suitable for 300–2000mm pipeline inspections
• Heavy-duty 6-wheel drive crawler
• Professional 2MP HD inspection camera
• Electrically adjustable camera lift
• 360° rotating camera head
• High-intensity LED illumination
• 100m heavy-duty cable
• Rugged integrated control box
• Live video monitoring
• Video recording and image capture
• Digital distance counter
• IP68 waterproof crawler
• Industrial-grade construction for municipal and industrial applications

Ideal Applications

• Sewer pipeline inspections
• Stormwater networks
• Municipal infrastructure
• Water supply pipelines
• Industrial process pipelines
• Culverts
• Utility maintenance
• Civil construction
• Asset condition surveys
• Preventative maintenance inspections

Why Choose the TC-R100?

The TC-R100 is designed for organisations that need a dependable robotic inspection system without unnecessary complexity. Its integrated control box with physical joysticks provides precise control in demanding field environments, making it particularly well suited to operators who prefer tactile controls over touchscreen interfaces.

The robust crawler platform delivers excellent traction across concrete, steel and plastic pipelines while the electrically adjustable camera lift keeps the camera centred for optimum image quality in larger diameter pipes.

With its combination of proven reliability, simple operation and industrial-grade construction, the TC-R100 is an excellent choice for councils, utility contractors and pipeline inspection companies carrying out routine CCTV inspections.

Common Inspection Targets

The TC-R100 helps identify a wide range of pipeline defects including:

• Structural cracking
• Joint displacement
• Corrosion
• Root intrusion
• Sediment build-up
• Pipe deformation
• Blockages
• Infiltration and leakage
• Offset joints
• General pipeline deterioration

Technical Specifications

What's Included

• TC-R100 robotic crawler
• Professional integrated control box
• 100m cable reel
• Rechargeable battery system
• Battery charger
• Connecting cables
• Transport cases
• User manual

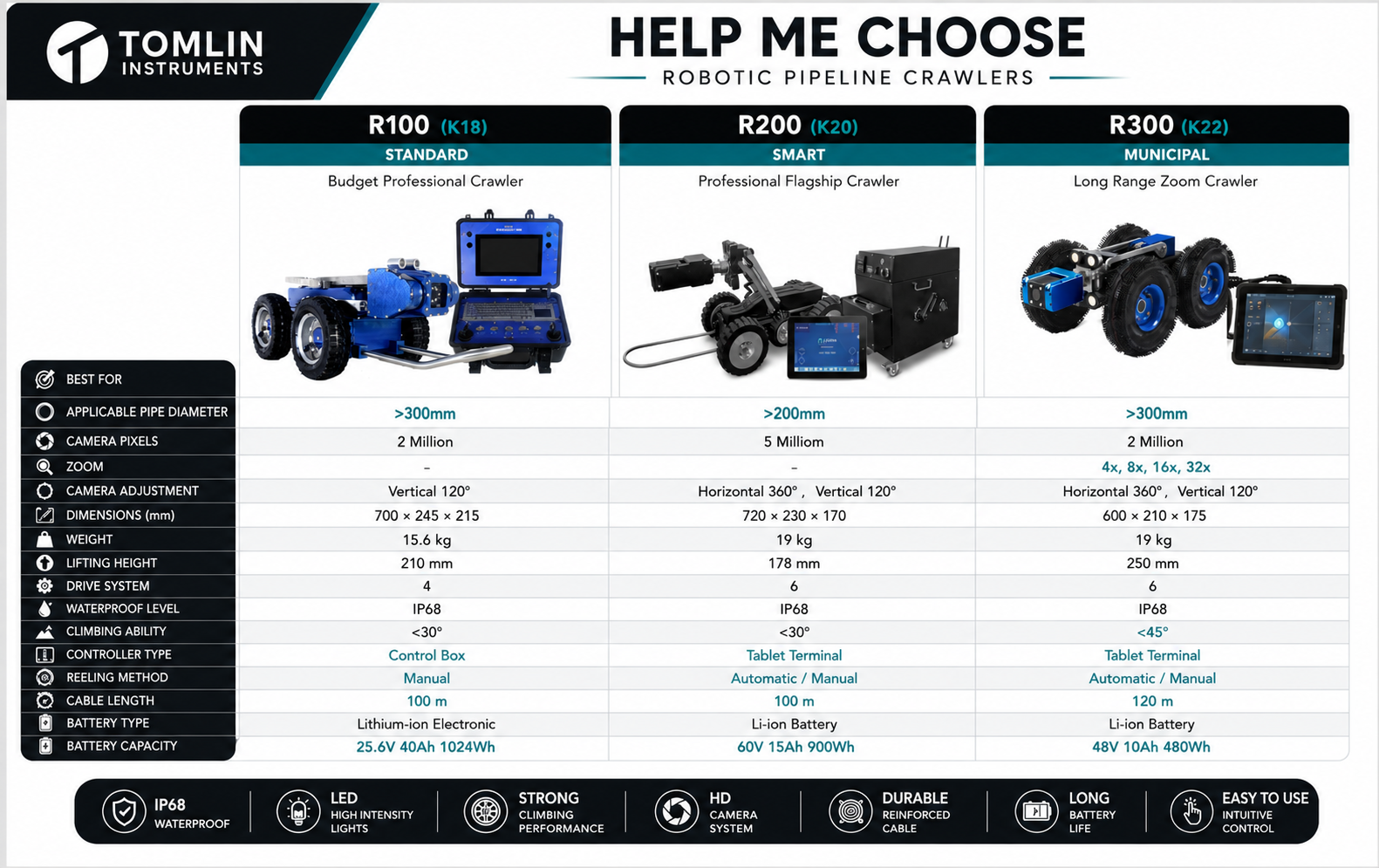

Help Me Choose

Downloads
