Handy Manual Ultrasonic Hardness Tester SU-100

Handy Manual Ultrasonic Hardness Tester SU-100

$6,560.00
$6,560.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Product Description

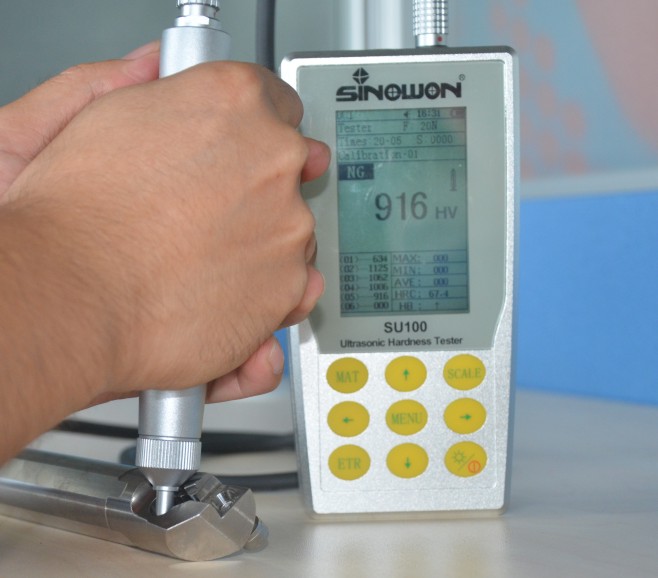

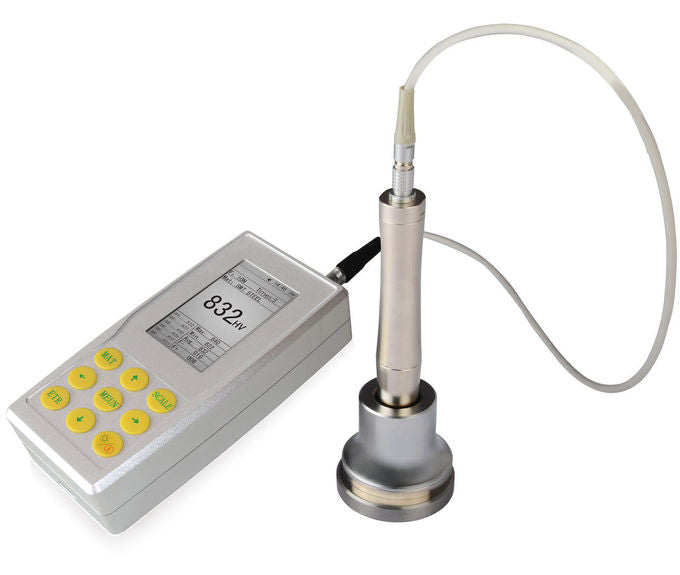

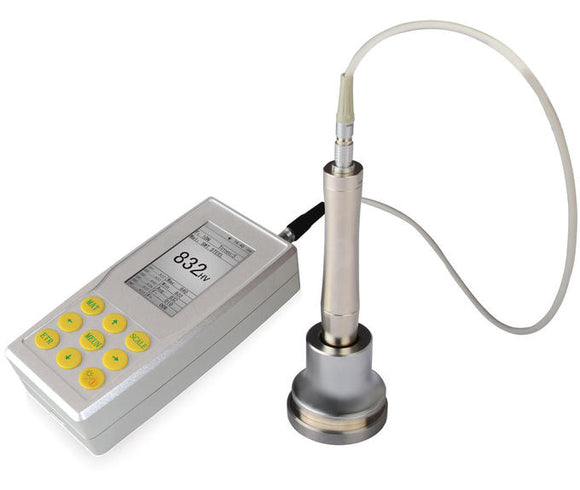

Manual Ultrasonic Hardness Tester SU-100

HV HB HRC HLD Ultrasonic Hardness Tester Hardness Measurement Machine 0



SU-100 Introduction:



● At present, there are kinds of methods for hardness measurement, commonly used like Brinell, Rockwell, Vickers, Leeb, etc. while the disadvantages are obvious for the above hardness measurement.

● Rockwell and Brinell with heavy loading force and big indentation, lead to serious destruction on sample surface.
● Vickers apply optical measurement, but only professional technicians can operate smoothly, impossible to measure hardness of heavy work piece, installed machinery and permanently assembled parts.
● Leeb hardness tester apply rebound and indirect method to measure hardness, easily lead to big deviation when convert to Birnell, Rockwell and Vickers scales.
● Ultrasonic hardness tester SU-100 apply ultrasonic contact impedance method to do comparative hardness measurement for testing pieces, with advantages of high accuracy, efficiency, portable and easy operation.
● Ultrasonic hardness tester SU-100 is widely used to measure hardness of small forgings, cast material, weld inspection, heat affected zone, Ion-nitrided stamping dies and molds, forms, presses, thin walled parts, bearings, tooth flanks, etc.





Specifications:



Commodity Ultrasonic Hardness Tester
Model SU-100
Code# 882-121
Loading Force 2Kgf Manual Probe HP-2K
Indenter 136°Vickers Diamond Indenter
Measuring Range

HB: 85-650; HV 80-1599; HRC 20-70; HRB: 41-100; HRA: 61-85.6

HS: 34.2-97.3; Mpa: 255-2180N/mm
Measuring Accuracy HV: ±3%HV; HRC: ±1.5HRC; HB: ±3%HB; HLD: ±5HLD;
Measuring Direction Support 360°
Data Storage To save 1000-groups of measuring data and 20-groups of calibration data
Hardness Scale HV,HB,HRC, HLD
Data Display Loading force, Testing-times, Testing result, Average,
Maximum, Minimum, Deviation and Conversion scale.
Hardness Indication LCD display
Operating Environment Temperature: -10℃~50℃; Humidity: 30%~80%R.H
Operating Voltage DC 6V
Instrument Dimensions 60*80*31mm
Net Weight Approximate 500g(Without probe)















































Ultrasonic Hardness Tester Manual Probe



HV HB HRC HLD Ultrasonic Hardness Tester Hardness Measurement Machine 1

Features:



● Introduced latest ultrasonic sensor technology

● Obtain accurate hardness value without auxiliary devices

● Support 360° quick measuring

● Excellent human engineering design easy to hold

● Suitable dimension and weight of probe is convenient to control

● Quick and accurate measuring for edge and fixed position of specimen

● Micro indentation, Non-Destructive for specimen

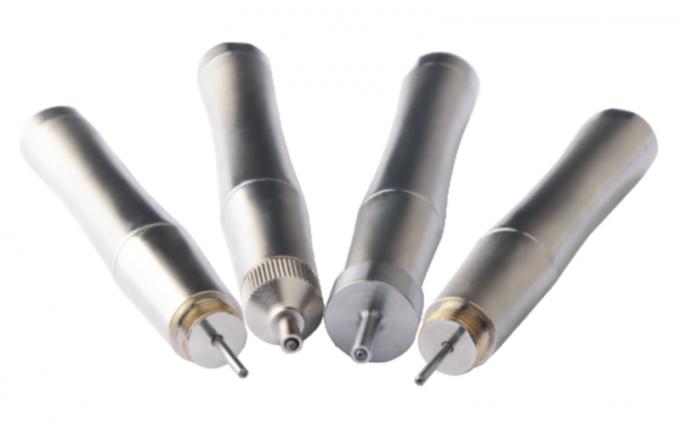

Manual Probe Specifications:



Probe Type HP-1K HP-2K HP-5K HP-10K
Code# 882-311 882-321 882-331 882-341
Remark Optional Standard Optional Optional
Loading force 10N 20N 50N 98N
Diameter 21mm 21mm 21mm 21mm
Length 154mm 154mm 154mm 154mm
Oscillating Rod Diameter 2.4mm 2.4mm 3mm 3mm
Roughness of measuring surface Ra<3.2um Ra<5um Ra<10um Ra<15um
Min weight of test material 0.3kg 0.3kg 0.3kg 0.3kg
Min thickness of test material 2mm 2mm 2mm 2mm

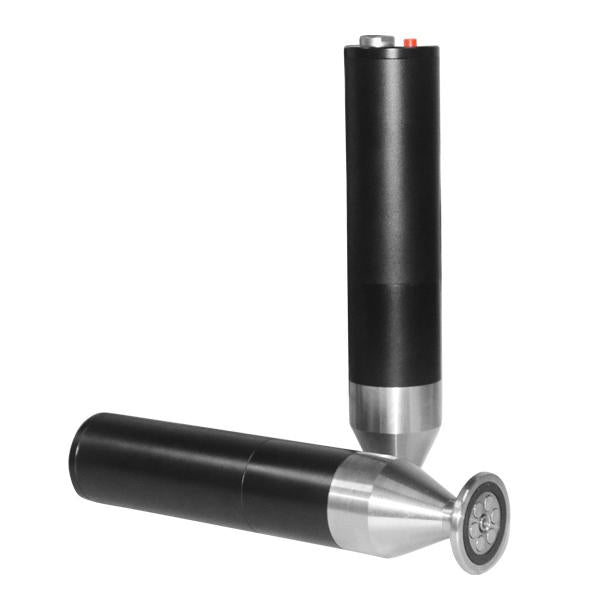

Ultrasonic Hardness Tester Motorized Probe:

HV HB HRC HLD Ultrasonic Hardness Tester Hardness Measurement Machine 2



Features:



● Introduced latest ultrasonic sensor technology

● Obtain accurate hardness value without auxiliary devices

● Excellent human engineering design easy to hold

● Quick and accurate measuring for edge and fixed position of specimen

● Micro indentation, no destructive for specimen

● Motorized control, one key fast measuring

● Eliminate hand shake error by manual probe, higher accuracy and repeatability

● More suitable for thin pieces, coating layer hardness





Motorized Probe Specifications:



Probe Type MP-300 MP-500 MP-800 MP-1000 MP-2000
Code# 882-221 882-231 882-241 882-251 882-261
Remark Optional Optional Optional Optional Optional
Loading force 3N 5N 8N 10N 20N
Diameter 46mm 46mm 46mm 46mm 46mm
Length 200mm 200mm 200mm 200mm 200mm
Oscillating Rod Diameter 3.7mm 3.7mm 3.7mm 3.7mm 3.7mm
Min weight of test material 0.3kg 0.3kg 0.3kg 0.3kg 0.3kg
Min thickness of test material 2mm 2mm 2mm 2mm 2mm

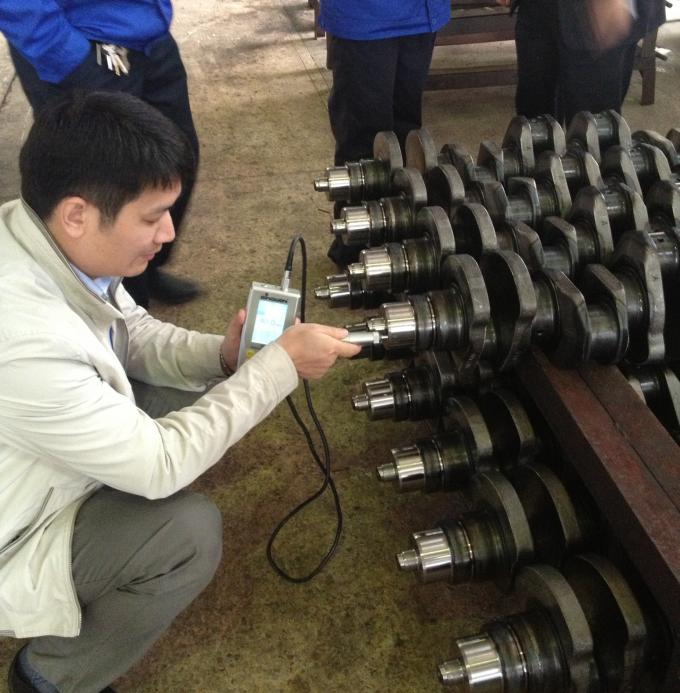

Portable Universal Dynasonic Hardness Tester Application:



● Hardness measurement of flange edge and gear root stamping, mold, sheet, surface hardened tooth and gear groove, and taper part;

● Hardness measurement of axis , thin-wall pipe and container;

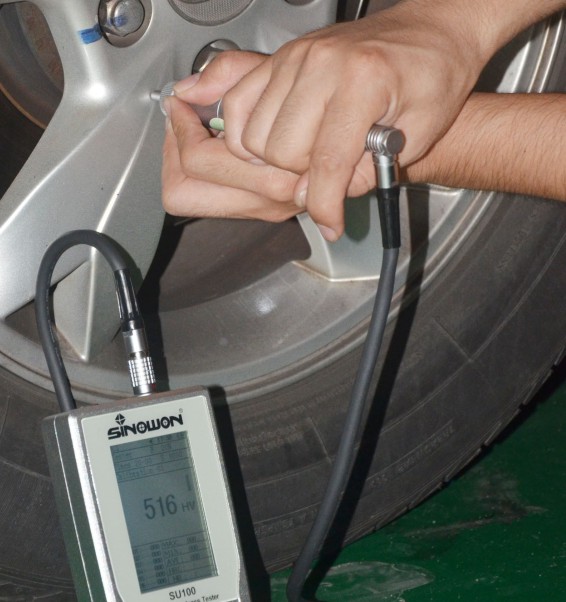

● Hardness measurement of wheels and turbine rotor;

● Hardness measurement of bit blade;

● Hardness measurement of welding parts;

● Measurement of certain aperture depth deep dent, convex mark greater radian, irregular plane;

● Hardness measurement of most ferrous metal ,nonferrous metals and other alloys in industrial production.



HV HB HRC HLD Ultrasonic Hardness Tester Hardness Measurement Machine 3






HV HB HRC HLD Ultrasonic Hardness Tester Hardness Measurement Machine 4
HV HB HRC HLD Ultrasonic Hardness Tester Hardness Measurement Machine 5

HV HB HRC HLD Ultrasonic Hardness Tester Hardness Measurement Machine 6
