Product Description
The TC-V9-23 is a compact HD sewer inspection camera designed for plumbers, drain contractors and maintenance professionals requiring reliable inspections of residential drainage systems and small commercial pipelines.
Featuring a 23mm HD self-levelling camera head, a 9-inch HD IPS DVR control unit, and cable lengths from 20m to 40m, the system automatically keeps the image upright while producing clear HD video and photos for accurate inspections.
Lightweight and portable, the TC-SL-09 is ideal for everyday drain inspections, blocked pipe investigations, pre-purchase plumbing inspections and routine maintenance where mobility and ease of use are essential.
Key Features

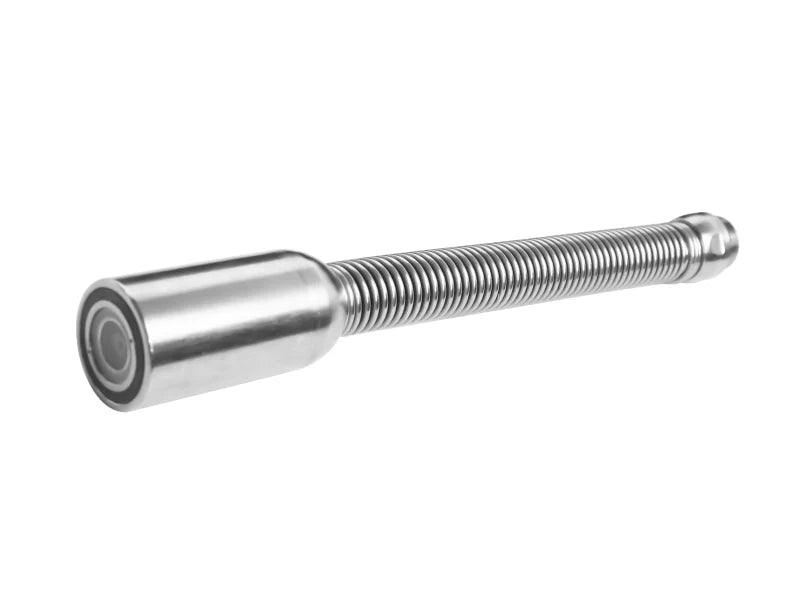

- 23mm HD self-levelling camera head
- Suitable for 30–150mm pipe diameters
- Available in 20m, 30m and 40m cable lengths
- 9" HD IPS LCD monitor
- Full HD 1080P video recording
- Audio recording and image capture
- Rechargeable 4400mAh Li-ion battery
- Adjustable high-intensity LED illumination
- Sapphire glass camera lens
- Stainless steel camera housing
- Portable lightweight design
- IP68 waterproof camera head
- Detachable camera connection
- Fibreglass push rod cable
Ideal Applications
- Residential sewer inspections
- Drain blockage investigations
- Plumbing maintenance
- Stormwater pipe inspections
- Building and property inspections
- Preventative maintenance
- Underground pipe condition assessments
Technical Specifications
| Specification | Details |
|---|---|
| Camera Head | 23mm HD Self-Levelling |
| Camera Dimensions | Ø23 × 47mm |
| Image Sensor | 1/3" CMOS |
| Resolution | 1.3MP |
| Viewing Angle | 120° |
| Camera Lighting | 8 × Adjustable High-Intensity LEDs |
| Camera Housing | Stainless Steel |
| Lens Protection | Sapphire Glass |
| Waterproof Rating | IP68 |
| Display | 9" HD IPS LCD |
| Video Recording | 1080P DVR |
| Photo Capture | Yes |
| Audio Recording | Yes |
| Battery | 4400mAh Rechargeable Li-ion |
| Cable Type | Fibreglass Push Rod |
| Cable Diameter | 5.2mm |
| Cable Length Options | 20m, 30m, 40m |
| Reel Diameter | 320mm |
What's Included
- 9" HD DVR control unit
- 23mm self-levelling camera head
- Fibreglass push rod cable reel
- Rechargeable Li-ion battery
- Battery charger
- Carry case
- User manual
Why Choose the TC-V9-23?
The TC-V9-23 combines portability with professional inspection performance. Its automatic self-levelling camera ensures footage is always correctly orientated, making inspections faster and easier to interpret. Built with a rugged stainless steel camera head, sapphire glass lens and HD recording capability, it is an excellent choice for contractors who need a dependable everyday sewer inspection camera without the bulk of larger systems.
Help Me Choose
| Product Family | Tomlin Part No. | Camera Head | Typical Pipe Size | Cable Lengths | Screen | Self Levelling | Sonde | Best For |
|---|---|---|---|---|---|---|---|---|
| Micro Drain Camera | TC-V8-20 | 20mm Forward View | 25–75mm | 30m | 8" | No | No | Household drains, sinks, showers and small waste pipes |
| Self-Levelling Pipe Inspection Camera Mini | TC-V9-23 | 23mm Self Levelling | 30–150mm | 30–40m | 9" | Yes | Yes | Residential and commercial drain inspections |
| Self-Levelling Pipe Inspection Camera | TC-V13-WS29 | 29mm Self-Levelling | 50–200mm | 40-50m | 13" | Yes | Yes | Professional drain inspections requiring an upright image |
| Heavy Duty Sewer Camera | TC-V13-3240AHD | 40mm Self-Levelling | 100–400mm | 60–150m | 13" | Yes | Yes | Main sewer lines, municipal infrastructure and civil contractors |
| Pan Tilt Sewer Camera | TC-V13-3250PTF | 33mm or 50mm Pan & Tilt | 75–1000mm+ | 60–150m | 13" | No | Yes | Large diameter pipelines requiring full directional viewing |
| Dual View Sewer Camera | TC-V13-3245DU | 45mm Dual View | 100–600mm | 60–150m | 13" | No | Yes | Sewer condition surveys, junctions and lateral inspections |
| Advanced Multi-Camera Inspection System (SL) | TC-V13-DR23SL/17 | 23mm Self-Levelling + 17mm Camera | 25–150mm | 30m + 50m | 13" | Yes | Yes | One system for domestic and commercial inspections |
| Advanced Multi-Camera Inspection System (SLPT) | TC-V13-DR33/23SL | 23mm Self-Levelling + 33mm Pan & Tilt | 20–1000mm+ | 30m + 50m | 13" | Mixed | Yes | Complete inspection solution from household drains to large sewers |
