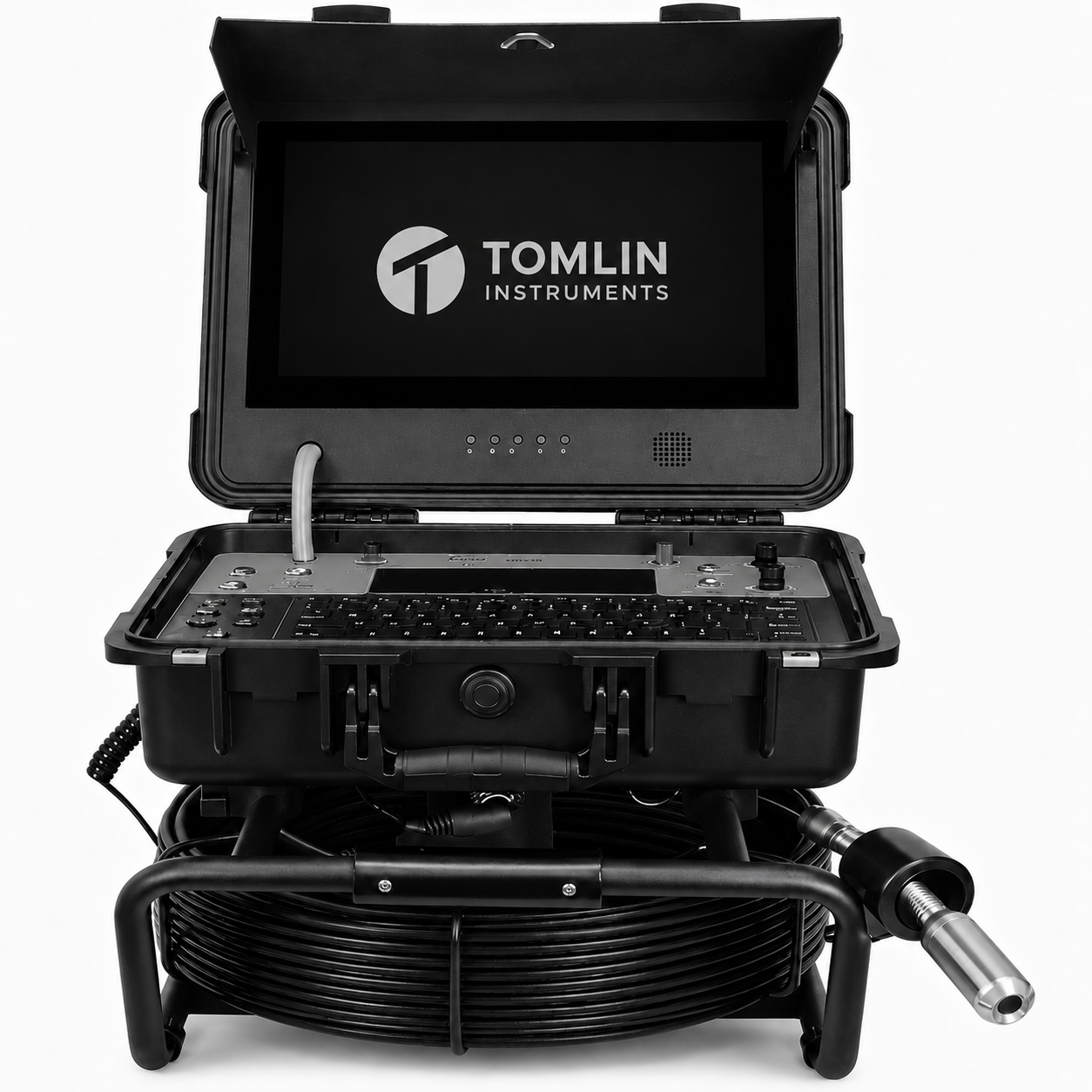

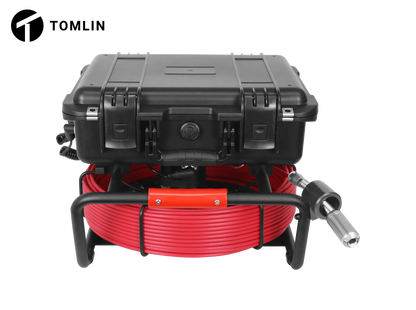

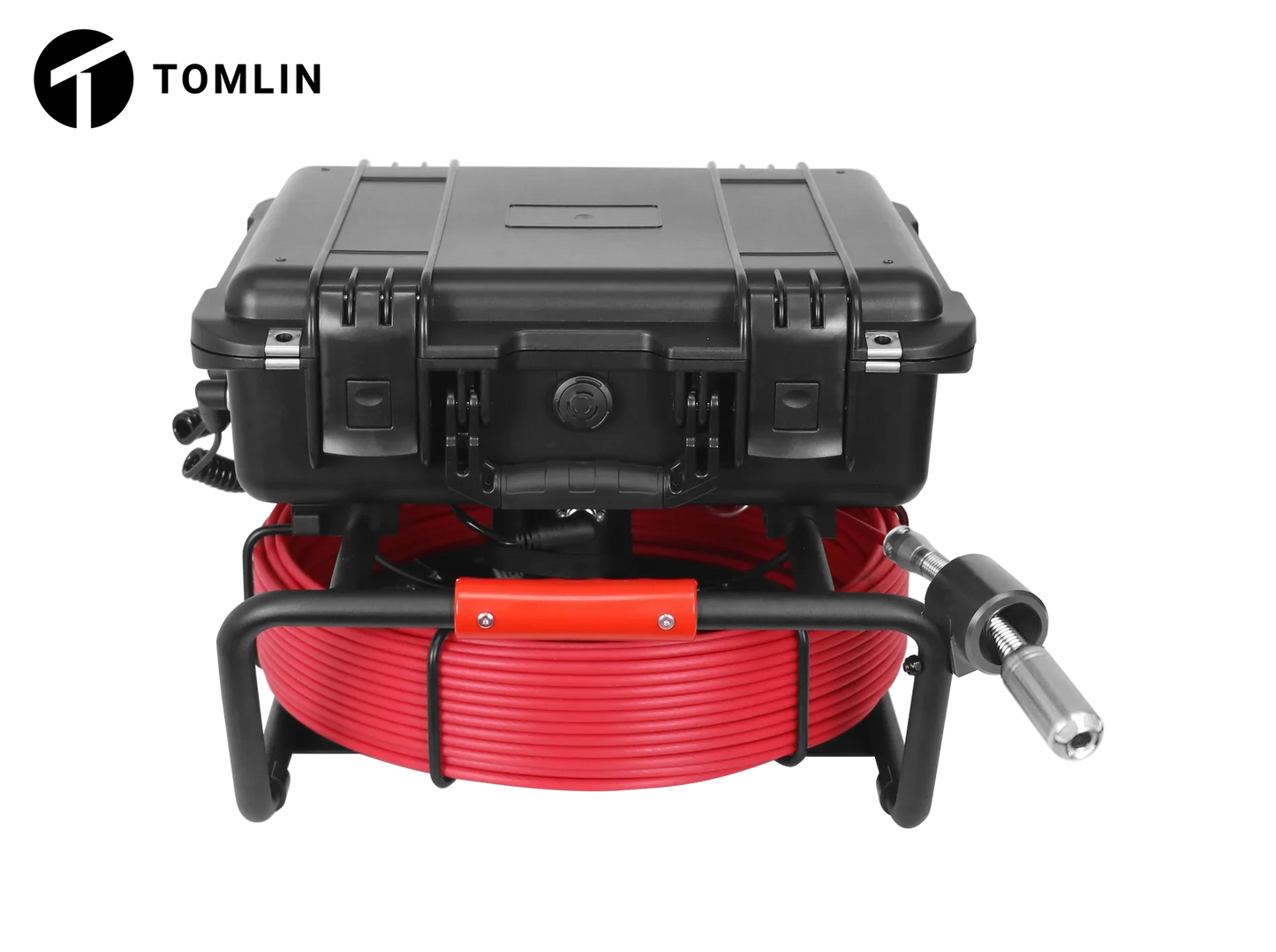

29mm Self-Levelling Pipe Inspection Camera 50m – TC-V13-WS29

Product Description

The TC-V13-WS29 is a professional self-levelling pipe inspection camera engineered for plumbing contractors, drain specialists and municipal maintenance teams requiring high-quality CCTV inspections and accurate underground pipe locating.

Featuring a 29mm HD self-levelling camera head with an integrated 512Hz sonde, a 13-inch HD IPS DVR monitor, and a 50m fibreglass push rod, the system produces stable, upright inspection footage while allowing the camera head to be located above ground using a compatible pipe locator.

Designed for inspecting pipelines from 50mm to 200mm, the TC-PI-13-50 is one of the most versatile inspection systems in the Tomlin range, making it ideal for everyday professional drain and sewer inspections.

---

Key Features

• 29mm HD self-levelling camera head
• Built-in 512Hz sonde transmitter
• 13" HD IPS LCD monitor
• 50m fibreglass push rod
• Suitable for 50–200mm pipe diameters
• 1080P Full HD recording
• MP4 video, photo and audio recording
• USB wireless keyboard support
• Digital metre counter
• Manual focus adjustment
• Image zoom (magnification & reduction)
• IP68 waterproof camera head

---

Technical Specifications

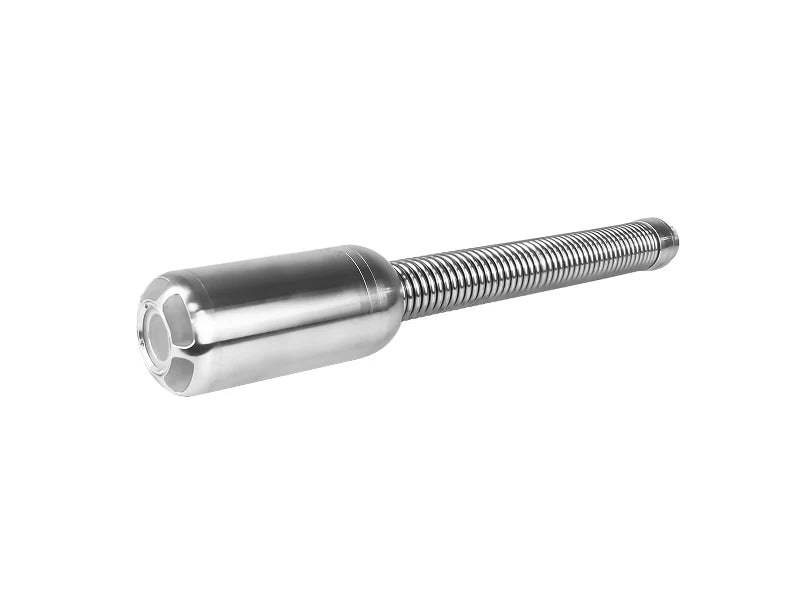

Camera Head

Specification	Details
Camera Head Diameter	29mm
Camera Length	68mm
Camera Type	Self-Levelling
Sonde	Integrated 512Hz
Camera Module	AHD
Camera Sensor	1/3" CMOS
Resolution	1080P Full HD
Effective Pixels	2.0MP
Viewing Angle	120°
Waterproof Rating	IP68
Camera Housing	Stainless Steel
LED Lights	12 × High Intensity White LEDs
Connection	Detachable Pin Type

---

Display & Recording

Specification	Details
Display	13" HD IPS LCD
Video Recording	1080P MP4
Photo Capture	Yes
Audio Recording	Yes
DVR	Integrated
USB Wireless Keyboard	Included
Video Input	Compatible with Tomlin camera heads
Digital Metre Counter	Yes
Battery Indicator	Yes
Manual Focus	Joystick Control
Pan/Focus Controls	Joystick
Image Zoom	Magnification & Reduction

---

Cable & Reel

Specification	Details
Push Rod Material	Fibreglass
Cable Diameter	7mm
Cable Length	50m
Cable Counter	Digital Metre Counter
Reel Type	Heavy Duty Portable Reel

---

Power

Specification	Details
Battery	8800mAh Rechargeable Li-ion
Operating Voltage	12V

---

General

Specification	Details
Pipe Diameter	50–200mm
Camera Head	29mm Self-Levelling
Sonde	Integrated 512Hz
Application	Professional Pipe Inspection

---

Applications

• Residential drain inspections
• Commercial plumbing
• Sewer inspections
• Underground service locating
• Preventative maintenance
• Municipal drainage inspections
• CCTV pipeline surveys
• Asset condition assessments

Benefits

Self-Levelling Camera

Automatically keeps the image upright for easier viewing and more professional inspection reports.

Integrated 512Hz Sonde

Accurately locate the camera head from above ground using a compatible pipe locator, reducing excavation time.

Full HD Inspection Recording

Capture high-definition video, photographs and audio for customer reporting and asset documentation.

Professional Control Unit

The large 13-inch display, wireless keyboard support and joystick controls make inspections faster and more efficient.

Built for Daily Use

Heavy-duty reel, stainless steel camera housing and rugged construction provide reliable performance in demanding field conditions.

---

What's Included

• TC-V13-WS29 Inspection Camera
• 29mm Self-Levelling Camera Head
• Integrated 512Hz Sonde
• 50m Fibreglass Push Rod
• 13" HD IPS DVR Control Unit
• USB Wireless Keyboard
• Rechargeable 8800mAh Li-ion Battery
• Battery Charger
• 40mm Camera Skid
• 85mm Camera Skid
• User Manual

---

Optional Accessories

• 512Hz Pipe Locator
• Replacement Battery
• Additional Camera Skids
• Replacement Push Rod
• Carry Bag
• Cleaning Kit

---

Why Choose the TC-V13-WS29?

The TC-V13-WS29 combines the three features most professional contractors need: self-levelling imaging, an integrated 512Hz sonde and a 50m fibreglass push rod. It provides excellent portability while delivering the performance required for professional drain inspections, fault locating and CCTV reporting.

---

Product Highlights

• 29mm Self-Levelling Camera
• Integrated 512Hz Sonde
• 13" HD IPS Monitor
• 50m Fibreglass Push Rod
• 1080P Full HD Recording
• Digital Metre Counter
• USB Wireless Keyboard
• IP68 Waterproof Camera Head
• Suitable for 50–200mm Pipes

---

Help Me Choose

Product Family	Tomlin Part No.	Camera Head	Typical Pipe Size	Cable Lengths	Screen	Self Levelling	Sonde	Best For
Micro Drain Camera	TC-V8-20	20mm Forward View	25–75mm	30m	8"	No	No	Household drains, sinks, showers and small waste pipes
Self-Levelling Pipe Inspection Camera Mini	TC-V9-23	23mm Self Levelling	30–150mm	30–40m	9"	Yes	Yes	Residential and commercial drain inspections
Self-Levelling Pipe Inspection Camera	TC-V13-WS29	29mm Self-Levelling	50–200mm	40-50m	13"	Yes	Yes	Professional drain inspections requiring an upright image
Heavy Duty Sewer Camera	TC-V13-3240AHD	40mm Self-Levelling	100–400mm	60–150m	13"	Yes	Yes	Main sewer lines, municipal infrastructure and civil contractors
Pan Tilt Sewer Camera	TC-V13-3250PTF	33mm or 50mm Pan & Tilt	75–1000mm+	60–150m	13"	No	Yes	Large diameter pipelines requiring full directional viewing
Dual View Sewer Camera	TC-V13-3245DU	45mm Dual View	100–600mm	60–150m	13"	No	Yes	Sewer condition surveys, junctions and lateral inspections
Advanced Multi-Camera Inspection System (SL)	TC-V13-DR23SL/17	23mm Self-Levelling + 17mm Camera	25–150mm	30m + 50m	13"	Yes	Yes	One system for domestic and commercial inspections
Advanced Multi-Camera Inspection System (SLPT)	TC-V13-DR33/23SL	23mm Self-Levelling + 33mm Pan & Tilt	20–1000mm+	30m + 50m	13"	Mixed	Yes	Complete inspection solution from household drains to large sewers
