Description

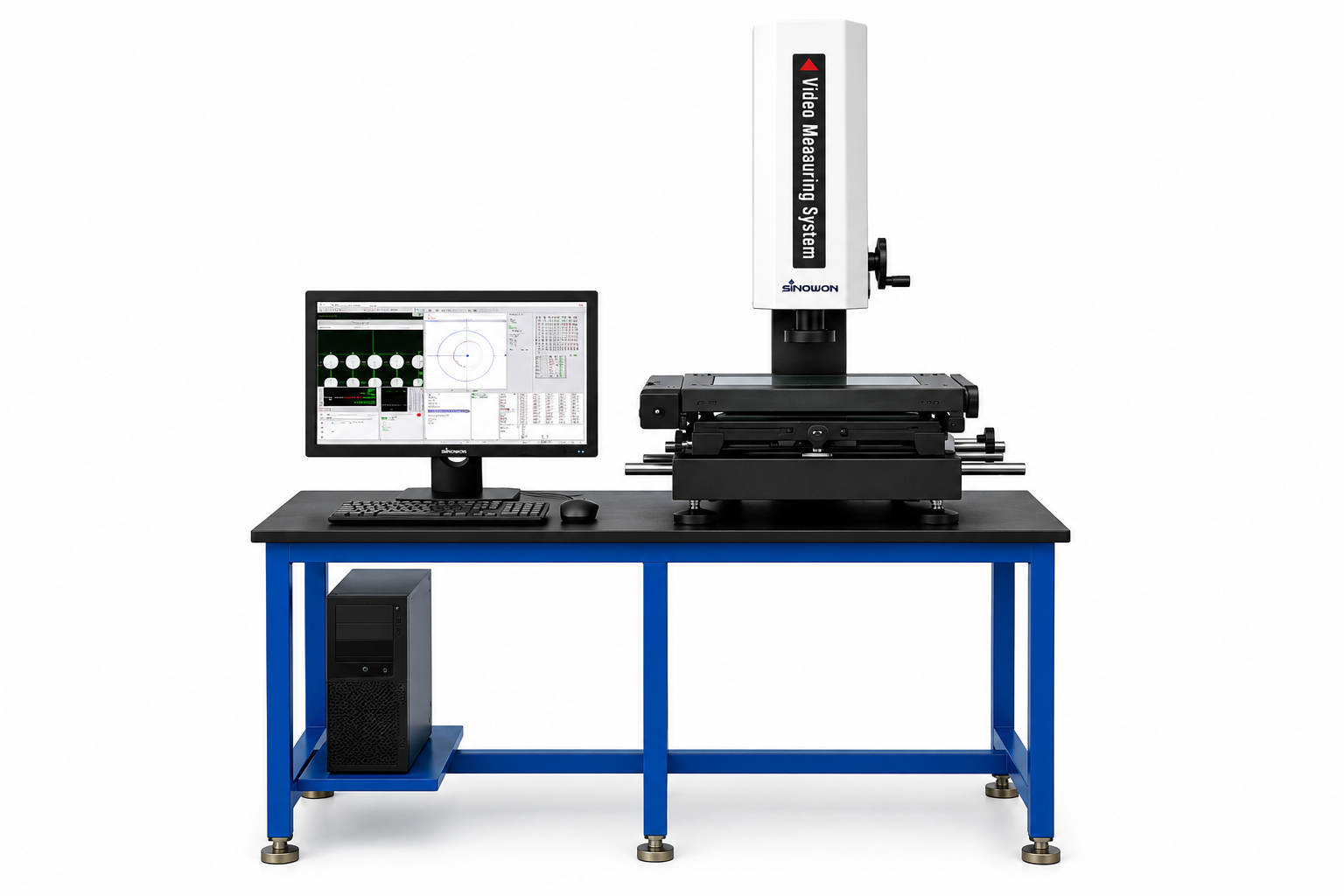

The M4 Series Semi-Automatic Vision Measuring Machines are designed for manufacturers requiring faster inspection speeds, improved repeatability and reduced operator influence compared to traditional manual systems.

Built on the proven M3 platform, the M4 Series introduces automatic Z-axis focusing using precision linear guides and servo motor control. This eliminates manual focusing errors, improves measurement consistency and significantly increases inspection efficiency.

Available in measuring capacities from 250 × 150mm through to 500 × 400mm, the M4 Series supports both advanced optical measurement and optional touch probe measurement for 3D inspection applications.

Combining precision granite construction, automatic focusing, high-resolution optics and powerful iMeasuring software, the M4 Series is the ideal solution for dedicated quality departments and production environments requiring reliable, repeatable dimensional inspection.

---

Features

• Semi-automatic operation with automatic Z-axis focusing
• Precision granite base and column construction
• Servo motor controlled focus system
• Eliminates operator focusing errors
• Improves measurement accuracy and repeatability
• Measuring capacities from 250 × 150mm to 500 × 400mm
• High precision optical scales with 0.5μm resolution
• Repeatability up to 2μm
• Measurement accuracy up to 3.0 + L/200μm
• High-resolution digital camera
• 6.5X precision zoom lens
• Optical magnification 0.7X – 4.5X
• Video magnification 26X – 172X
• Programmable 4-ring 8-zone LED illumination
• LED contour illumination
• Optional coaxial lighting
• iMeasuring metrology software included
• Optional touch probe upgrade for 3D measurement
• Supports Windows 10 and Windows 11

---

Available Models

---

Available Configurations

C – Camera + Auto Focus

Combines high-resolution optical measurement with automatic Z-axis focusing. Ideal for fast and repeatable 2D inspection where operator-independent measurements are required.

Models:

• M4-VMS-2515C
• M4-VMS-3020C
• M4-VMS-4030C
• M4-VMS-5040C

D – Camera + Probe + Auto Focus

Combines automatic focusing with touch probe technology for advanced dimensional inspection, including heights, depths, step heights and complex geometric features.

Models:

• M4-VMS-2515D
• M4-VMS-3020D
• M4-VMS-4030D
• M4-VMS-5040D

---

Applications

• High-throughput Quality Control
• First Article Inspection (FAI)
• Production Inspection
• Incoming Goods Inspection
• Precision Machining
• Toolmaking
• Automotive Manufacturing
• Aerospace Components
• Medical Device Manufacturing
• Electronics Manufacturing
• Mould Manufacturing
• Engineering Workshops
• Research & Development

---

What Can the M4 Series Measure?

C Configuration – Camera + Auto Focus

• Length
• Width
• Diameter
• Radius
• Angle
• Hole Position
• Edge Detection
• Geometric Features
• Profile Measurement

D Configuration – Camera + Probe + Auto Focus

Everything included in Configuration C plus:

• Height Measurement
• Depth Measurement
• Step Height Measurement
• Surface Features
• Complex Geometries
• 3D Dimensional Measurement
• Geometric Tolerances

---

Specifications

---

Why Choose the M4 Series?

The M4 Series is the ideal upgrade from a traditional manual vision measuring machine. By introducing automatic Z-axis focusing, the system significantly reduces operator influence while increasing inspection speed and measurement repeatability.

For manufacturers conducting frequent dimensional inspections, the M4 Series offers an excellent balance between affordability and automation without the investment required for a fully CNC vision measuring machine.

---

Standard Accessories

• M4 Series Semi-Automatic Vision Measuring Machine
• High Resolution Digital Camera
• 6.5X Zoom Lens
• Surface LED Illumination System
• Contour LED Illumination System
• iMeasuring Software
• Calibration Certificate
• User Documentation

---

Downloads

• M4 Datasheet


---

Alternative Names

• Semi-Automatic Vision Measuring Machine
• Semi-Automatic Video Measuring System
• Auto Focus Vision Measuring Machine
• Optical Measuring Machine
• Video Measurement System
• Dimensional Inspection Machine
• Precision Measuring Machine
• 2.5D Measuring Machine
• 3D Measuring Machine
• Touch Probe Measuring System
• Quality Control Measuring System
• Industrial Metrology System

Downloads

• M2 Datasheet
• M3 Datasheet
• M4 Datasheet
• V3 Datasheet
• A6 Datasheet


Help Me Choose a Vision Measuring Machine

Vision Measuring Machines (VMMs) are available in a wide range of sizes, automation levels and measurement technologies. Selecting the right system depends on your part size, measurement requirements, inspection volume and level of automation required.

Use the quick selection guide below to identify the most suitable series for your application, then compare individual models using the comparison table.

---

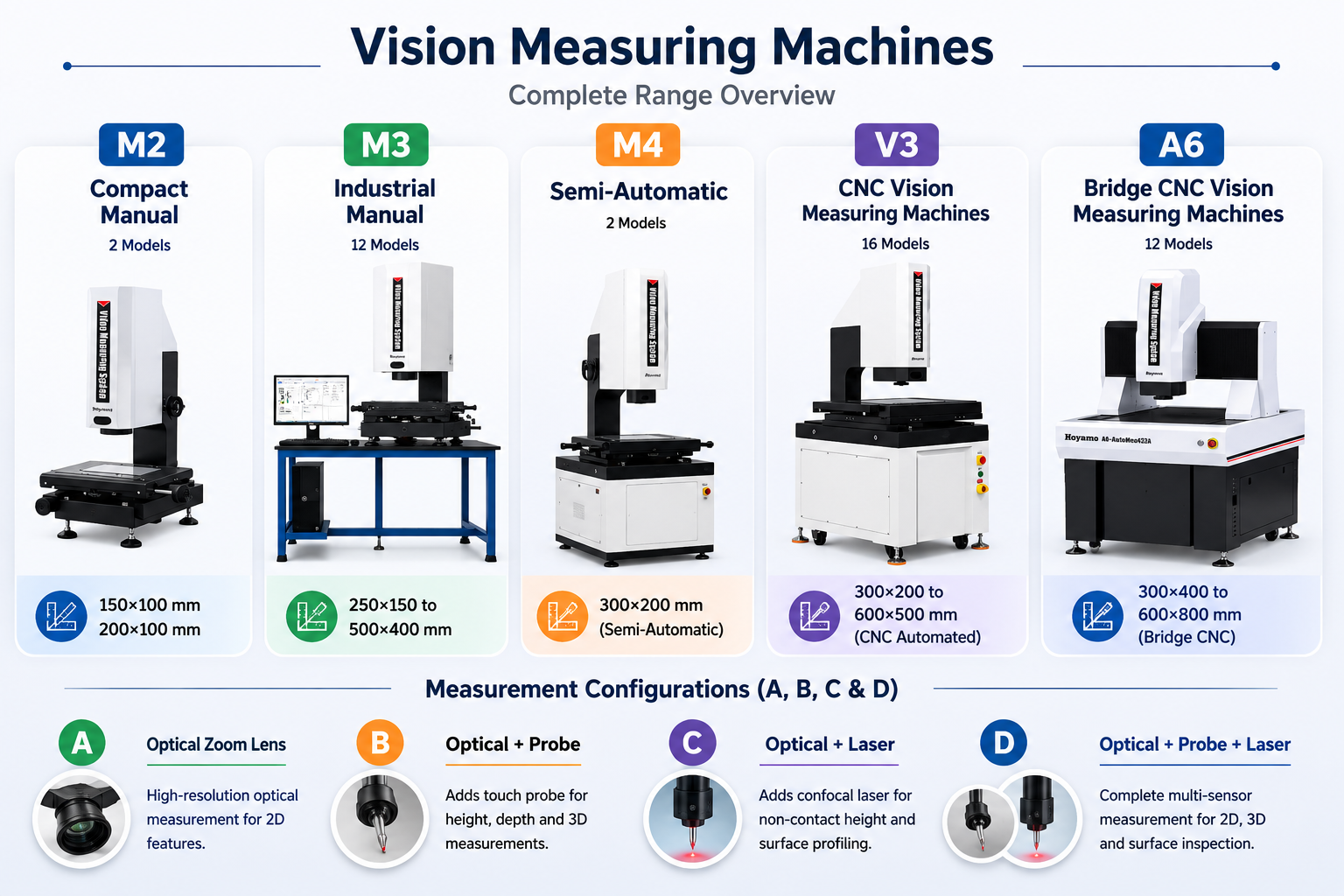

Quick Selection Guide

---

Vision Measuring Machine Comparison Table

Compare all Vision Measuring Machine models by measuring capacity, measurement technology, automation level and intended application.

For an explanation of each specification, measurement configuration and automation level, please refer to the guide below the comparison table.

Series	Variant	X Travel	Y Travel	Z Travel	Config	Automation	Best For
M2	M2-1510	150	100	100	2D	Manual	Small precision parts
M2	M2-2010	200	100	100	2D	Manual	Small precision parts
M3	M3-2515	250	150	200	2D	Manual	Manufacturing QC
M3	M3-3020	300	200	200	2D	Manual	Manufacturing QC
M3	M3-4030	400	300	200	2D	Manual	Manufacturing QC
M3	VMS-5040	500	400	200	2D	Manual	Manufacturing QC
M3	M3-2515A	250	150	200	A	Manual	Enhanced optical inspection
M3	M3-3020A	300	200	200	A	Manual	Enhanced optical inspection
M3	M3-4030A	400	300	200	A	Manual	Enhanced optical inspection
M3	VMS-5040A	500	400	200	A	Manual	Enhanced optical inspection
M3	M3-2515B	250	150	200	B	Manual	Height & depth measurement
M3	M3-3020B	300	200	200	B	Manual	Height & depth measurement
M3	M3-4030B	400	300	200	B	Manual	Height & depth measurement
M3	VMS-5040B	500	400	200	B	Manual	Height & depth measurement
M4	M3-2515C	250	150	200	C	Semi-Automatic	Faster inspection
M4	M3-3020C	300	200	200	C	Semi-Automatic	Faster inspection
M4	M3-4030C	400
