40mm Self-Levelling AHD Sewer Pipe Inspection Camera

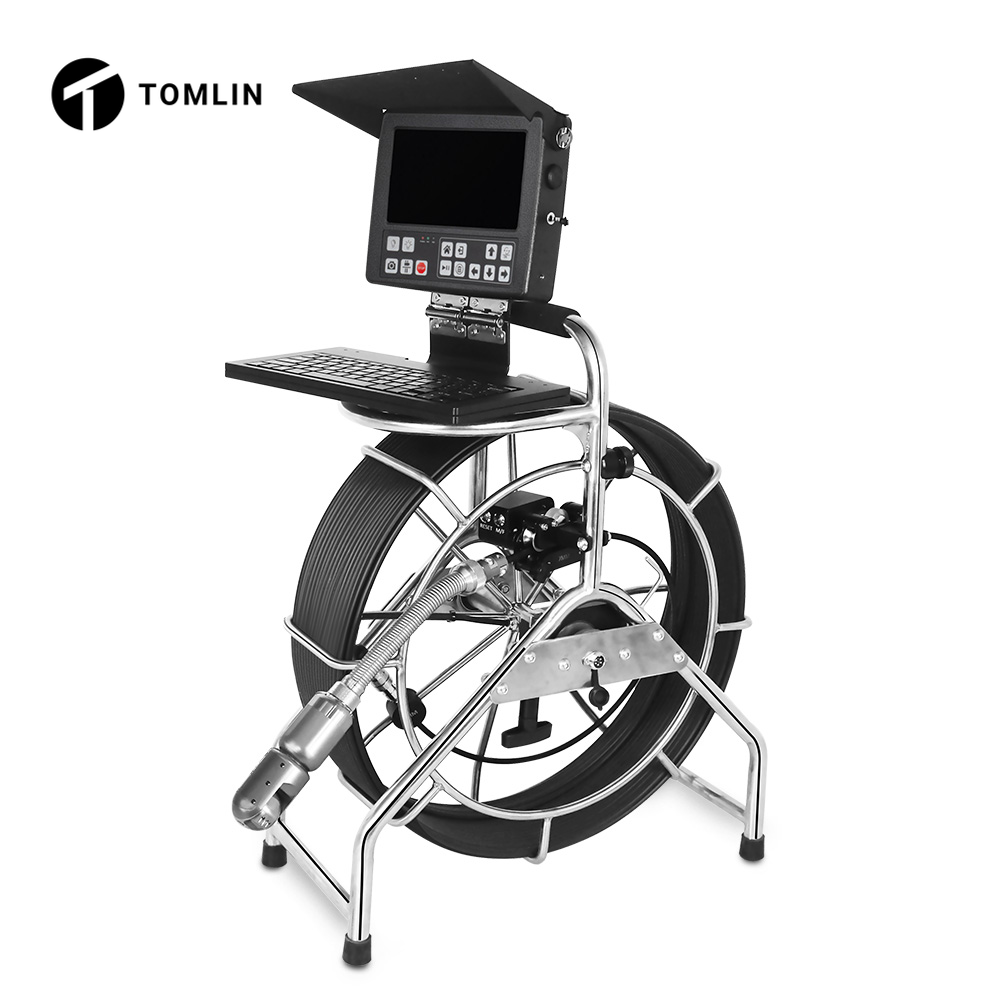

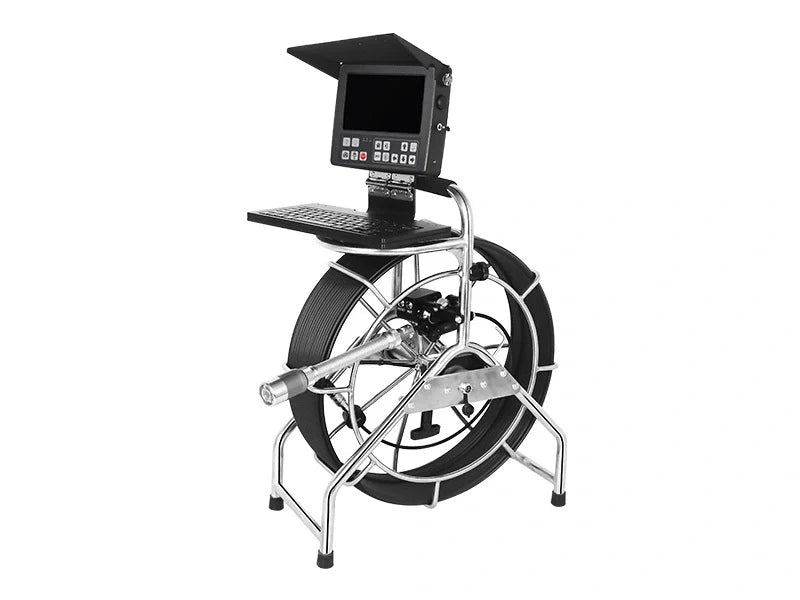

The Tomlin 40mm Self-Levelling AHD Sewer Pipe Inspection Camera is a heavy-duty CCTV inspection system engineered for professional diagnostics of medium to large diameter pipelines. Designed for inspecting pipes from Ø50mm to Ø300mm, the system features a 40mm stainless steel self-levelling camera head with a high-definition AHD 1.3MP CMOS sensor that automatically maintains an upright image throughout the inspection.
The system combines an 8-inch HD IPS DVR control unit, digital metre counter, heavy-duty fibreglass push rod cable and rechargeable lithium-ion battery, providing reliable performance for municipal sewer inspections, industrial pipelines and professional drainage contractors.
Available with 60m, 100m and 150m cable lengths, the system is built for long-distance inspections while delivering stable HD video recording, accurate distance measurement and professional reporting capabilities.
Key Features
- 40mm HD self-levelling camera head
- Suitable for pipe diameters Ø50mm–300mm
- 1.3MP AHD CMOS image sensor
- Automatic self-levelling image correction
- Built in 512Hz Sonde Transmitter
- IP68 waterproof stainless steel camera head
- 12 high-intensity white LED lights
- 8" HD IPS LCD monitor
- 720P HD DVR video recording
- USB storage support (up to 32GB)
- Digital metre counter (<1% error)
- Heavy-duty fibreglass push rod cable
- Available in 60m, 100m and 150m cable lengths
- 7000mAh rechargeable Li-ion battery
- Portable design with carrying bag and sunshade
Technical Specifications

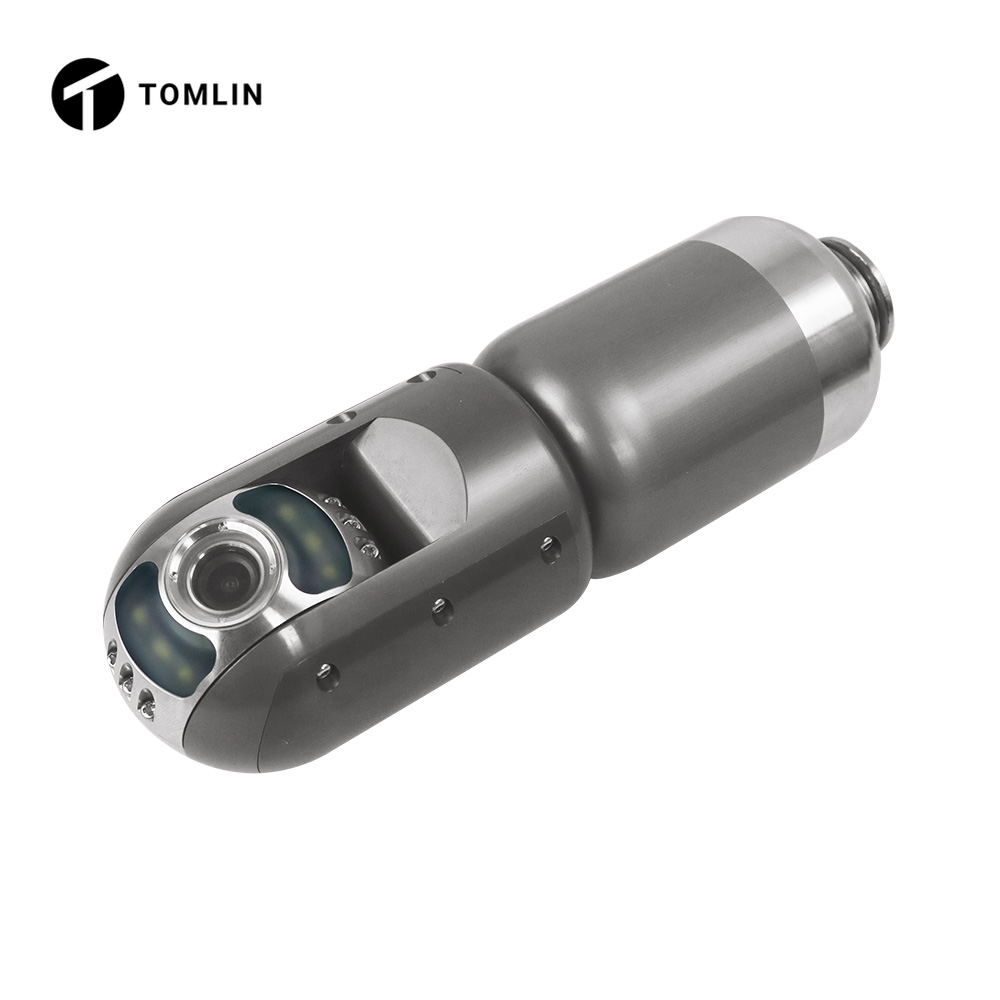

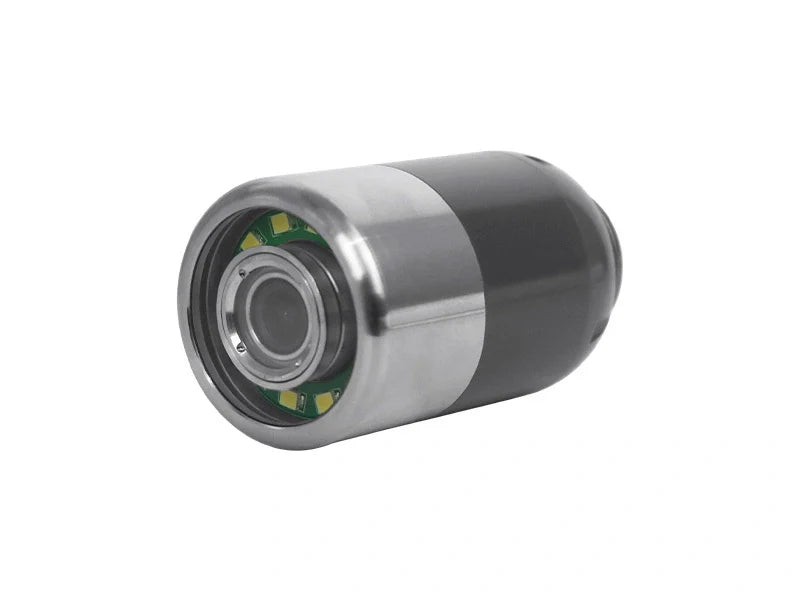

Camera System
| Specification | Details |
|---|---|
| Camera Head Diameter | 40mm × 60mm |
| Suitable Pipe Size | Ø50mm–300mm |
| Camera Sensor | 1/3" CMOS AHD |
| Resolution | 1.3MP |
| Field of View | 90° |
| Image Orientation | Self-Levelling |
| Waterproof Rating | IP68 |
| Camera Housing | Stainless Steel |
| Lens Lighting | 12 High-Intensity White LEDs |
| Connection | Detachable Pin-Type |

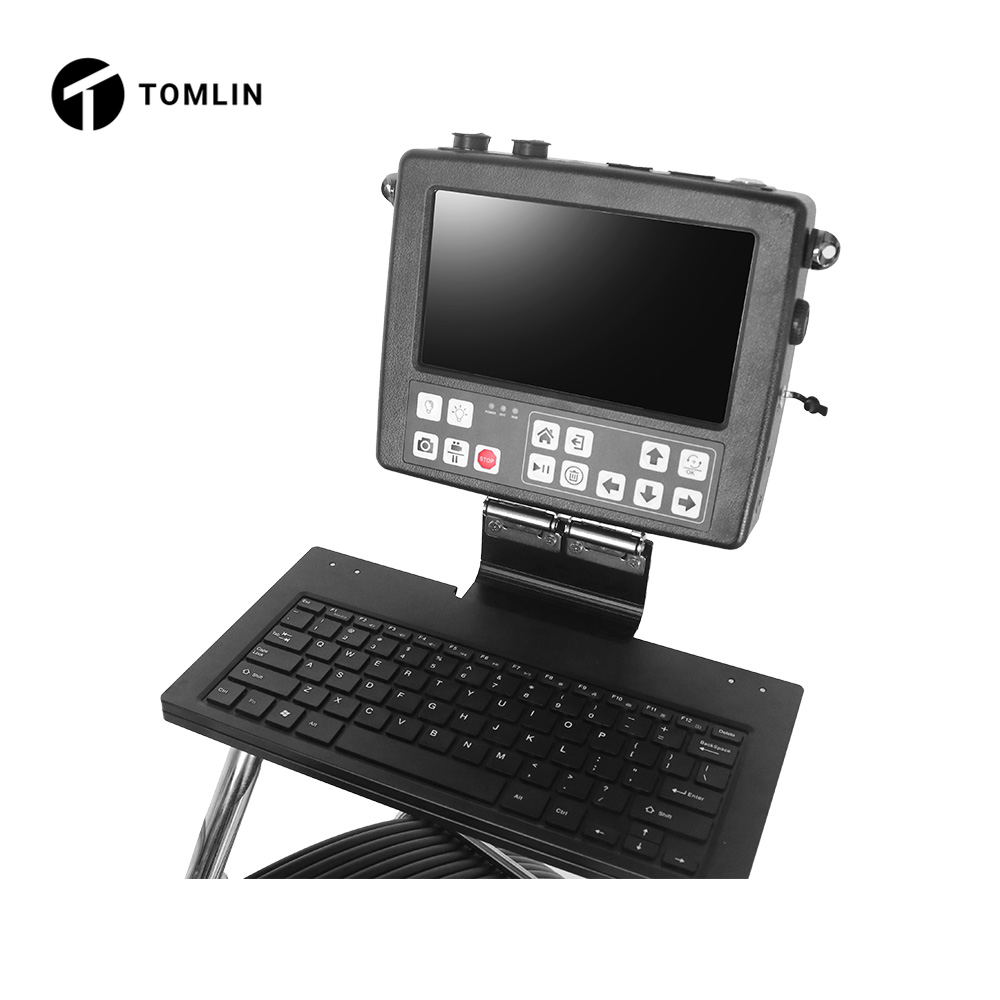

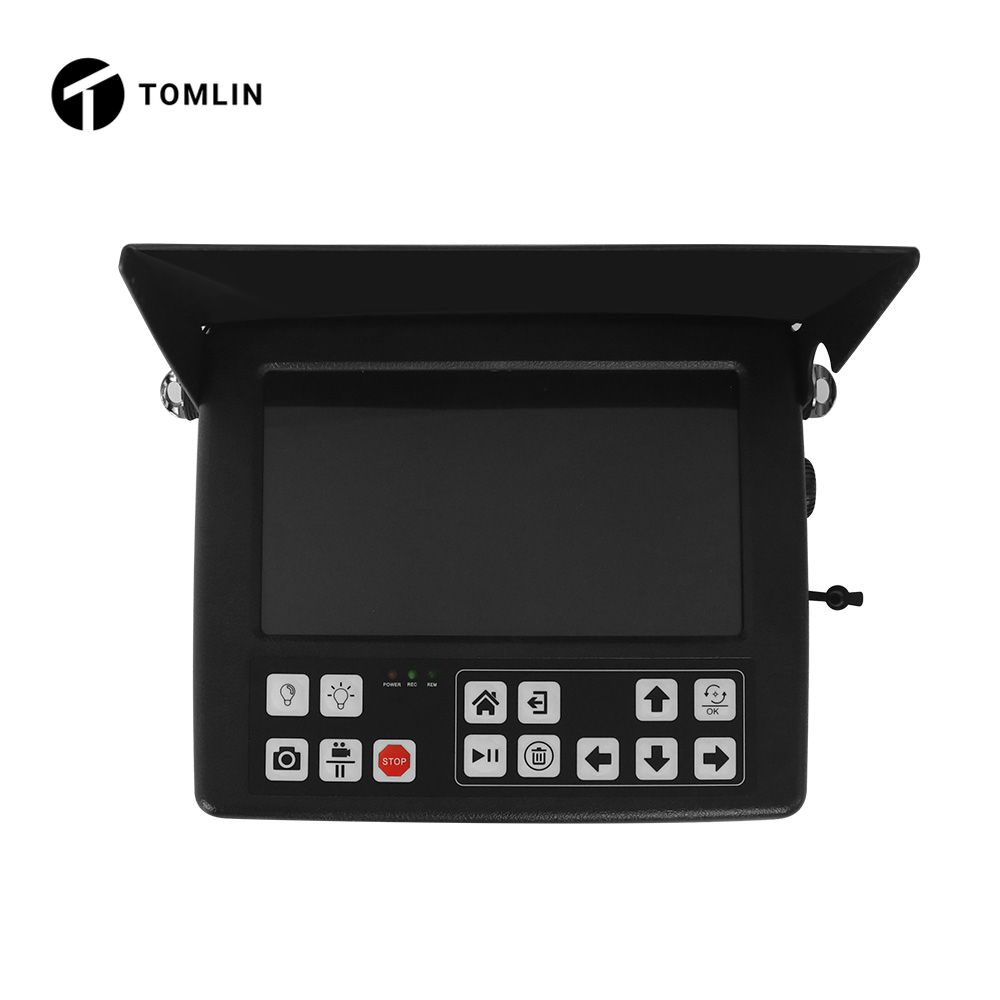

Display & Recording
| Specification | Details |
|---|---|
| Display | 8" HD IPS LCD |
| Display Resolution | 1280 × 720 |
| Aspect Ratio | 16:9 |
| Recording Format | AVI |
| Video Resolution | 720P HD |
| Storage | USB Flash Drive (Up to 32GB) |
| Waterproof Control Panel | Yes |
| Working Platform | Integrated Keyboard |

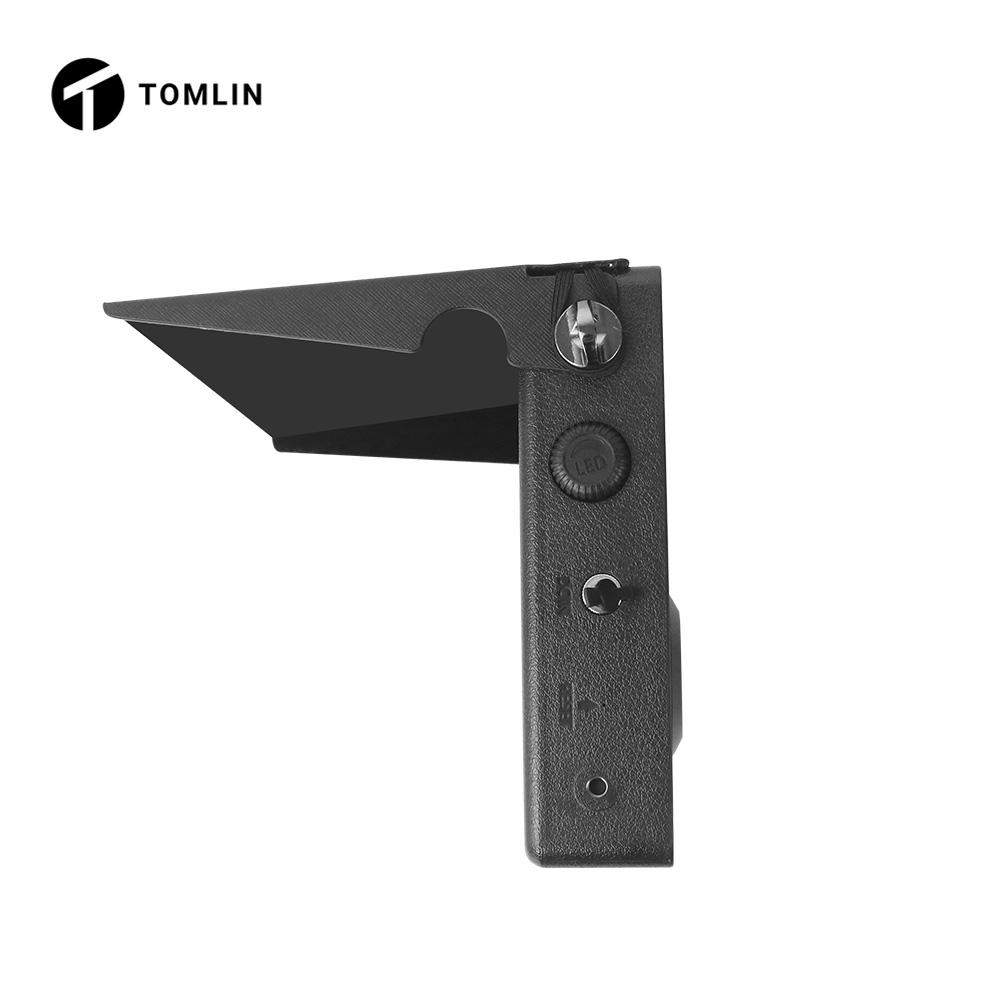

| Sunshade | Included |
Power
| Specification | Details |
|---|---|
| Battery | 7000mAh Rechargeable Li-ion |
| Operating Time | Approximately 4 Hours |
| Charging Time | Approximately 7 Hours |
| Power Supply | AC110V–240V Charger |

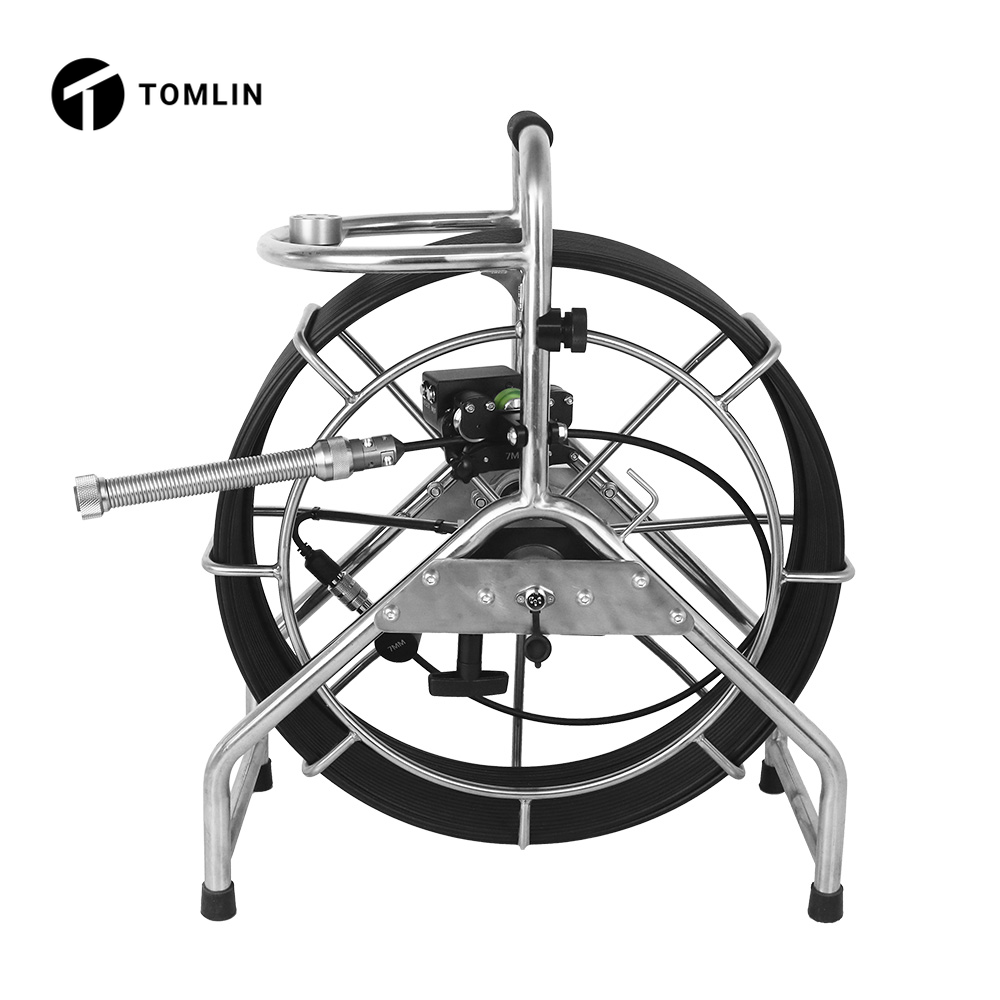

Cable & Reel
| Specification | Details |
|---|---|
| Push Rod Material | Fibreglass |
| Cable Diameter | 9mm / 11mm |
| Available Cable Lengths | 60m |
| Reel Dimensions | 700 × 280 × 840mm |
| Digital Metre Counter | Less than 1% Error |
System Dimensions
| Specification | Details |
|---|---|
| DVR Control Unit | 230 × 200 × 50mm |
| Carry Bag | 320 × 220 × 250mm |
| Shipping Carton 1 | 830 × 410 × 910mm |
| Shipping Carton 2 | 400 × 300 × 300mm |
| Volume Weight | 76kg |
Applications
- Municipal sewer inspections
- Wastewater pipeline maintenance
- Industrial pipeline diagnostics
- Stormwater inspections
- Drainage system maintenance
- Underground infrastructure inspections
- Construction and civil engineering projects
- Professional plumbing services
Benefits
Automatic Self-Levelling Camera
The self-levelling camera head automatically maintains an upright image, making inspections easier to interpret and improving reporting accuracy.
Designed for Long-Distance Inspections
Available with cable lengths up to 150 metres, the heavy-duty fibreglass push rod enables efficient inspection of long sewer and drainage pipelines.
Professional HD Recording
Capture HD video directly to USB storage for inspection reports, maintenance documentation and asset management.
Built for Demanding Environments
The stainless steel camera housing, IP68 waterproof construction and industrial cable reel provide reliable performance in harsh field conditions.
Delivery Scope
- 40mm Self-Levelling AHD Camera Head
- 8" HD DVR Control Unit
- Fibreglass Cable Reel (Length as Selected)
- 7000mAh Rechargeable Li-ion Battery
- Wireless Keyboard
- Test Cable
- Link Cables
- Power Charger
- Sunshade
- Carrying Bag
- User Manual
Help Me Choose
| Product Family | Tomlin Part No. | Camera Head | Typical Pipe Size | Cable Lengths | Screen | Self Levelling | Sonde | Best For |
|---|---|---|---|---|---|---|---|---|
| Micro Drain Camera | TC-V8-20 | 20mm Forward View | 25–75mm | 30m | 8" | No | No | Household drains, sinks, showers and small waste pipes |
| Self-Levelling Pipe Inspection Camera Mini | TC-V9-23 | 23mm Self Levelling | 30–150mm | 30–40m | 9" | Yes | Yes | Residential and commercial drain inspections |
| Self-Levelling Pipe Inspection Camera | TC-V13-WS29 | 29mm Self-Levelling | 50–200mm | 40-50m | 13" | Yes | Yes | Professional drain inspections requiring an upright image |
| Heavy Duty Sewer Camera | TC-V13-3240AHD | 40mm Self-Levelling | 100–400mm | 60–150m | 13" | Yes | Yes | Main sewer lines, municipal infrastructure and civil contractors |
| Pan Tilt Sewer Camera | TC-V13-3250PTF | 33mm or 50mm Pan & Tilt | 75–1000mm+ | 60–150m | 13" | No | Yes | Large diameter pipelines requiring full directional viewing |
| Dual View Sewer Camera | TC-V13-3245DU | 45mm Dual View | 100–600mm | 60–150m | 13" | No | Yes | Sewer condition surveys, junctions and lateral inspections |
| Advanced Multi-Camera Inspection System (SL) | TC-V13-DR23SL/17 | 23mm Self-Levelling + 17mm Camera | 25–150mm | 30m + 50m | 13" | Yes | Yes | One system for domestic and commercial inspections |
| Advanced Multi-Camera Inspection System (SLPT) | TC-V13-DR33/23SL | 23mm Self-Levelling + 33mm Pan & Tilt | 20–1000mm+ | 30m + 50m | 13" | Mixed | Yes | Complete inspection solution from household drains to large sewers |
