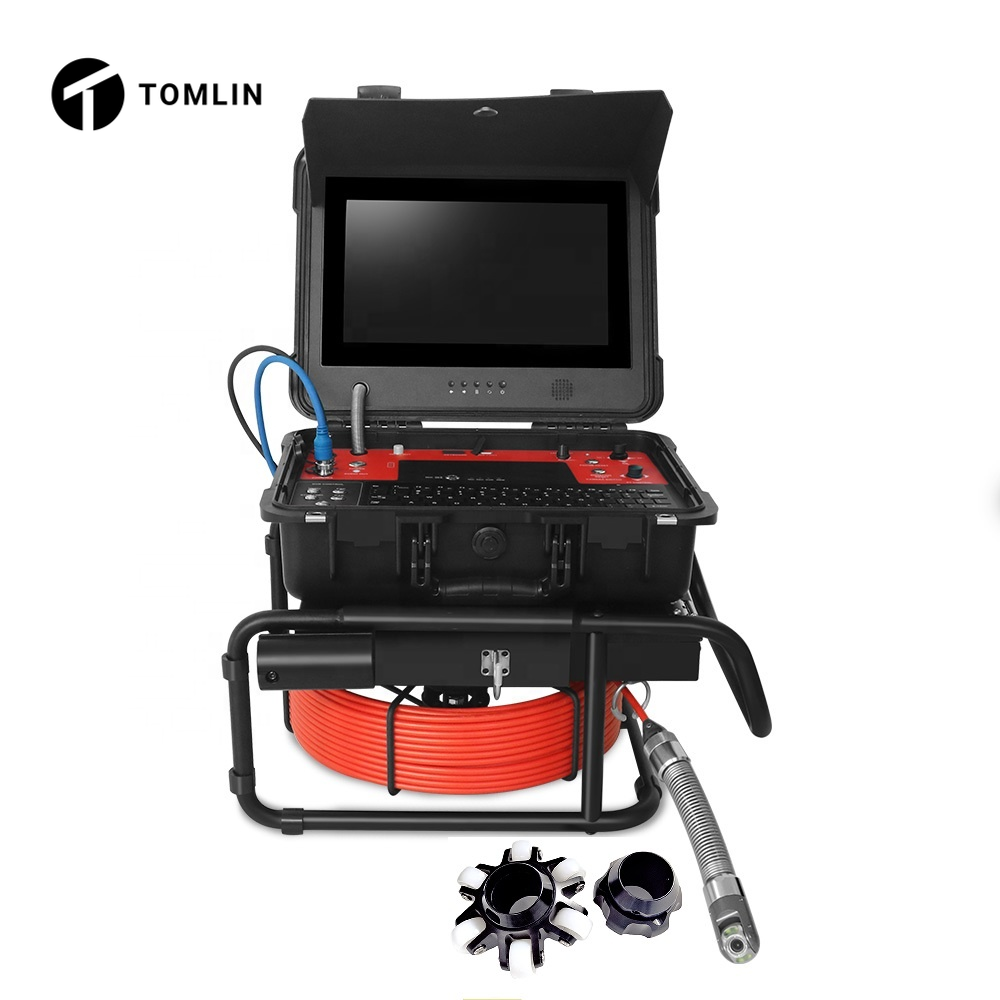

30-50m Pipe & Drain Inspection Camera 360° Rotation – V13-33PTF

Description

The 13-Inch 33mm HD AHD Pan Tilt Sewer Drain Pipe Camera (Model V13-33PTF) is a professional-grade pipe inspection system designed for precise diagnostics in sewer, drainage, and underground pipeline applications. Featuring a 33mm AHD camera head with full 360° pan and 180° tilt rotation, this system allows complete internal pipe visibility, even in complex or hard-to-reach sections.

Equipped with manual focus adjustment and a 2.0MP Full HD CMOS sensor, the camera delivers sharp, detailed visuals for accurate damage detection. The 13-inch HD IPS LCD screen (1920×1080 resolution) ensures clear real-time monitoring, while the integrated DVR system supports 1080P video recording, audio capture, and photography.

With an 8800mAh rechargeable Li-ion battery, digital meter counter (error <1%), USB wireless keyboard for on-screen annotations, and durable 7mm fiberglass push rod cable (20m–60m options), this all-in-one inspection system is built for professional plumbing, municipal, and industrial use.

Features

• 33mm AHD camera head with 360° pan and 180° tilt rotation

• Manual focus adjustment for precise image clarity

• 2.0MP Full HD CMOS sensor

• 13-inch HD IPS LCD screen (1920×1080 resolution)

• 1080P DVR recording with audio and photo capture

• USB wireless keyboard for real-time text input

• Built-in 8800mAh rechargeable Li-ion battery

• Digital meter counter with less than 1% error

• IP68 waterproof camera head

• Adjustable high-intensity LED lighting

• Detachable aviation plug connection

• Durable 7mm fiberglass push rod cable

• All-in-one portable design

Specifications

Model: V13-33PTF
Screen Size: 13-inch HD IPS LCD
Resolution: 1920 × 1080

Camera Head

• Size: 33 × 72mm

• Sensor: 1/3" CMOS

• Resolution: 2.0MP (Full HD)

• Viewing Angle: 120°

• Rotation Range: Pan 360°, Tilt 180°

• Focus: Manual adjustable focus

• Waterproof Rating: IP68

• Lighting: 4 adjustable high-brightness LEDs

• Material: Sapphire glass lens window & stainless steel housing

• Connector: Detachable aviation plug

DVR Control Unit

• Video Format: 1080P

• Functions: Video recording, audio recording, photography

• Screen: Waterproof panel with waterproof DVR keys

• Keyboard: USB wireless keyboard for live annotations

• Video Input: Compatible with different camera heads

• Meter Counter: Digital meter counter display (error <1%)

• Battery Capacity: 8800mAh rechargeable Li-ion

• Battery Level Indicator: Yes

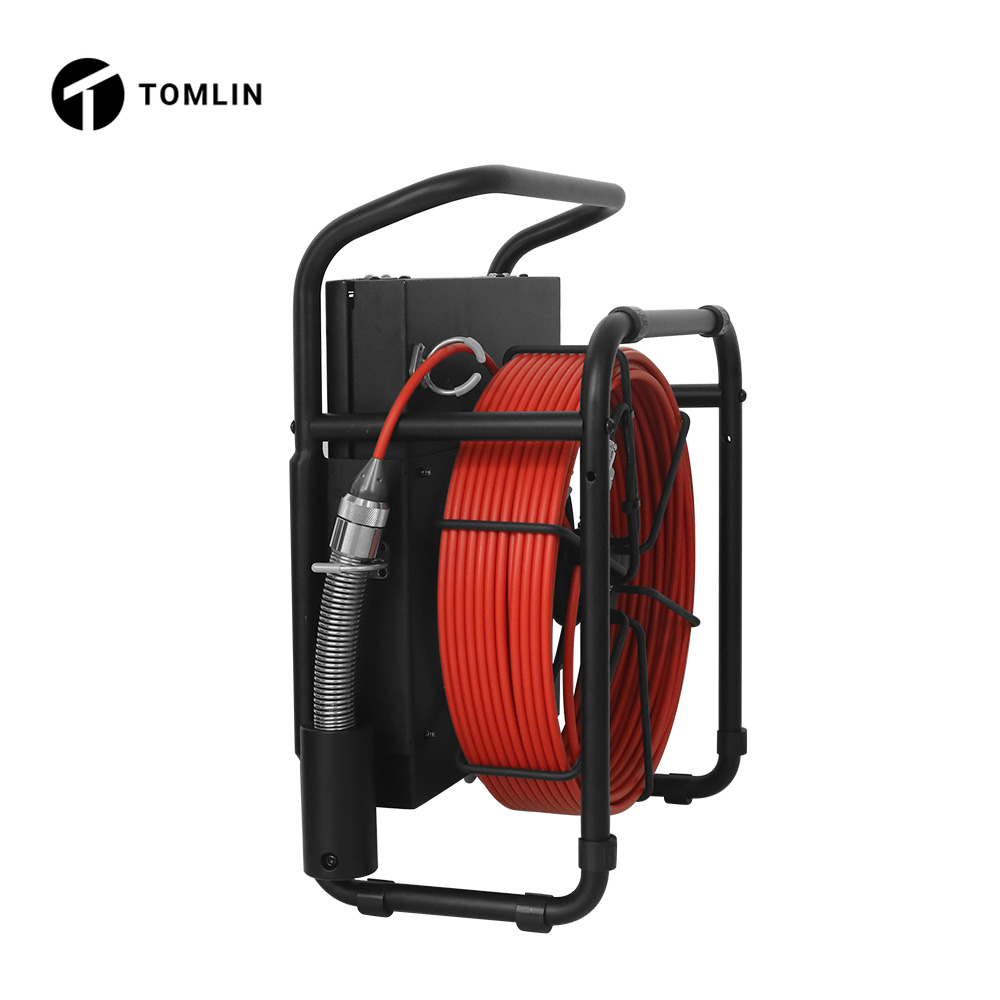

Cable Reel

• Cable Material: Fiberglass push rod

• Cable Diameter: 7mm

• Cable Length Options: 20m / 30m / 40m / 50m / 60m

• Reel Size: 35 × 9cm

• Integrated Digital Meter Counter

Delivery Scope

• 1 × 33mm Pan Tilt AHD Camera Head

• 1 × 13-inch DVR Control Unit

• 1 × Fiberglass Cable Reel (length as selected)

• 1 × 8800mAh Rechargeable Li-ion Battery (built-in)

• 1 × USB Wireless Keyboard

• 1 × Power Charger

• User Manual

Industries Used In

• Professional plumbing and drain cleaning

• Sewer and wastewater inspection

• Municipal underground pipeline maintenance

• Industrial pipeline diagnostics

• Construction and infrastructure inspection

• Utility and underground cable detection

• Property and facility management
