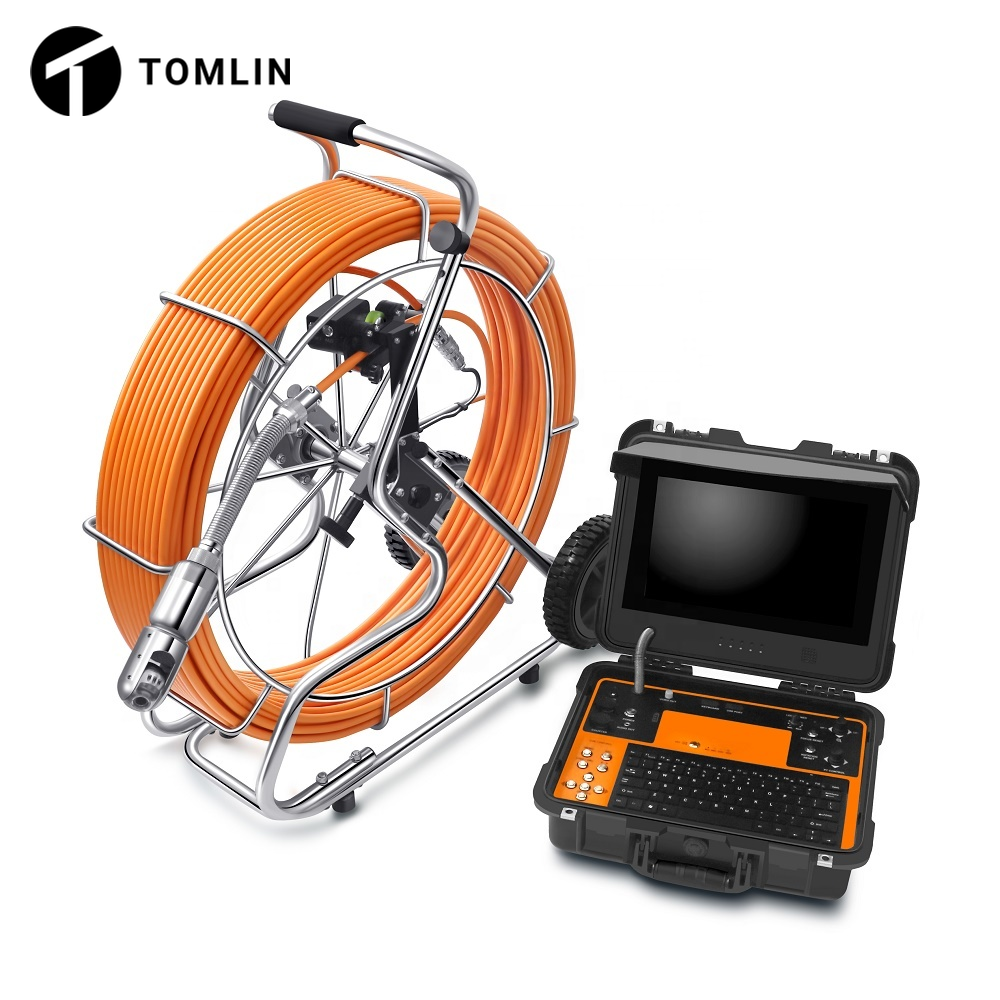

120m Pipe & Drain Inspection Camera 360° Rotation – V13-3250PTF

Description

The 50mm Pan Tilt AHD Sewer Inspection Camera (Model V13-3250PTF) is a heavy-duty, professional pipe inspection system designed for large-diameter sewer, drainage, and underground pipeline diagnostics. Featuring a 50mm pan and tilt camera head with full 360° rotation and 180° tilt, this system ensures complete internal pipe coverage for accurate fault detection.

Equipped with a high-performance AHD CMOS sensor and manual focus adjustment, the camera provides sharp and detailed visuals across long inspection distances. The 13-inch HD IPS LCD monitor (1980×1080 resolution) delivers clear real-time viewing, while the integrated DVR supports video recording, audio recording, and image capture for documentation and reporting.

The robust 9mm / 11mm fiberglass push rod cable (60m–150m options) allows long-distance inspections in demanding environments. With an 8800mAh rechargeable Li-ion battery and digital meter counter (error <1%), this system is built for extended industrial and municipal applications.

Features

• 50mm AHD pan & tilt camera head

• 360° pan and 180° tilt rotation

• Manual adjustable focus for precise detail

• IP68 waterproof stainless steel housing

• 13" HD IPS LCD screen (1980×1080 resolution)

• DVR recording with video, audio, and photography

• USB wireless keyboard for real-time text input

• Built-in 8800mAh rechargeable Li-ion battery

• Digital meter counter with less than 1% error

• 6 adjustable high-intensity LED lights

• Aviation plug detachable connection

• Heavy-duty 9mm / 11mm fiberglass push rod cable

• Suitable for long-range inspection (60m–150m)

Specifications

Model: V13-3250PTF
Screen Size: 13-inch HD IPS LCD
Resolution: 1980 × 1080
Power Supply: 8800mAh rechargeable Li-ion battery

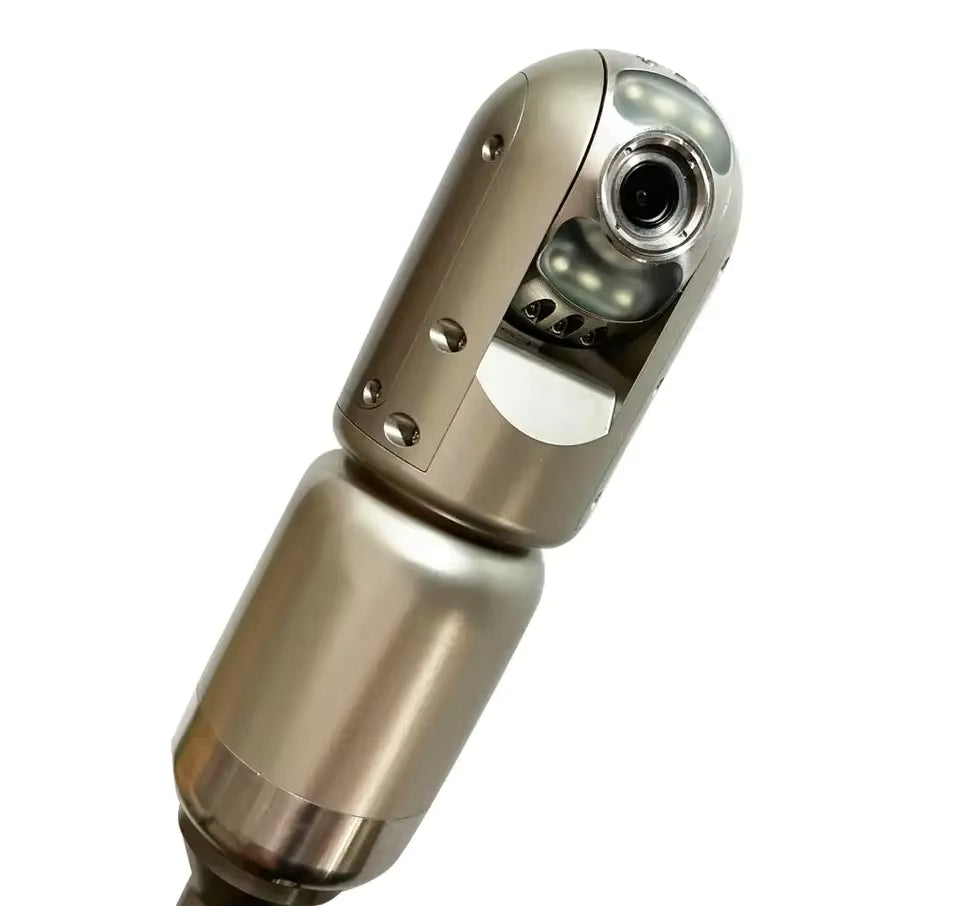

Camera Head

• Size: Ø50mm × 154mm

• Sensor: 1/3" CMOS

• Resolution: 1.3MP / 2.0MP AHD

• Viewing Angle: 120°

• Rotation Range: Pan 360°, Tilt 180°

• Focus: Manual adjustable

• Waterproof Rating: IP68

• Lighting: 6 adjustable high-brightness LEDs

• Material: Sapphire glass lens window & stainless steel housing

• Connector: Detachable aviation plug

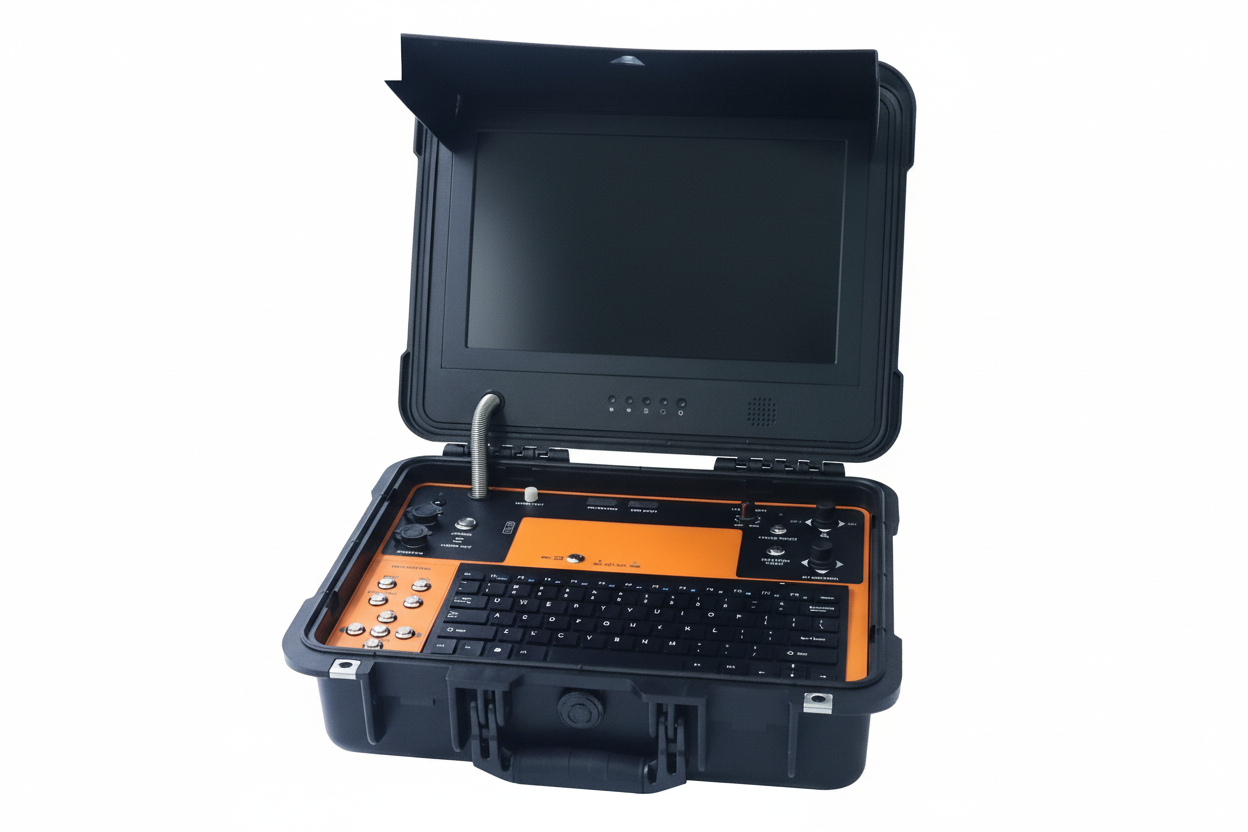

DVR Control Unit

• Screen: 13" HD IPS LCD

• Resolution: 1980 × 1080

• Waterproof Keys & Panel: Yes

• Functions: Video recording, audio recording, photography

• Keyboard: USB wireless keyboard for live annotation

• Meter Counter: Digital display on screen (error <1%)

• Battery Level Indicator: Yes

Cable Reel

• Cable Material: Fiberglass push rod

• Cable Diameter: 9mm / 11mm

• Cable Length Options: 60m / 80m / 100m / 120m / 150m

• Reel Size: 70 × 28 × 84cm

• Integrated Digital Meter Counter

Delivery Scope

• 1 × 50mm Pan Tilt AHD Camera Head

• 1 × 13-inch DVR Control Unit

• 1 × Fiberglass Cable Reel (length as selected)

• 1 × 8800mAh Rechargeable Li-ion Battery (built-in)

• 1 × USB Wireless Keyboard

• 1 × Power Charger

• User Manual

Industries Used In

• Municipal sewer inspection

• Drainage and wastewater maintenance

• Industrial pipeline diagnostics

• Water supply pipe inspection

• Underground cable and utility detection

• Construction and infrastructure projects

• Professional plumbing services
