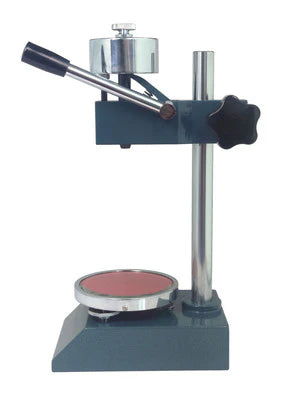

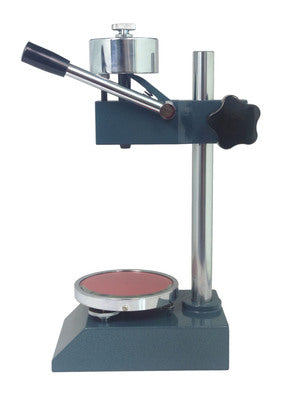

TOMLIN A-Type Shore Hardness Tester Test Rack
Description:
The TOMLIN A-Type Shore Hardness Tester Test Rack is a precision instrument designed to provide accurate and repeatable hardness measurements for rubber and soft materials. Tailored for use with Type A Shore hardness testers, this test rack features a specially fixed load weight, ensuring consistent application of pressure during testing. It is ideal for laboratories, production facilities, and quality control processes that require compliance with ASTM-D2240-05 and GB/T 531.1-2008 standards.
Applications:
- Rubber Industry: Ideal for measuring the hardness of soft rubber materials.
- Quality Control: Ensures precise hardness testing for manufacturing and production lines.
- Material Testing: Suitable for general-purpose hardness testing in laboratories.
Key Features:
- Compact Design: Lightweight and portable for easy use in various environments.
- Fixed Load Weights: Includes a 1 kg weight for consistent and reliable measurements.
- Standards Compliance: Adheres to ASTM-D2240-05 and GB/T 531.1-2008 for hardness testing.
- Durable Construction: Built with high-quality materials for long-term reliability.
- Versatile Compatibility: Exclusively configured for Type A Shore hardness testers.
Specifications:
| Parameter | Details |
|---|---|
| Dimensions | 200 × 150 × 275 mm |
| Weight (Load Weight) | 1 kg |
| Total Weight | 7.9 kg |
| Spring Force Range (Type A) | 0.55 N – 8.05 N (56.1 g – 822 gf) |
| Material Technology | Tungsten Steel |
| Press Foot Outside Diameter | 18 ± 0.1 mm |
| Foot Aperture | 3 ± 0.01 mm |
| Extension | 2.5 ± 0.02 mm |
| Standards Compliance | ASTM-D2240-05 / GB/T 531.1-2008 |
Range of Application:
- Suitable for common hardness materials, including soft rubber and plastics.
- Precision testing for industrial, production, and laboratory purposes.
Accessories:
- 1 kg Fixed Load Weight
- Installation Pole (M7 × 0.5 mm)
Alternative Names for Search Optimization:
- Type A Shore Durometer Test Stand
- Rubber Hardness Tester Rack
- Shore A Hardness Testing Frame
