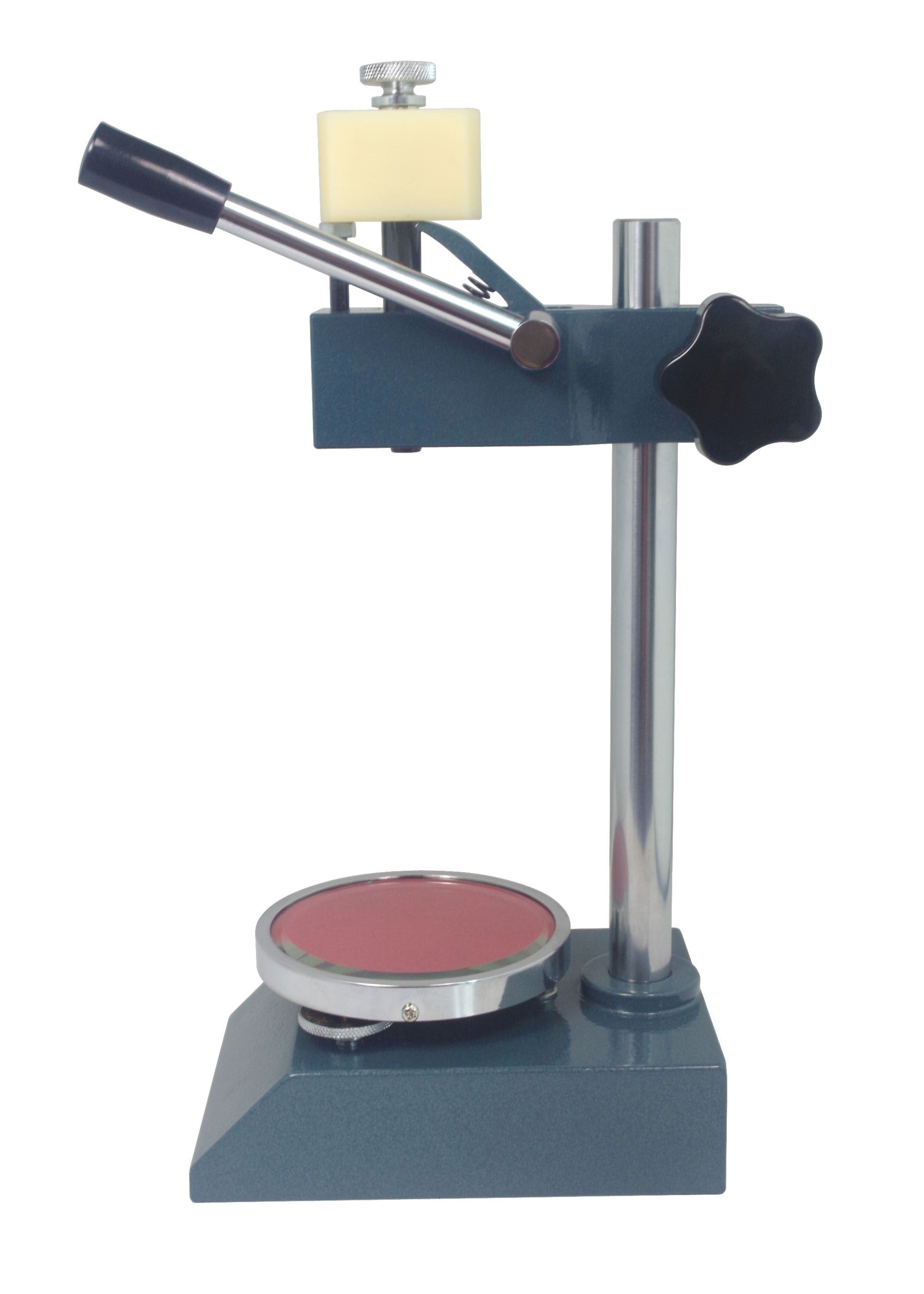

TOMLIN AM-Type Shore Hardness Tester Test Rack
Description:
The TOMLIN AM-Type Shore Hardness Tester Test Rack is a specialized testing frame designed to complement Type AM Shore hardness testers. This versatile and compact frame is equipped with a fixed load weight to ensure consistent pressure during measurements. It is ideal for accurately testing the hardness of thin rubber samples, ensuring compliance with ASTM-D2240-05 and GB/T 531.1-2008 standards. Its durable construction and lightweight design make it suitable for both laboratory and production environments.
Applications:
- Rubber Industry: Perfect for testing the hardness of thin rubber materials.
- Quality Control: Ensures accurate and repeatable hardness measurements in manufacturing.
- Material Testing: Designed for industrial and laboratory applications involving thin samples.
Key Features:
- Precision Testing: Configured for Type AM Shore hardness testers with high accuracy.
- Compact Dimensions: Easy to transport and use in different environments.
- Fixed Load Weight: Includes a 0.25 kg weight for consistent measurements.
- Standards Compliance: Fully compliant with ASTM-D2240-05 and GB/T 531.1-2008 standards.
- Durable Design: Built with tungsten steel components for long-lasting performance.
Specifications
| Parameter | Details |
|---|---|
| Dimensions | 200 × 150 × 275 mm |
| Weight (Load Weight) | 270 g |
| Total Weight | 4.2 kg |
| Spring Force Range (Type AM) | 0.324 N – 0.764 N (33.04 gf – 77.91 gf) |
| Material Technology | Tungsten Steel |
| Press Foot Outside Diameter | 9 ± 0.1 mm |
| Foot Aperture | 1.19 ± 0.01 mm |
| Extension | 1.25 ± 0.02 mm |
| Standards Compliance | ASTM-D2240-05 / GB/T 531.1-2008 |
Range of Application:
- Suitable for the general range of thin rubber samples.
- Ensures accurate and consistent hardness testing for quality assurance.
Accessories:
- 0.25 kg Fixed Load Weight
- Installation Pole (M7 × 0.5 mm)
Alternative Names:
- Type AM Shore Durometer Test Stand
- Thin Rubber Hardness Tester Rack
- Shore AM Hardness Testing Frame
