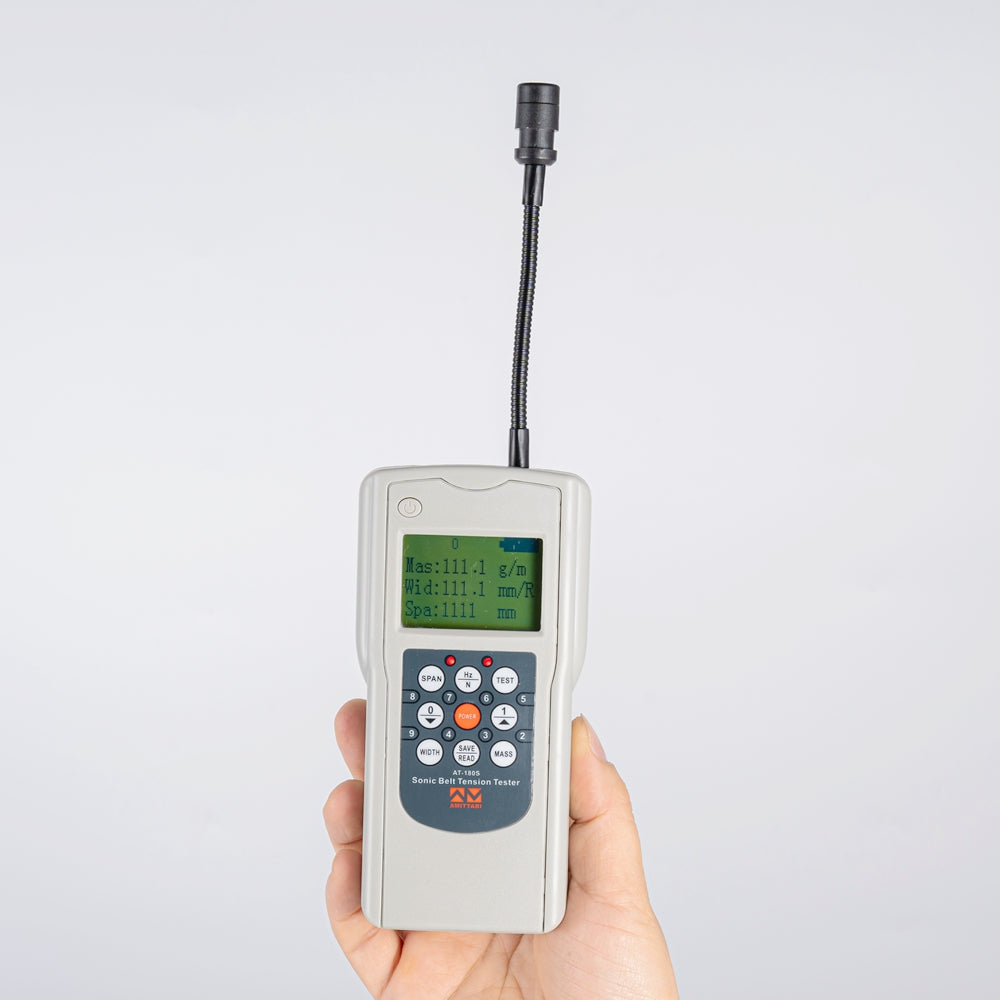

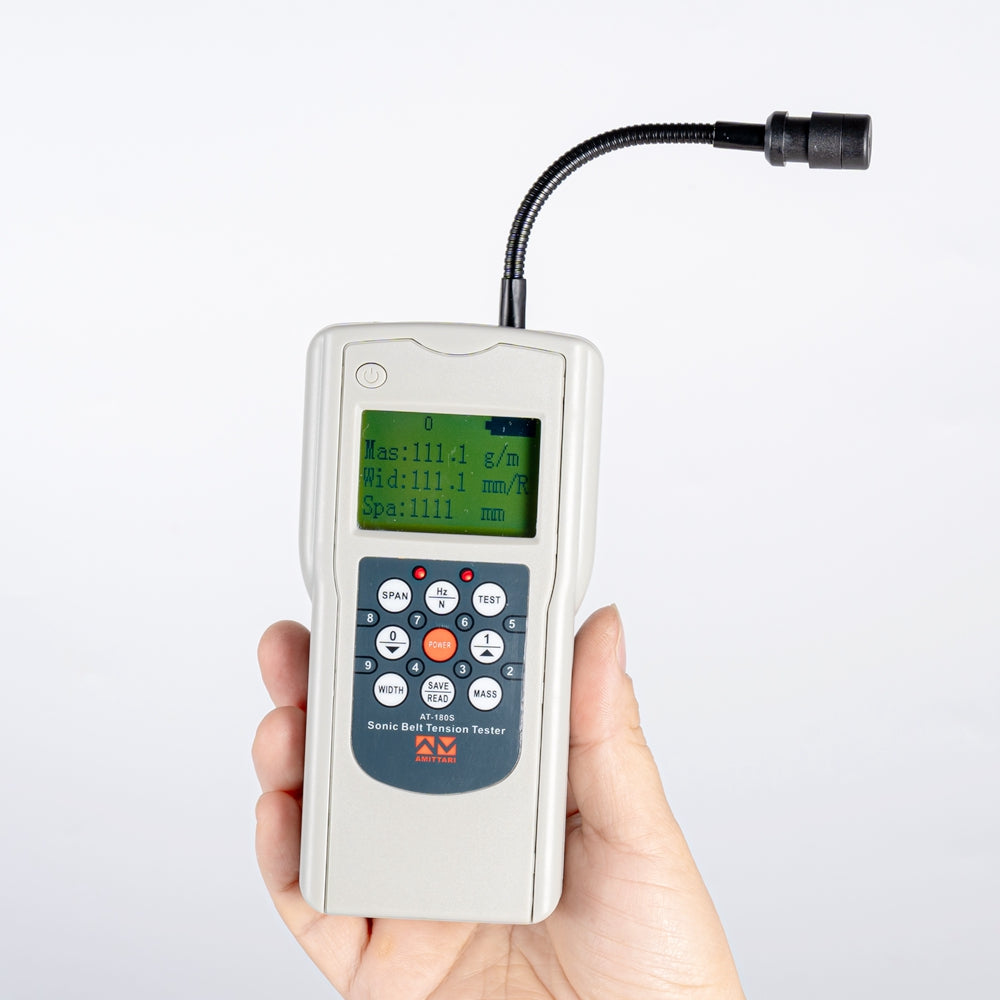

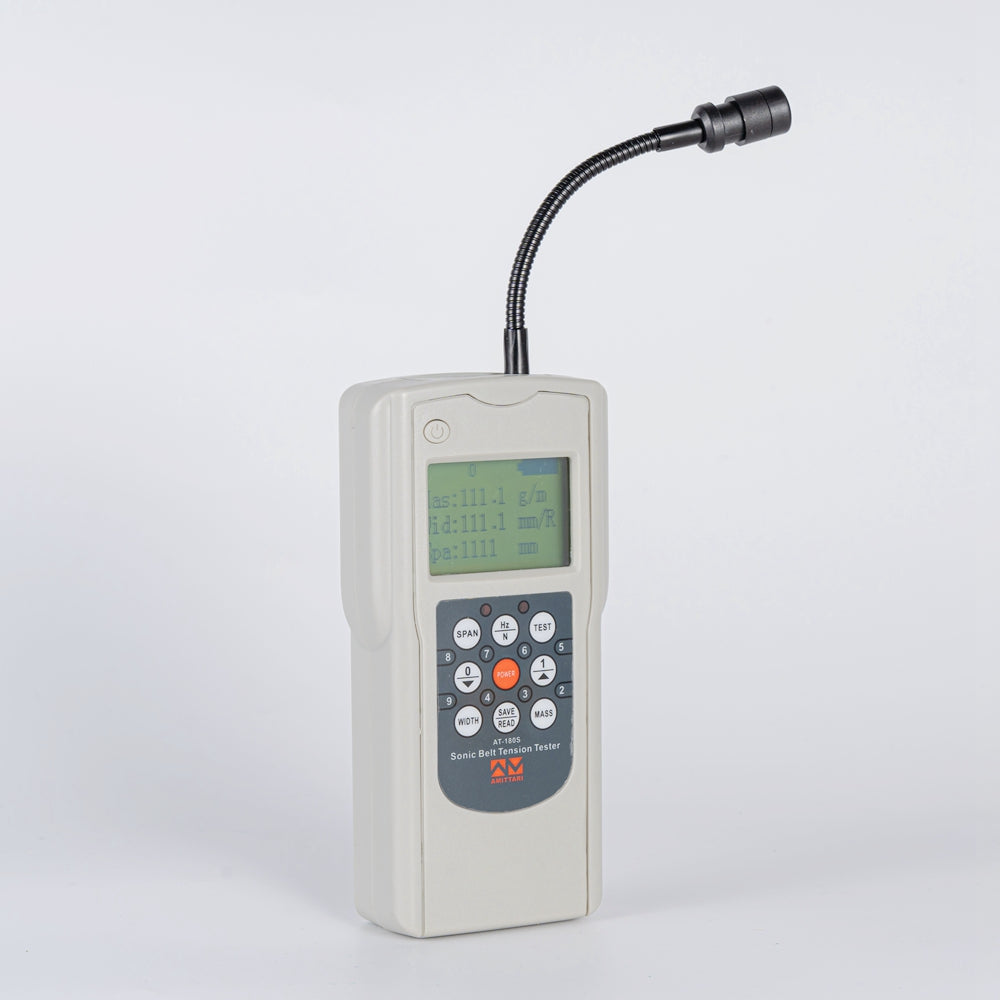

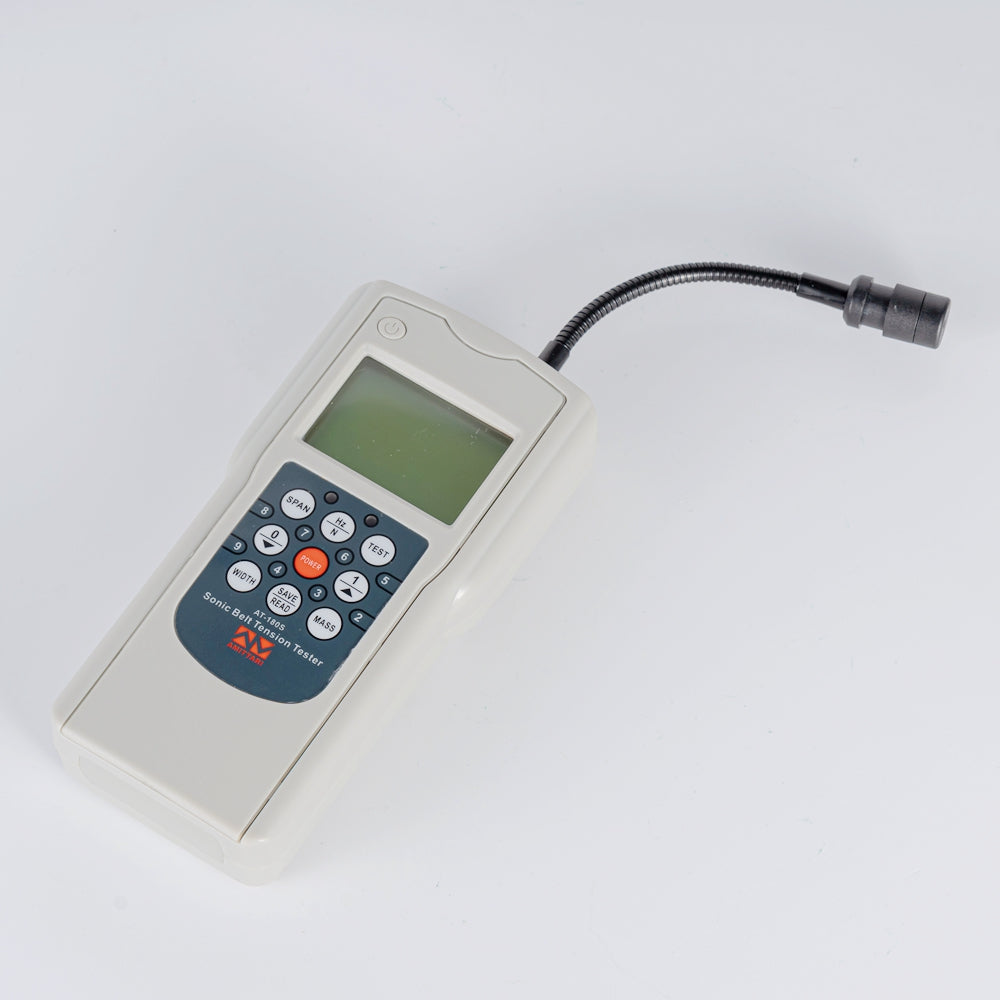

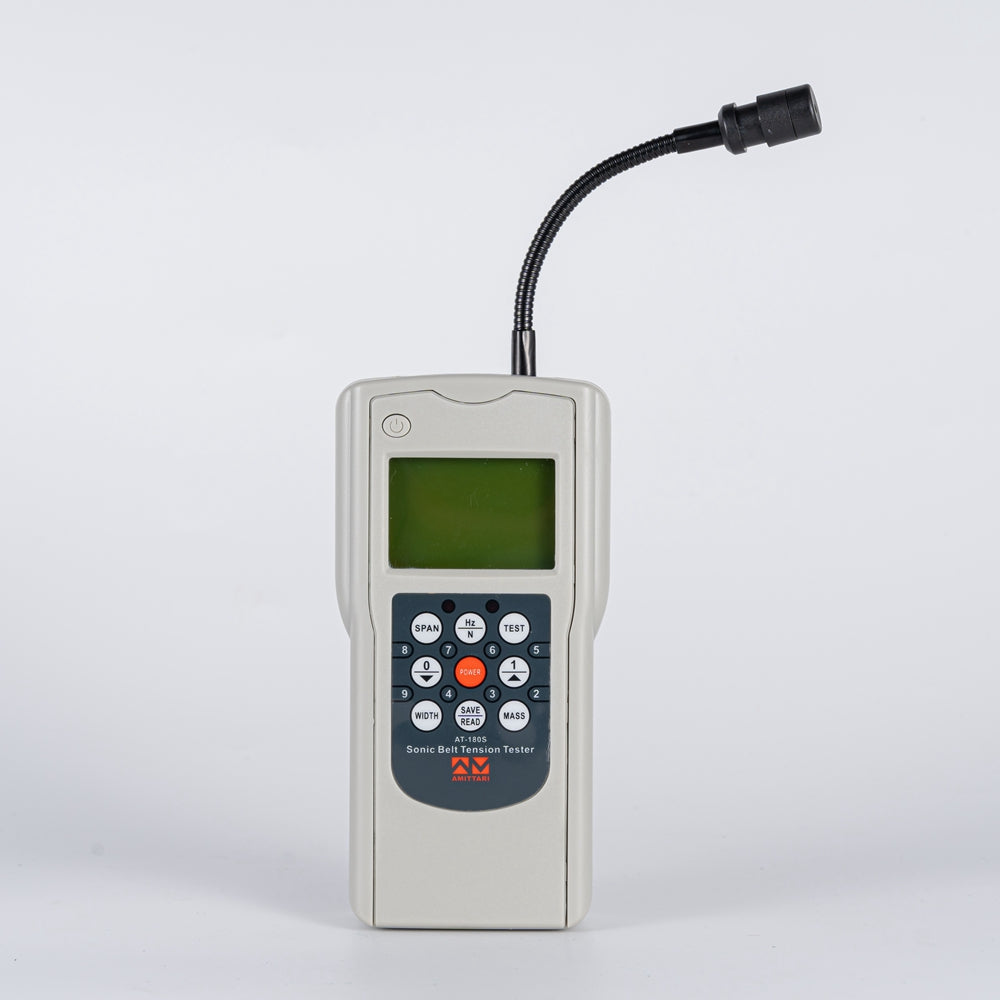

Belt Tension Tester AT-180S

Description

The Tomlin Belt Vibration Frequency Meter is a precision instrument designed to measure the vibration frequency (in Hertz) of transmission belts. This reliable tool ensures optimal belt tension and performance, making it indispensable in various industrial applications. Whether the belt is struck or operating at high speed, the AT-180S provides accurate results, helping to maintain equipment efficiency and prevent downtime.

Features

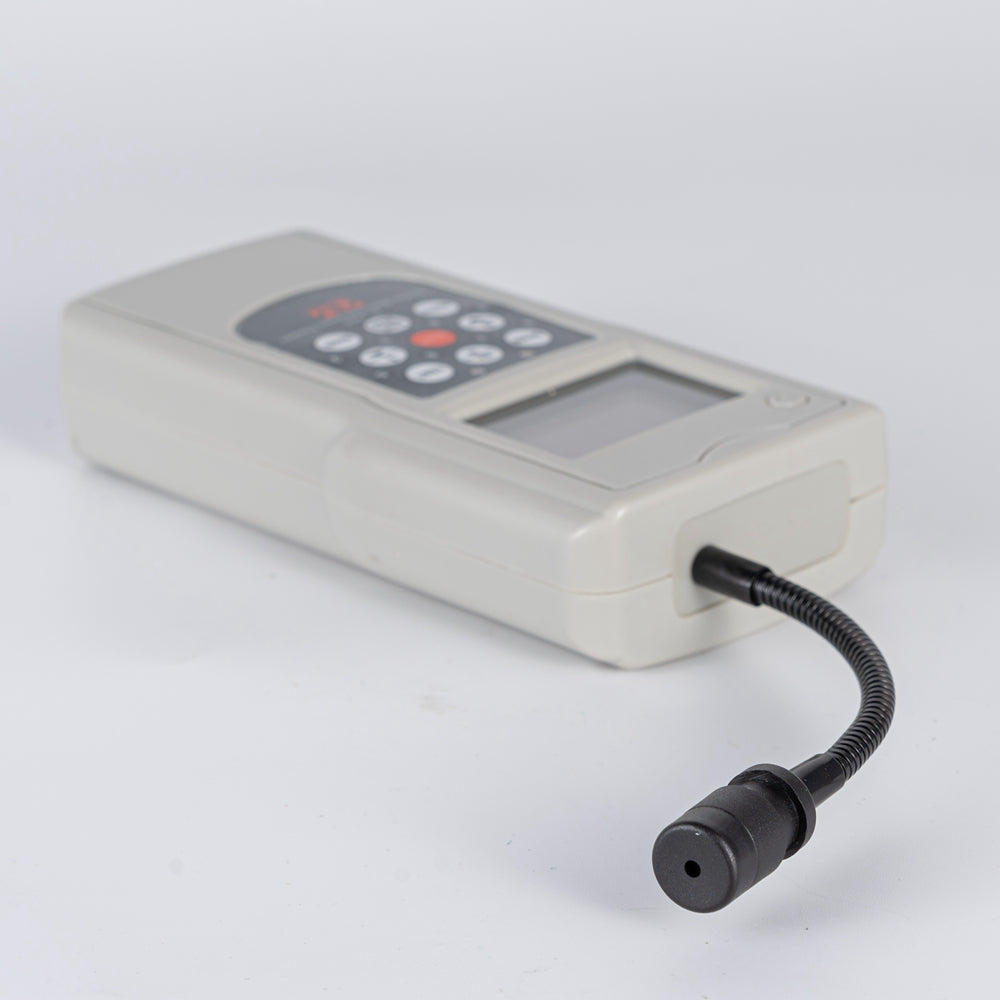

• Adjustable probe for flexible and convenient measurements.
• Stores up to 20 belt parameter sets for easy reference.
• Measures vibration frequency up to 680 Hz.
• Energy-saving automatic shutdown feature for extended battery life.

Specifications

• Measuring Range: 10–680 Hz
• Belt Free Strand Length: Up to 999.9 mm
• Belt Width: Up to 999.9 mm/R
• Belt Mass: Up to 999.9 g/m
• Precision: ±1 Hz (< 100 Hz), ±1% (> 100 Hz)
• Digital Sampling Accuracy: < 1%
• Display Accuracy: ±1 Hz
• Overall Accuracy: < 5%
• Operating Temperature: +10° to +50°C
• Transport Temperature: -5° to +70°C
• Display: LCD
• Measurement Unit: Hz/N

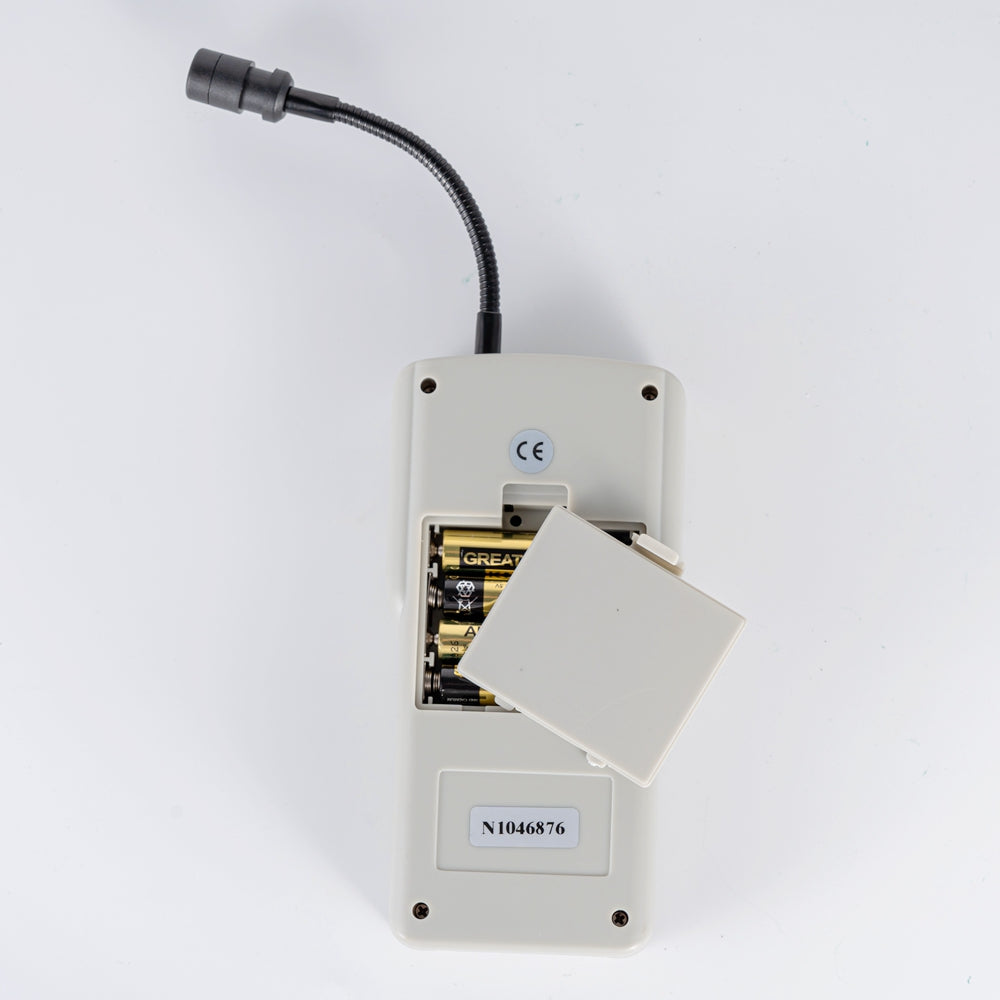

• Power Supply: 4 x 1.5V AAA batteries
• Housing Material: Plastic (ABS)
• Dimensions: 140 x 72 x 34 mm
• Package Dimensions: 248 x 206 x 52 mm

Standard Accessories

• Main Unit
• Operating Instructions (one copy)

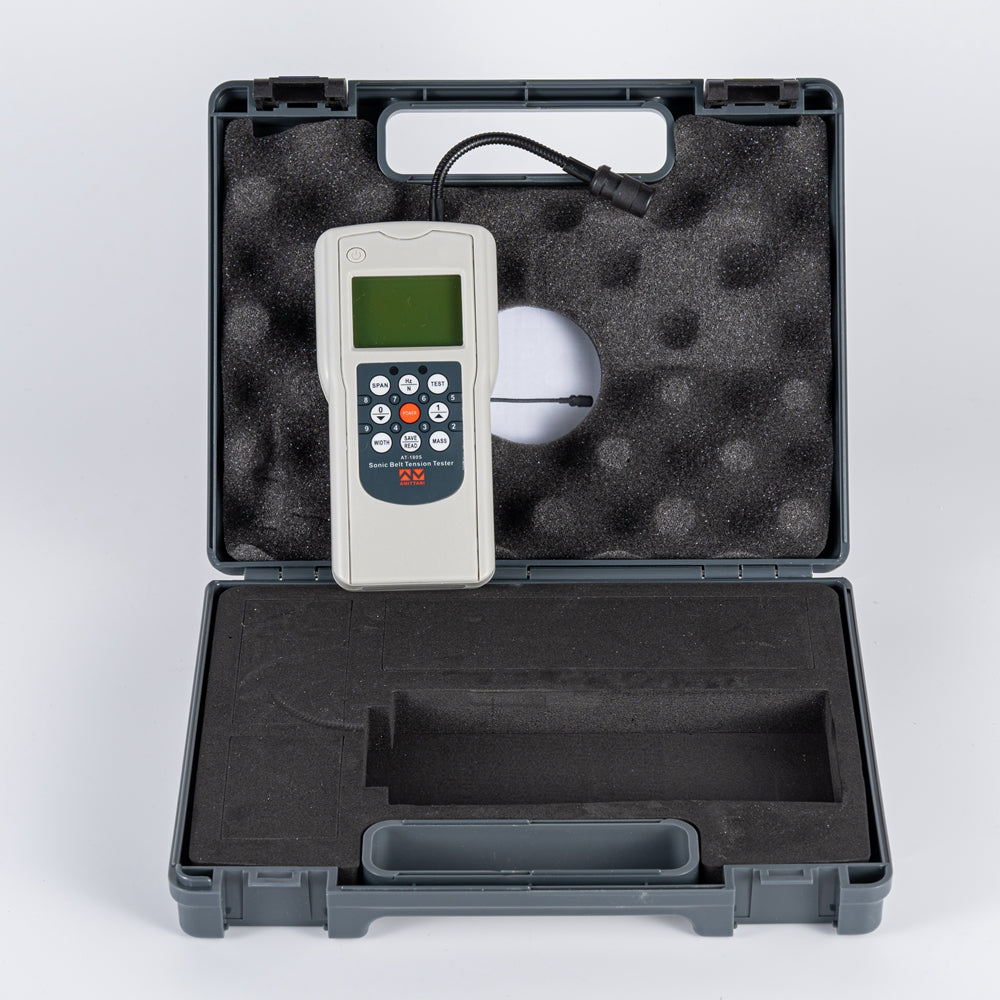

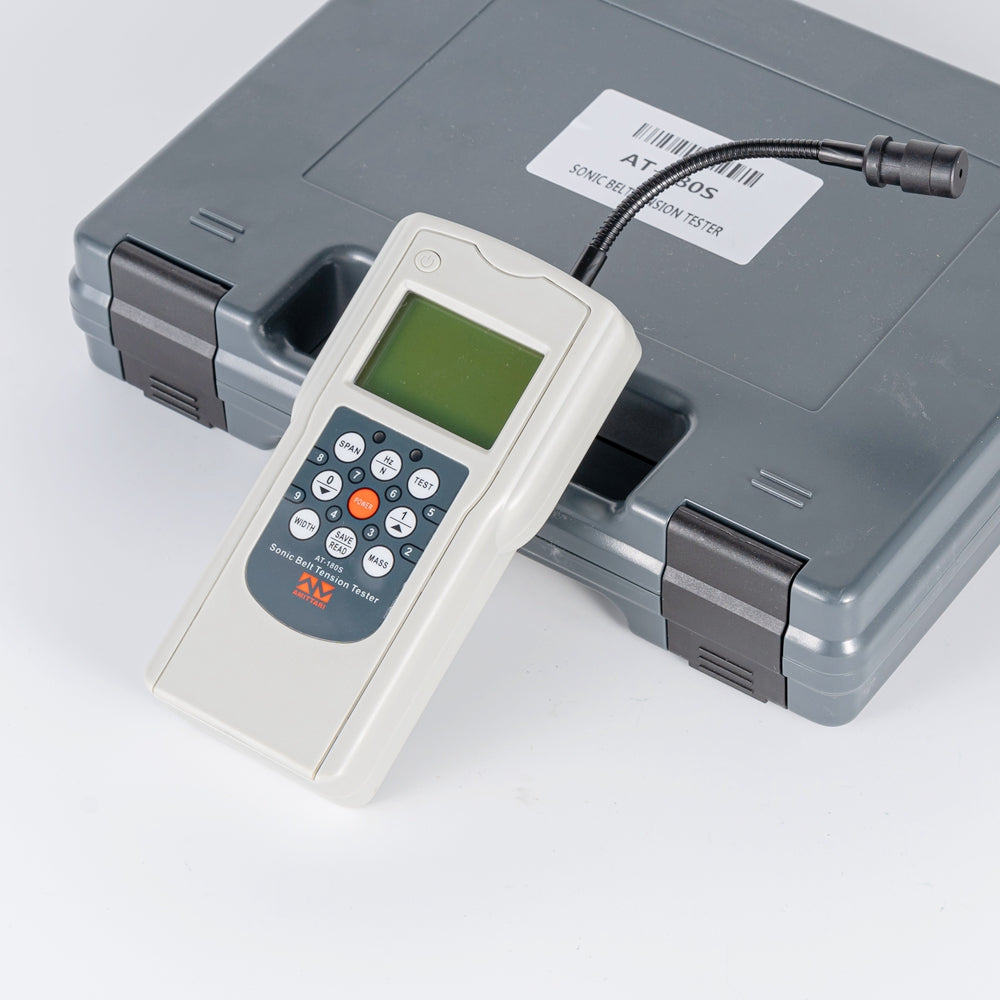

• Portable Suitcase

Also Known As

• Belt Tension Frequency Meter
• Transmission Belt Vibration Analyzer
• Belt Performance Tester
• Industrial Belt Frequency Meter

Downloads

PDF Specification Sheet - Download Here
