Static Water Level Meter GLT500A

Static Water Level Meter GLT500A

$1,000.00
$1,000.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Variants

Product Description:

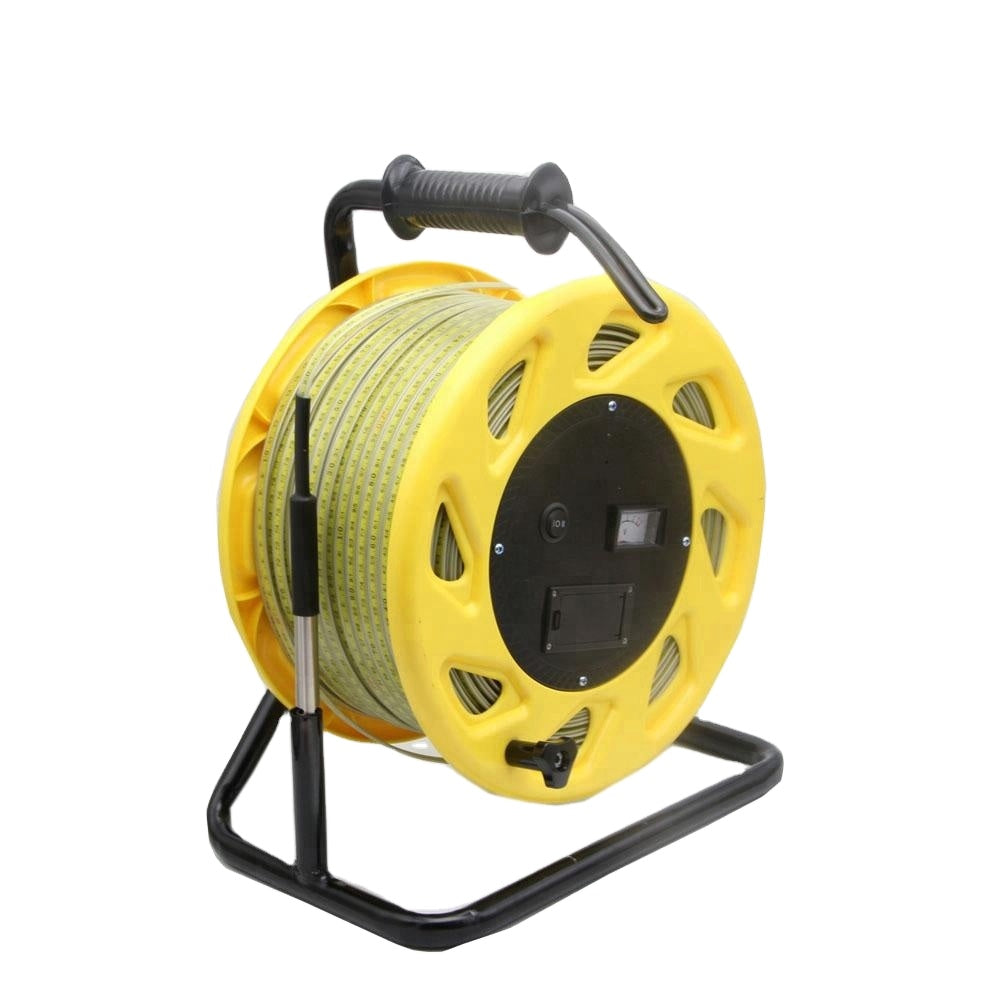

The GLT500A Water Level Meter is a high-precision, battery-powered tool designed for fast and accurate depth measurements in wells, boreholes, dams, and groundwater monitoring. Built with a stainless steel probe, steel ruler cable, and reel design, this meter provides reliable readings with both audio and visual indicators the moment water contact is made.

Its corrosion-resistant construction, fast response time, and long battery life make it ideal for harsh environments in hydrology, irrigation, geotechnical, and environmental protection applications. With selectable measuring ranges from 30m to 500m, the GLT500A adapts to projects of all sizes.

Key Features:

  • Measurement Range Options: 30m, 50m, 100m, 200m, 300m, 400m, 500m

  • Quick Response: ≤1ms output time

  • Low Power Consumption: 9V lithium battery lasts up to 2 years

  • High Accuracy: ±0.5mm precision

  • Audio & Visual Indicators: Buzzer sound or voltmeter pointer

  • Water-Resistant Cable: Steel ruler with corrosion-proof coating

  • Adaptable Water Quality Range: 10μΩ ~ 1000μΩ

  • Rugged Construction: ABS and metal casing with flame-retardant cable (IEC60332-1)

  • Temperature Range: Operates in –40°C to +90°C environments

  • Easy Use: Simple reel system with DIP switch for indicator type

Specifications Overview:

Feature Value
Probe Material Stainless Steel
Shell Material ABS + Metal
Cable Material Multi-strand copper core, PUR/PE coated
Measurement Accuracy ±0.5mm
Response Time ≤1ms
Power Supply 9V Lithium Battery
Indicators LED, Buzzer, or Voltmeter
Operating Temp Range –40°C to +90°C
Measurement Signal Audio + Visual
Voltage Rating 300V (Tested at 2000V)
Insulation Resistance >200MΩ×km

Ideal For:

  • Groundwater and well monitoring

  • Irrigation systems

  • Hydrological research

  • Dams and reservoirs

  • Environmental monitoring

  • Geotechnical surveys

Downloads

Data Sheet Link
