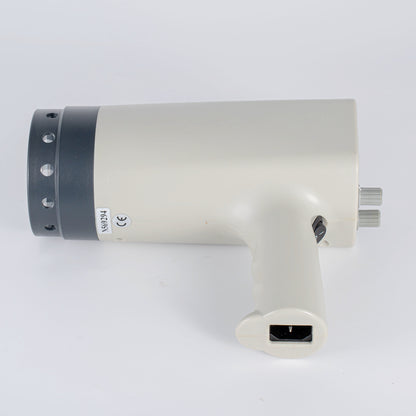

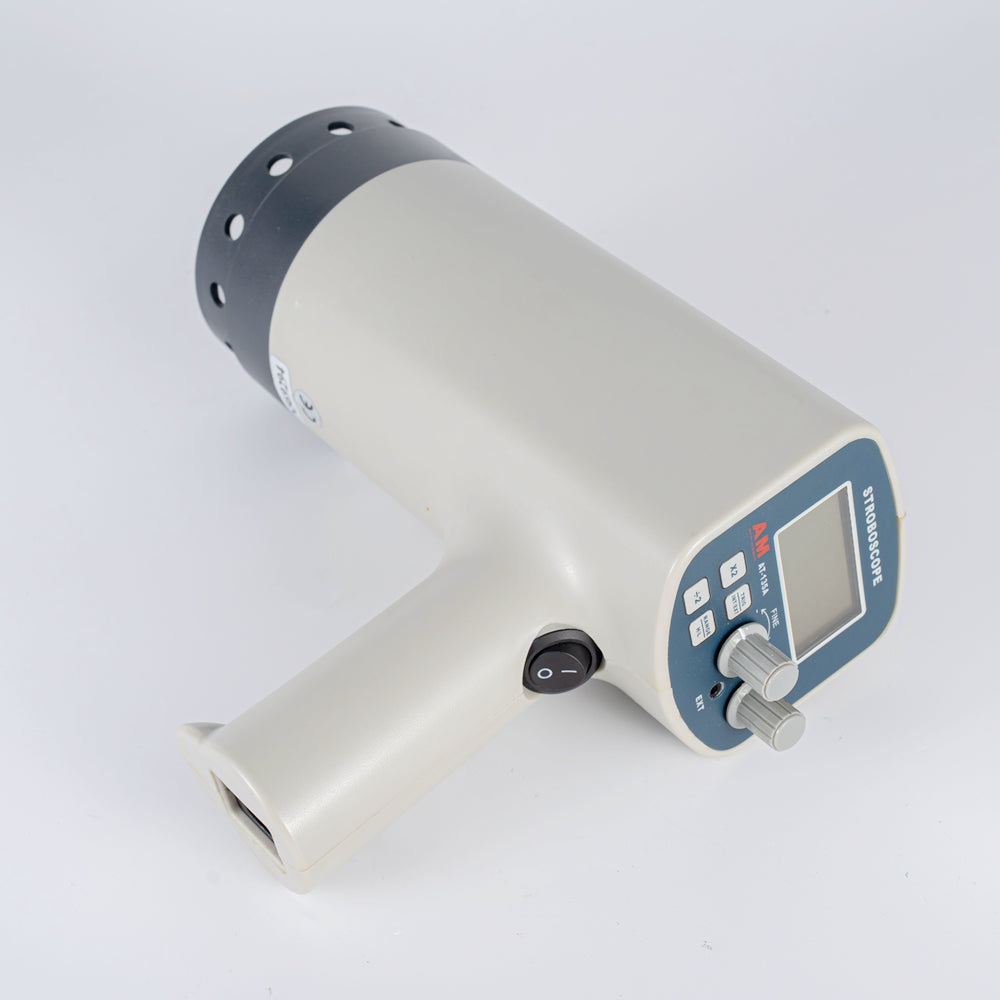

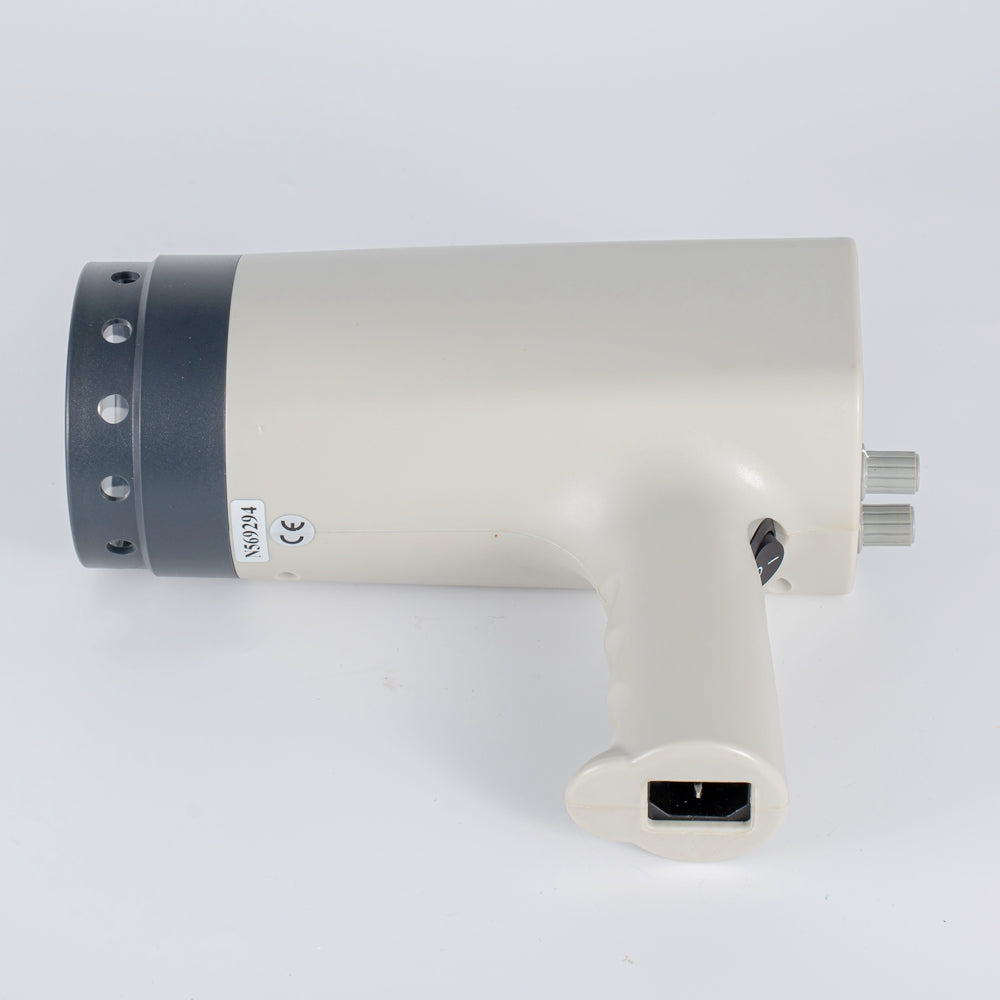

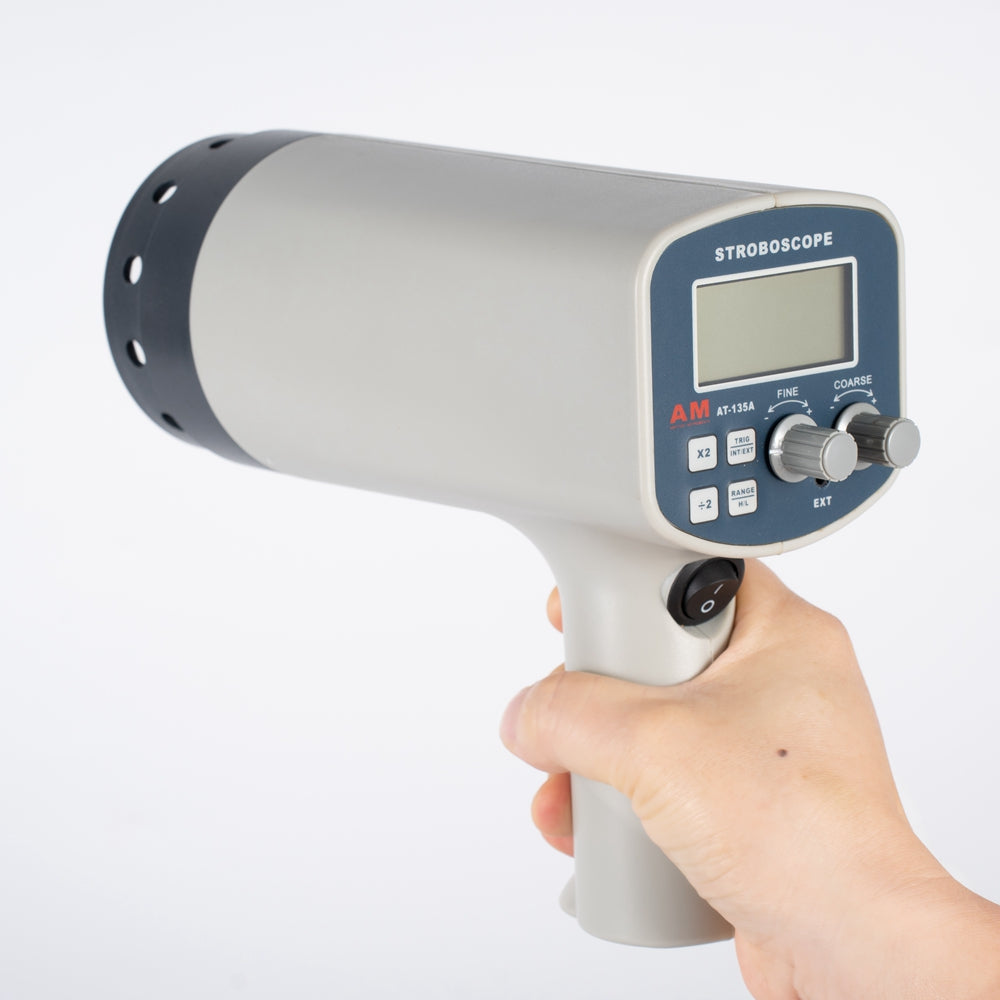

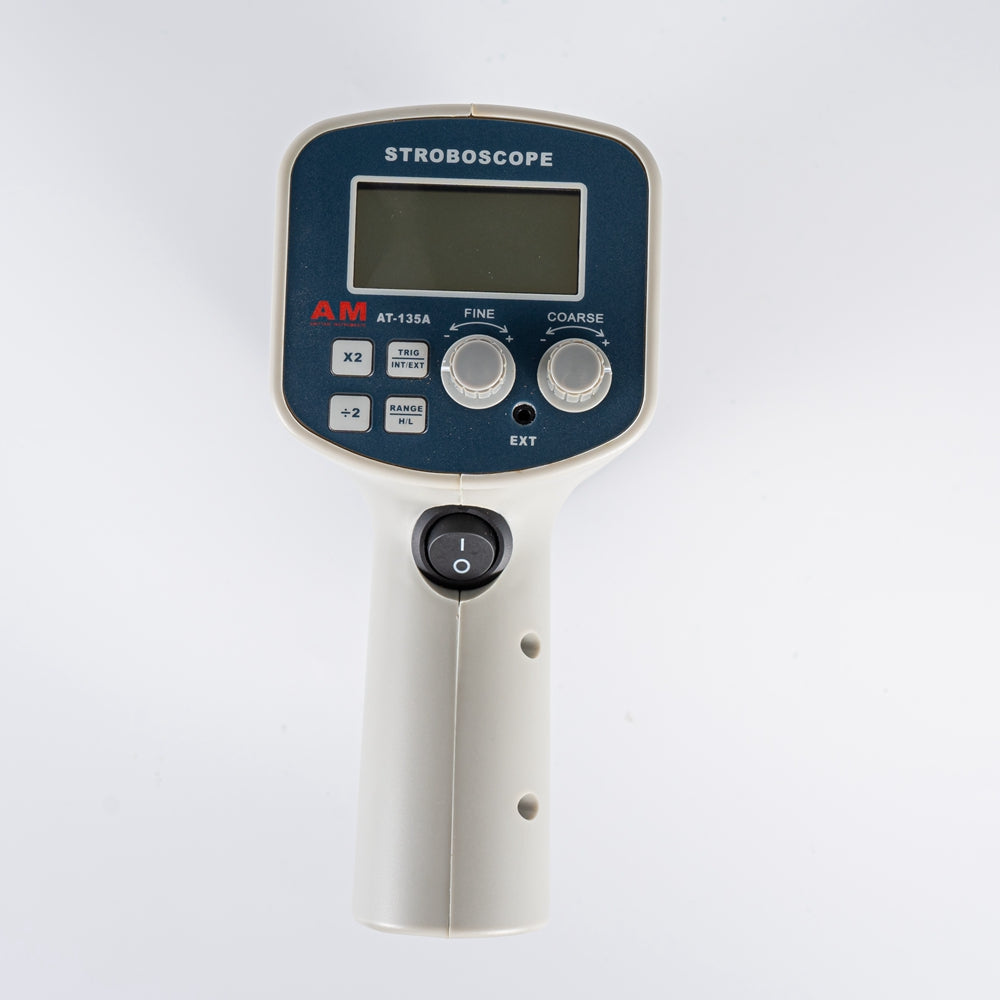

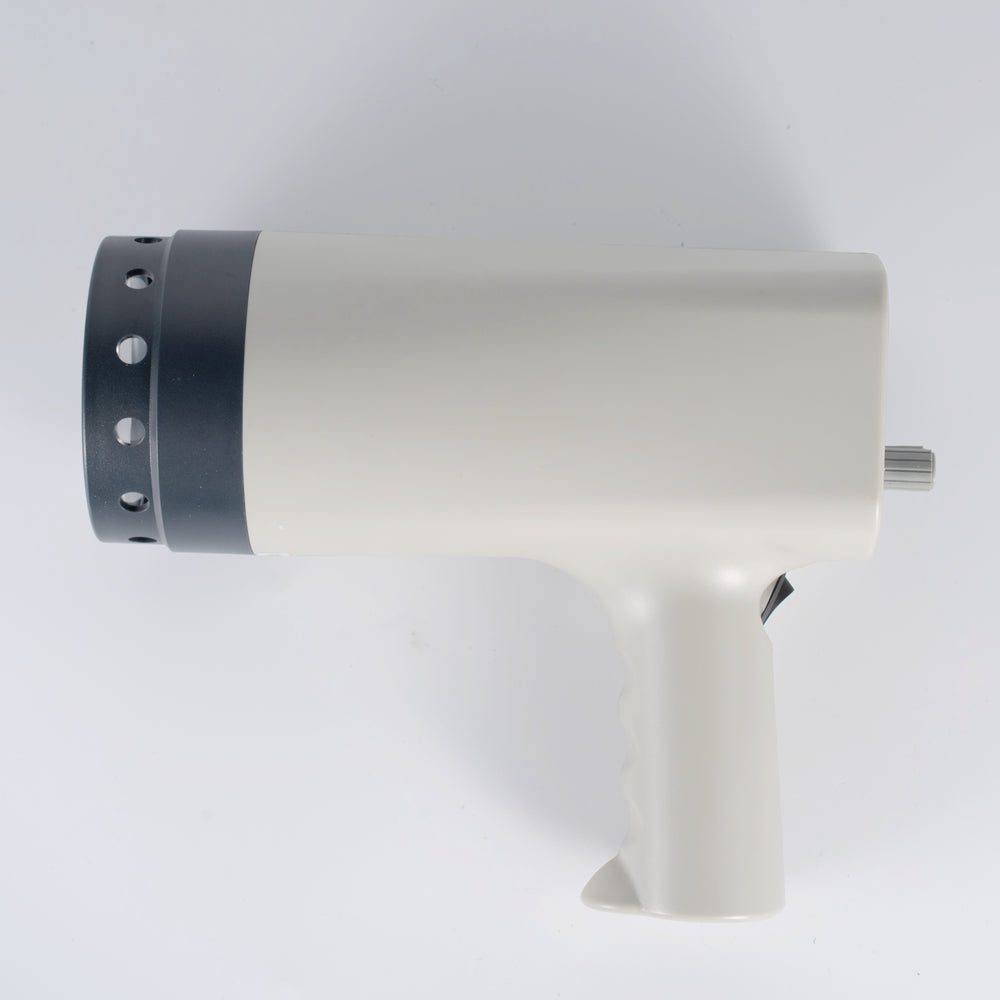

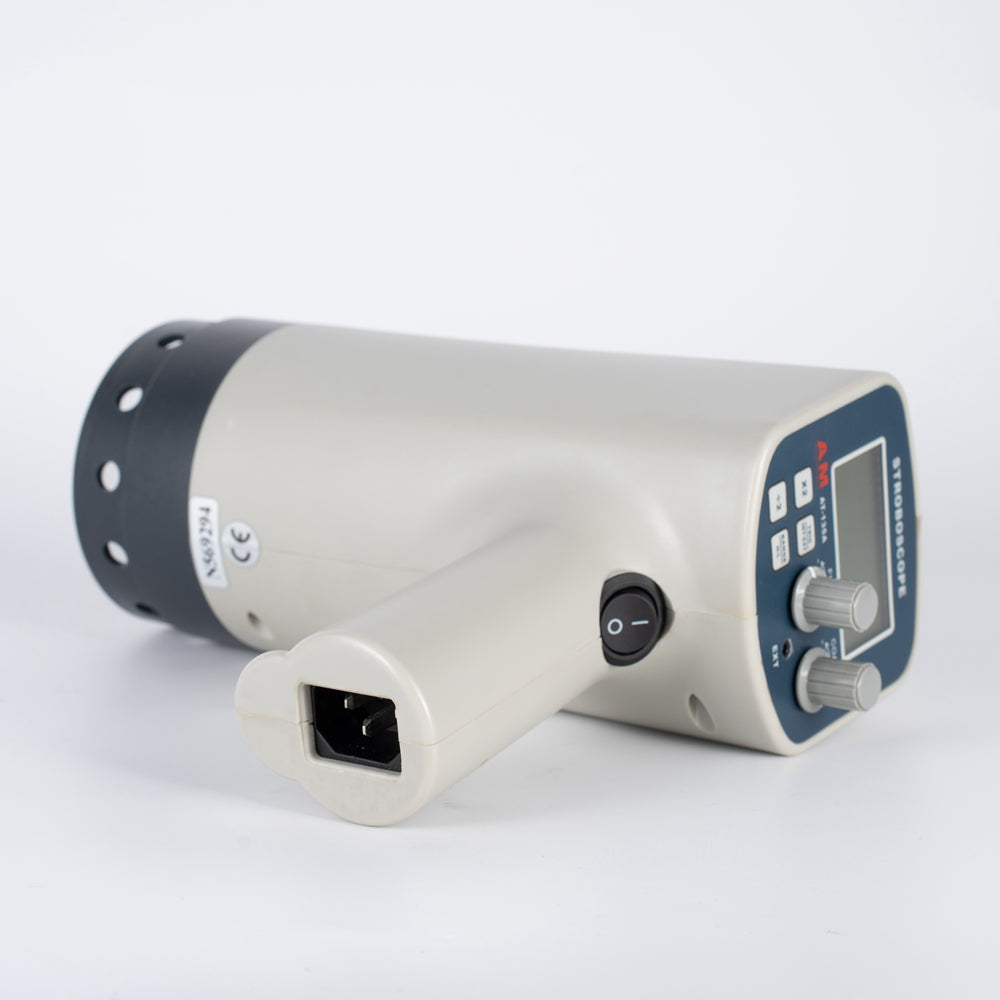

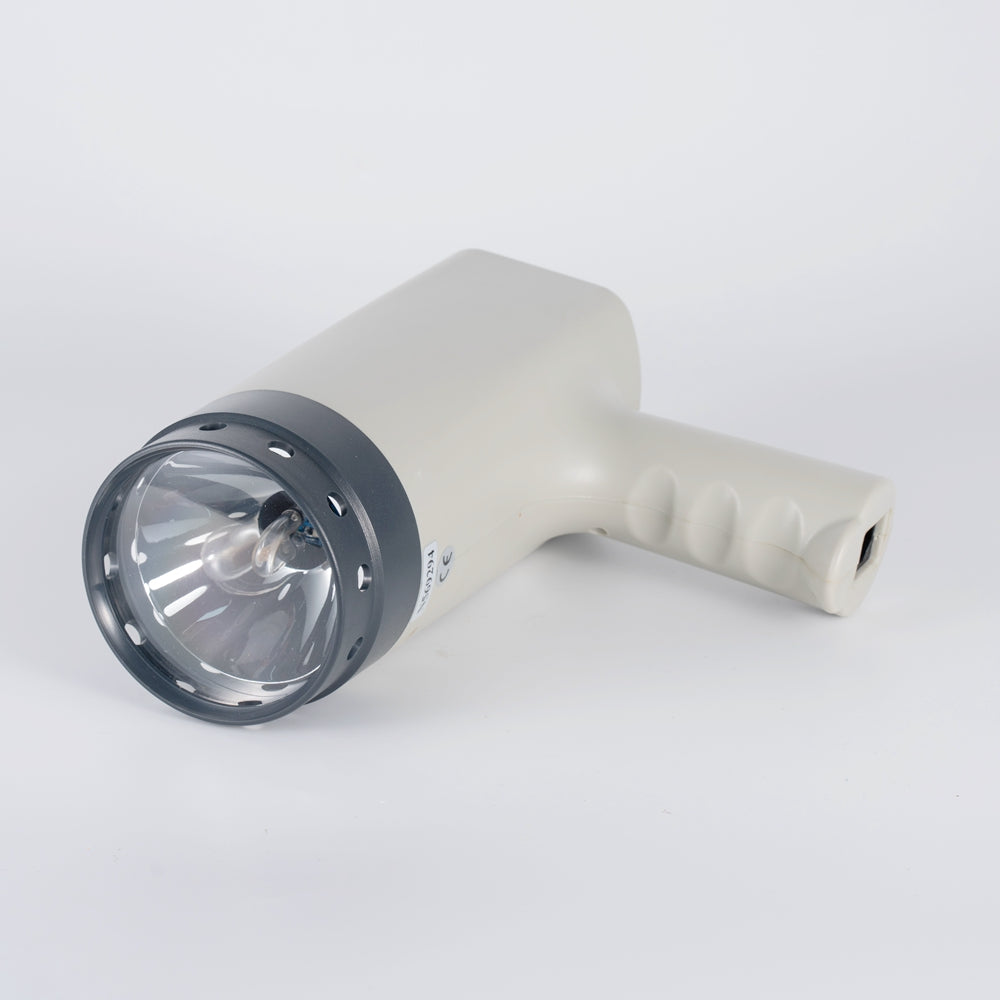

TOMLIN Stroboscope – Model AT-135A

Description

The TOMLIN Stroboscope (Model AT-135A) is a high-precision instrument designed for visualizing and analyzing the motion of moving objects by matching the flash rate with the object's speed. By creating the illusion of stillness in a moving object, this stroboscope provides valuable insights for equipment inspections, motion analysis, and quality control processes. It is equipped with a rechargeable battery, ensuring portability for on-site applications.

Features

• Flash Timer Control: Conserves flash tube life for long-lasting performance.
• Rechargeable Battery (Optional): Facilitates convenient use in field operations.
• Internal and External Triggering: Enables flexible operational modes for various applications.
• Compact Design: Lightweight and portable for enhanced usability.

Specifications

– Model AT-135A

• Measurement Range: 50~12,000 FPM
• Resolution:
  • 0.1 FPM (below 1,000 FPM)
  • 1 FPM (above 1,000 FPM)
• Accuracy: ±(0.05%n + 1d)
• Sampling Time: 0.3 seconds
• Triggering Mode: Internal/External
• Operation Temperature: 040°C (32104°F)
• Power Supply: Rechargeable battery (optional) / AC 220V ±10%, 50Hz
• Size: 210 x 85 x 185 mm (8.3 x 3.3 x 7.3 in)
• Weight: 660 g (23.28 oz)

– Model AT-135B

• Measurement Range: 50~40,000 FPM
• Resolution:
  • 0.1 FPM (below 1,000 FPM)
  • 1 FPM (above 1,000 FPM)
• Accuracy: ±(0.05%n + 1d)
• Sampling Time: 0.3 seconds
• Triggering Mode: Internal/External
• Operation Temperature: 040°C (32104°F)
• Power Supply: AC 220V ±10%, 50Hz
• Size: 210 x 85 x 185 mm (8.3 x 3.3 x 7.3 in)
• Weight: 660 g (23.28 oz)

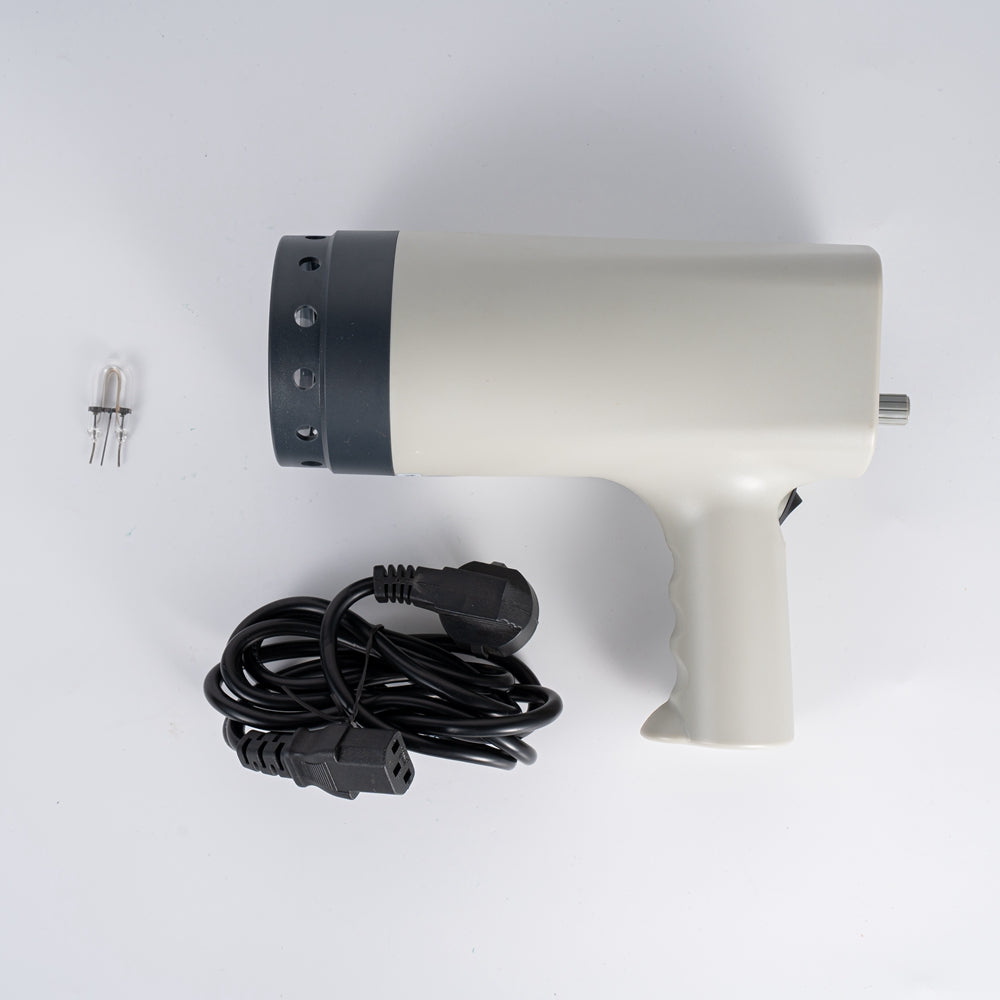

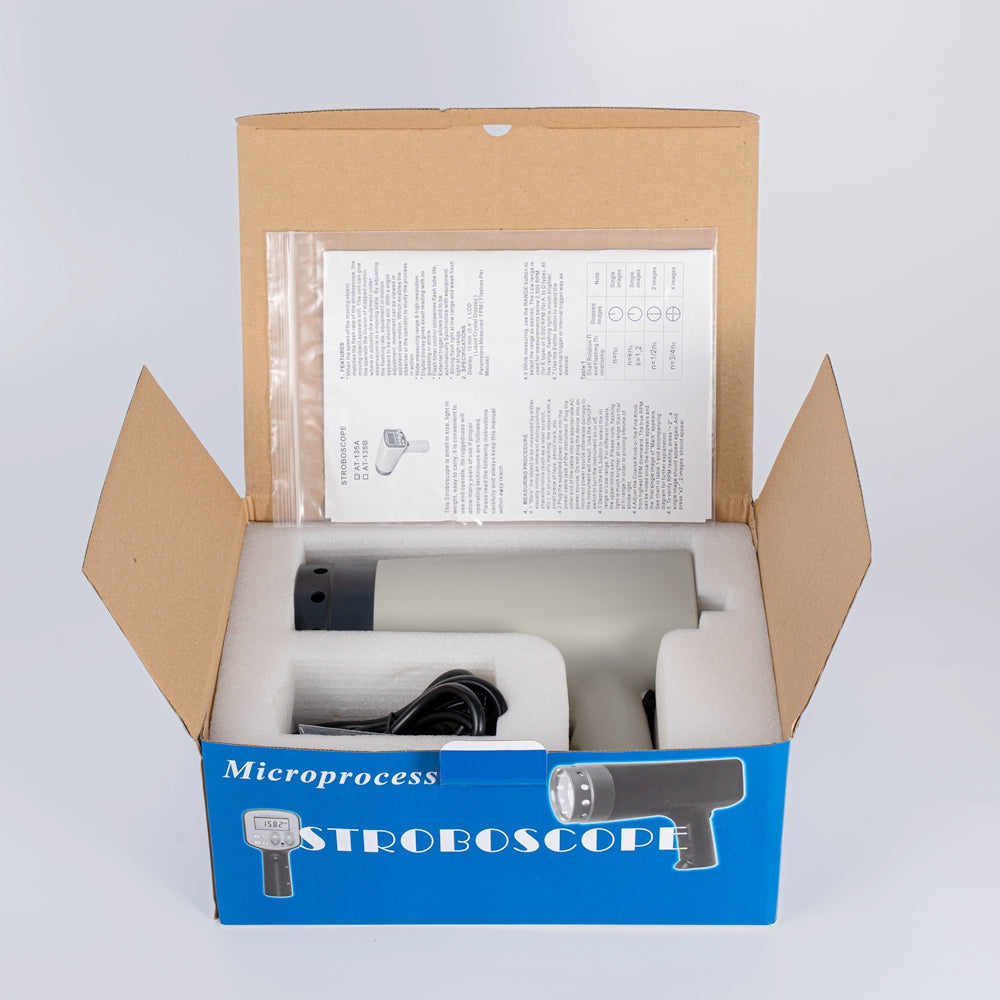

Standard Accessories

• Main Unit
• Carrying Case
• Operation Manual
• Spare Flashing Tube

Optional Accessories

• Rechargeable Battery

Applications

• Motion Analysis: Helps operators and inspectors analyze the motion of equipment in detail.
• Visual Inspection: Ideal for monitoring rotating parts in industrial environments.

Alternative Names

• Handheld Stroboscope
• AT-135A Motion Analyzer
• Portable Strobe Light Tester

Downloads

PDF Specification Sheet - Download
