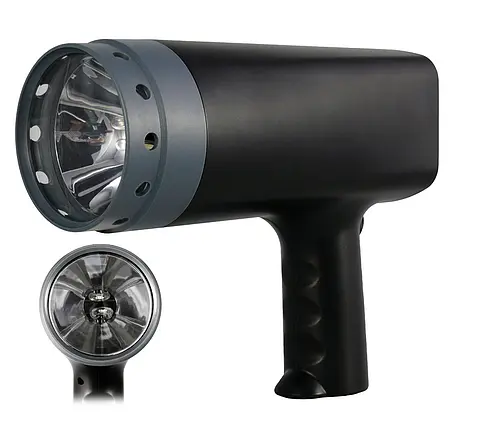

Stroboscope with xenon light bulb PCE-OM 15

Stroboscope with xenon light bulb PCE-OM 15

Regular price $13,420.00
Regular price Sale price $13,420.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

PCE-OM 15 Stroboscope Handheld digital strobe tachometer with high / Low range selection, adjustable coarse / Fine flash rates and push-button rate control for slower (x½) / Faster (x2) flashing

PCE-OM 15 is a handheld stroboscope or strobe tachometer with trigger functionality. This easy-to-use portable digital stroboscope gun features high / low range selection and push-button rate control to scale the flash rate slower (x½) and faster (x2). In addition, two knobs allow coarse and fine adjustment of the flash rate.

When the speed of a moving object matches the flash rate of the strobe, the moving object appears to be standing still. With a slight adjustment, movement can be viewed in apparent slow motion. Slow motion makes it easier to visually inspect the process in action. However, these visual illusions can be disorienting. Take necessary safety precautions to avoid accidental contact with moving objects.


Highlights

- Measuring range: 50 ... 30000 rpm
- Bright 6500K xenon light bulb
- 10 mm / 0.4 in 5-digit LCD
- Lightweight yet sturdy ABS plastic housing
- High / low range selection
- Adjustable coarse and fine flash rates
- Push-button rate control for slower (x½) and faster (x2) flashing

Specification

Measuring range 50 ... 30000 rpm
Resolution 0.1 = 50.0 ... 999.9 rpm
1 = 1000 ... 30000 rpm
Accuracy ± 0.05% + 1 digit
Sampling time 0.3 second
External trigger level 3-24V
Lamp 6500K xenon light bulb
Display 10 mm / .4 in 5-digit LCD
Angle of reflection 80°
Power supply 220V AC
Operating conditions 0 ... 40°C / 32 ... 104°F, Less than 80% RH
Dimensions Approx. 215 x 85 x 180 mm / 8.5 x 3.3 x 7.1 in
Weight Approx. 1,000 g / 2.2 lbs

Delivery Scope

1 x PCE-OM 15 Stroboscope
1 x Replacement xenon light bulb
1 x User manual
