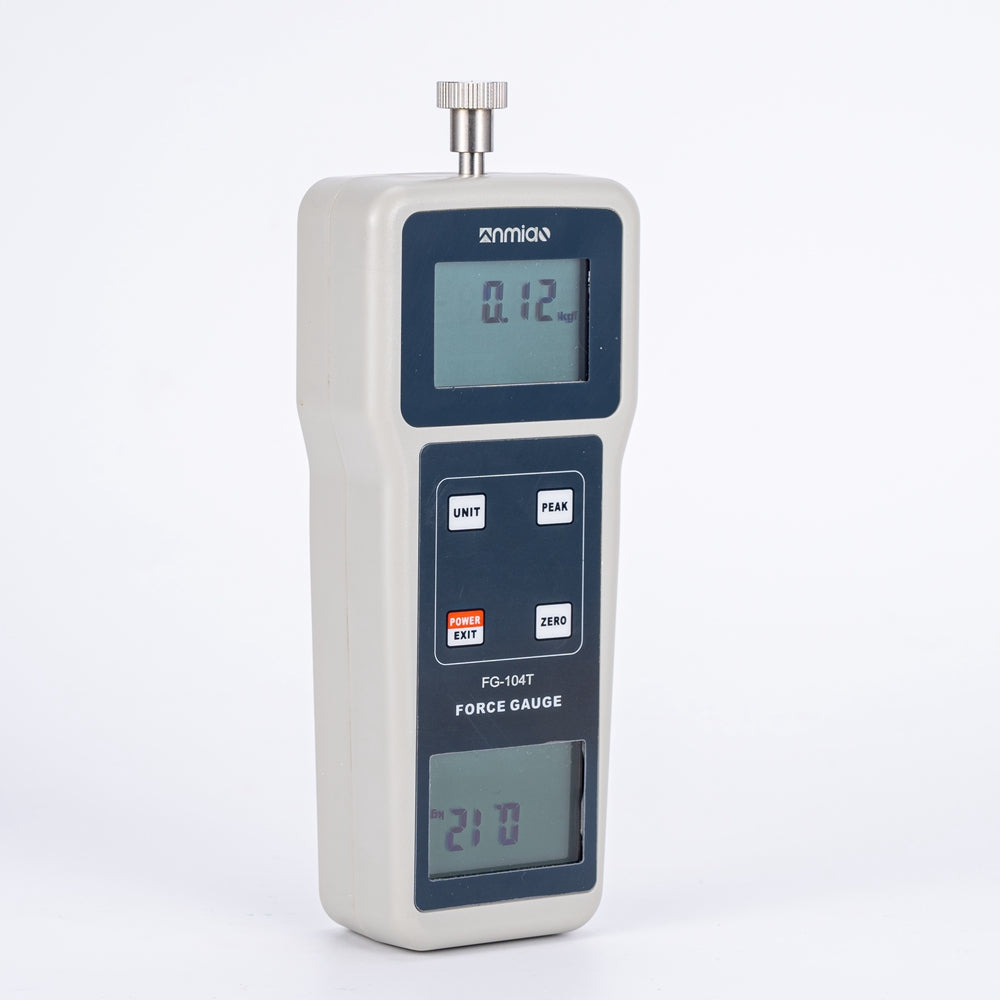

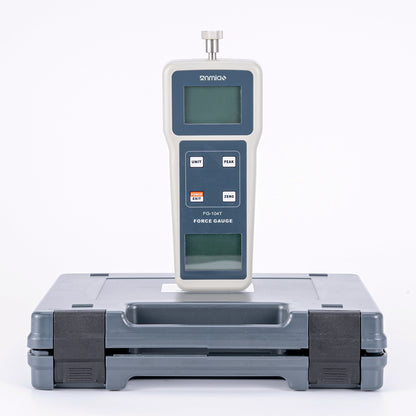

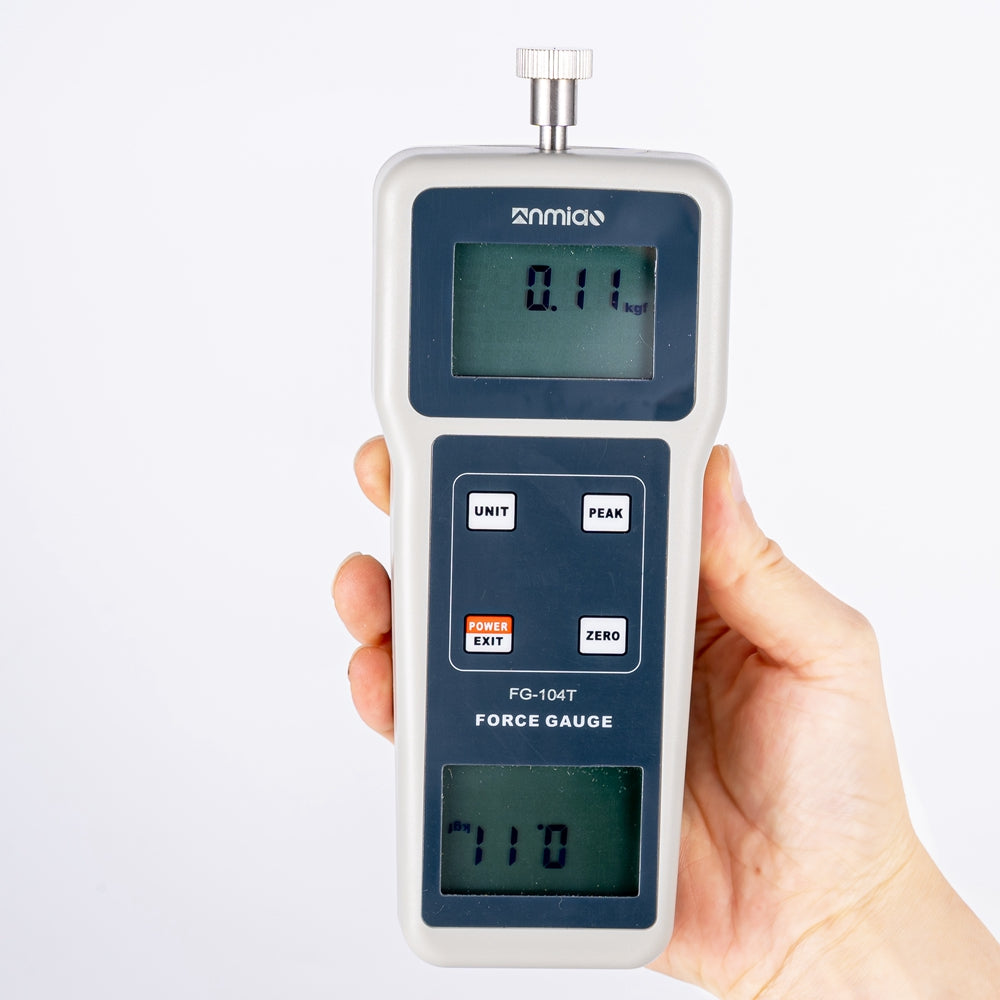

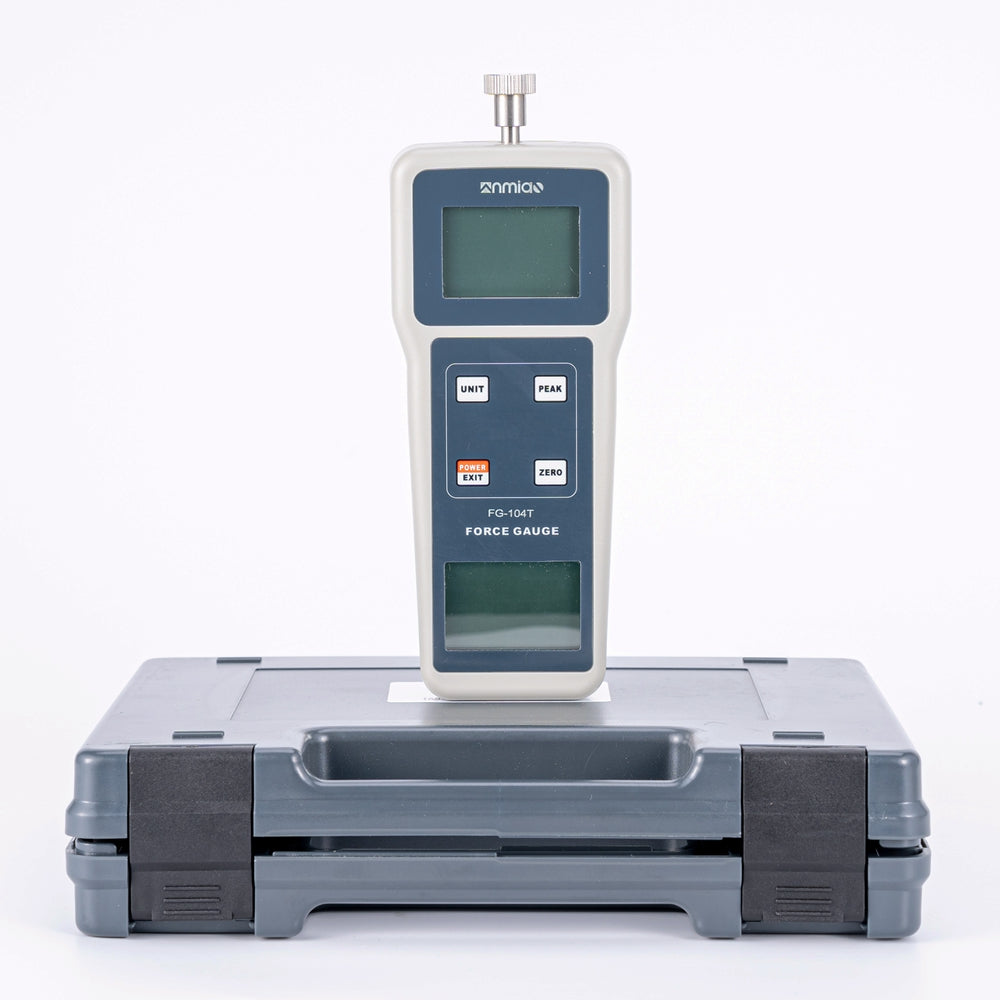

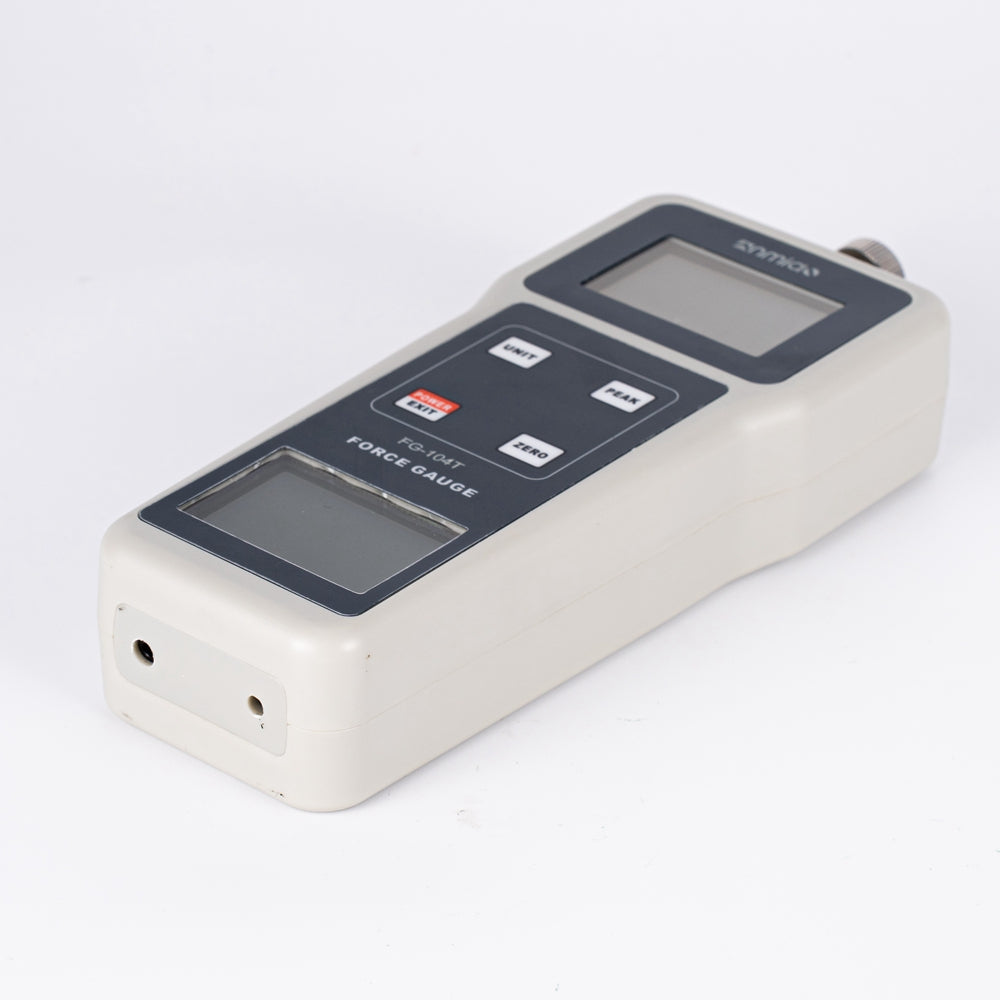

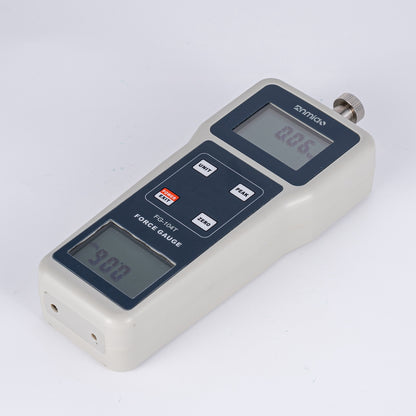

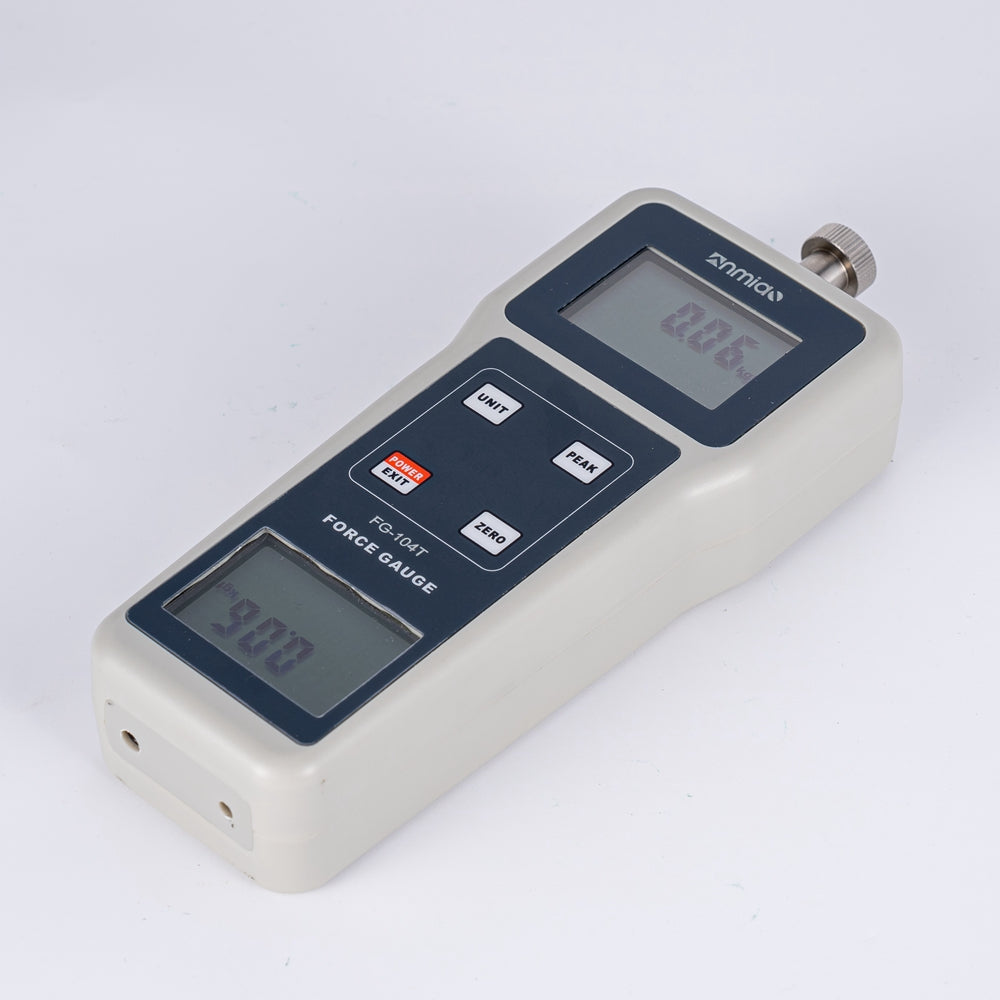

Tablet Hardness Tester FG-104T

Description

The TOMLIN FG-104T Tablet Hardness Tester is a high-precision, digital display tester specifically designed to evaluate the hardness of tablets. With easy operation, portability, and high-resolution measurements, it is ideal for use in both laboratory and industrial settings. The tester ensures reliable results within a recommended test range of 10%–100% of its full scale, with usage below 1% not advised.

Key Features

• High Precision & Resolution: Delivers accurate measurements with an easy-to-read digital display.
• Multiple Units of Measurement: Supports Newton (N), kilogram (kg), pound (lb), and gram (g) with simple unit conversion.
• Peak Hold Function: Retains peak readings until manually reset.
• Automatic Shutdown: Automatically powers off after 10 minutes of inactivity to conserve energy, or can be shut down manually.
• Power Options: Operates on alkaline batteries or a 5V DC power supply for versatile use.
• Fixture Zeroing: Includes a ZERO key to eliminate fixture weight for precise measurements.

Specifications

• Test Scope:
  • 0 kgf ~ 20 kgf
  • 0 N ~ 196 N
  • 0 F ~ 4426 F
• Resolution:
  • 0.01 kgf, 0.1 N, 0.0126 F
• Diameter of Test Range: 15 mm
• Precision: ±0.5% FS (range) + 1 digital peak
• Measurement Units: kgf, gf, N, lbf
• Measurement Modes: Peak and instantaneous value
• Display: Four-line liquid crystal display with directional and double-screen outputs

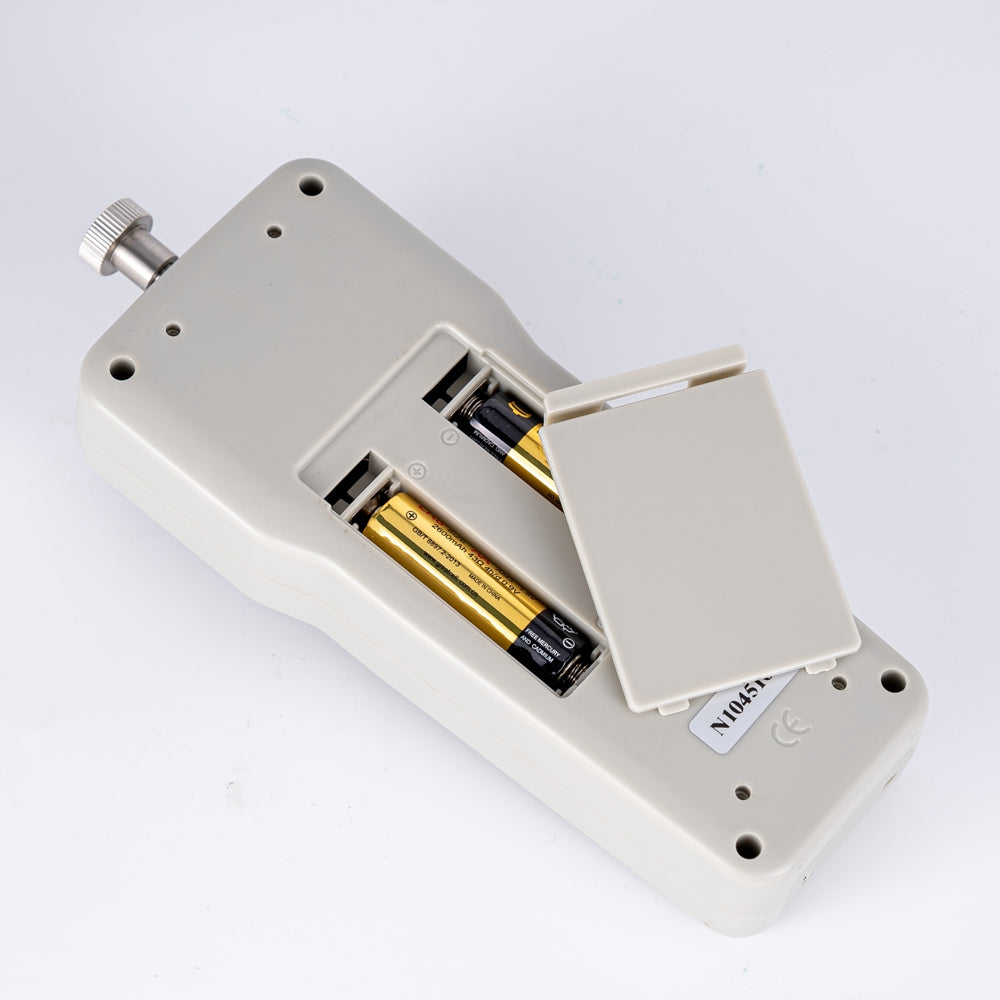

• Power Supply: 2 alkaline batteries or 5V DC power supply
• Working Temperature: 0°C ~ 50°C
• Working Humidity: ≤80% RH
• Weight: 390 g
• Size: 211 mm x 80 mm x 36 mm

Standard Accessories

• Main Unit
• Calibration Fixtures

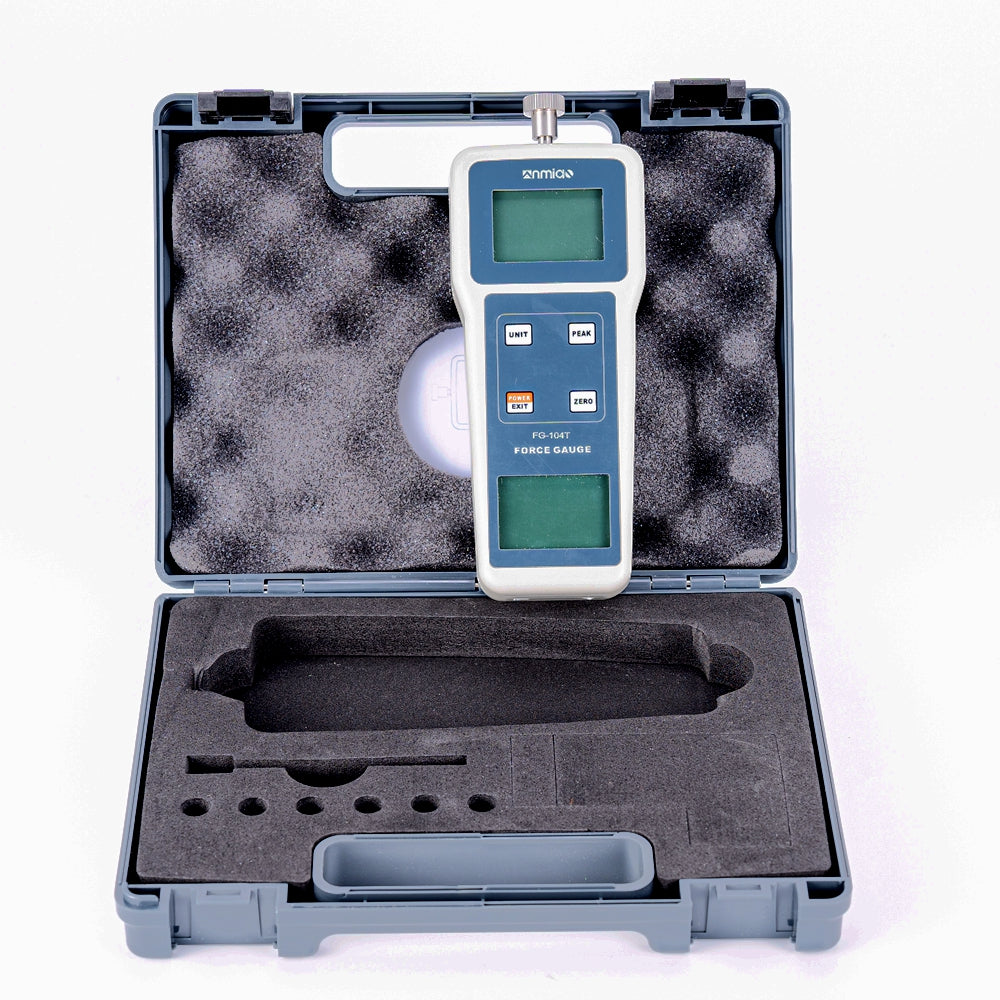

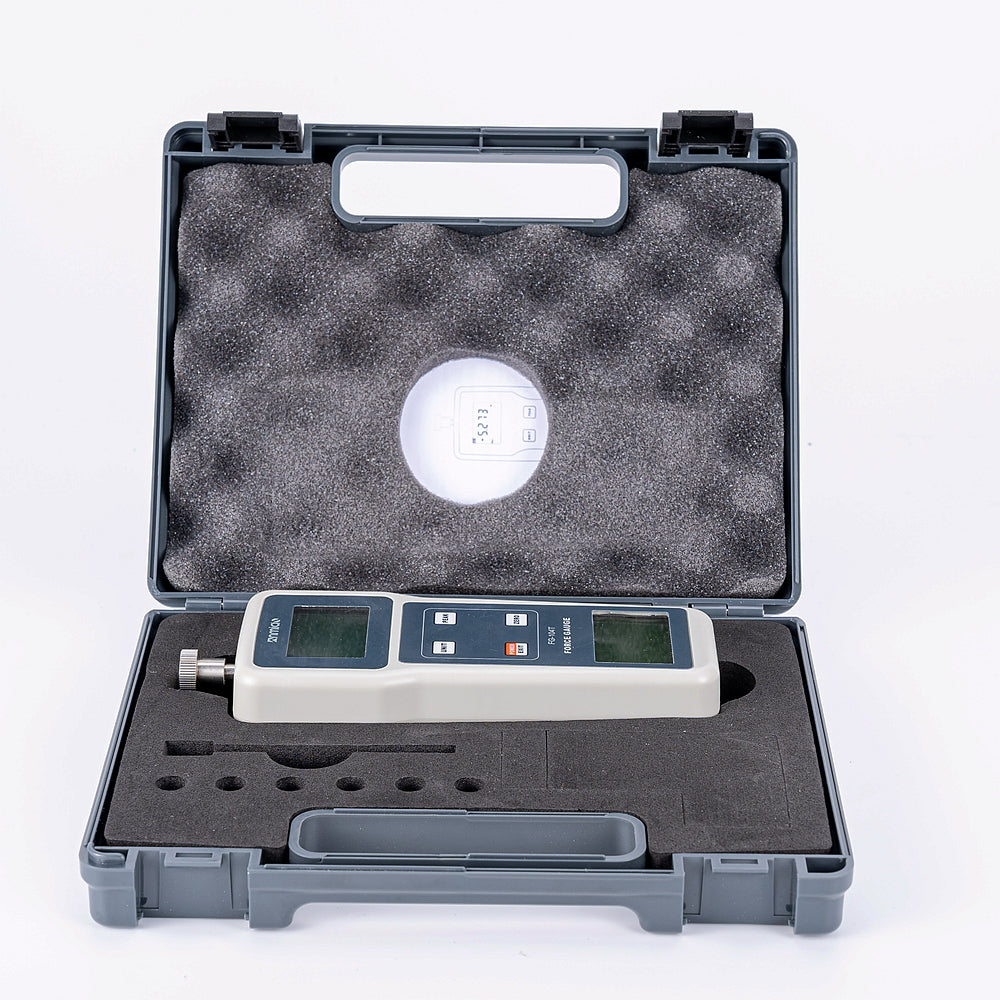

• Carrying Case
• Operation Manual

Applications

• Tablet Manufacturing: Ensures uniform hardness for quality control during production.
• Pharmaceutical Labs: Ideal for research and development purposes.
• Industrial Use: Suitable for testing the hardness of small compressed objects in various industries.

Alternative Names

• Digital Tablet Hardness Tester
• TOMLIN FG-104T Hardness Analyzer
• Pharmaceutical Tablet Tester

Downloads

PDF Specification Sheet - Download Here
