Digital Tachometer PCE-T 230

Digital Tachometer PCE-T 230

Regular price $420.00
Regular price $0.00 Sale price $420.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Tachometer / optical speed measurement / measuring functions: minimum, maximum, last, average value / automatic power off / battery operation

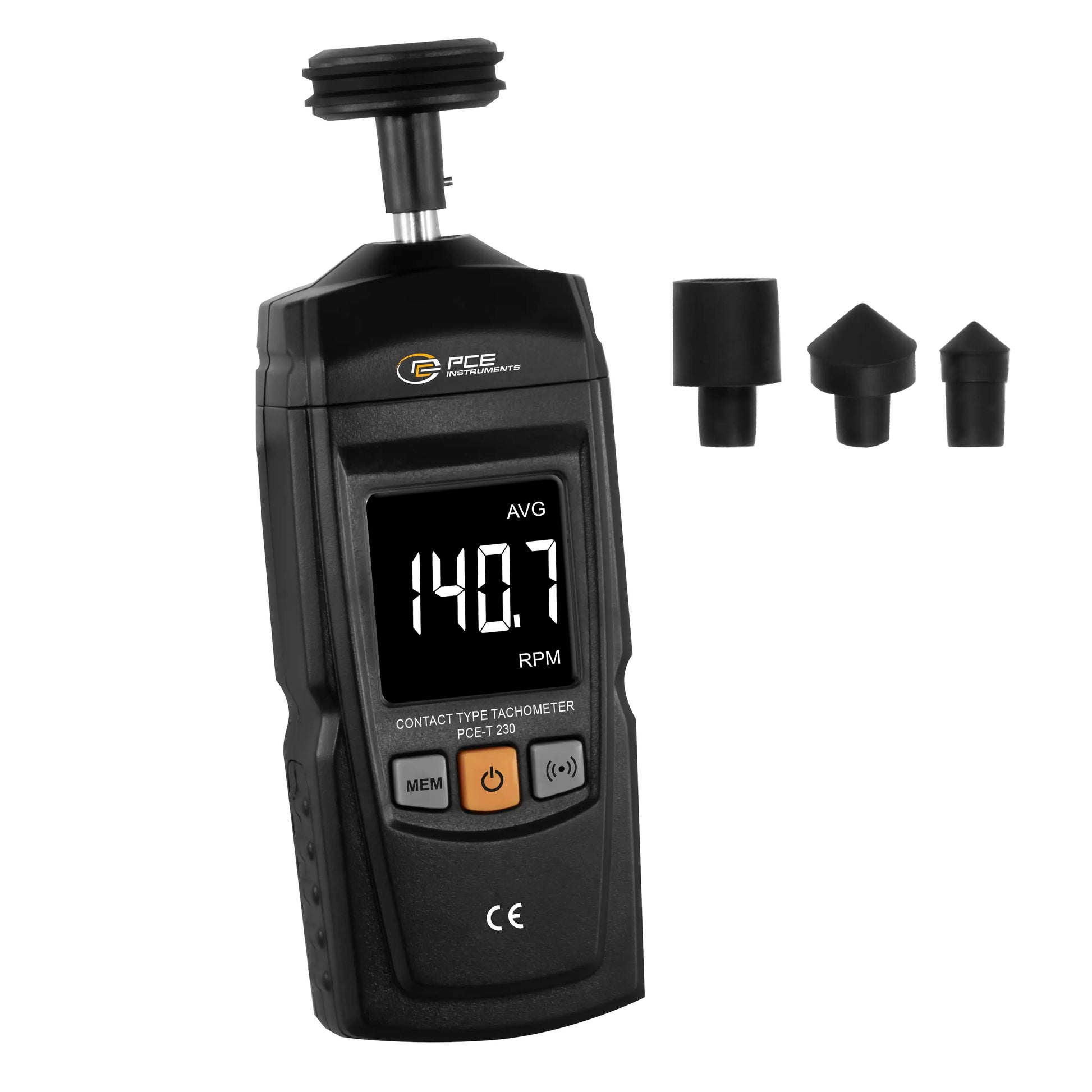

Our Tachometer with a measurement range of 0.5 ... 19999 rpm and a resolution of 0.1 rpm enables accurate and reliable measurements in many applications. With a sampling rate of 0.8 seconds, the Tachometer delivers quick results. It offers multiple measurement functions to choose from, including MAX, MIN, LAST and AVG, to capture different aspects of rotational speed measurement. The units can be flexibly selected between rpm, m/min and ft/min.

The Tachometer has a low battery indicator and is powered by two AAA batteries. Automatic power off after 60 seconds helps to save energy. The Tachometer fits compactly in the hand and can be operated using just three keys. The 1.8-inch LC display ensures that the measured values are clear and easy to read.

In addition to the Tachometer, the delivery scope includes an adaptor and four additional rubber pads for various measurements. These accessories extend the device's range of applications and make it a practical tool for users in various industries.


Highlights

- measuring functions: MAX, MIN, LAST, AVG
- units: rpm, m/min, ft/min
- sampling rate: 0.8 s
- automatic power off after 60 s
- 1.8-inch LC display

Specification

Optical speed
Measurement range up to 0,5 ... 9999 RPM
Resolution 0,1 RPM
Accuracy 0.05 % of Rd + 1 digit
Optical speed
Measurement range up to 1000 ... 19999 RPM
Resolution 1 RPM
Accuracy 0.05 % of Rd + 1 digit
General technical data
Measuring functions MIN, MAX, LAST, AVG
Units ft/min, m/min, RPM
Display type LCD
Display size 1,8 Inch
Measuring rate 0,8 s
Automatic power-off 60 s
Menu language English, English (GB)
Protection class (device) IP20
Weight 110 g
Operating conditions 0 ... 50 °C , 10 ... 90 % RH
Storage conditions -10 ... 80 °C , 10 ... 75 % RH

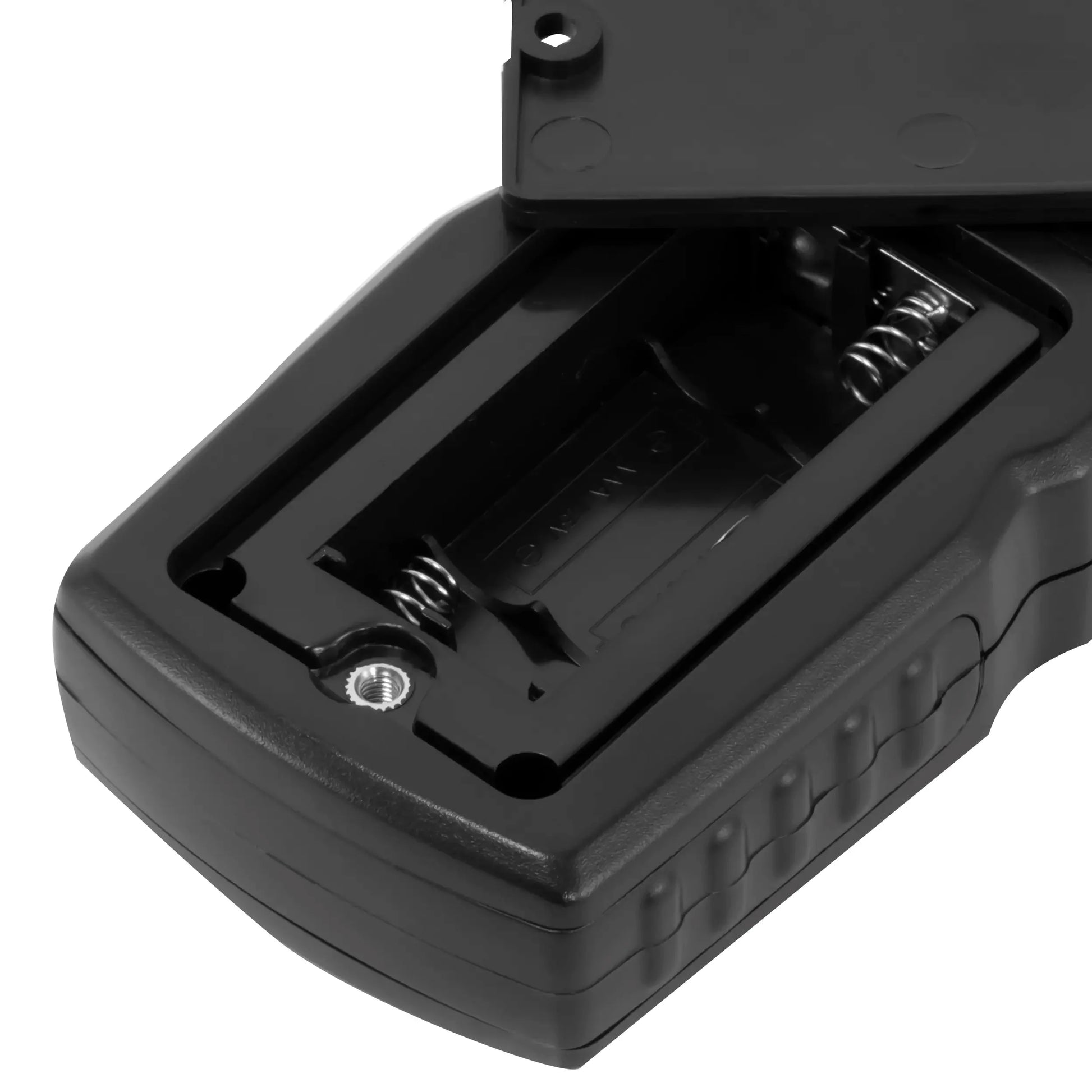

(Rechargeable) battery 2 x 1,5 V AAA battery , Zinc carbon
Capacity 400 mAh
Dimensions ( L x W x H ) 144 x 51 x 30 mm

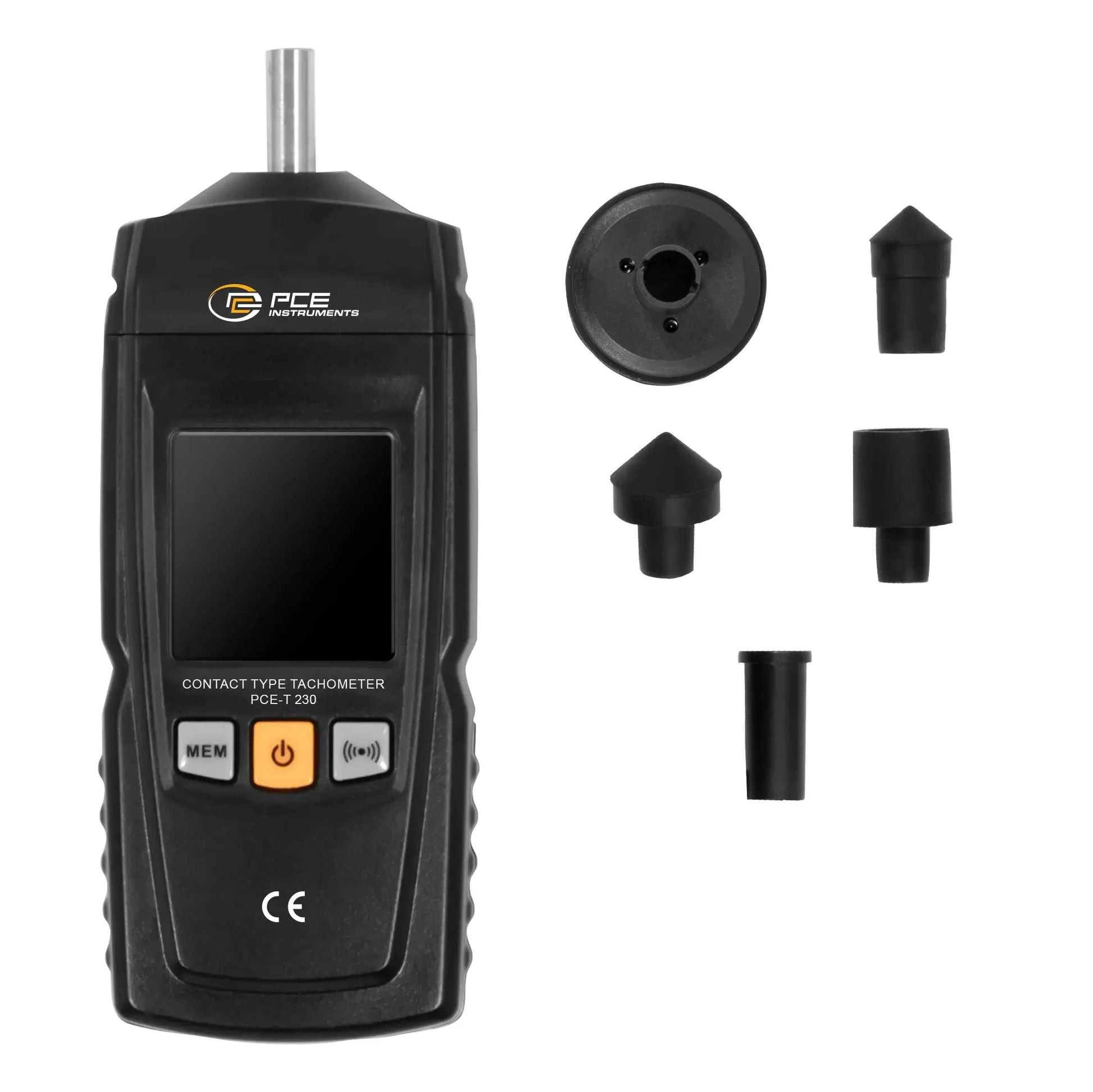

Delivery Scope

1 x Tachometer PCE-T 230
1 x adaptor wheel

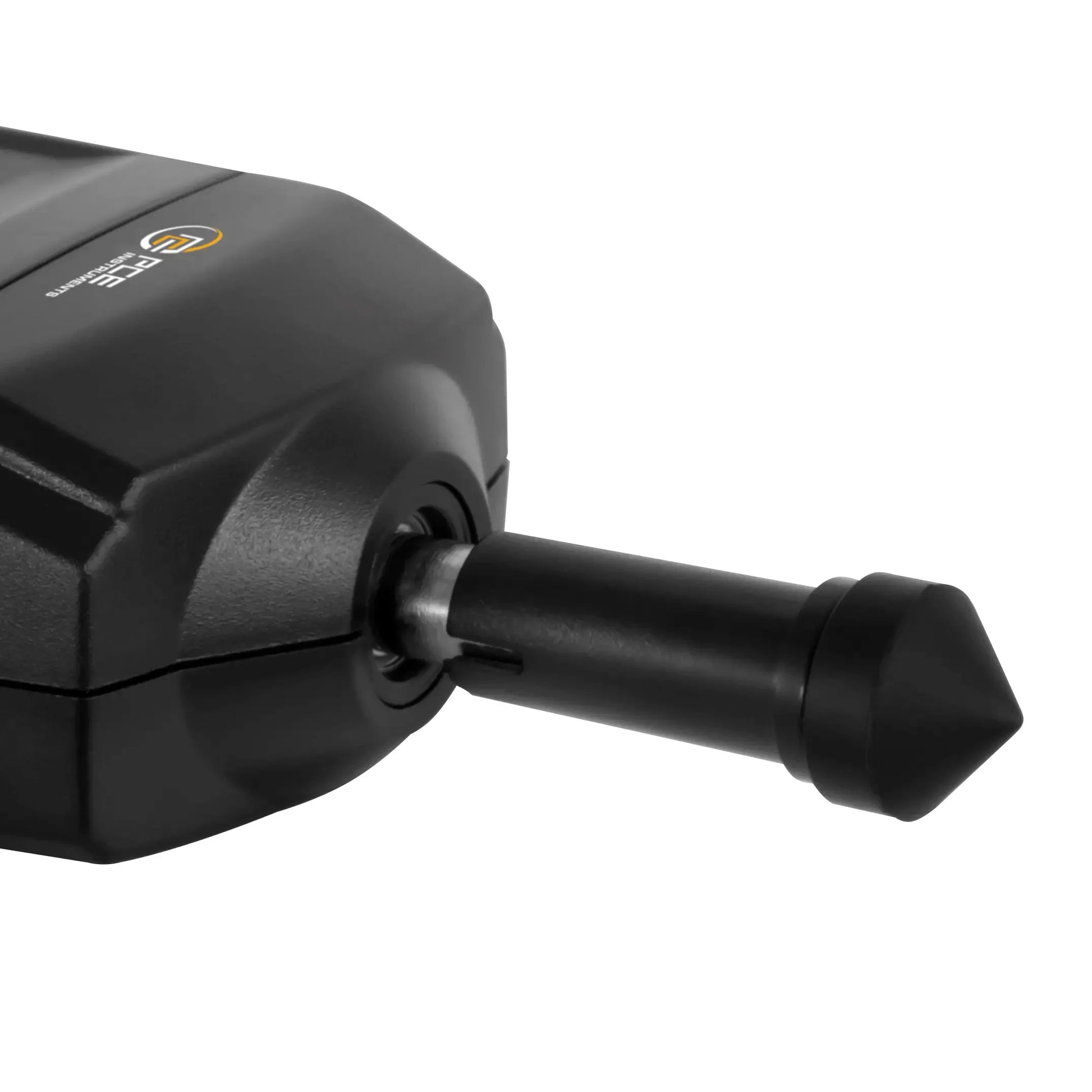

1 x small measuring tip (outer cone)
1 x large measuring tip (outer cone)
1 x hollow measuring tip (inner cone)
1 x measuring wheel Ø32 mm
1 x user manual
2 x 1.5 V AAA battery
