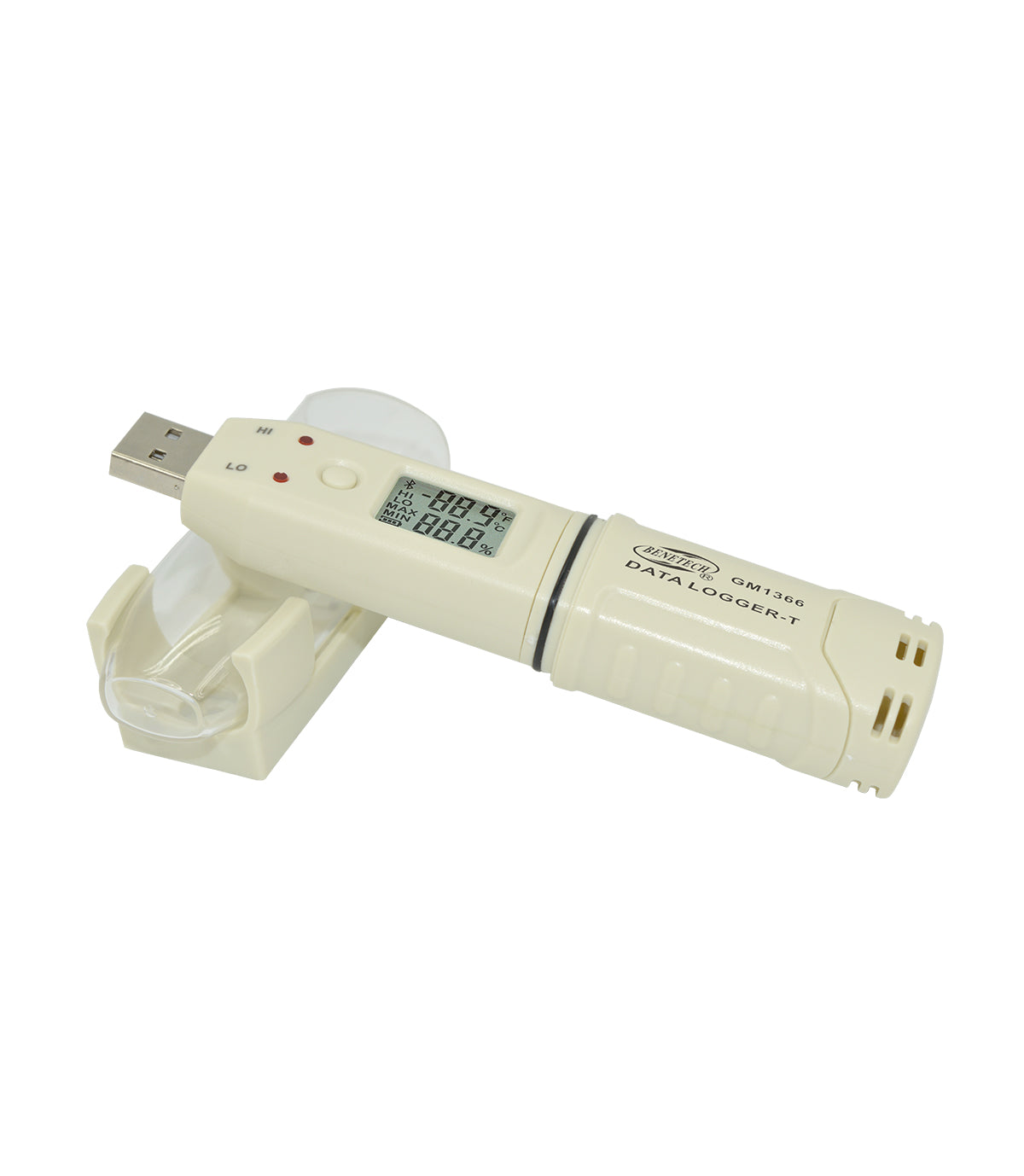

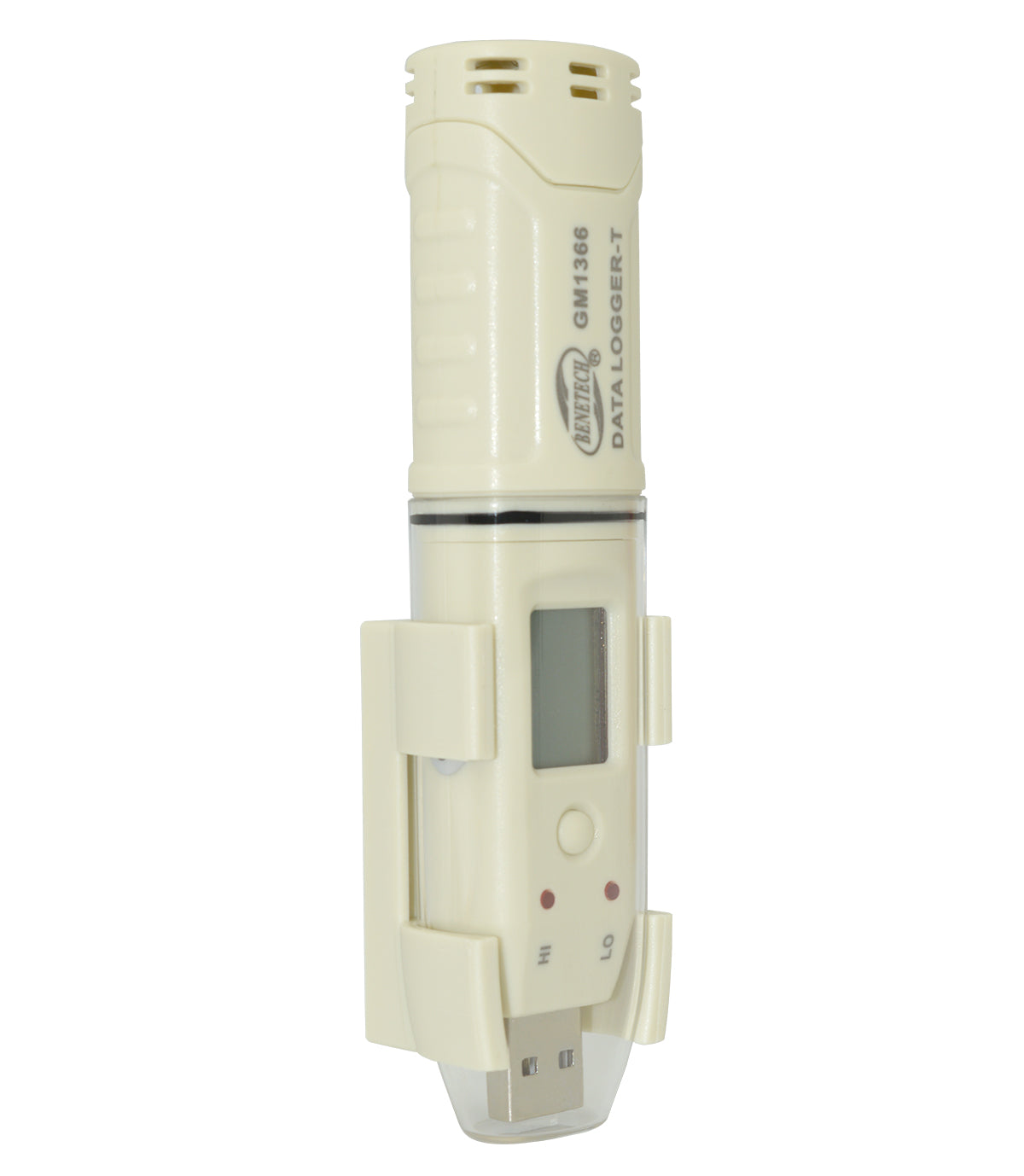

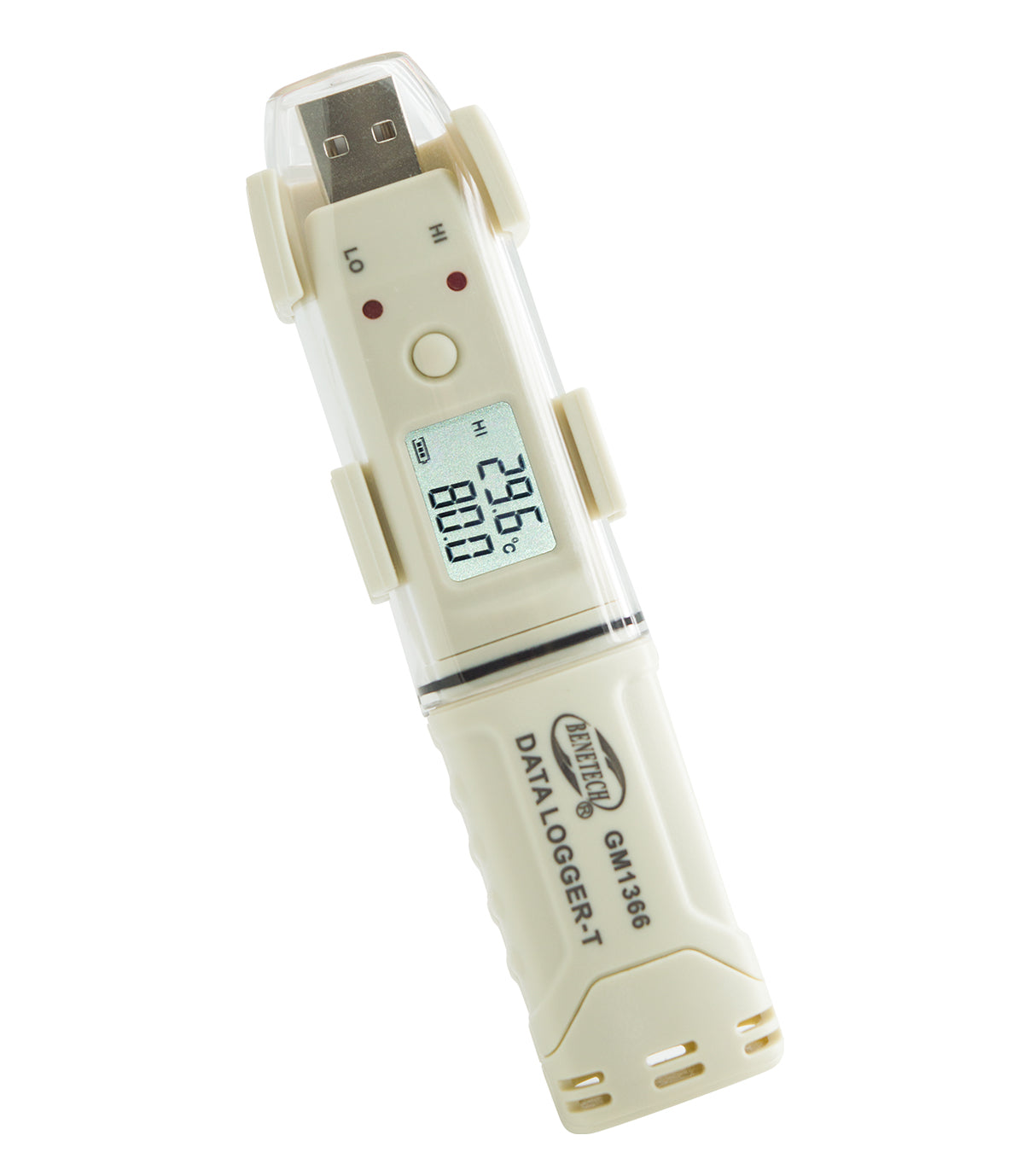

Temperature Logger GM1366

Product Name: Temperature Logger GM1366

Short Description: This digital low power consumption product combines signal collection/display/storage and analysis functions, being widely applied in medical/pharmacy/agriculture/food process/biochemistry laboratory/electronics manufacture/air-conditioning/archive management/archaeological studies/textile fiber/cold chain transportation solutions via environment monitoring/alarming/recording.

Features:

• Suitable for humid and dusty environment with special IP67 waterproof structure.
• High precision and quick response.
• Low power consumption design for continuous operation over 12 months with 1/2 AA3.6V lithium battery which can be replaced quickly.
• Allows setting upper and lower limits for temperature alarming, with an LED light that flashes if the reading is beyond limits.
• Large data storage up to 61440 groups of data.
• Attached with PC analysis software for users to manipulate the unit.

Specifications:

• Precision: Typical ±0.5°C (See Fig 5)

  Response time: 5~30S

  Measuring range: -30~80°C

  Memory size: 61440

  Power: 1/2AA 3.6V Lithium Battery

  Size: 126×28×22mm

  Weight: 49g

  Accessories: Cover, Bracelet, Screw×2, CD, Lithium Battery

Applications:

The Temperature Logger GM1366 is widely used in various fields including medical, pharmacy, agriculture, food processing, biochemistry laboratories, electronics manufacturing, air conditioning, archive management, archaeological studies, textile fibers, and cold chain transportation solutions.

Accessories:

• Main Unit
• Charging Cable
• User's Manual
• PC Analysis Software

Certification:

This product meets all necessary industry standards and certifications for safety and performance.

Downloads

PDF Specification Sheet - Download Here
