Digital Tension Dynamometer PCE-DDM 10
Digital Tension Dynamometer PCE-DDM 10
Regular price
$5,080.00
Regular price
Sale price
$5,080.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Mobile Tension Dynamometer / Measuring range up to 10 t /
PEAK hold function / incl. remote display / incl. shackles and transport case
PEAK hold function / incl. remote display / incl. shackles and transport case

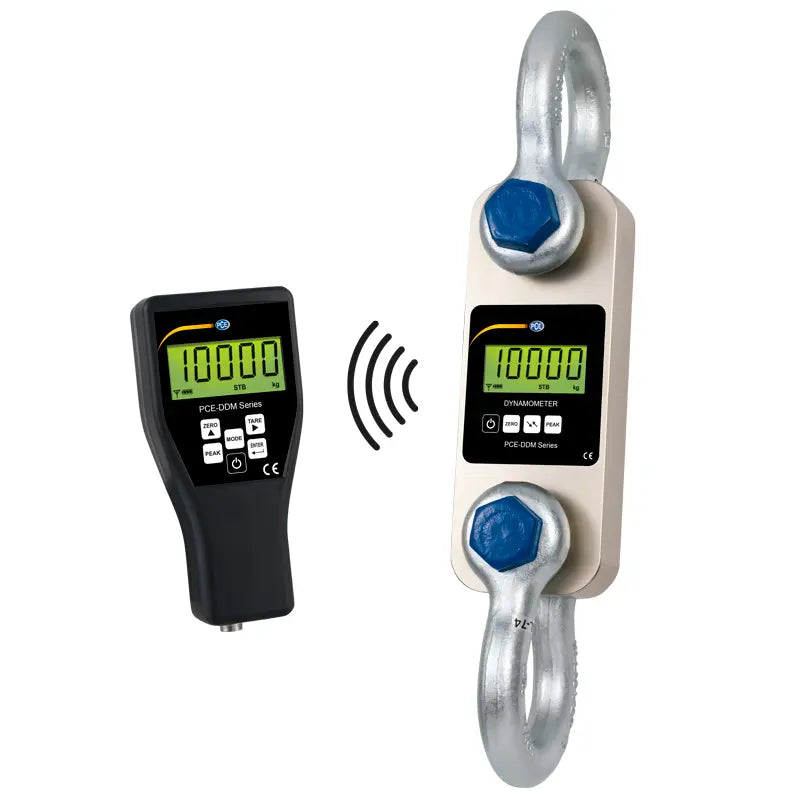

The tension dynamometer is ideal for carrying out mobile tension measurements such as those made by surveyors. Quality materials are used for the manufacture of the tension dynamometer. Despite the high measuring capacity, these materials enable a compact design with a low weight. The tension dynamometer is supplied with a radio display and two shackles in a transport case.
Interesting functions of the tension dynamometer are the PEAK hold function, summation function and the various units of measurement such as kg / t / lb / N or kN. The tensile dynamometer is only suitable for tensile measurements; other force measuring devices must be used for pressure tests, such as our PCE-FB series force measuring gauges.
Highlights
- Measuring range up to 10,000 kg / 100 kN
- Low device weight
- Compact design
- Long battery life
- Remote radio display
- PEAK Hold function
- Summing function
- Measurement units: kg / t / lbs / N / kN
- Adjustable gravitation range
- Shackles and transport case incl.
- Low device weight
- Compact design
- Long battery life
- Remote radio display
- PEAK Hold function
- Summing function
- Measurement units: kg / t / lbs / N / kN
- Adjustable gravitation range
- Shackles and transport case incl.
Specification
| Measuring range | 10000 kg / 100 kN / 22046 lbs |
| Resolution | 5 kg / 50 N / 11 lbs |
| Min. range | 100 kg / 220 lbs |
| Weight (with shackle) |
11 kg / 24 lbs
(25 kg / 55 lbs)
|
| Accuracy | ±0.1 % of measurement range |
| Tare range | Max. 20 % of measurement range |
| Display | LCD with 22 mm / 0.9 in digit height |
| Units of measurement | kg / t / lb / N / kN |
| Sampling rate | 2.5 Hz |
| Operating temperature | -10° C ... +40° C / +14° F ... +104° F |
| Power supply | 3 x 1.5 V AA batteries |
| Operating time | Approx. 50 hours |
| Technical drawing | ||||||||||||||||||
 |
||||||||||||||||||
|

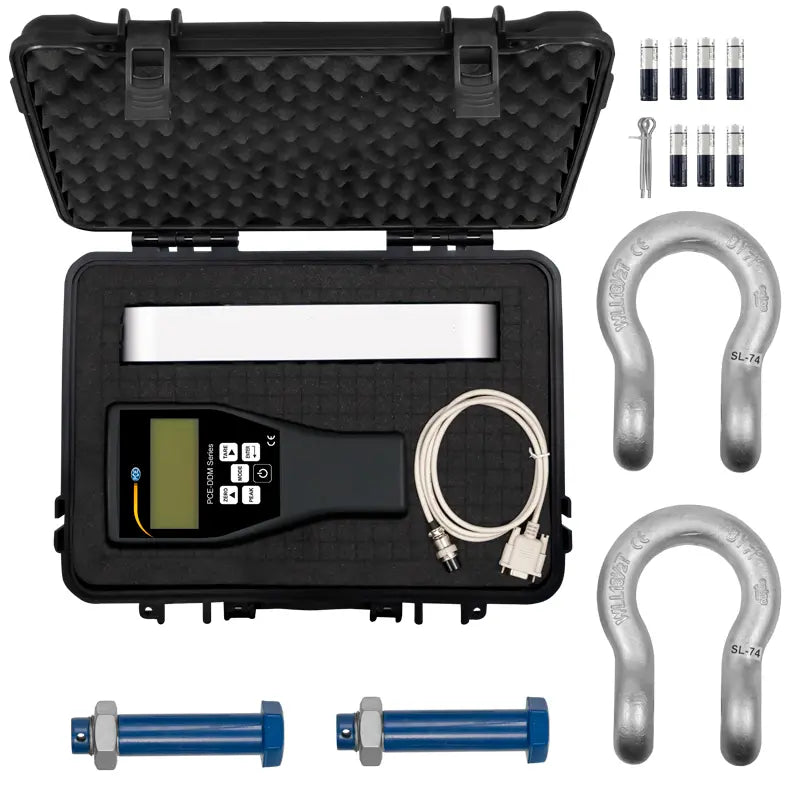

Delivery Scope
1 x Tension Dynamometer PCE-DDM 10

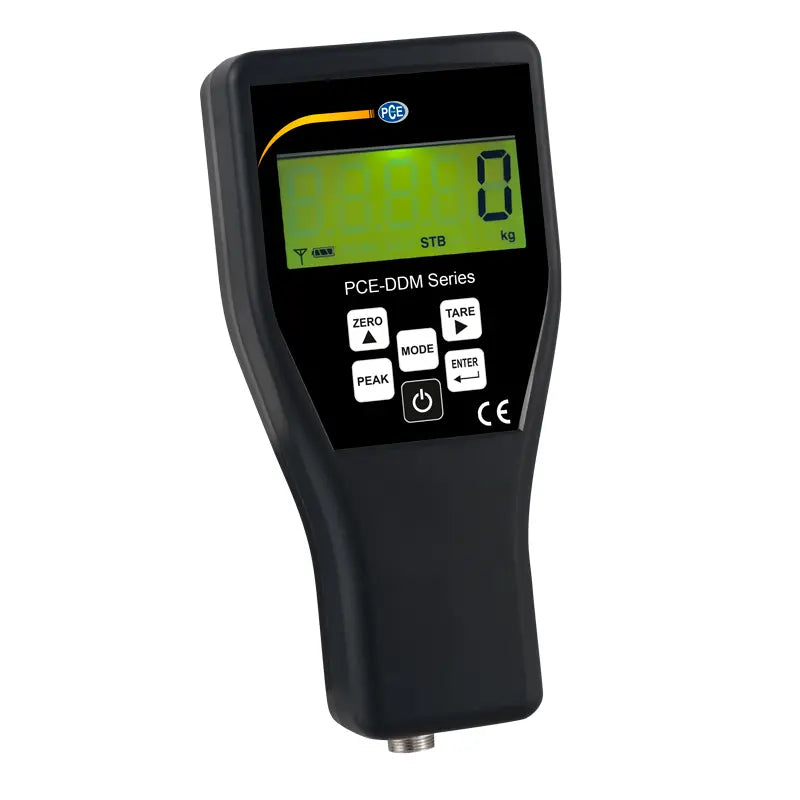

1 x Remote control indicator

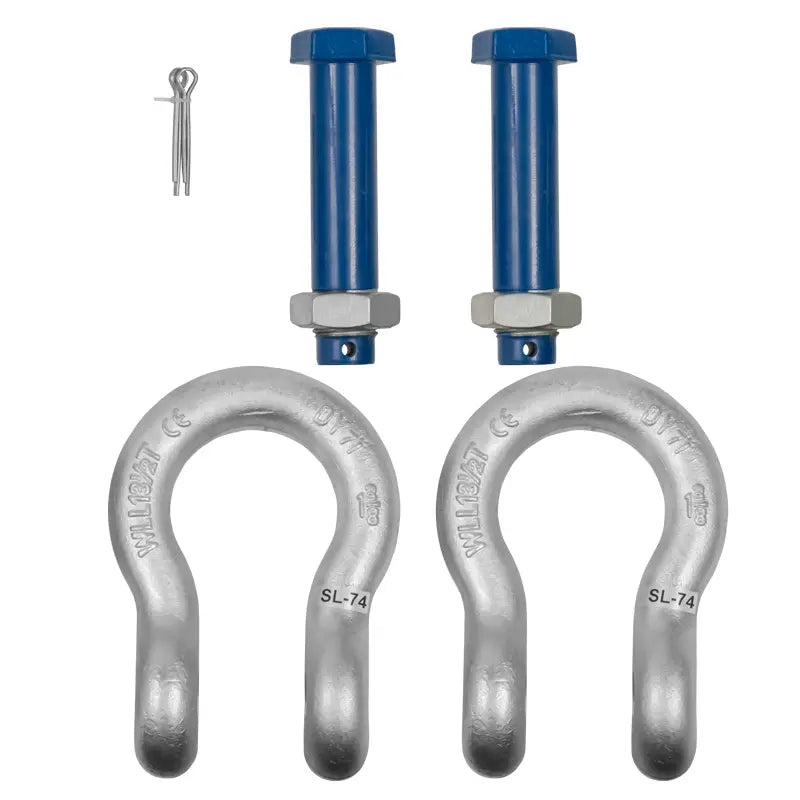

2 x Shackles
1 x Carrying case
7 x AA 1.5 V batteries
1 x User manual
1 x Remote control indicator
2 x Shackles
1 x Carrying case
7 x AA 1.5 V batteries
1 x User manual
