Digital Tension Dynamometer 50 t Capacity – PCE-DDM 50
Digital Tension Dynamometer 50 t Capacity – PCE-DDM 50
Regular price
$11,960.00
Regular price
Sale price
$11,960.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Mobile Tension Dynamometer / Measuring range up to 50 t /
PEAK hold function / incl. remote display / incl. shackles and transport case
PEAK hold function / incl. remote display / incl. shackles and transport case

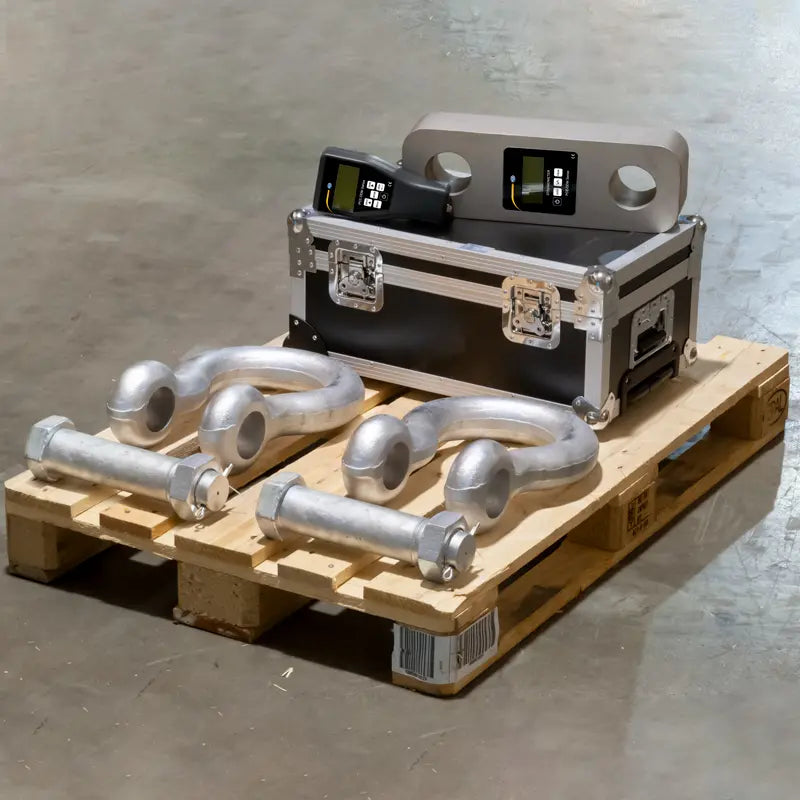

The tension dynamometer is ideal for carrying out mobile tension measurements such as those made by surveyors. Quality materials are used for the manufacture of the tension dynamometer. Despite the high measuring capacity, these materials enable a compact design with a low weight. The tension dynamometer is supplied with a radio display and two shackles in a transport case.
Interesting functions of the tension dynamometer are the PEAK hold function, summation function and the various units of measurement such as kg / t / lb / N or kN. The tensile dynamometer is only suitable for tensile measurements; other force measuring devices must be used for pressure tests, such as our PCE-FB series force measuring gauges.
Highlights
- Measurement range up to 50000 kg / 500 kN
- High capacity
- Compact and portable
- Long battery life
- Peak hold function
- Summation function
- Selectable units of measurement: kg / t / lb / N / kN
- Adjustable gravitation range

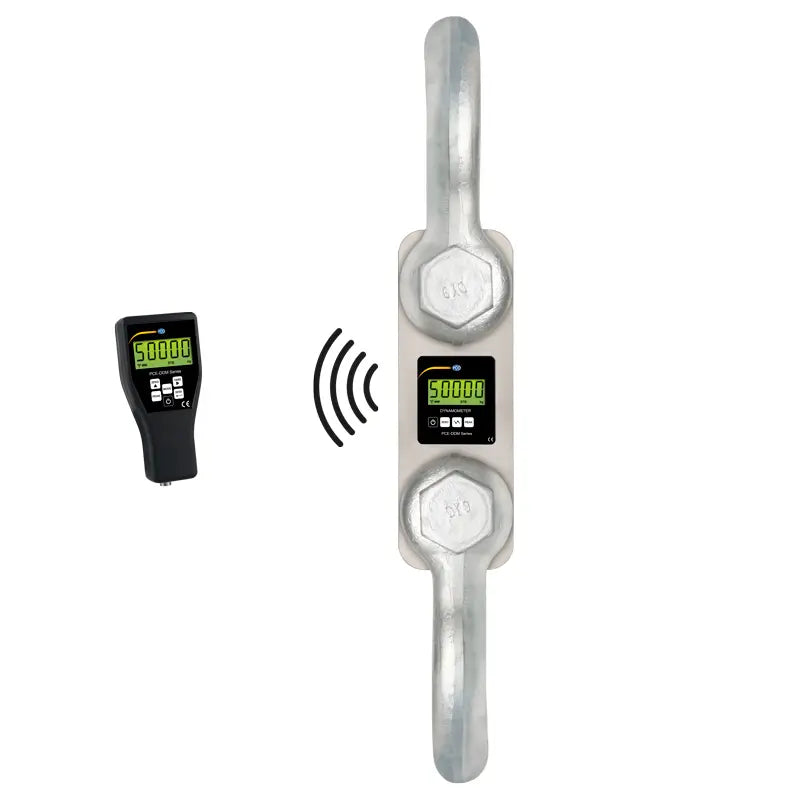

- Remote control indicator, shackles and carrying case included
Specification
| Measuring range | 50000 kg / 500 kN / 110231 lbs |
| Resolution | 20 kg / 200 N / 44 lbs |
| Min. range | 400 kg / 881 lbs |
| Weight (with shackle) |
39 kg / 86 lbs
(128 kg / 282 lbs)
|
| Accuracy | ±0.1 % of measurement range |
| Tare range | Max. 20 % of measurement range |
| Display | LCD with 22 mm / 0.9 in digit height |
| Units of measurement | kg / t / lb / N / kN |
| Sampling rate | 2.5 Hz |
| Operating temperature | -10° C ... +40° C / +14° F ... +104° F |
| Power supply | 3 x 1.5 V AA batteries |
| Operating time | Approx. 50 hours |
| Technical drawing | ||||||||||||||||||
 |
||||||||||||||||||
|
Delivery Scope
1 x Tension Dynamometer PCE-DDM 50
1 x Remote control indicator
2 x Shackles
1 x Carrying case
7 x AA 1.5 V batteries
1 x User manual
1 x Remote control indicator
2 x Shackles
1 x Carrying case
7 x AA 1.5 V batteries
1 x User manual
