Digital Crane Scale Kit PCE-MTS500-FD 300 KIT

Digital Crane Scale Kit PCE-MTS500-FD 300 KIT

$7,390.00
$7,390.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Motorized tension dynamometer test stand up to 5000 N, All force measuring devices of the PCE series with internal and external force measuring cell adaptable, Large stroke, Adjustable feed speed

The maximum force range of the motorized test stand is 500 kg. The use of the motorized test bench requires a power connection. The feed speed is variably adjustable between 30 mm/min and 230 mm/min. The precise measurement procedure is thus guaranteed with the motorized test stand. The force test stand is compatible with the following device series: PCE-FB series, PCE-FM series, PCE-LFG series and the PCE-PTR 200.

Attention: A force measuring device must always be ordered as an option for the motorized test stand!

Wherever the human body reaches its limits in terms of force measurement, the motorized test stand comes into play. The user of the motorized test stand is obliged to prepare a risk analysis. If it emerges from this that the type of application and the samples pose a risk to the user, a safety device may be required, especially in the case of the test stand operated by an electric motor.

*** N.B. The mounting plate ADP-UNI accessory must be ordered for internal load cell force gauges ***

PCE-DFG FD 300 force-displacement adapter / Incl. software / 11 components
The PCE-DFG FD 300 is a useful extension to the material test stand PCE-MTS 500 in connection with a force measuring device (e.g. PCE-DFG N 5K). This extension allows force-displacement diagrams and curves to be created. The software included in the scope of delivery offers the user an optimized interface for evaluating diagrams and graphs. In this way, material tests can be carried out with forces of up to 5000 N (500 kg / 1102 lb).

Highlights

- Adjustable feed speed
- Robust steel design
- Adjustable travel
- Large force measuring range
- Mains connection
- All PCE force devices adaptable
- Manual or automatic operation
- incl. length measuring device


Specification

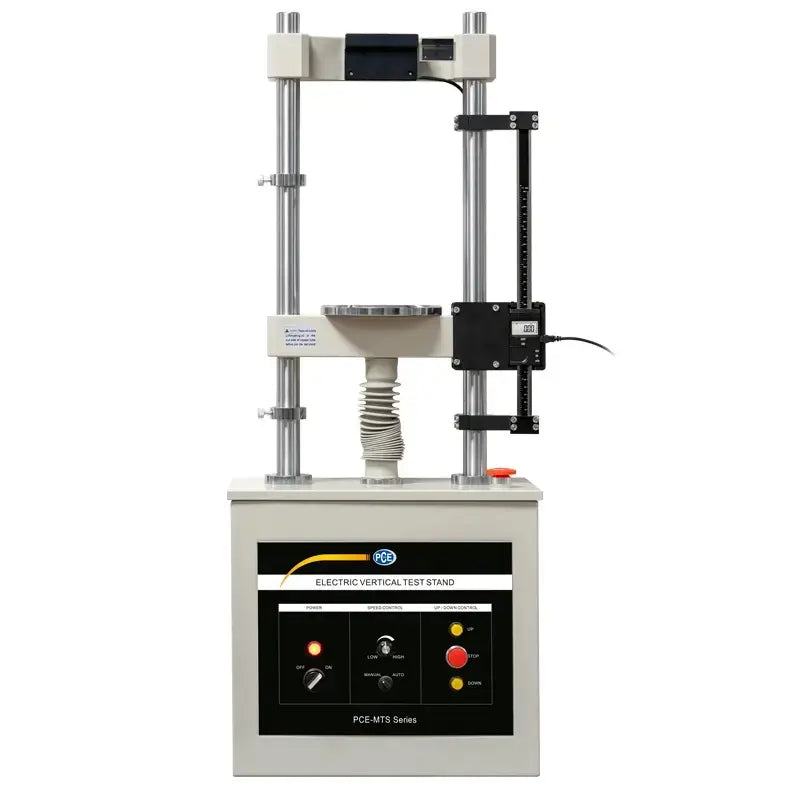

Motorized tension dynamometer test stand PCE-MTS500
Force range max. 5000 N (500 kg / 1100 lbs)
Travel distance max. 300 mm / 11.8"
Feed rate 30 ... 230 mm/min / 1.18 ... 9.05 in/min
Test table Ø 160 mm/ 6.3"
Sample width max. 200 mm / 7.9"
Guide columns Ø 32 mm / 1.3"
Dimensions 1020 x 400 x 250 mm / 40.2 x 15.7 x 9.8"
Weight ca. 60 kg / 132 lbs

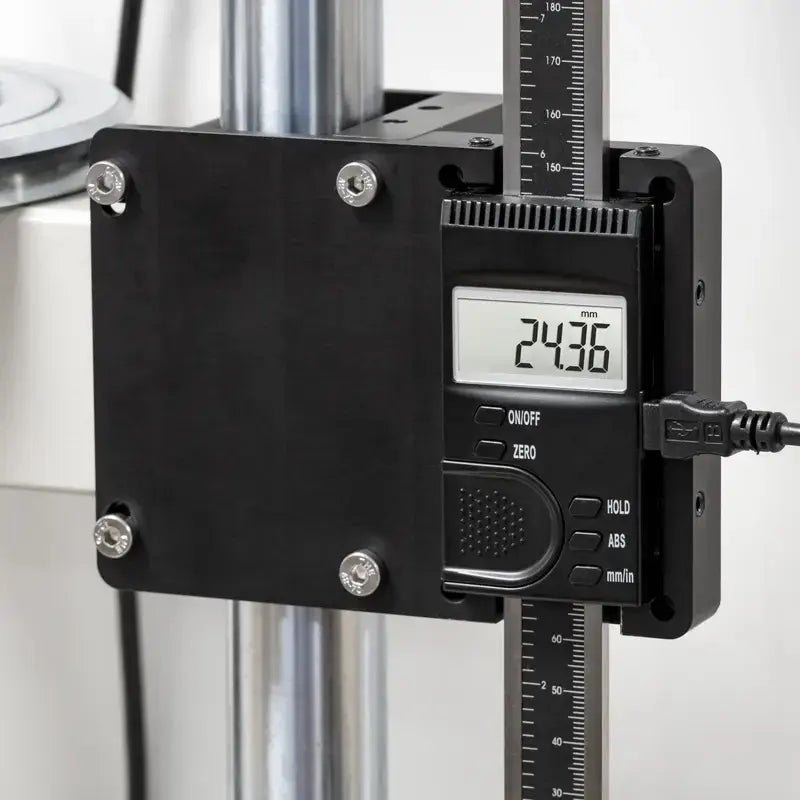

Length measuring device PCE-DFG FD 300
Measuring range -150 … 150 mm / -5.9 … 5.9"
Resolution 0.01 mm / 0.0004"
Accuracy ±0.03 mm / 0.001"
Operating conditions Temperature: 0 … +50 °C / 32 … 122 °F
Storage conditions Temperature: -20 … +65 °C / -4 … 149 °F
Humidity: 10 … 95 % RH, non-condensing
Weight 360 g / 12.7 oz
Power supply 3VCR 2032
Dimensions 394 x 40 x 10 mm / 15.5 x 1.5 x 0.4" (HxWxD)

Delivery Scope

1 x Tension dynamometer test stand PCE-MTS500
1 x Instruction manual

1 x Length measuring device PCE-DFG FD 300
1 x Bracket (consisting of 11 components)
1 x Mounting kit (consisting of 24 screws and 2 grub screws)
1 x Measuring system
1 x Data cable
1 x USB stick with PCE-DFG FD software

Attention: A force measuring device is not included with the motorized test stand and can be ordered as an option.
