Wire & Cable Tension Meter LTMS

Tomlin LTMS Digital Tension Meter Series

Overview

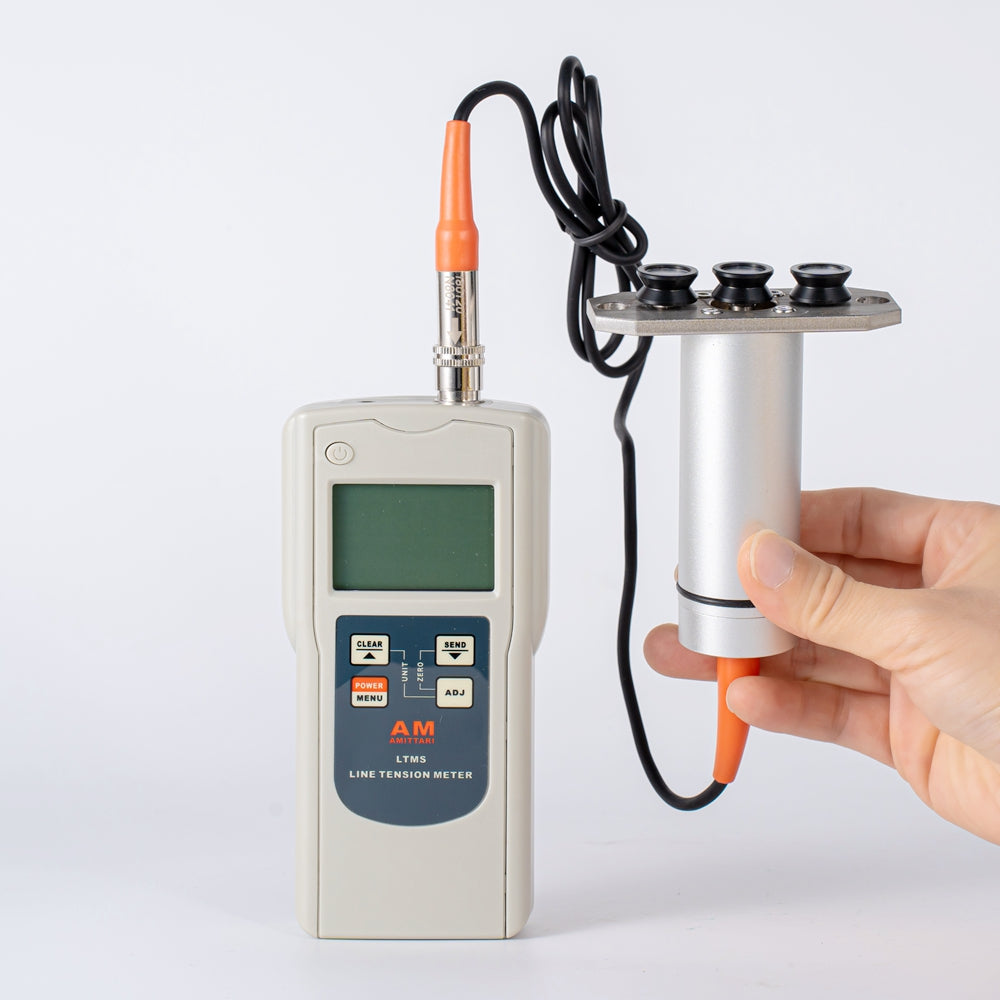

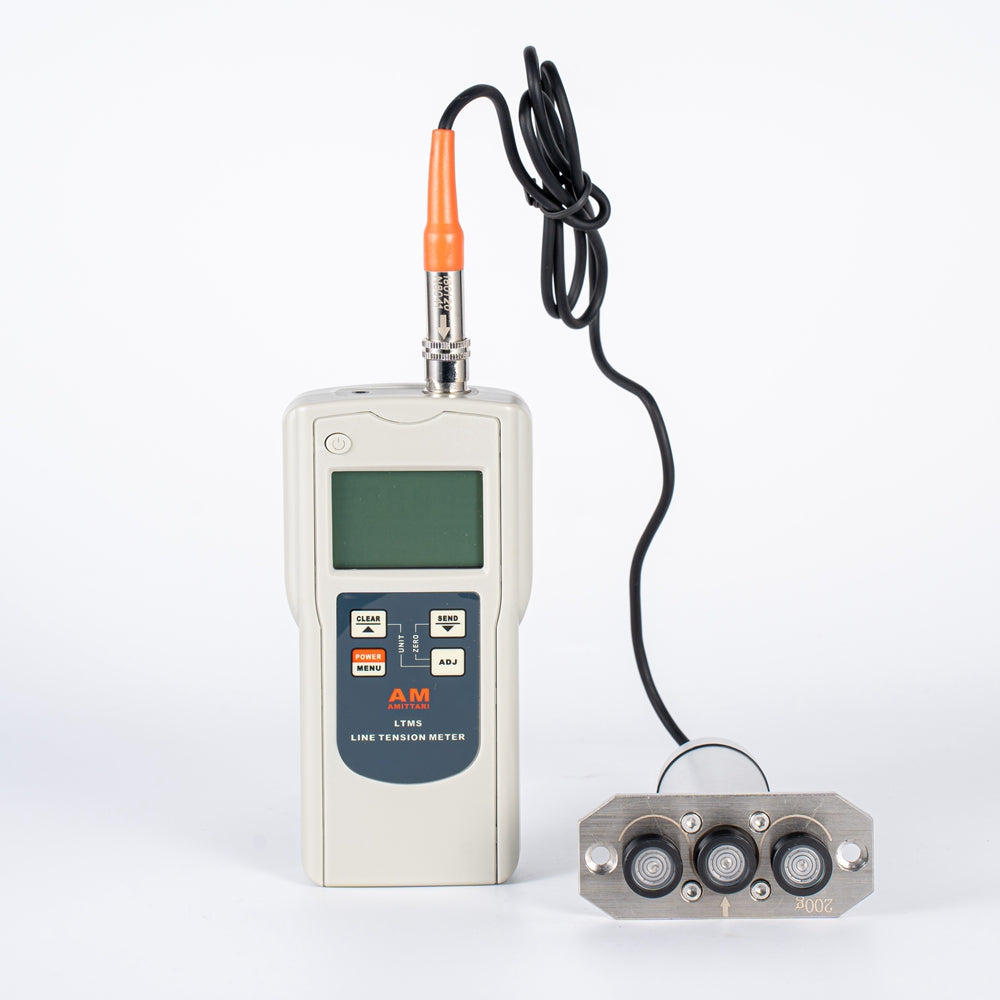

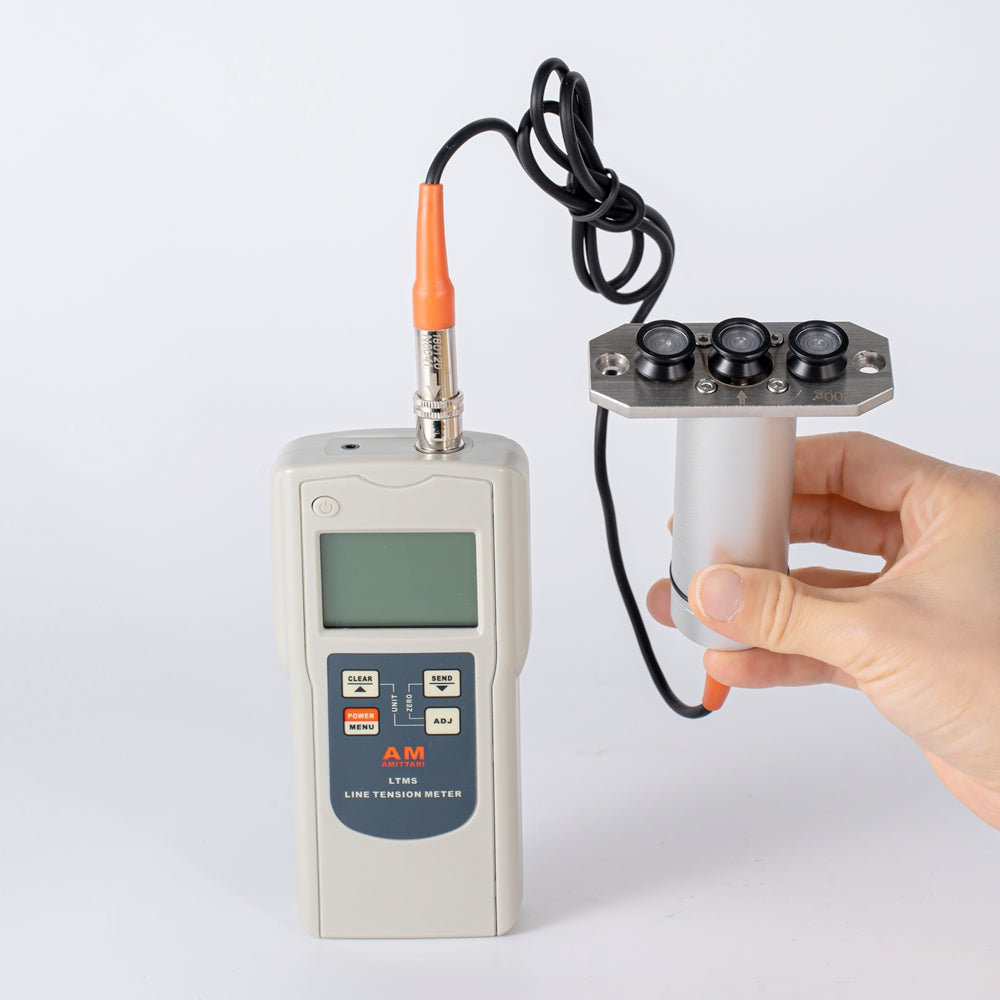

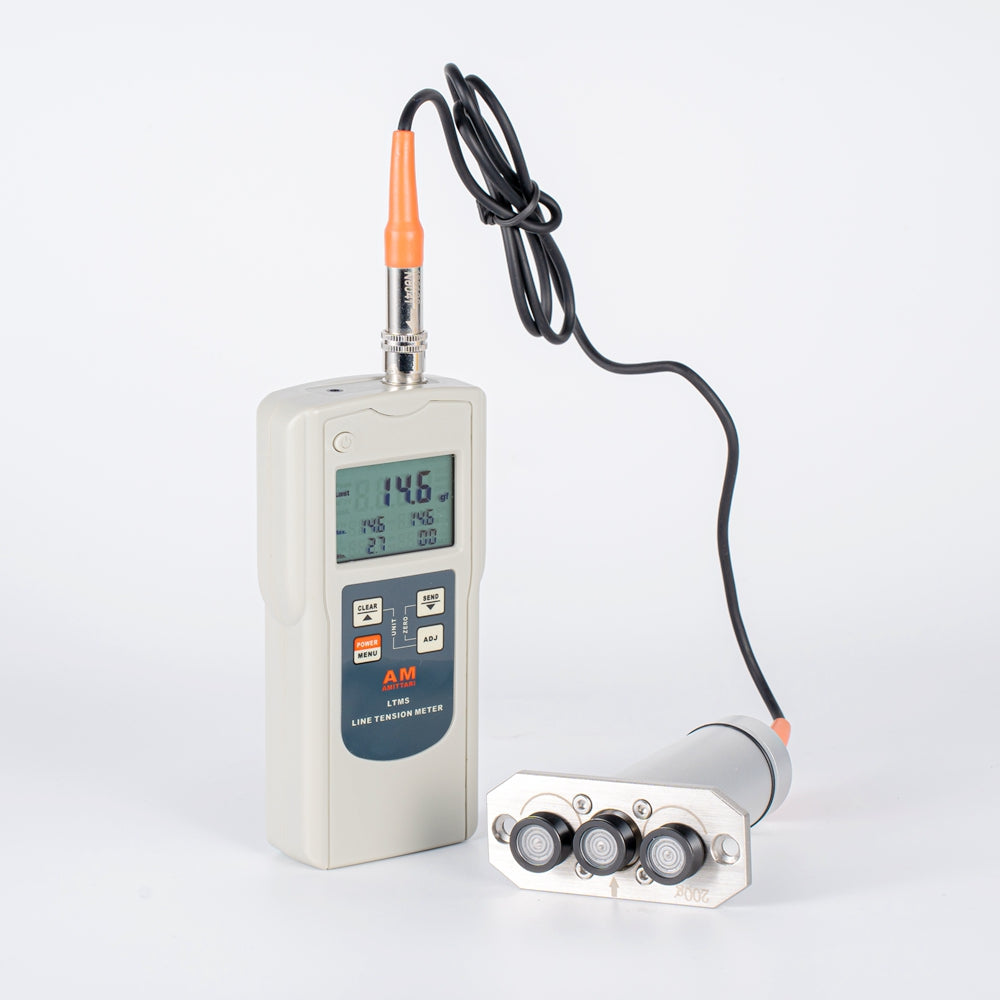

The Tomlin LTMS Digital Tension Meter is a compact, handheld device engineered for precise measurement of both running and static tensions across a wide range of materials, including yarns, fibers, wires, and optical fibers. Utilizing the reliable "three-roller principle," this device ensures accurate and repeatable tension readings. Its proprietary calibration formulas consider material diameter, gravity, and other critical parameters, making it an indispensable tool for industrial and laboratory applications.

Key Features

• Backlight Display: Ensures visibility of readings even in low-light conditions.
• Buzzer Sound Reminder: Alerts for over-range and completed measurements.
• Over-Range Alert Tone: Warns when tension exceeds the device's measuring limits.
• Metric/Imperial Conversion: Allows seamless switching between measurement units.
• Low Battery Indicator: Notifies users when the battery is running low.
• Real-Time Measurement Transmission: Enables live data transfer for analysis and logging.
• Computer Connectivity: Allows integration with external systems via USB or Bluetooth.
• Manual/Auto Power Off: Saves energy with auto-shutdown or manual power-off options.
• Comprehensive Value Display: Shows:
  • Current Value
  • Maximum Value
  • Peak Value
  • Minimum Value

Applications

The Tomlin LTMS Digital Tension Meter is suitable for:

• Manufacturing Processes
• Quality Control
• Research and Development Labs
• Optical Fiber and Wire Tension Monitoring

Models and Tension Range:

• LTMS-200: 00.2 kgf (02 N)

  LTMS-500: 00.5 kgf (05 N)

  LTMS-1K: 01 kgf (010 N)

  LTMS-2K: 02 kgf (020 N)

  LTMS-5K: 05 kgf (050 N)

  LTMS-10K: 010 kgf (098 N)

  LTMS-20K: 020 kgf (0196 N)

  LTMS-50K: 050 kgf (0490 N)

Specifications

General Specifications:

• Resolution: 1 gf for most models
• Accuracy: ±1.0% or better
• Measuring Principle: Strain gauge
• Measuring Frequency: 16 ms (62.5 samples/second)
• Overload Capacity: 150% of full scale
• Temperature Coefficient: ≤0.3% FS/°C
• Display: Blue backlight LCD
• Data Output: USB and Bluetooth options available

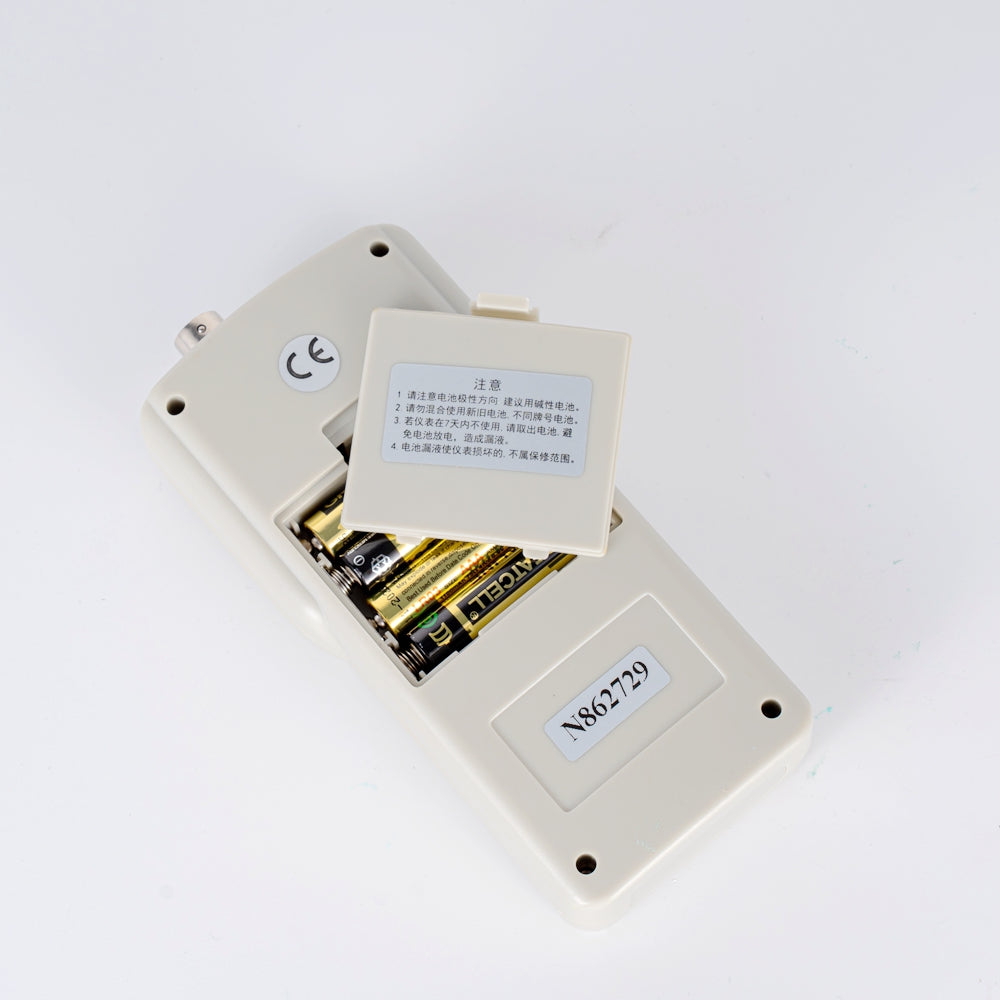

• Power Supply: 4 x 1.5V AAA UM-4 batteries
• Sensor Material: Stainless Steel (Plastic optional)
• Maximum Speed: 2,000 m/min

Dimensions:

• Main Unit: 140 x 70 x 31 mm (5.5 x 2.8 x 1.2 in)
• Sensor Size: 102 x 81 x 34 mm (4.0 x 3.2 x 1.3 in)
• Weight (Including Battery): 400 g (14.1 oz)

Standard Accessories

• Main Unit

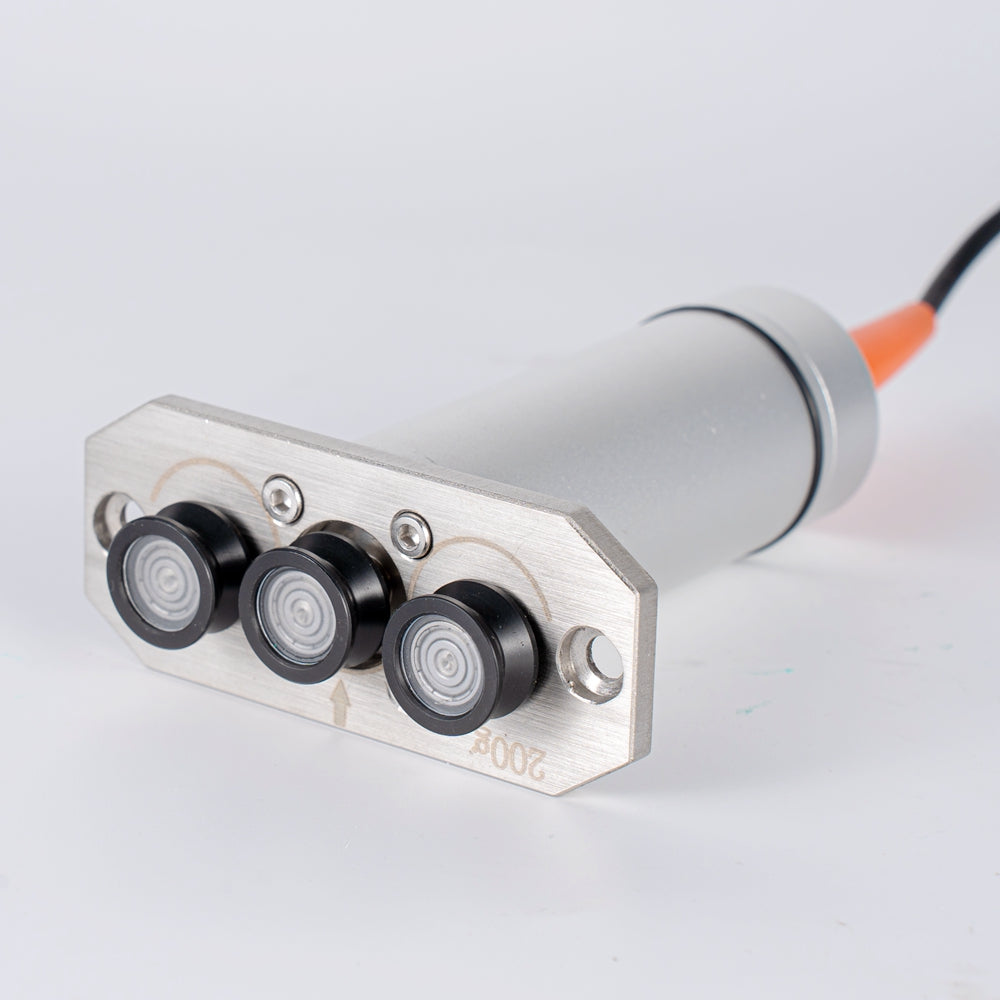

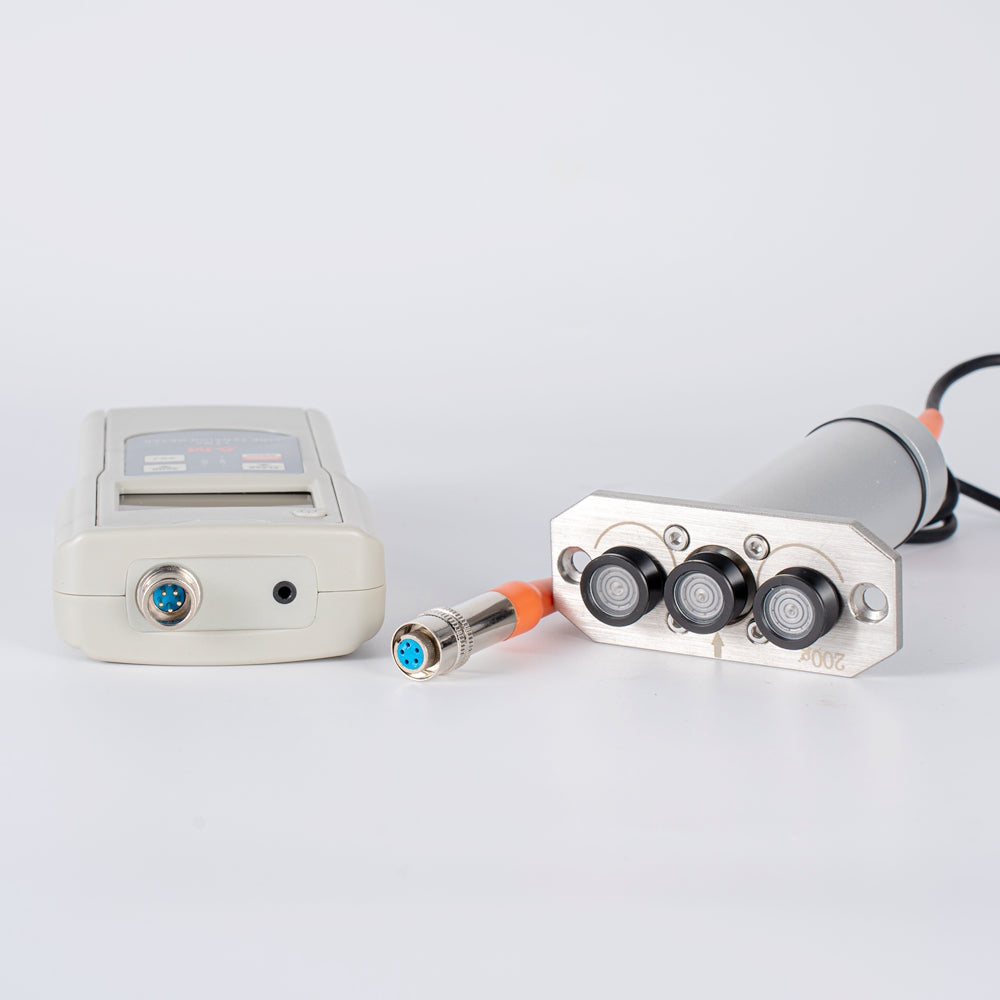

• Sensor Unit
• USB Cable (for compatible models)
• Operation Manual

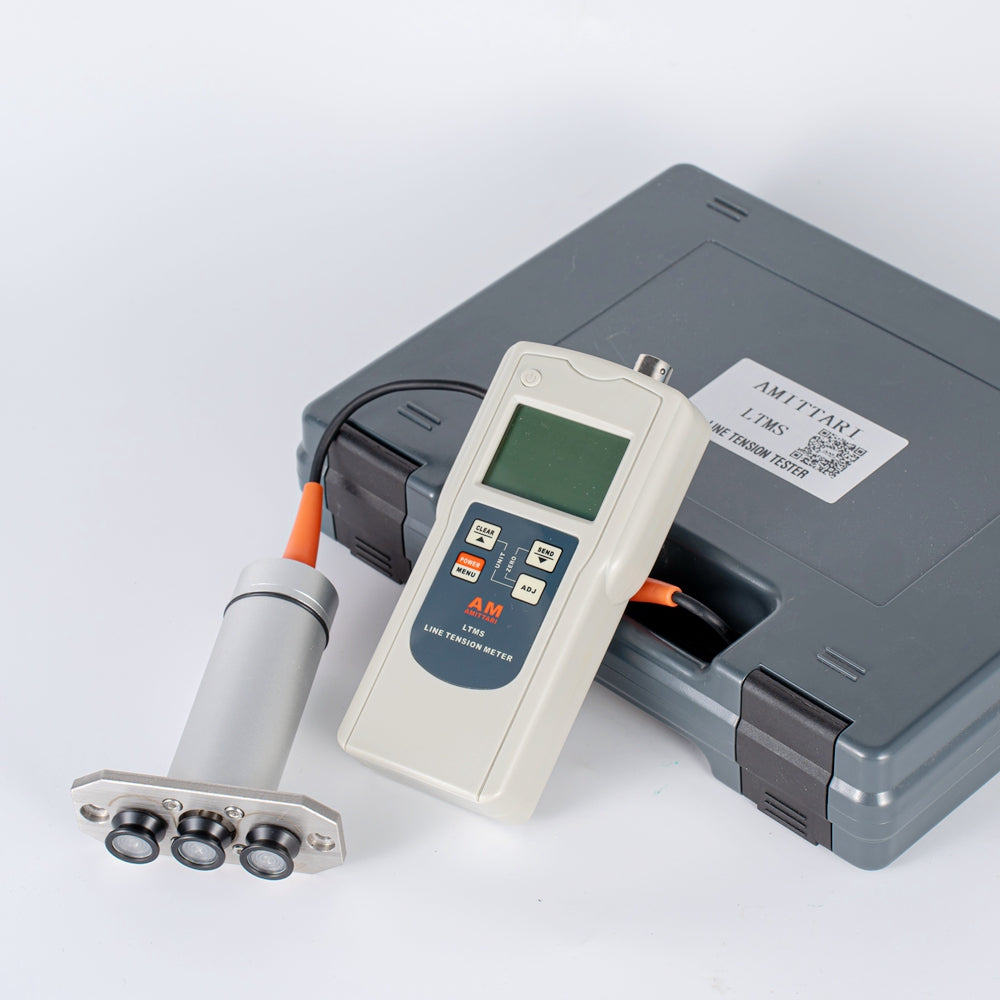

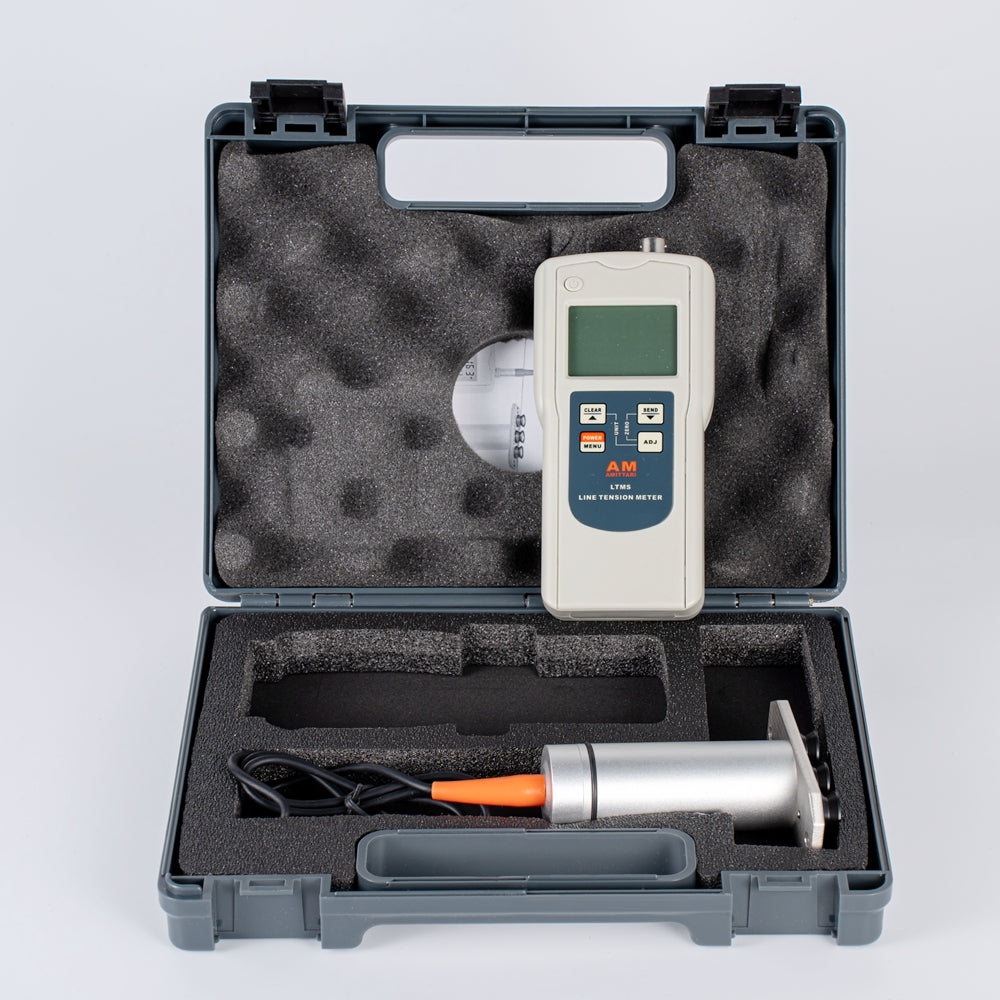

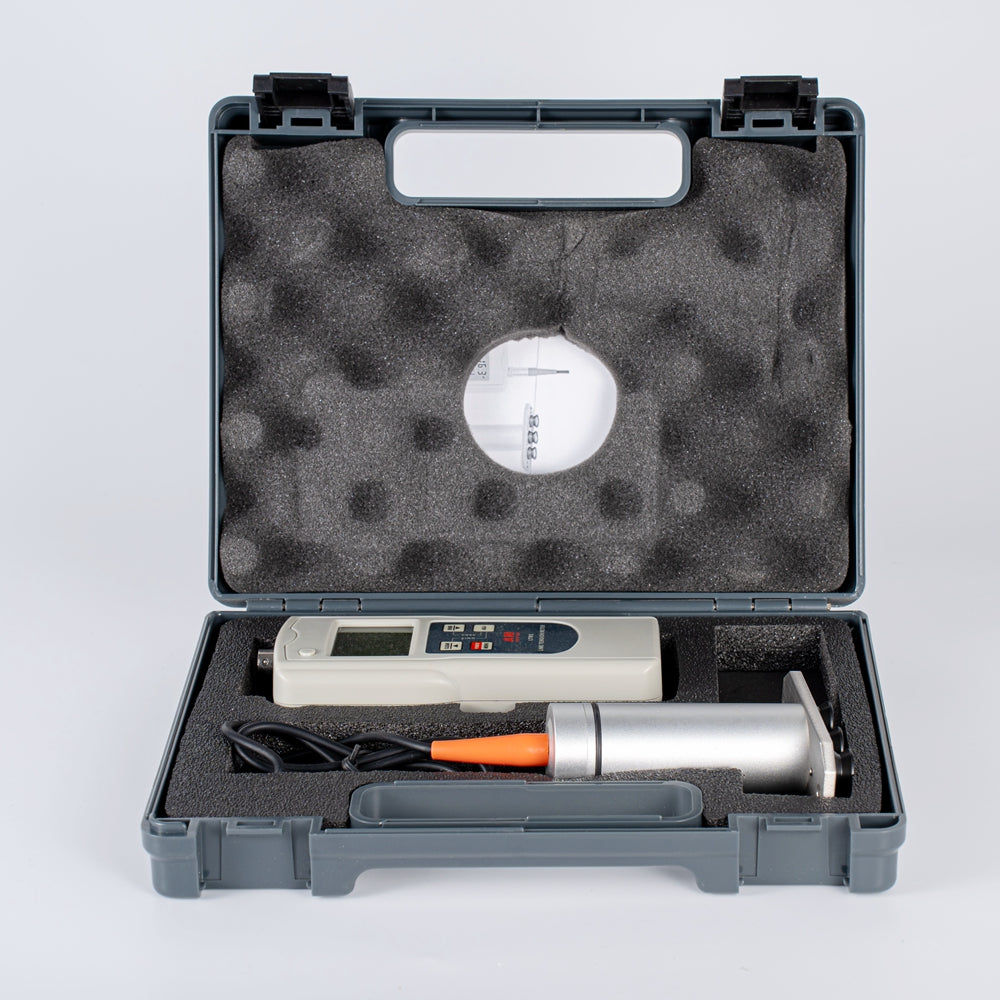

• Carrying Case

Optional Accessories

• Bluetooth Adapter

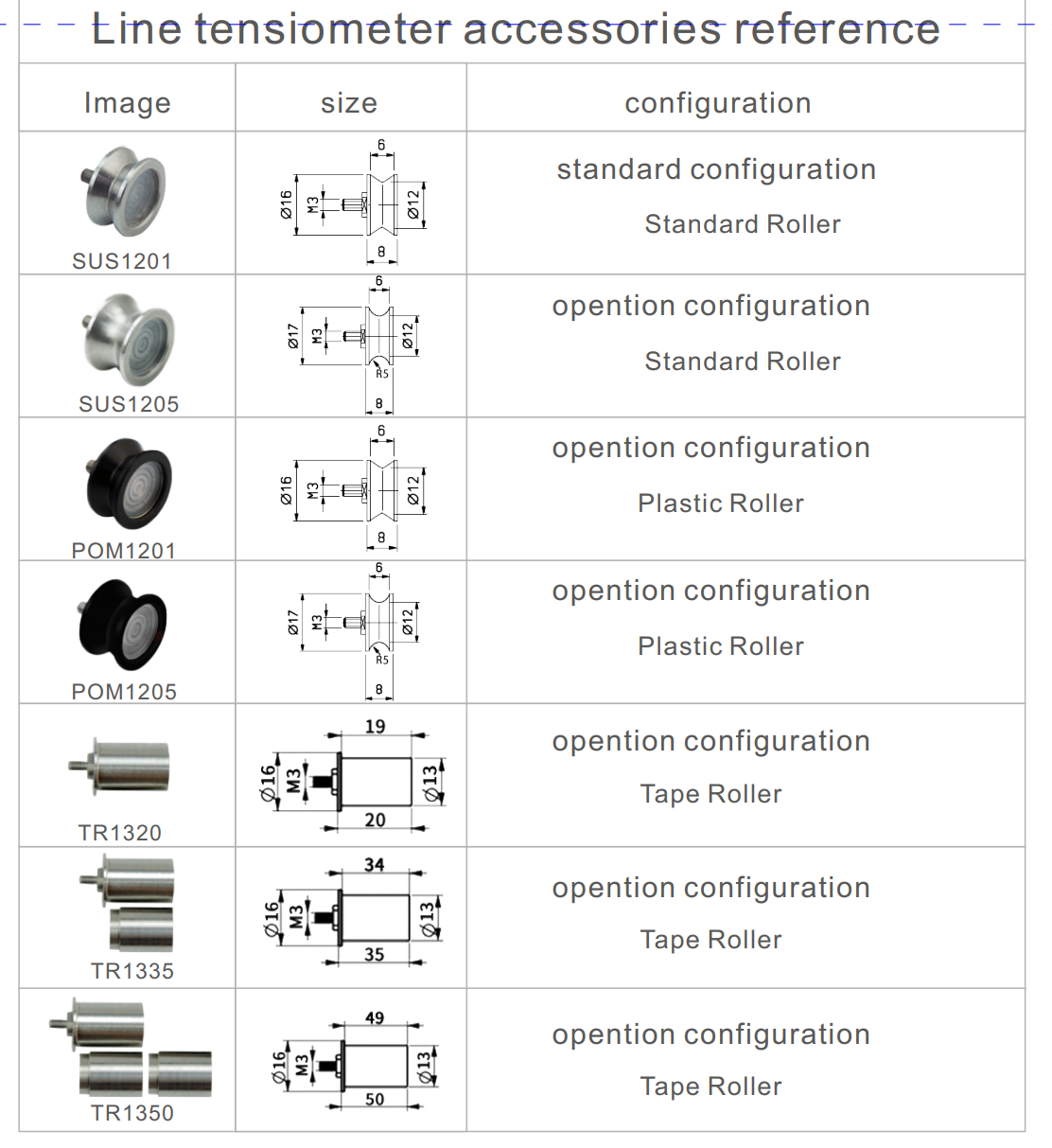

• Additional Calibration Rollers

Alternative Names

• Digital Tension Tester
• Tomlin Tension Measurement Device
• Yarn, Wire, and Fiber Tension Gauge

Downloads

PDF Specification Sheet - Download Here
