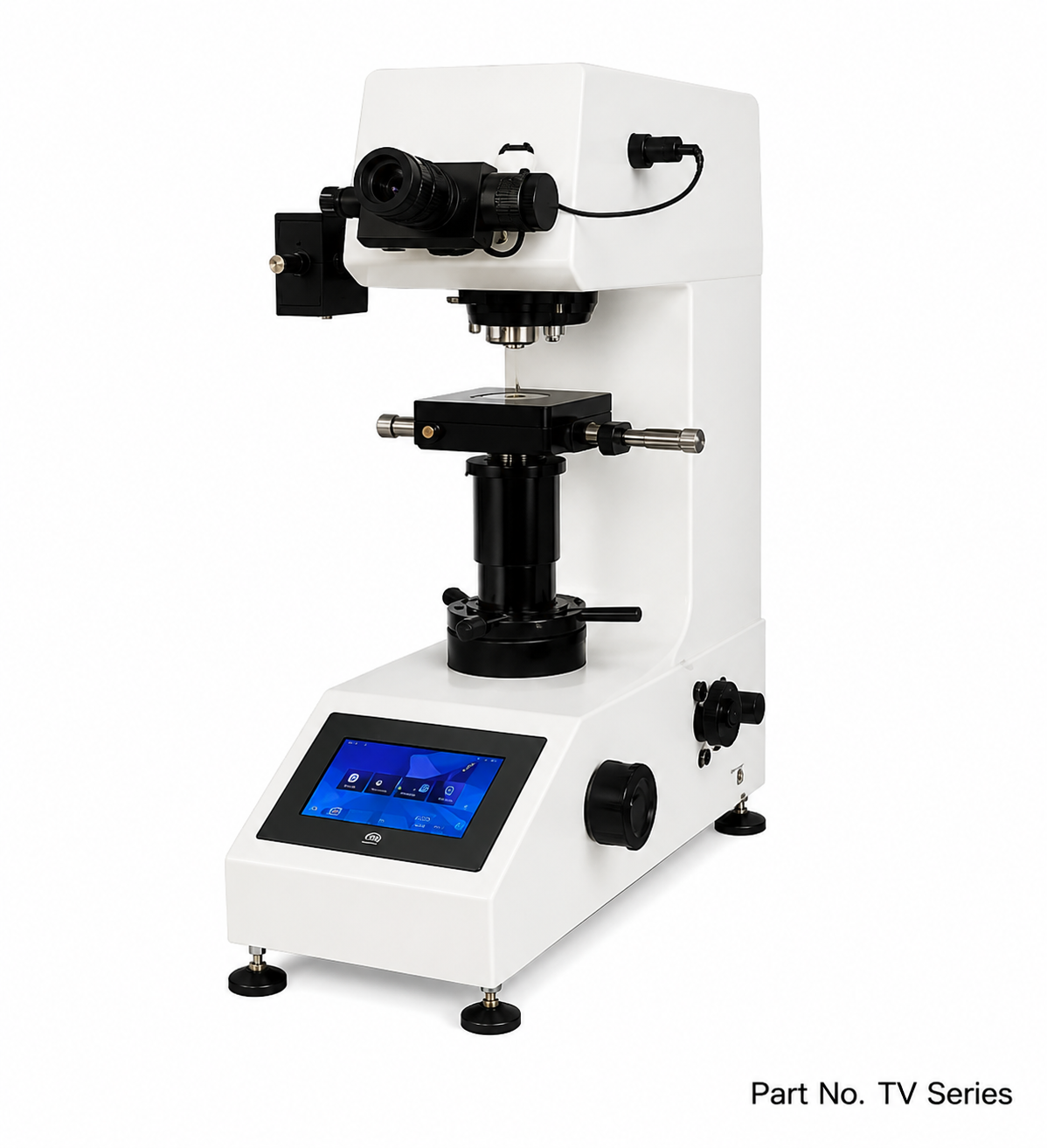

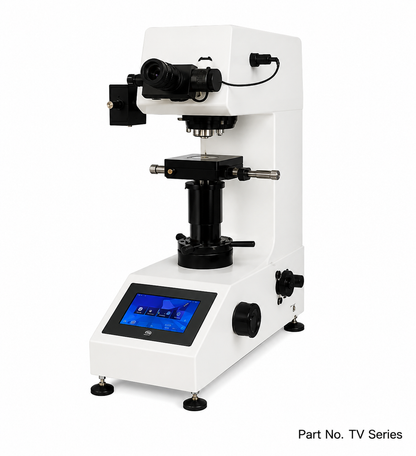

Touch Screen Digital Vickers Hardness Tester – TV Series

Touch Screen Digital Vickers Hardness Tester – TV Series

$9,790.00
$9,790.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Variants

Description

The Sinowon TV Series Touch Screen Digital Vickers Hardness Testers are advanced hardness measurement systems designed for precise Vickers hardness testing of metals, coatings, heat-treated materials, and scientific research specimens. Featuring an automatic turret system, closed-loop loading technology, touchscreen operation, Bluetooth connectivity, and automatic hardness conversion, the TV Series delivers highly accurate and efficient hardness testing for laboratory and industrial environments.

The innovative dual-control interface combines both keypad and touchscreen operation for maximum flexibility and ease of use. Automatic loading, dwell, and unloading functions improve repeatability while reducing operator influence. The built-in digital eyepiece and high-resolution optical system allow fast and accurate indentation measurement with one-touch operation.

With wireless data transfer capability, optional Bluetooth printing, and PC software integration, the TV Series is designed for modern automated hardness testing workflows.

Features

  • Touch screen digital Vickers hardness testing system
  • Automatic turret operation
  • Closed-loop loading system
  • Automatic loading, dwell, and unloading
  • 5.2-inch color touch screen display
  • Dual input control via keypad and touchscreen
  • Bluetooth data transfer technology
  • One-touch indentation measurement
  • High-resolution digital optical system
  • Automatic hardness scale conversion
  • Wireless printing capability
  • Optional Bluetooth printer support
  • Optional PC software integration
  • Reduces operator influence and measurement error
  • Suitable for laboratory and industrial quality control applications

Specifications

Specification TV-5A TV-10A TV-30A TV-50A
Product Type Touch Screen Digital Vickers Hardness Tester Touch Screen Digital Vickers Hardness Tester Touch Screen Digital Vickers Hardness Tester Touch Screen Digital Vickers Hardness Tester
Hardness Scale HV HV HV HV
Loading Force (kgf) 0.3 – 5 0.3 – 10 0.5 – 30 1 – 50
Loading System Closed Loop Closed Loop Closed Loop Closed Loop
Turret Automatic Automatic Automatic Automatic
Display 5.2" Color Touch Screen 5.2" Color Touch Screen 5.2" Color Touch Screen 5.2" Color Touch Screen
Control Method Touch Screen + Keypad Touch Screen + Keypad Touch Screen + Keypad Touch Screen + Keypad
Hardness Conversion Automatic Automatic Automatic Automatic
Data Transfer Bluetooth Bluetooth Bluetooth Bluetooth
Wireless Printing Optional Optional Optional Optional
Software Support Optional iVicky 2.0 Optional iVicky 2.0 Optional iVicky 2.0 Optional iVicky 2.0
Measurement System Digital Eyepiece Digital Eyepiece Digital Eyepiece Digital Eyepiece
Applications Metals & Research Metals & Research Metals & Research Metals & Research

Applications

  • Hardness testing of metals
  • Surface coating analysis
  • Heat treatment verification
  • Metallography laboratories
  • Precision engineering inspection
  • Research and development
  • Scientific material testing
  • Industrial quality control
  • Aerospace component testing
  • Automotive material testing

Standard Accessories

  • Touch screen Vickers hardness tester
  • Vickers indenter
  • Objective lenses
  • Digital eyepiece system
  • Calibration accessories
  • Power cable
  • User manual

Industries Used In

  • Aerospace
  • Automotive
  • Metallurgy
  • Manufacturing
  • Research laboratories
  • Universities
  • Heat treatment facilities
  • Surface engineering
  • Precision engineering
  • Industrial quality control

Alternative Names

  • Touch Screen Vickers Hardness Tester
  • Digital Vickers Hardness Tester
  • Automatic Turret Hardness Tester
  • HV Hardness Tester
  • Laboratory Vickers Hardness Machine
  • Precision Hardness Tester
  • Bluetooth Hardness Tester
  • Industrial Vickers Testing Machine
  • Automated Hardness Measurement System
  • Digital Macro Vickers Tester
Downloads
Compare the Vickers Range

Help Me Choose – Vickers & Micro Vickers Hardness Testers

Quick Selection Guide

If you need to… Recommended Series Best For
Reliable digital Vickers hardness testing SV Series General workshop & laboratory testing
Modern touchscreen operation & faster workflows TV Series Improved usability & data handling
Automatic objective/indenter switching WH Series Higher efficiency repetitive testing
Micro Vickers testing for thin materials MicroVicky Series Coatings, thin sections & microstructures
Advanced micro hardness testing with Knoop capability Vexus MHV Series Thin coatings, IC sections & precision analysis
Fully automatic macro Vickers testing AutoVicky ZHV-WH Series Automated production QC
Fully automatic micro & macro Vickers + Knoop testing AutoVicky ZVK-1050AF Advanced materials analysis & hardness mapping

Standard Vickers Hardness Testers

Best For

General metals testing, workshops, laboratories, universities and QC departments.

Series Automation Level Load Range Key Features Best For
SV Series Digital Up to 50kgf Automatic hardness calculation Cost-effective daily testing
TV Series Advanced Digital Up to 50kgf Touchscreen + Auto Turret Modern QC environments
WH Series Auto Turret Up to 50kgf Automatic turret switching Production & repetitive testing

Key Differences

SV Series

  • Automatic hardness calculation

  • LCD display

  • Faster than manual reading systems

  • Better repeatability

TV Series

  • Color touchscreen operation

  • Automatic turret

  • Hardness scale conversion

  • Improved operator efficiency

WH Series

  • Fully automatic turret

  • Faster objective/indenter switching

  • Reduced operator error

  • Better for higher-volume testing

Micro Vickers Hardness Testers

Best For

Thin coatings, carburized layers, heat treatment verification, microstructures and delicate materials.

Model / Series Load Range Knoop Capability Automation Best For
MicroVicky Series Micro loads Optional Manual / Semi-auto General micro hardness
Vexus MHV-1000Z Micro loads No Advanced Digital Precision micro hardness
Vexus MHV-1000ZK Micro loads Yes Advanced Digital Thin coatings & IC sections

Fully Automatic Vickers Systems

Best For

Research laboratories, automotive, aerospace, heat treatment analysis, automated QC and case depth testing.

Model Auto Stage Auto Focus Auto Measurement Knoop Testing Best For
AutoVicky ZHV-WH Series Yes Manual Yes No Automated production testing
AutoVicky ZVK-1050AF Yes Yes Yes Yes Full Vickers & Knoop automation

Automation Level Guide

Automation Level Products
Digital Testing SV Series
Touchscreen & Auto Turret TV Series / WH Series
Fully Automatic Systems AutoVicky ZHV-WH Series
Full Automatic Vickers + Knoop AutoVicky ZVK-1050AF

Application Guide

Application Recommended Models
General metals testing SV Series
Production QC TV Series, WH Series
Thin coatings MicroVicky Series
Case depth analysis AutoVicky ZVK-1050AF
Knoop hardness testing MHV-1000ZK, ZVK-1050AF
Research laboratories ZVK-1050AF
Heat treatment verification WH Series
Aerospace materials ZVK-1050AF
Semiconductor & IC materials MHV-1000ZK

Which Series Is Right For You?

Choose the SV Series if:

  • You want reliable digital Vickers hardness testing

  • You need cost-effective laboratory testing

  • You prefer simple operation

Choose the TV or WH Series if:

  • You want faster operation

  • You prefer touchscreen workflows

  • You perform repetitive testing

  • You need improved operator efficiency

Choose the MicroVicky Series if:

  • You test coatings or thin materials

  • You require micro hardness measurements

  • You work with microstructures or heat treatment profiles

Choose the Vexus MHV Series if:

  • You require advanced digital micro hardness testing

  • You need optional Knoop capability

  • You test thin coatings, IC sections or precision materials

Choose the AutoVicky ZHV-WH Series if:

  • You require automated production testing

  • You want motorized stage operation

  • You need improved repeatability and efficiency

Choose the AutoVicky ZVK-1050AF if:

    • You require both Vickers and Knoop testing

    • You perform advanced material analysis

    • You need fully automated testing workflows

    • You require hardness mapping and case depth analysis
