Ultrasonic Dual Element Probe Softfilm

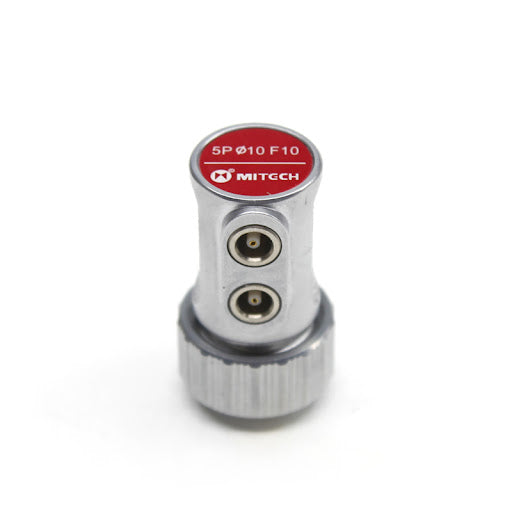

MITECH Industrial Ultrasonic Dual Element Probe

Overview

Mitech industrial ultrasonic dual element probe is carefully crafted using superior performance piezoelectric material chips, ensuring strong penetration, high signal-to-noise ratio, excellent near-surface resolution, and minimal scattering noise. Key manufacturing processes employ special equipment and fixtures to minimize the impact of human factors. We offer high-quality customized solutions to meet the special needs of customers. The probe is primarily used for measuring wall thickness margins, detecting rust, corrosion, coatings, surfacing layers, small parts, and near-surface defects. It complies with "EN12668-2" and other relevant standards domestically and abroad, and is compatible with a variety of GB Q6, American standard probe connectors, and European standard probe connectors such as LEMO-00 (C5) and Microdot (L5).

Technical Info:

• Focal Length: 8/10/12/5/18/20/25/30
• Ceramic Size (mm): 9φ/11φ/14φ/20φ/25φ/3.5x10/7x18/6x20
• Frequency (MHz): 1P/2P/2.5P/4P/5P
• Material: Ordinary Materials (P)
