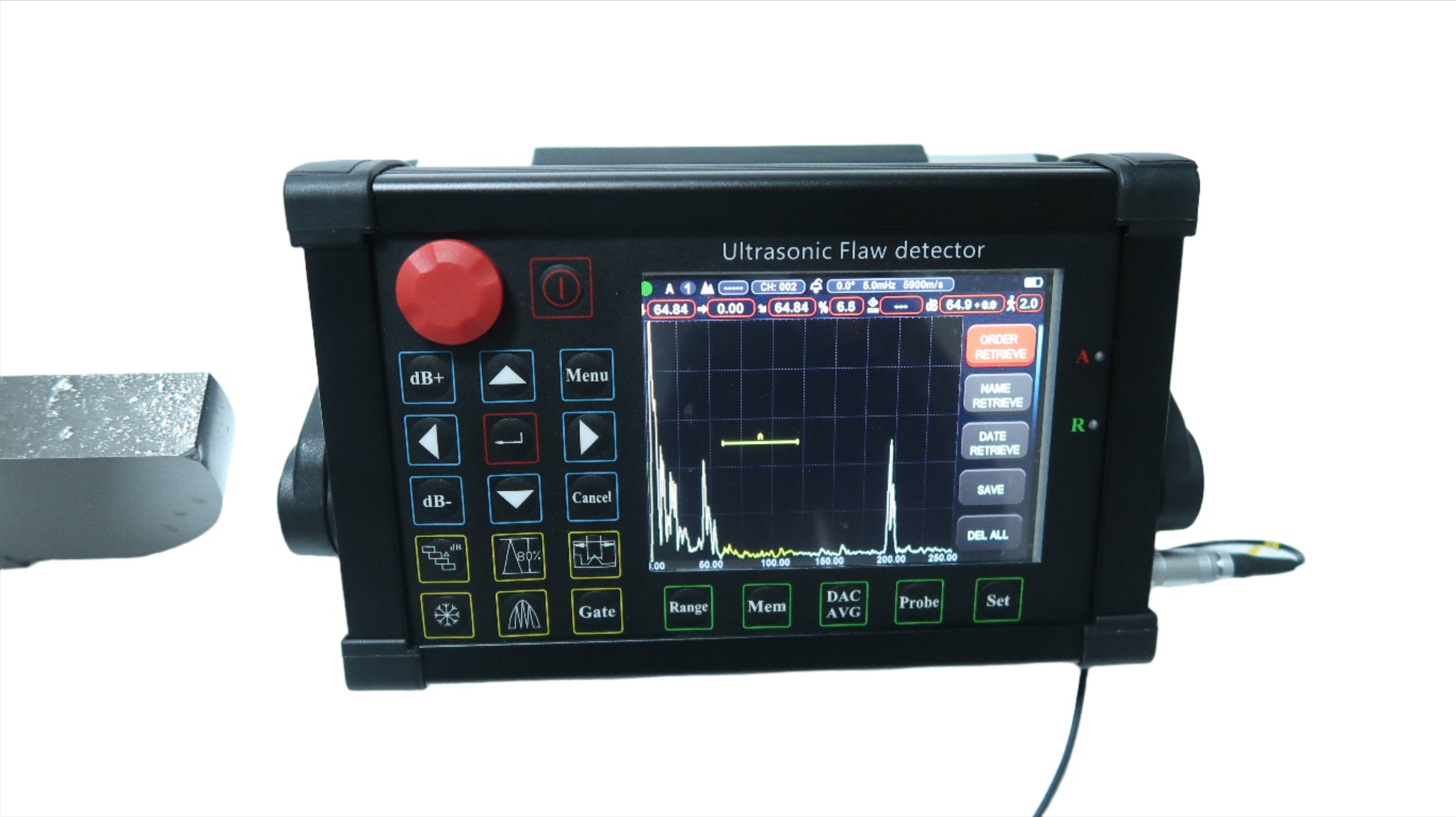

Ultrasonic Flaw Detector TFD320 Plus

Product Name: TFD320 Plus Ultrasonic Flaw Detector Like Olympus Flaw Detector Dac Avg B Scan Dual 4a

Short Description: The TFD320 Plus Ultrasonic Flaw Detector is engineered for superior flaw detection efficiency, featuring advanced functionalities like DAC, AVG, and B Scan modes. It's perfect for professionals seeking robust, precise tools for ultrasonic testing in a variety of materials.

Key Features:

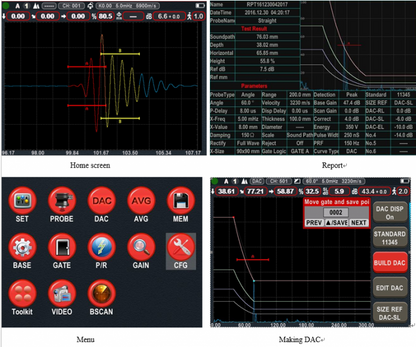

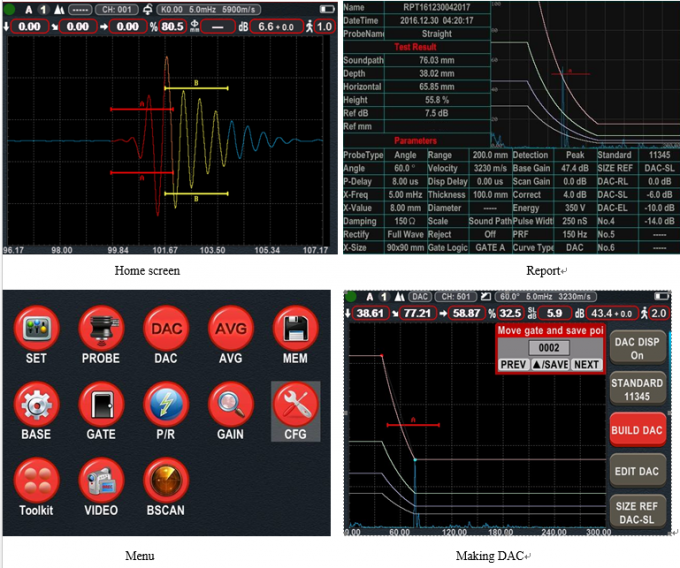

• User-Friendly Interface: Interactive dialogs guide users through operations like calibration and creating curves, simplifying complex processes.

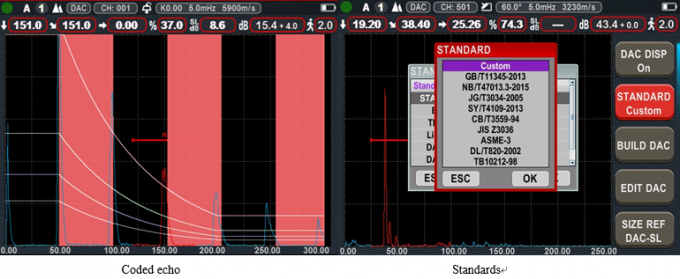

• Advanced Tools: Includes DAC, AVG, TCG, and AWS for comprehensive flaw analysis and reporting.
• High Precision: Offers a pulse repetition frequency adjustable from 20 to 2000 Hz for high-speed scanning without missing flaws.
• Optimal Visibility: High signal-to-noise ratio with a clear and stable echo display, tailored for challenging work conditions.

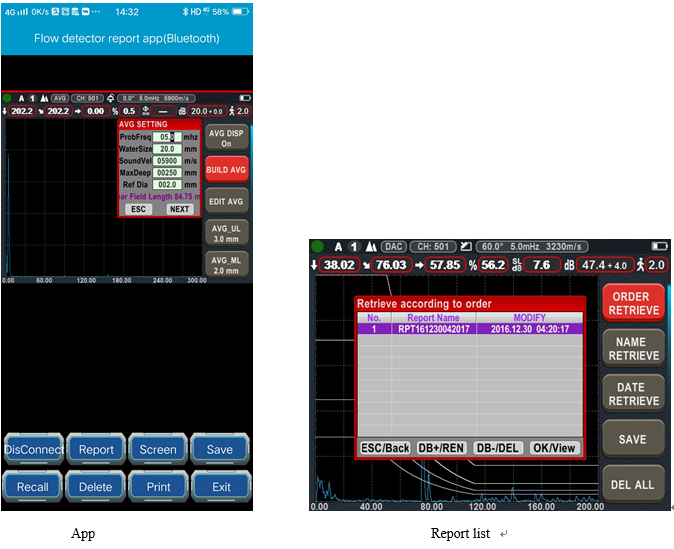

• Extensive Memory and Connectivity: Features unlimited USB data storage and real-time video recording of flaw detection processes.
• Durable and Portable: IP65-rated, alloy and silica gel case ensures water and dust resistance, suitable for harsh environments.
• Long Battery Life: Up to 15 hours on a single charge, with dual batteries available for round-the-clock operation.

Technical Specifications:

• Range: 0-10000 mm at steel velocity
• Material Velocity: 100–20000 m/s
• Display: 128*64 LED screen with backlight for clear visibility
• Battery: Internal rechargeable Li-ion battery pack rated 7.2V at 7800 mAh
• Dimensions: 240mm x 150mm x 50mm
• Weight: 1.4 kg

Main Applications:

• Die cavity of molds, heavy workpiece, and installed machinery.
• Material identification in the warehouse of metallic materials.
• Rapid testing in large range and multi-measuring areas for large-scale workpiece.

Standard Configuration Includes:

• Main Unit, high-voltage probe, probe connecting cable, fan-shaped probe brush, flat brush, connecting rod, grounding wire, charger, strap, magnetic grounding pole, ABS carrying case, manual, certificate, warranty card, and fuse.

The TFD320 Plus is an indispensable tool for industries that require rigorous and detailed material inspections, including automotive, aerospace, and manufacturing sectors, providing a reliable means of detecting even the tiniest flaws in materials.
