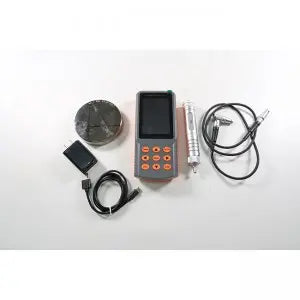

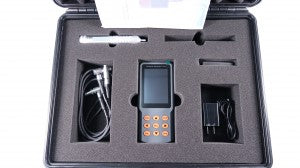

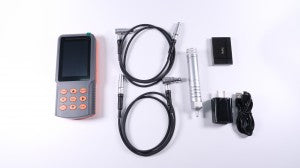

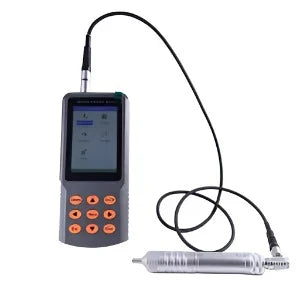

Ultrasonic Hardness Tester TM-U3

Product Name: Ultrasonic Hardness Tester TM-U3

Short Description: The TM-U3 Ultrasonic Hardness Tester is a state-of-the-art device designed for nondestructive hardness testing. It is ideal for measuring metals and alloys with a minimum thickness of 3 mm across a diverse range of applications.

Product Details:

• Nondestructive Testing: Perfect for testing the hardness of hardened layers and thin workpieces without damaging the material.
• Display: Features a 3.5-inch color LCD screen that shows detailed measurement data and battery status.
• Hardness Scale Conversion: Converts common hardness scales such as HV, HB, and HRC, facilitating diverse application uses.
• Memory and Calibration: Equipped with a built-in 8G SD card for ample storage and supports hardness value calibration using a standard test block.
• Material Compatibility: Suitable for steel, cast steel, alloy tool steel, special cast iron, and non-ferrous metals, ensuring versatility across industries.
• Advanced Measurement Features: Offers features such as the display of maximum, minimum, average values, standard deviation, and measurement count. It also includes upper/lower limit setting with an alarm for out-of-limit values.
• Power Supply: Powered by a rechargeable lithium-ion battery, providing over 30 hours of continuous operation.
• Enhanced Portability: Includes a portable stand to enhance measurement accuracy in field applications.

Applications: Ideal for measuring various parts such as strip/plate workpieces, mold hardened layers, blade hardened layers, tooth surface hardened layers, flange edges, wheels, turbine rotors, thin plates, shafts and pipes, containers, knife edges, welding parts, and more.

This ultrasonic hardness tester is essential for professionals in manufacturing, maintenance, and quality control sectors who require precise, non-invasive hardness measurements.

Downloads

PDF Specification Sheet -Download Here
