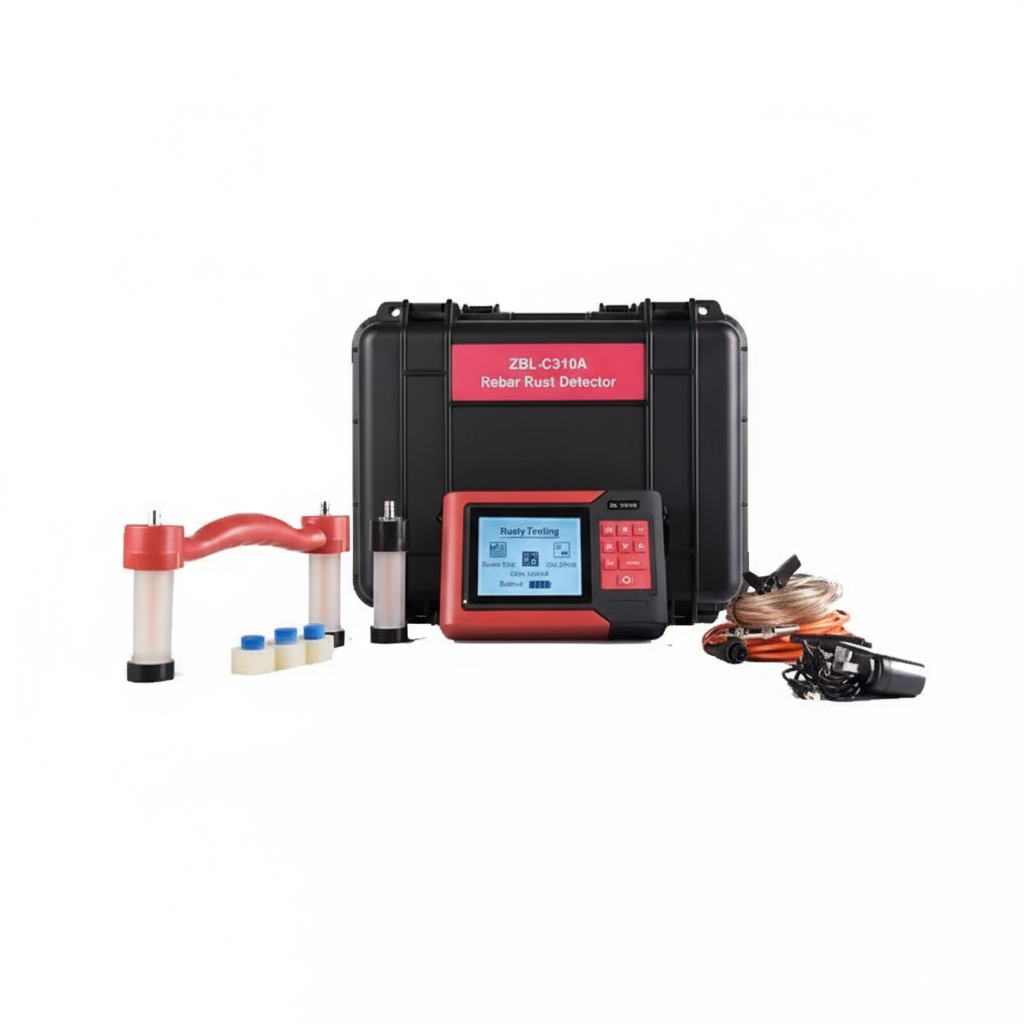

Rebar Corrosion Detector ZBL-C310A

Product Description

Overview
The ZBL-C310A Rebar Corrosion Detector is an electrochemical testing instrument used to assess corrosion in embedded steel reinforcement. Based on the natural potential method and electrode polarization theory, it utilizes a Cu/CuSO₄ reference electrode to measure the potential of rebar surfaces and determine corrosion levels in concrete structures.

This portable and field-ready device is suitable for evaluating corrosion risk in bridges, tunnels, buildings, and other reinforced concrete infrastructure.

Key Features

• High-accuracy corrosion voltage readings (±0.1 mV)

• Supports both single and double electrode methods

• Clear LCD screen for real-time data viewing

• USB thumb drive data storage for field convenience

• Visual electrode detection in hierarchical graph format

• Built-in lithium battery for long field operation

• Adjustable test point intervals

Technical Specifications

General Specs

• Display: 160 mm × 128 mm LCD

• Electrode Size: Ø30 × 180 mm

• Power: Built-in lithium battery

• Data Storage: 234 points

Standard Delivery Includes

• Main Unit

• Electrodes

• USB Data Storage

• Charging Cable

• Carrying Case

• User Manual

Downloads

PDF Data Sheet Link
