Ultrasonic Angle Probe N05/90

The Standard Angle Probe N05/90°

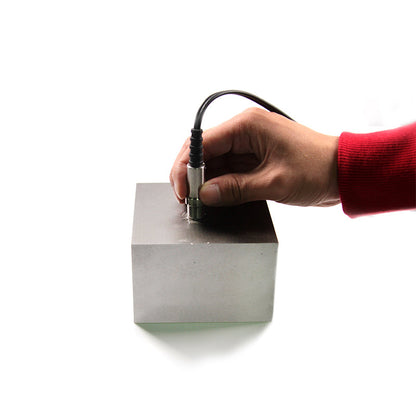

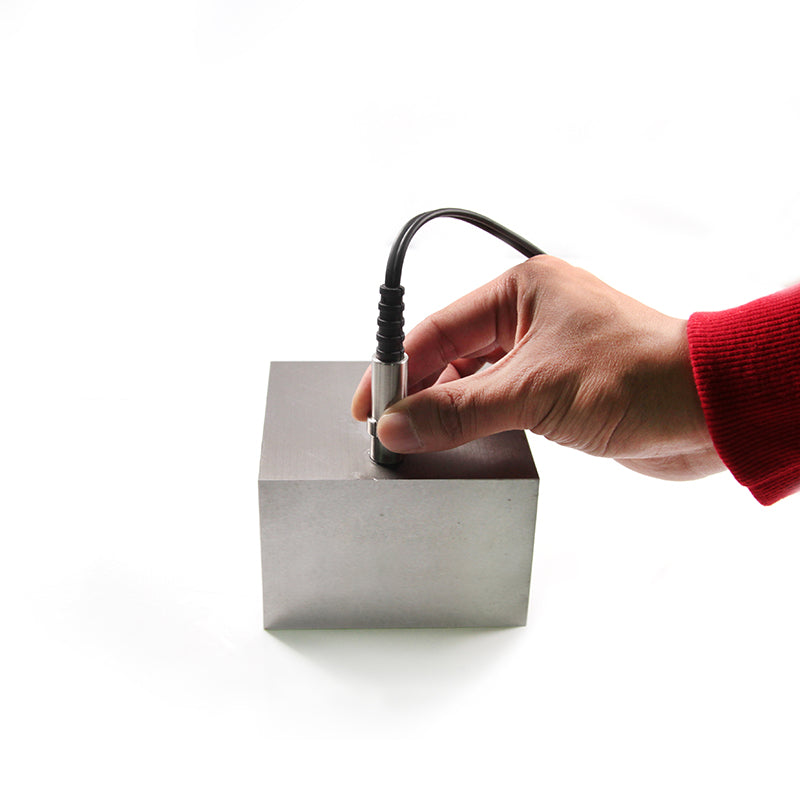

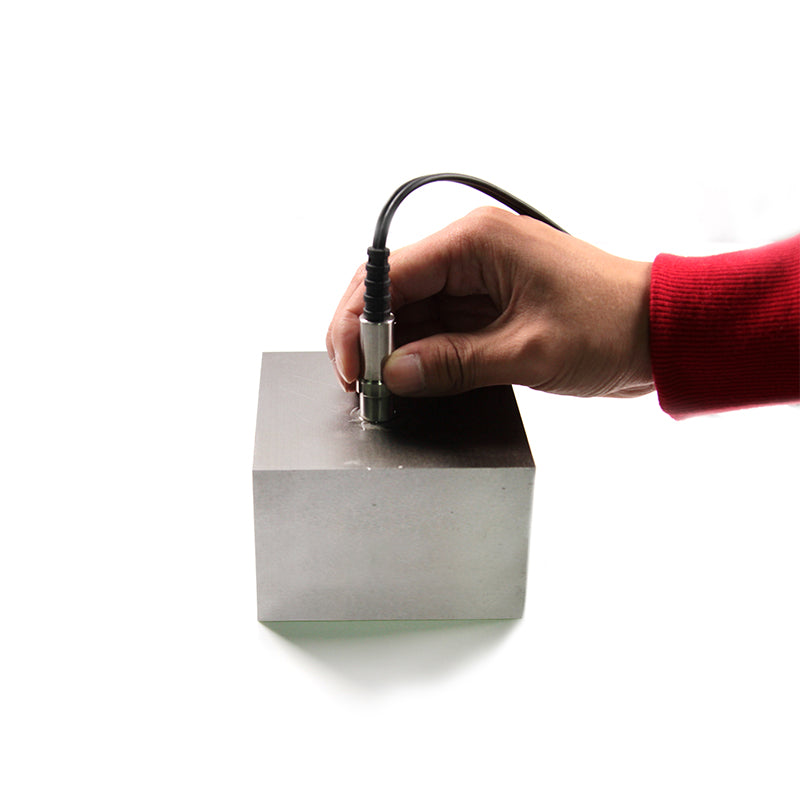

The Mitech standard ultrasonic thickness probe N05/90° is suitable for all Mitech line ultrasonic thickness gauges and is the standard configuration for MT150, MT160, and MT200 models. This standard ultrasonic thickness probe operates at a frequency of 5MHz with a crystal size of 10mm. Its measuring range for common ultrasonic thickness gauges is 1.0-230mm in steel, while for multi-mode ultrasonic thickness gauges, it is 1.0-600mm in steel.

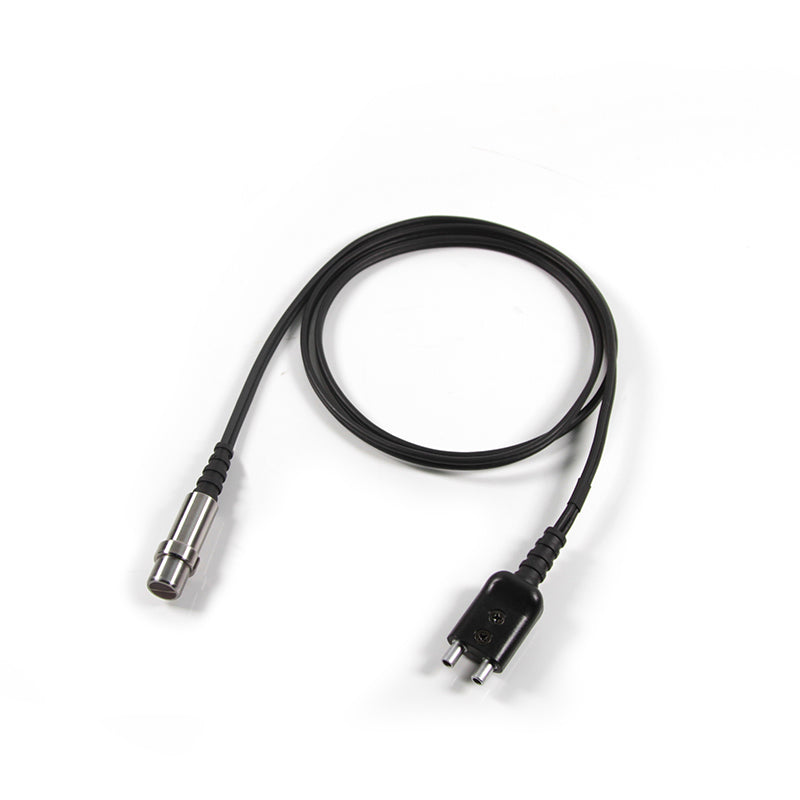

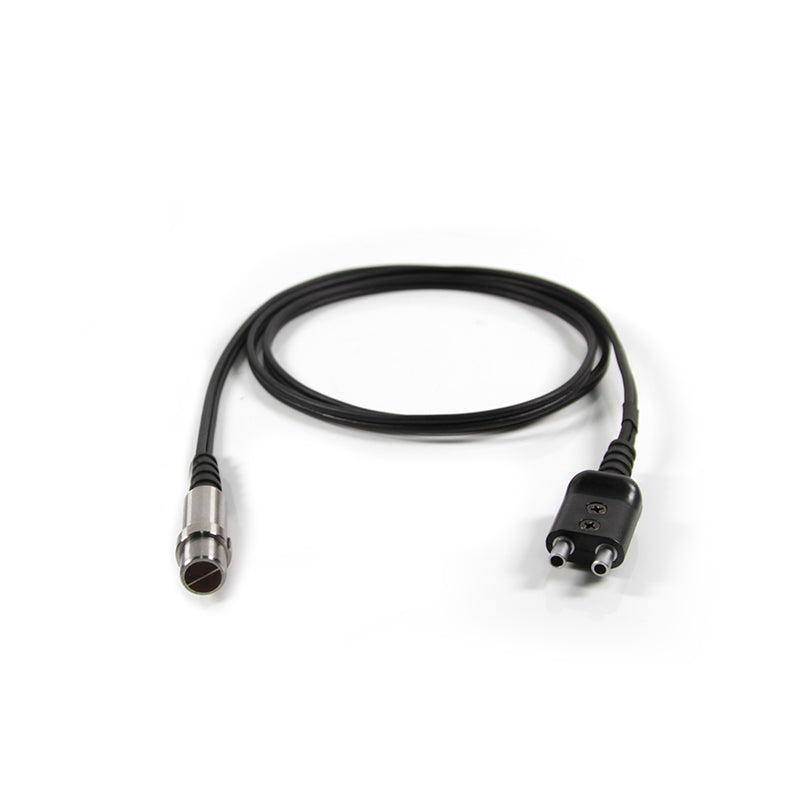

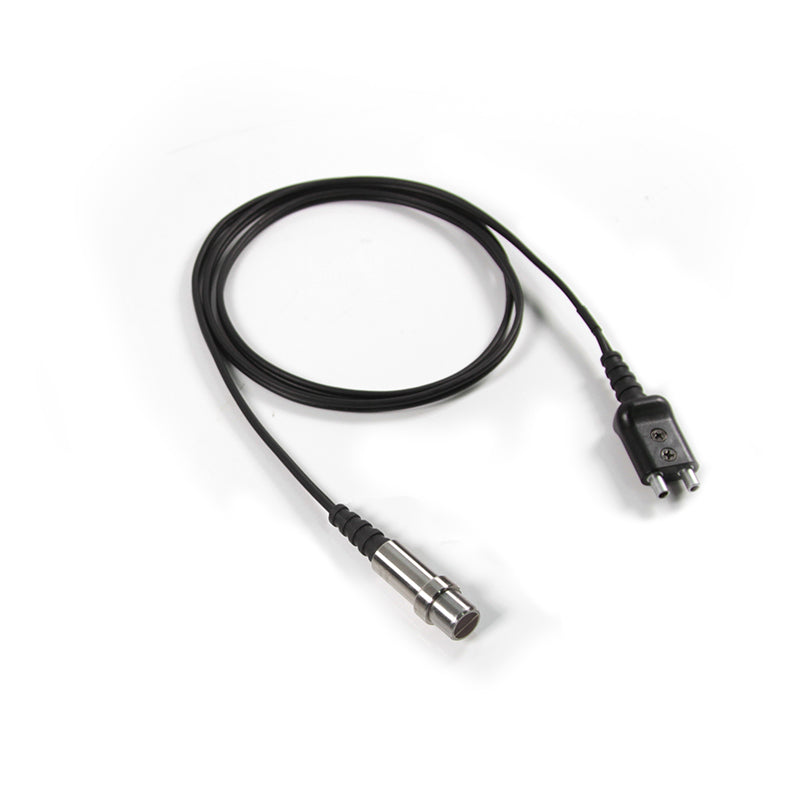

The cable length of the N05/90° probe is 90cm, and its minimum pipe diameter limitation is Φ20mm×3.0mm. The probe is elaborately developed with materials including piezoelectric ceramic, engineering plastic, and stainless steel. Its integrated die casting process and splinting probe design ensure convenient plugging, effectively reducing faults caused by frequent plugging while maintaining accuracy and durability.

The Mitech N05/90° probe finds extensive use in monitoring corrosion thinning degrees for various pipelines and pressure vessels in industries such as petroleum, chemical, metallurgy, shipbuilding, aviation, and aerospace. It is also suitable for making accurate measurements for various plants and mechanical parts.
