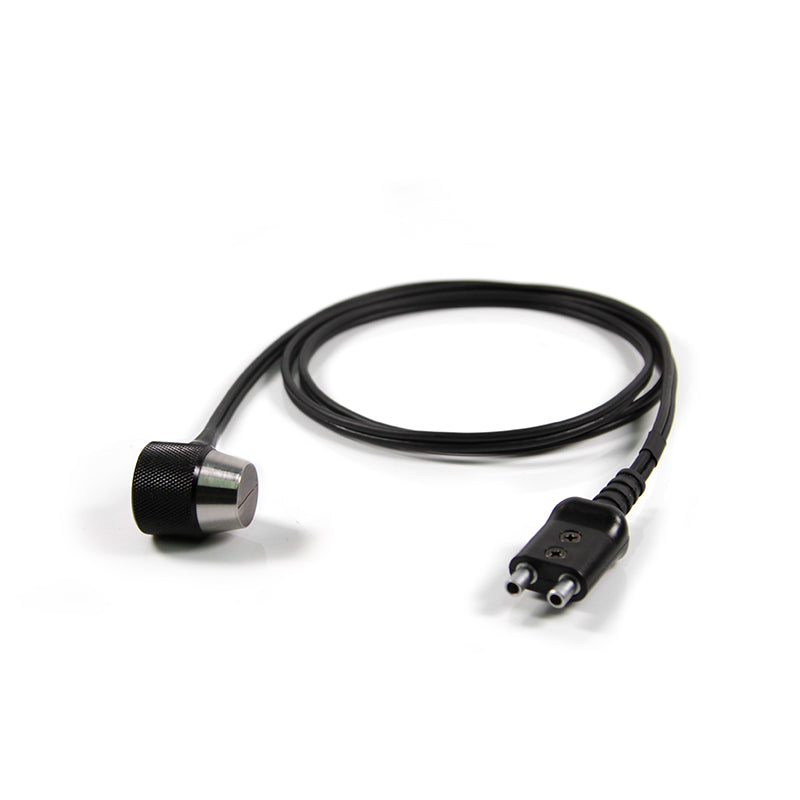

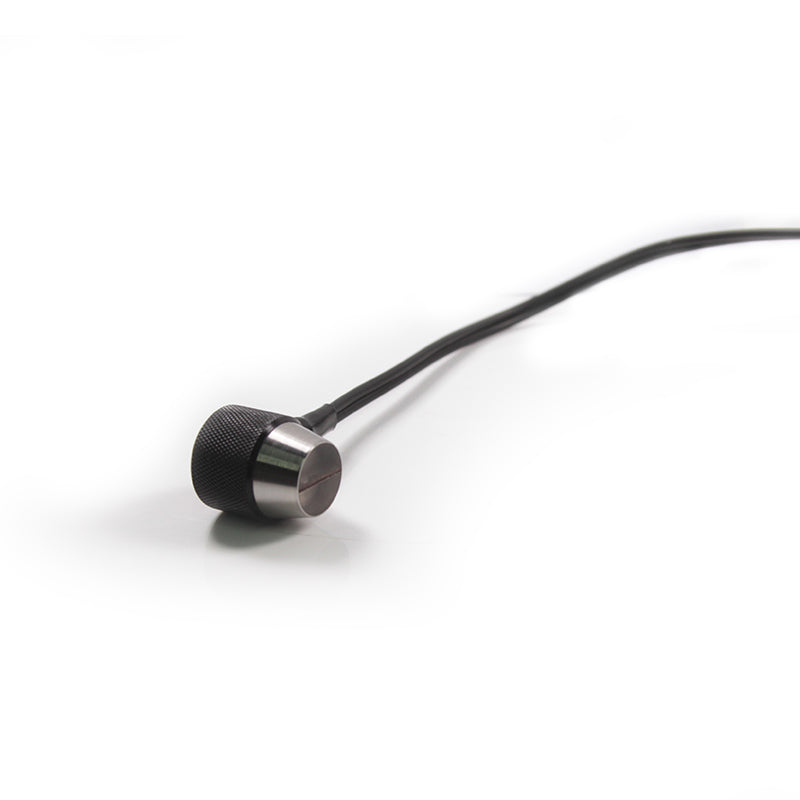

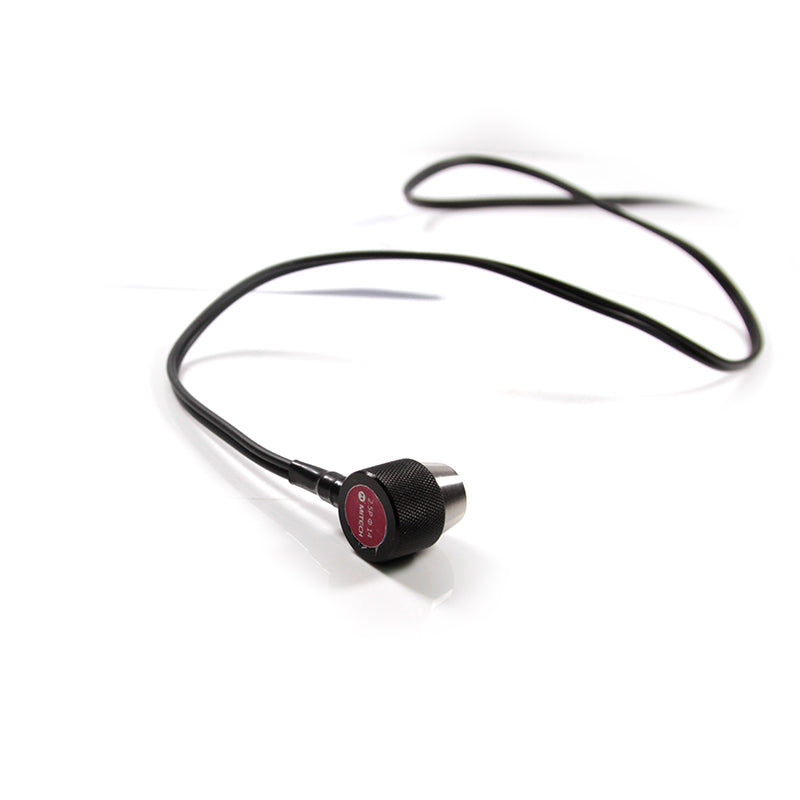

Coarse Grain Ultrasonic Probe N02

Coarse-grain Probe N02

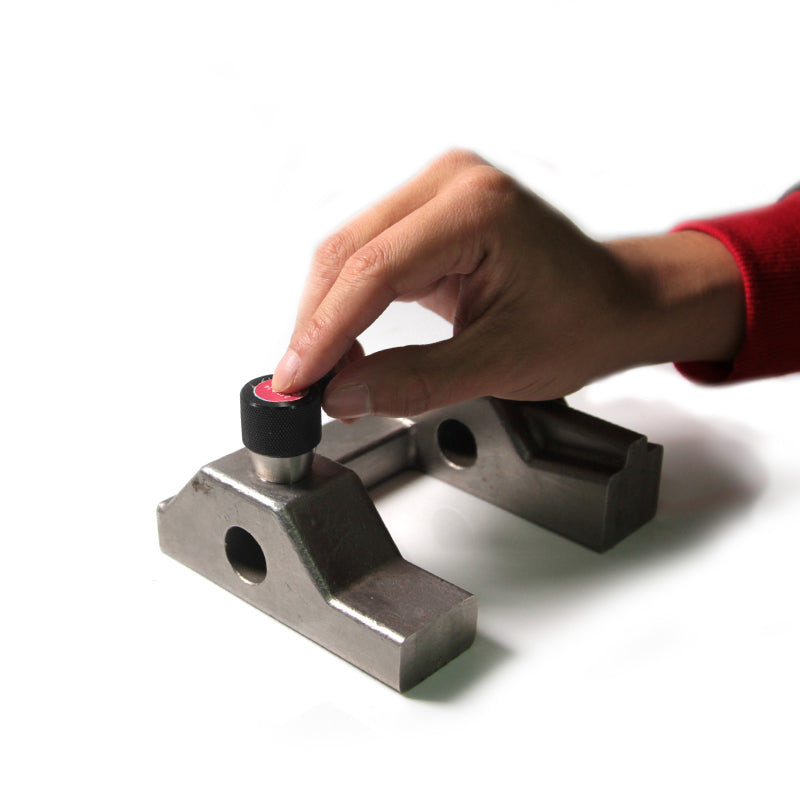

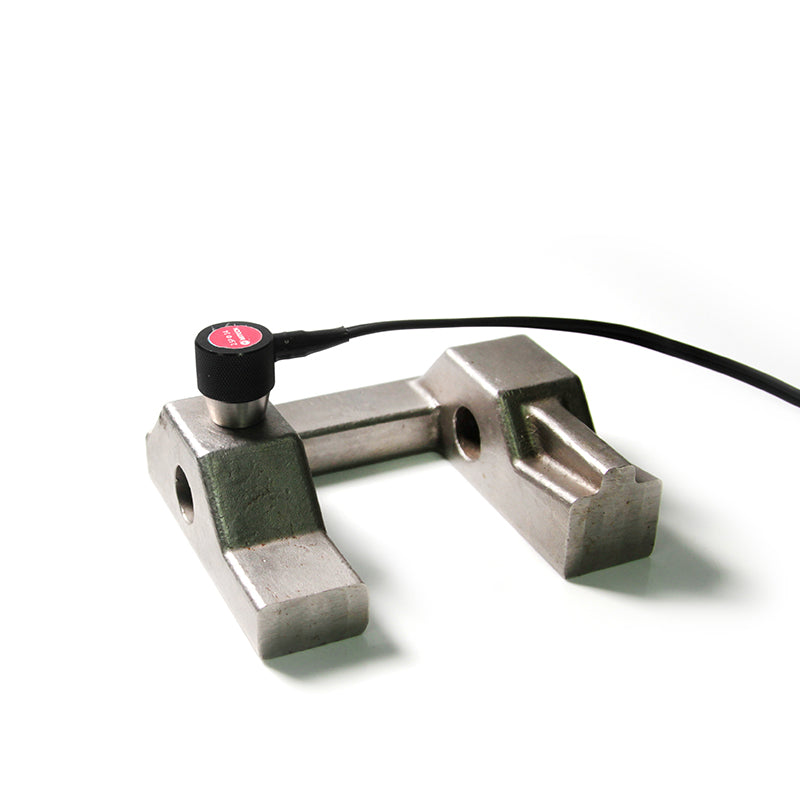

The Mitech coarse-grain ultrasonic thickness probe N02 is suitable for all Mitech line ultrasonic thickness gauges and is an optional configuration. This probe operates at a frequency of 2.5MHz with a crystal size of 14mm, making it suitable for the measurement of cast iron and other coarse-grain materials.

Its measuring range for common ultrasonic thickness gauges is 3-300mm in steel, while for multi-mode ultrasonic thickness gauges, it is 3-600mm in steel. The cable length of the N02 probe is 90cm, and its limitation for the minimum pipe diameter is Φ20mm.

The Mitech N02 probe is elaborately developed with materials including piezoelectric ceramic, engineering plastic, and stainless steel. Its integrated die casting process and splinting probe design ensure convenient plugging, effectively reducing faults caused by frequent plugging while maintaining accuracy and durability.

The Mitech N02 probe finds wide application in monitoring the corrosion thinning degree for various pipelines and pressure vessels in industries such as petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace, and others. It can also be used to make accurate measurements for various plants and mechanical parts.
