Micro Diameter Ultrasonic Probe N07

Micro-diameter Probe N07

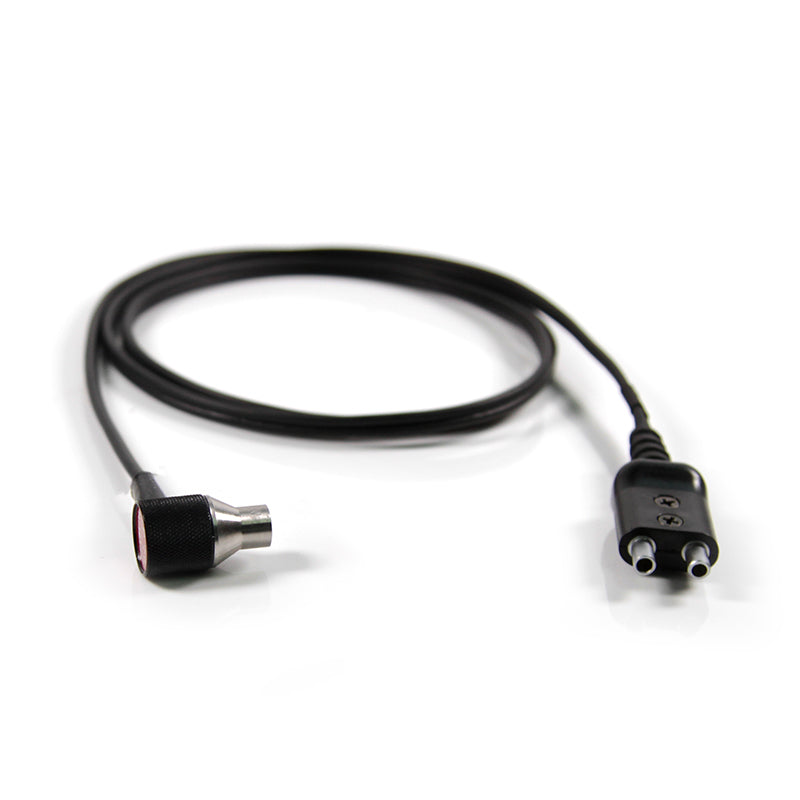

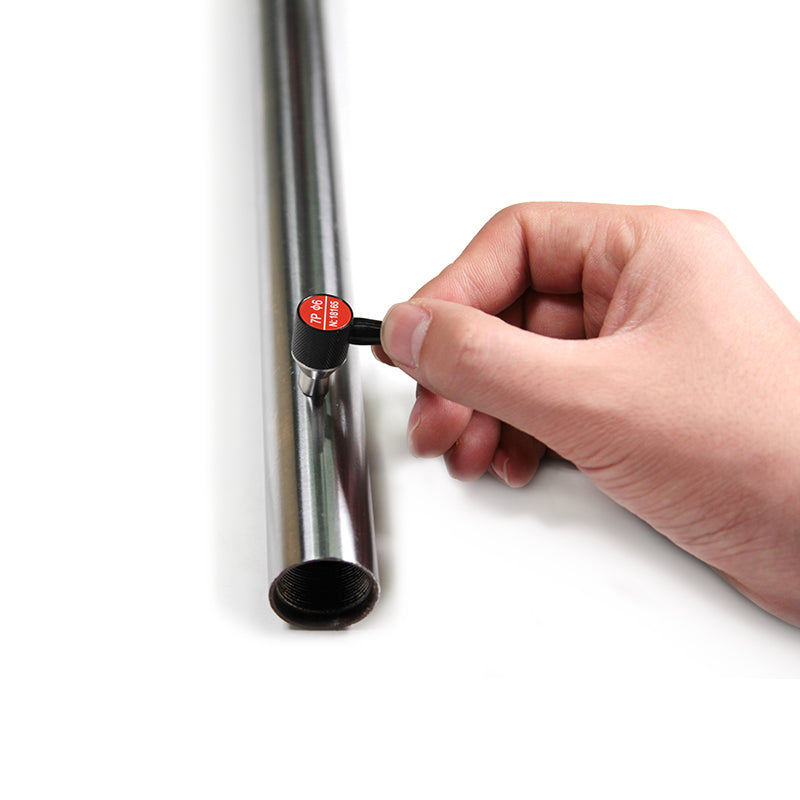

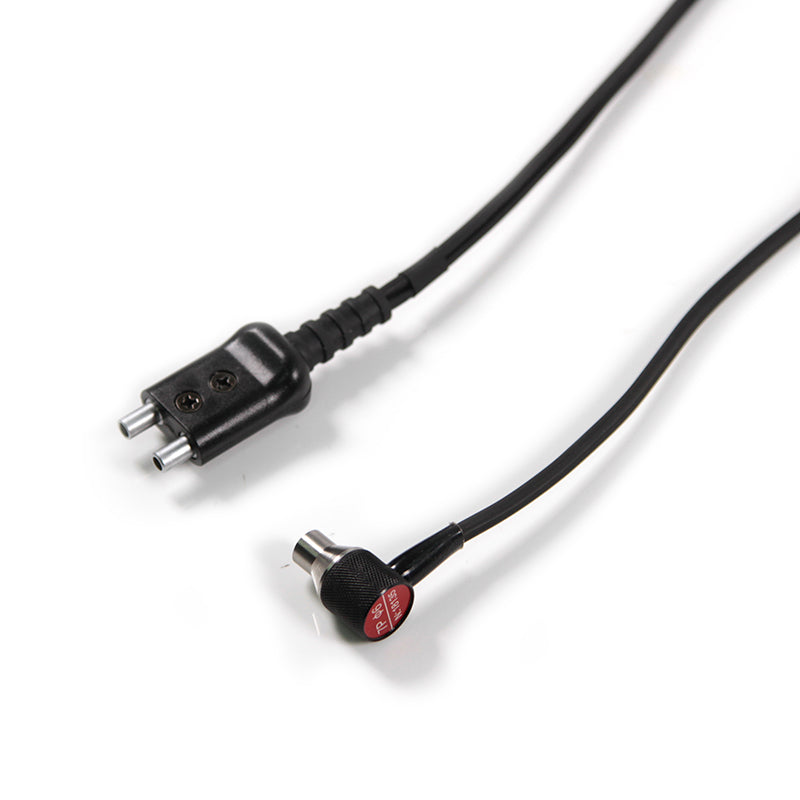

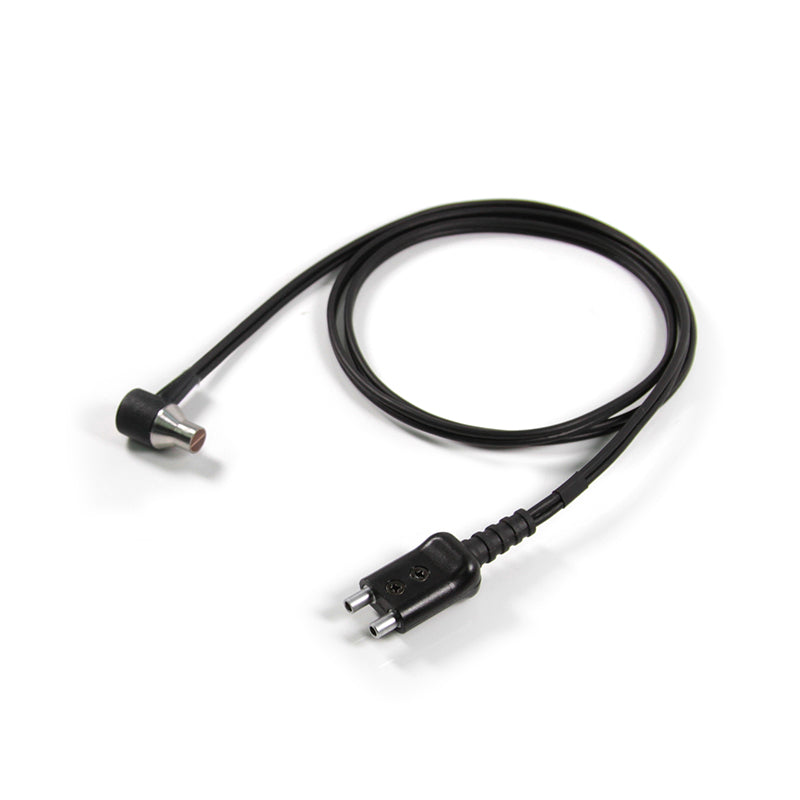

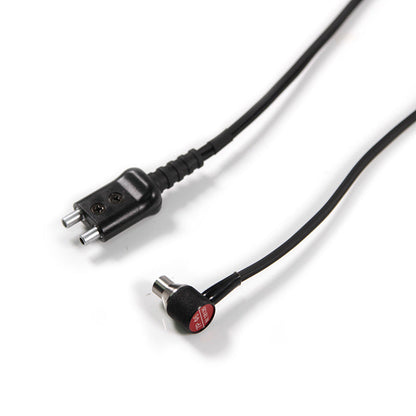

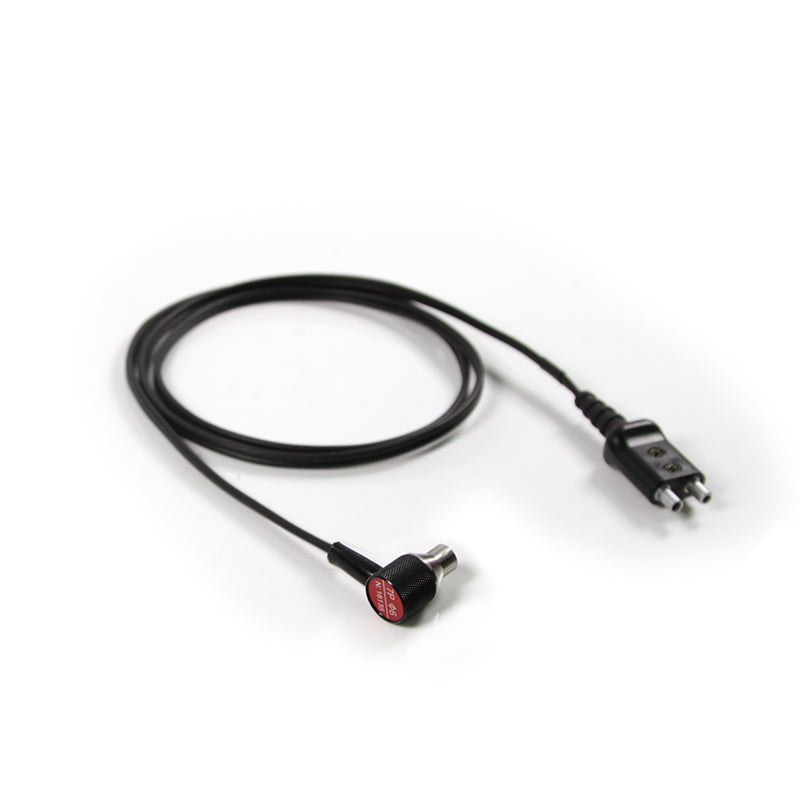

The micro-diameter ultrasonic thickness probe N07 is suitable for all Mitech line ultrasonic thickness gauges and is the standard configuration for MT660. This probe operates at a frequency of 7MHz with a crystal size of 6mm, making it suitable for the measurement of thin walls and small arc surfaces.

Its measuring range for common ultrasonic thickness gauges is 0.75-80mm in steel, while for multi-mode ultrasonic thickness gauges, it is 0.65-200mm in steel. The cable length of the N07 probe is 90cm, and its minimum pipe diameter limitation is Φ15mm×2.0mm.

The Mitech N07 probe is elaborately developed with materials including piezoelectric ceramic, engineering plastic, and stainless steel. Its integrated die casting process and splinting probe design ensure convenient plugging, effectively reducing faults caused by frequent plugging while maintaining accuracy and durability.

The Mitech N07 probe finds wide application in monitoring the corrosion thinning degree for various pipelines and pressure vessels in industries such as petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace, and others. It can also be used to make accurate measurements for various plants and mechanical parts.
