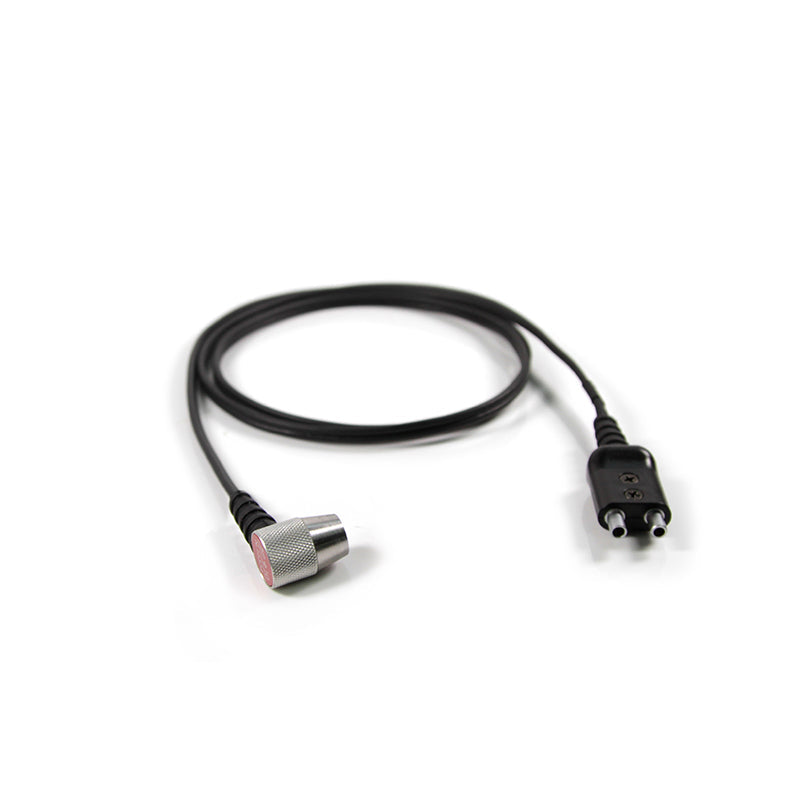

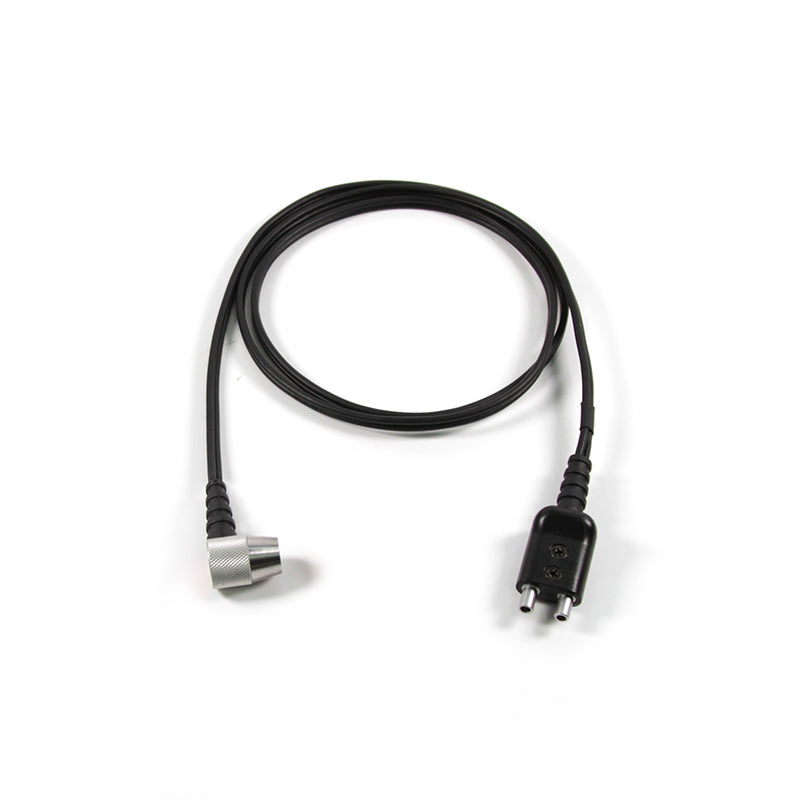

Ultrasonic Thickness Straight Probe Model Type N05 (Standard)

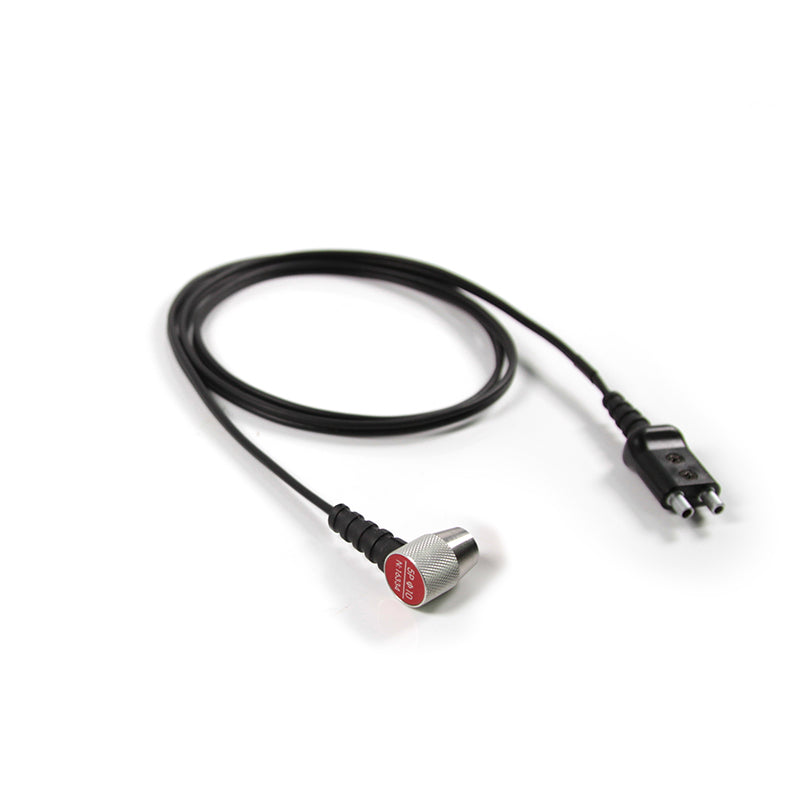

Standard Ultrasonic Thickness Probe N05

The Mitech standard ultrasonic thickness probe N05 is suitable for all Mitech line ultrasonic thickness gauges and is capable of replacing the standard probe N05/90°. If you require the N05 probe as the standard probe, please note it in advance.

The standard ultrasonic thickness probe N05 operates at a frequency of 5MHz with a crystal size of 10mm. Its measuring range for common ultrasonic thickness gauges is 1.0-230mm in steel, while for multi-mode ultrasonic thickness gauges, it is 1.0-600mm in steel.

The cable length of the N05 probe is 90cm, and its minimum pipe diameter limitation is Φ20mm×3.0mm. The Mitech N05 probe is elaborately developed with materials including piezoelectric ceramic, engineering plastic, and stainless steel. Its integrated die casting process and splinting probe design ensure convenient plugging, effectively reducing faults caused by frequent plugging while maintaining accuracy and durability.

The Mitech N05 probe finds wide application in monitoring the corrosion thinning degree for various pipelines and pressure vessels in industries such as petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace, and others. It can also be used to make accurate measurements for various plants and mechanical parts.
