UV LED Inspection Flashlight

PDF Specification Sheet - Download Here

Product Name: UV LED Inspection Flashlight

Short Description: Discover the power of advanced UV LED technology with the TMUV40S and TMUV100N Inspection Flashlights, designed for professional nondestructive testing, forensic inspections, and more. Compact, rugged, and efficient, these flashlights are essential tools for quality control and safety inspections.

Applications: Ideal for nondestructive testing (NDT), forensic inspection, quality control, fluorescent leak detection, and industrial inspection.

Key Features:

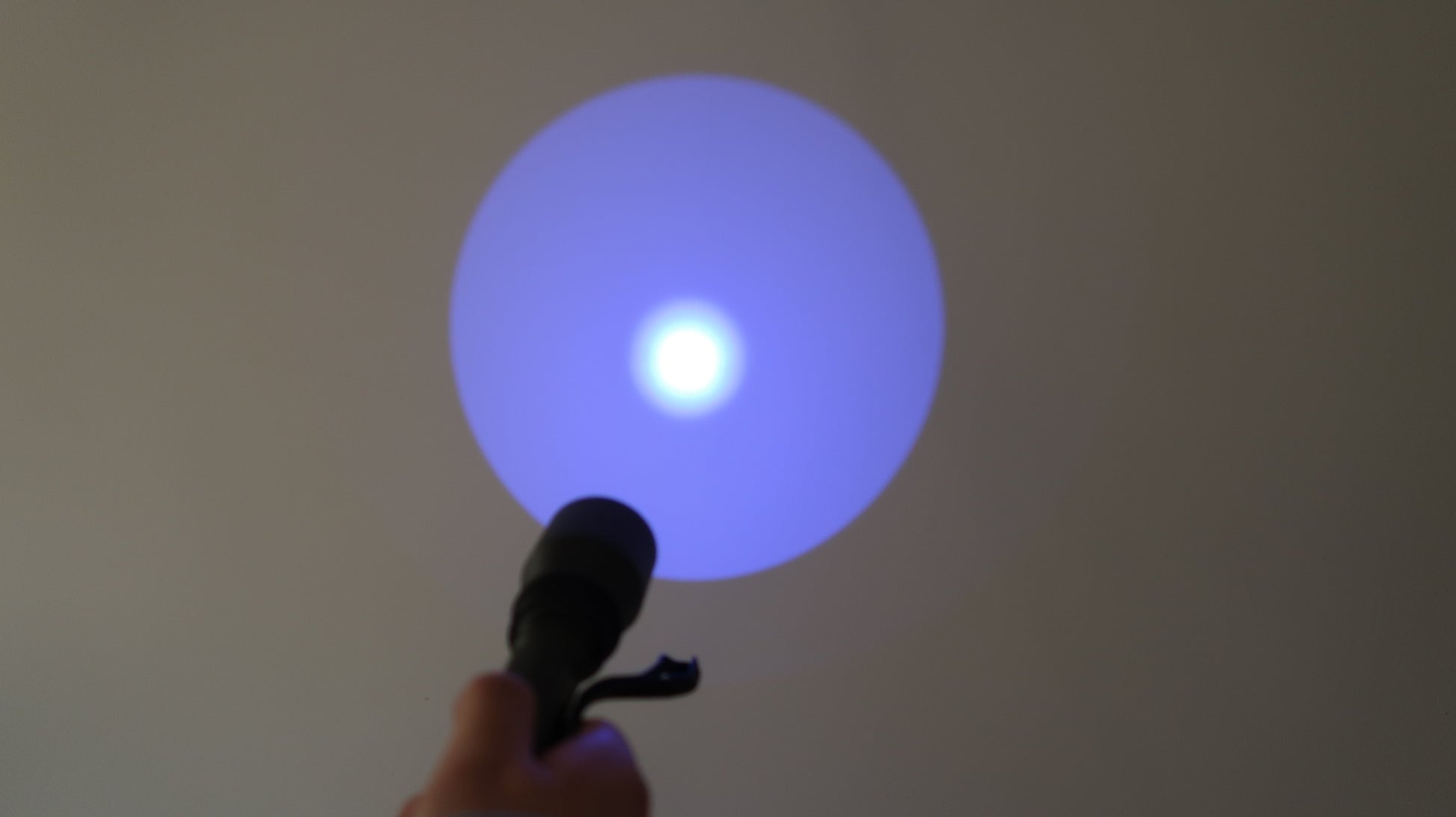

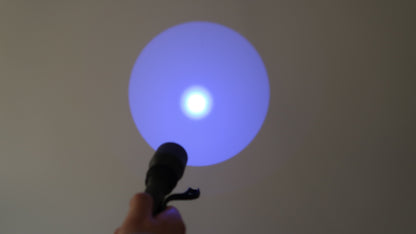

• UV-A LED Light Source: Features a powerful UV-A (365 nm) LED that provides optimal fluorescence to highlight imperfections and leaks.

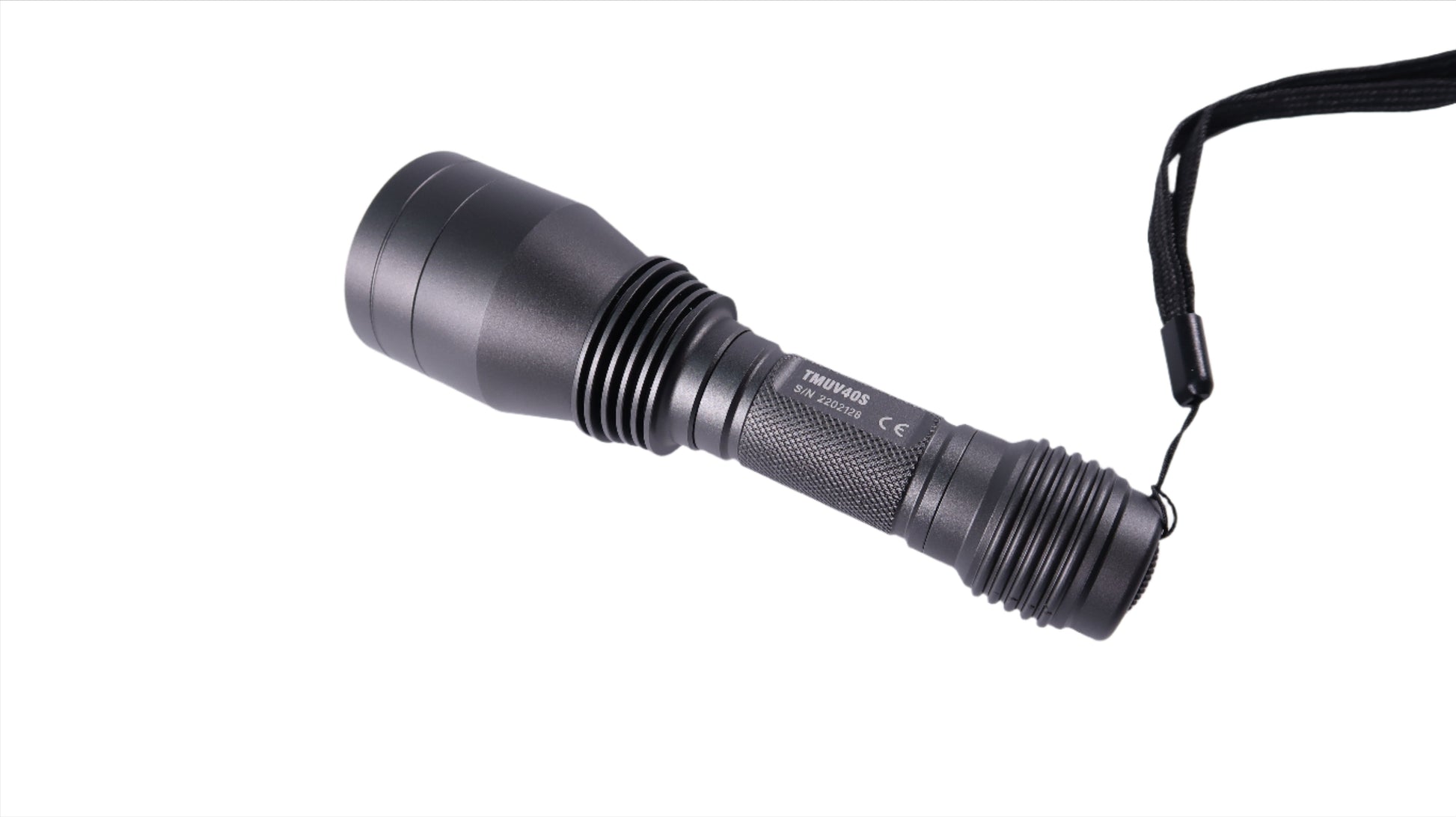

• TMUV40S Specifications:

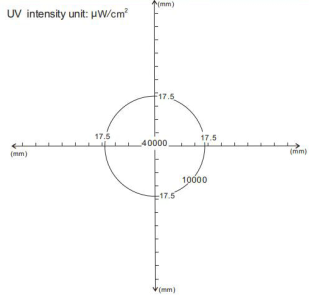

  • Coverage Area: 1.5 in (4 cm) diameter at 15 inches (38 cm).
  • UV Intensity: Max 40,000 ?W/cm² and min 10,000 ?W/cm².

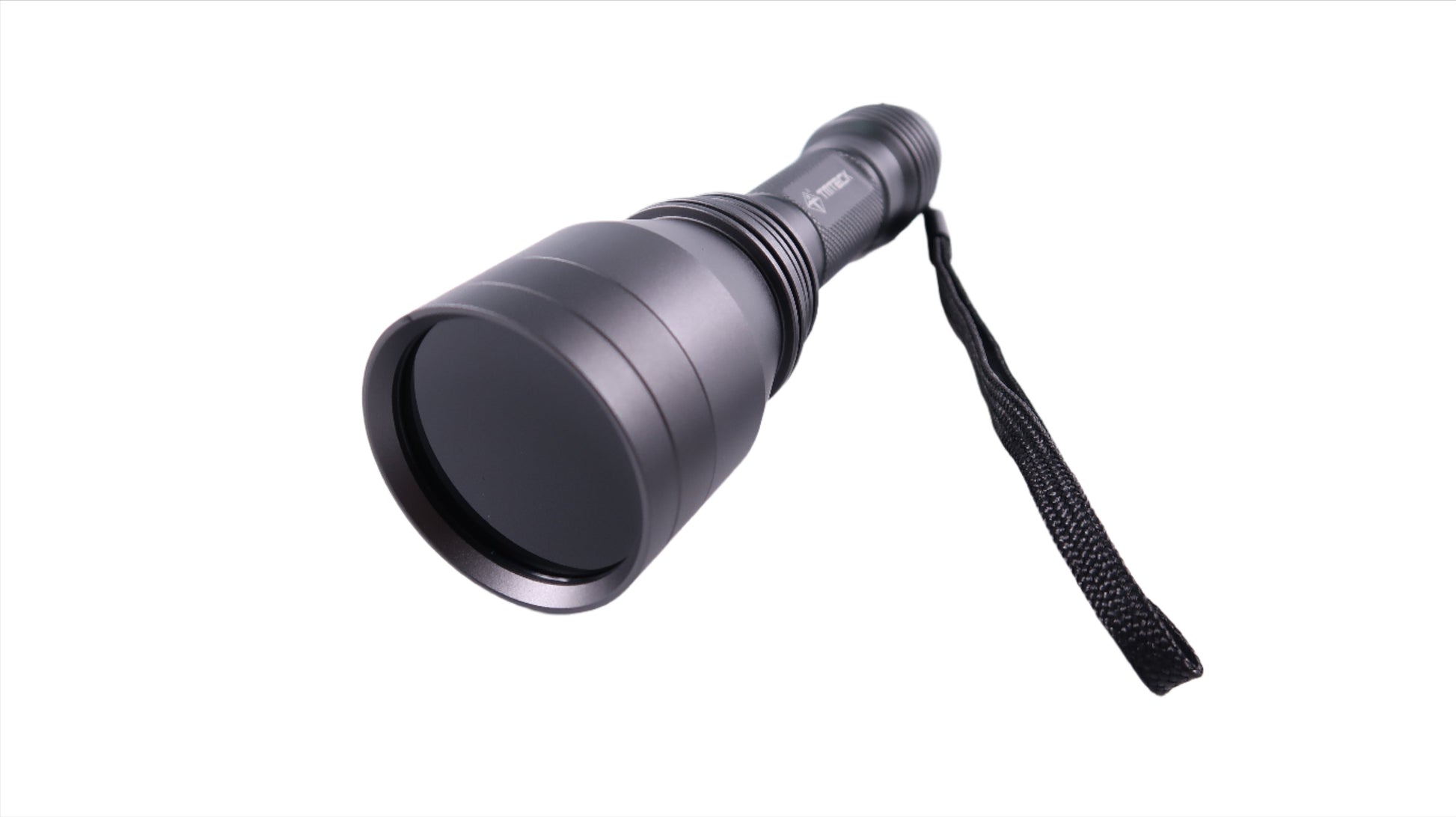

• TMUV100N Specifications:
  • Coverage Area: 4 in (10 cm) diameter at 15 inches (38 cm).
  • UV Intensity: Max 15,000 ?W/cm² and min 1,000 ?W/cm².
• Durable Design: Constructed with an anodized aluminum body that resists corrosion and ensures durability through years of use.
• Portability: Compact, lightweight, and cordless design allows for use in any location, enhancing flexibility during inspections.
• Instant-on Operation: The lamp reaches full intensity immediately, reducing downtime and increasing efficiency during inspections.
• Additional Features: Each lamp is equipped with an antioxidant black light filter glass to enhance the quality of UV light output.

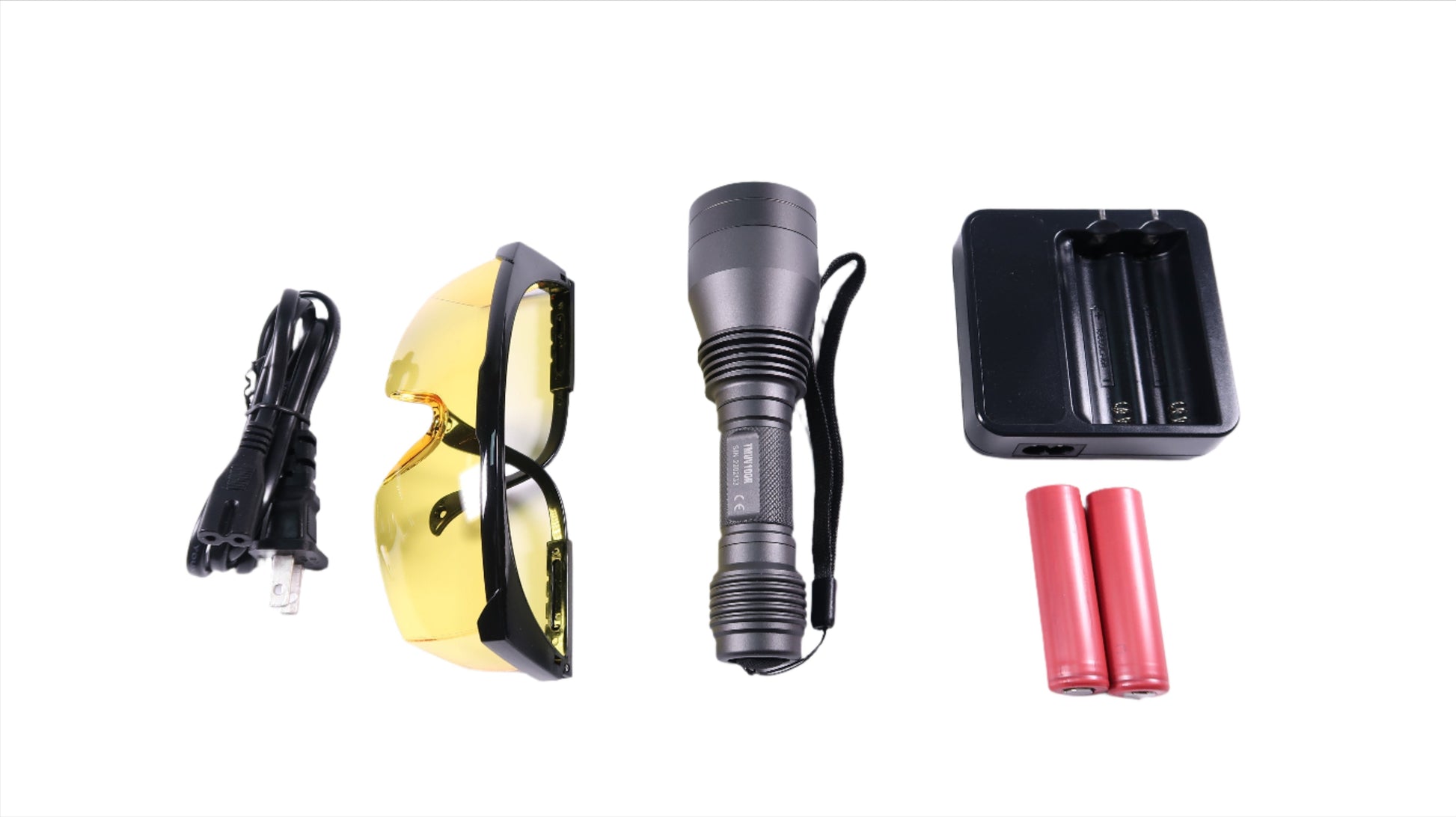

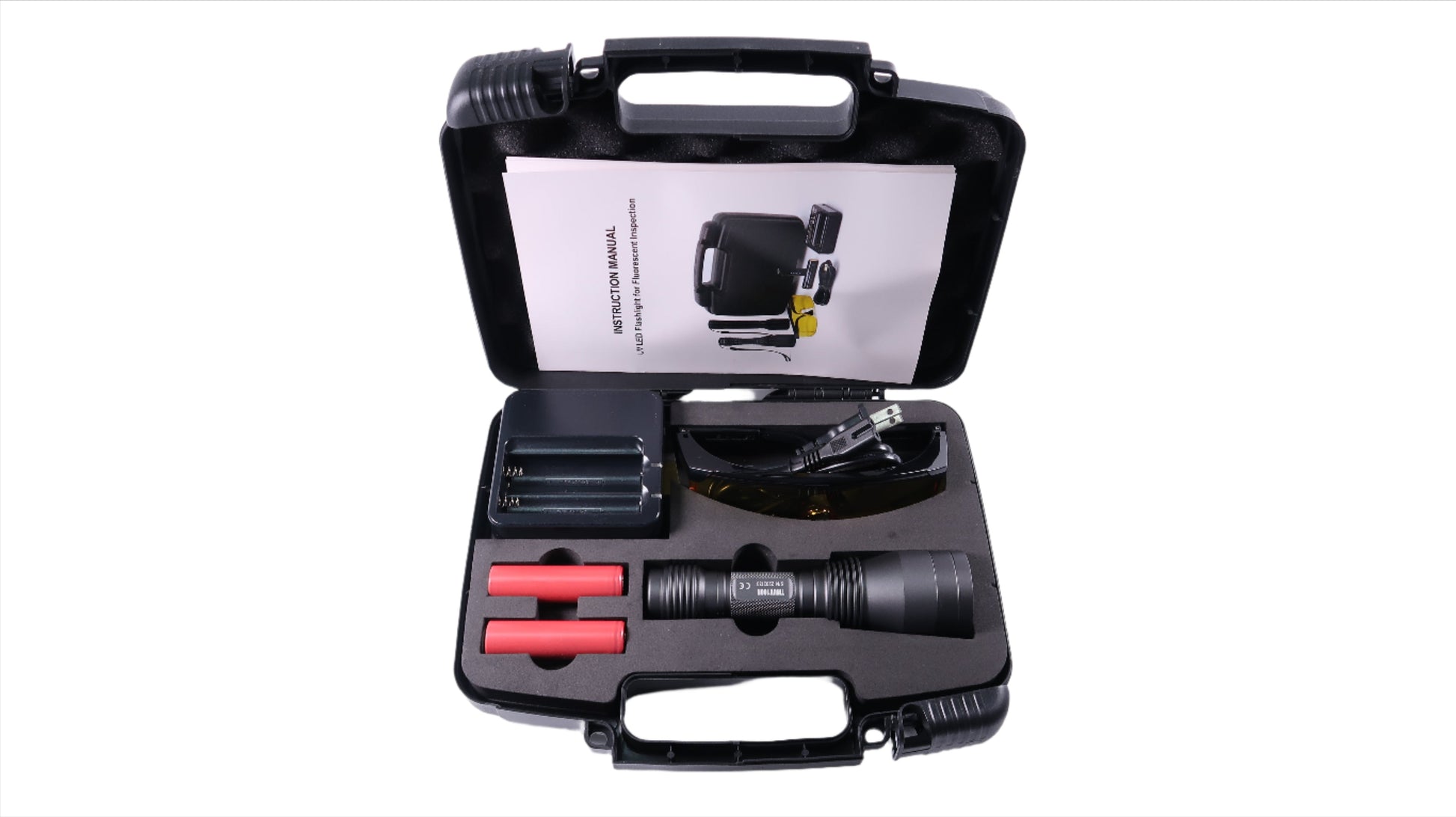

• Battery Life: Powered by a rechargeable lithium-ion battery, each lamp provides 2.5 hours of continuous inspection between charges. An extra battery is included to minimize interruptions.

With these advanced UV LED Inspection Flashlights, professionals can conduct thorough and efficient inspections across a variety of applications, ensuring high standards of quality and safety.
