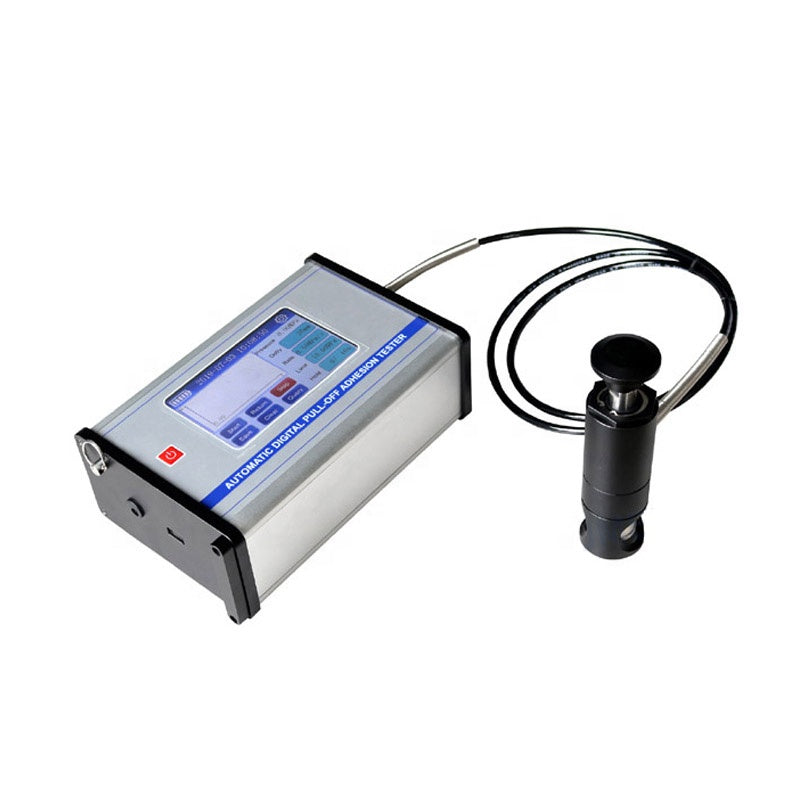

Automatic Pull-Off Adhesion Tester – Digital Coating Bond Strength Meter BGD500S

Product Description:

The BGD500S Automatic Digital Pull-Off Adhesion Tester is a precision tool designed to quantitatively measure the bond strength between coatings and substrates. Unlike traditional cross-hatch or tape tests, this device uses a fully automatic hydraulic pull-off method, providing accurate and repeatable results.

With selectable measurement units (MPa or psi), adjustable pressurization limits, and dwell time settings, the BGD500S ensures controlled testing conditions for reliable evaluations. It supports multiple dolly sizes, making it suitable for a wide range of coating systems and substrates—from concrete to metal and multi-layer protection systems.

Built to meet GB/T 5210, ASTM D4541/D7234, and ISO 4624/16276-1, the BGD500S is ideal for coating developers, QC labs, and field inspectors who need consistent, standards-compliant adhesion data. Lightweight and battery-powered, it offers portability and low operating costs, with minimal maintenance.

Key Features:

• Fully automatic hydraulic pull-off process—removes manual variability

• Digital display with MPa/psi selection and real-time force feedback

• Adjustable maximum pressure and dwell time

• High accuracy: ±1% of full scale with 0.01 MPa resolution

• Supports multiple dolly sizes: 10 mm, 14 mm, 20 mm, 50 mm

• USB-rechargeable lithium battery for portable operation

• Lightweight, compact design ideal for field and lab use

• Complies with ASTM D4541, ISO 4624, GB/T 5210 standards

• Low-cost operation and economical consumables

Technical Specifications:

• Standard Dolly Size: 20 mm

• Optional Dolly Sizes: 10 mm, 14 mm, 50 mm

• Resolution: 0.01 MPa (1 psi)

• Accuracy: ±1% Full Scale

• Pull-Off Strength Ranges:

  • 10 mm: 2.8–80 MPa

  • 14 mm: 1.4–40 MPa

  • 20 mm: 0.7–20 MPa

  • 50 mm: 0.4–3.5 MPa

• Pulling Rate Settings:

  • 10 mm: 0.4–6 MPa/s

  • 14 mm: 0.2–3 MPa/s

  • 20 mm: 0.1–1.5 MPa/s

  • 50 mm: 0.02–0.24 MPa/s

• Power Supply: Built-in lithium battery, USB charging

• Dimensions: 240 × 138 × 81 mm

• Weight: 4 kg

• Standards Compliance: GB/T 5210, ASTM D4541/D7234, ISO 4624/16276-1

Standard Accessories:

• Main unit

• 20 mm aluminum dollies × 20

• Sleeve cutter

• Adhesive bottle

• Micro-USB cable

• Operation manual

• Carrying case

Industries Used In:

• Coating and paint manufacturing

• Marine and corrosion protection

• Construction and civil infrastructure

• Pipeline, storage tank, and lining inspection

• Laboratory R&D and quality control

Alternative Names:

Pull-Off Adhesion Tester
Digital Adhesion Tester
Automatic Coating Adhesion Tester
Hydraulic Adhesion Tester
Paint Bond Strength Tester
