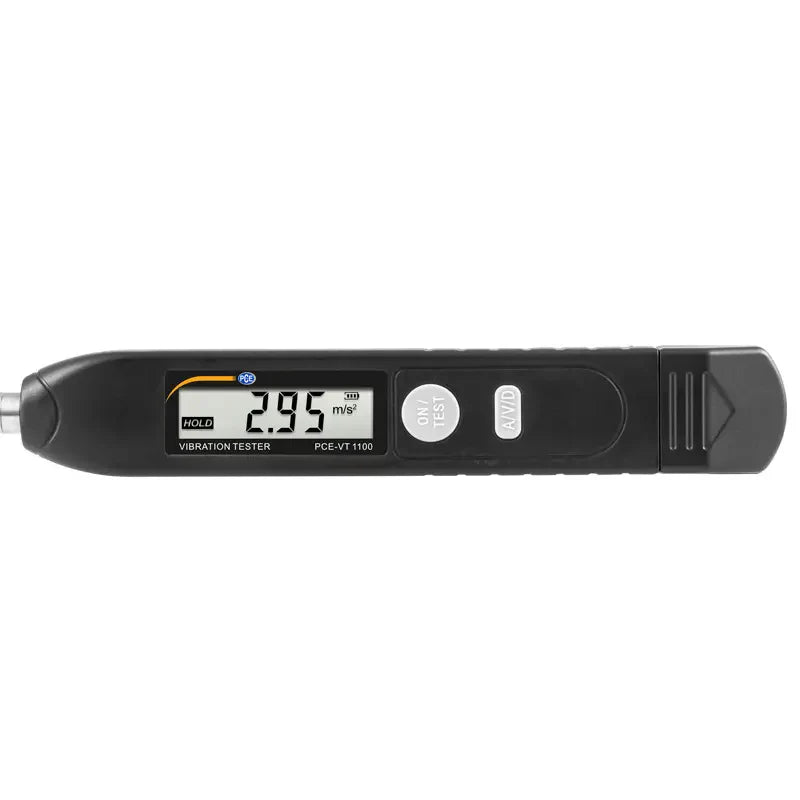

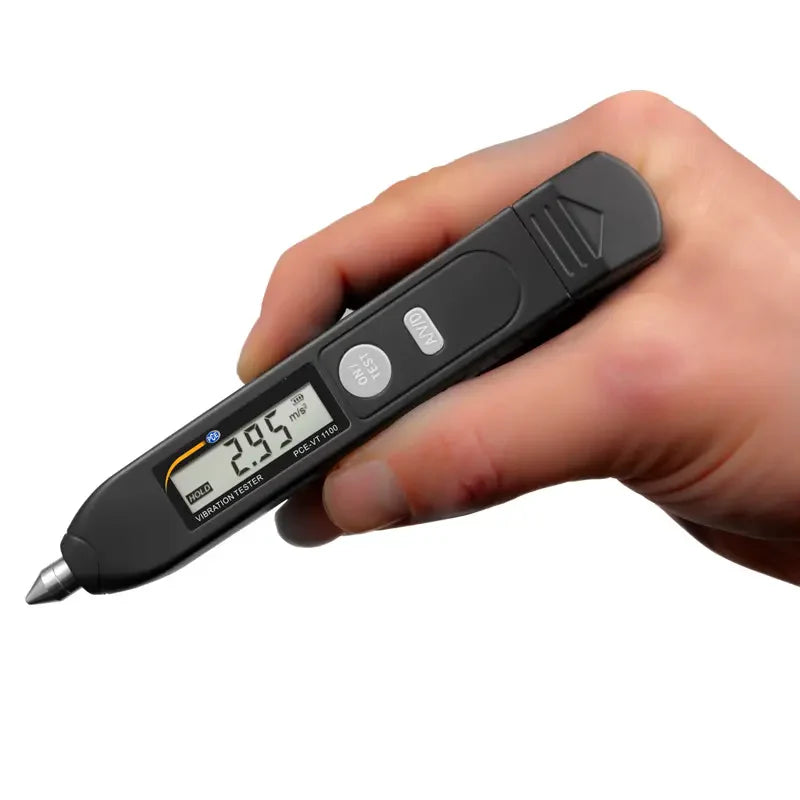

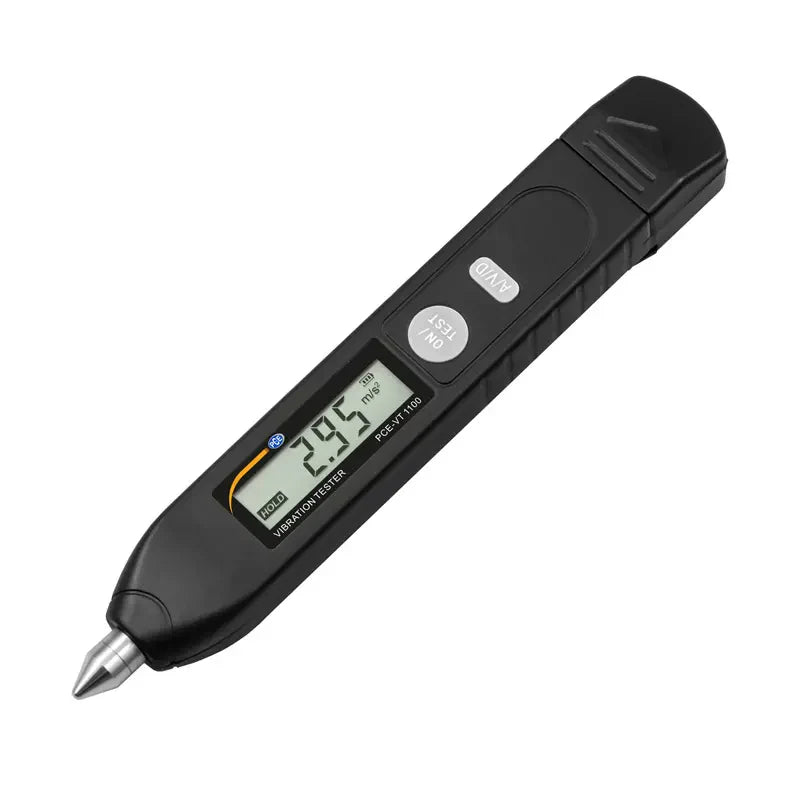

Vibration Analyzer PCE-VT 1100
Vibration Analyzer PCE-VT 1100
Couldn't load pickup availability
Description

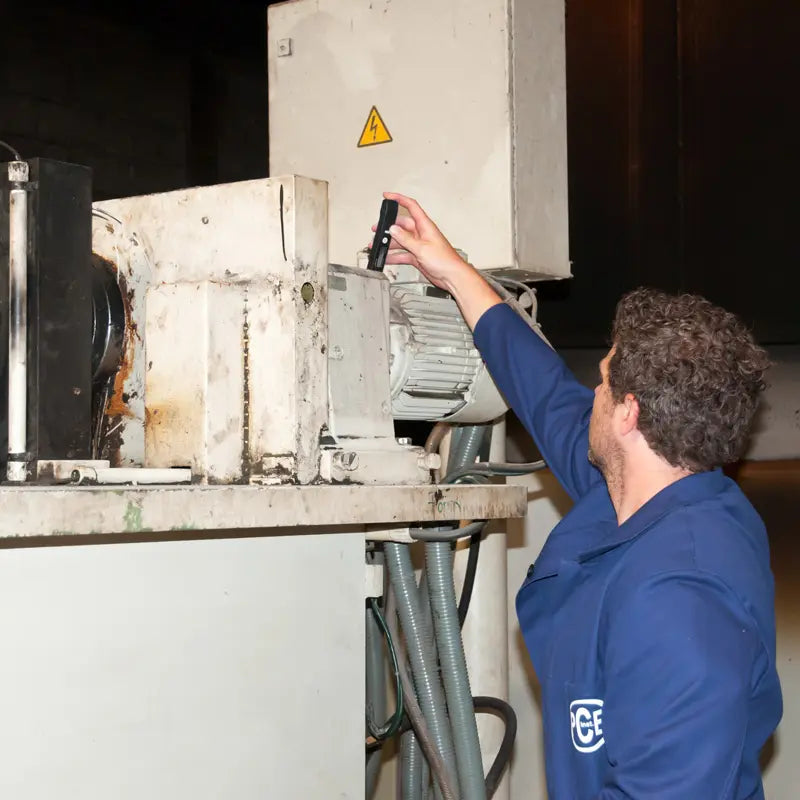

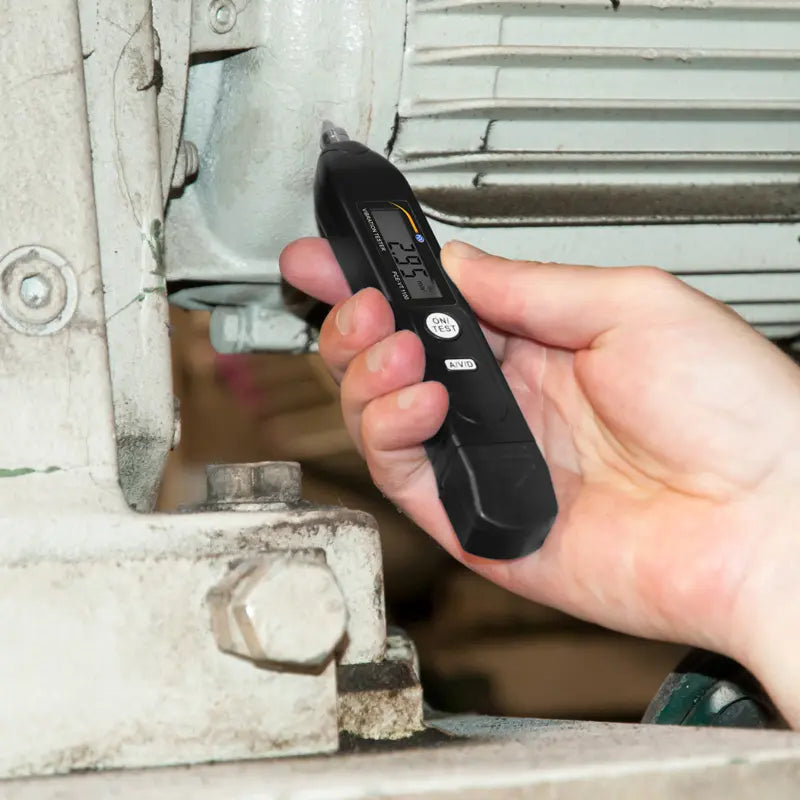

The vibration analyzer is used as a hand-held measuring device for the individual assessment of vibrations on machines and systems. With the help of this vibration analyzer, the actual state can easily be determined on site. Thus, corresponding changes can be made directly on site after the measurement. Thereafter, the new condition can be assessed. Thus, the vibration analyzer serves as a measuring device for a relative measurement on different machines.
The vibration analyzer serves essentially as precautionary or preventive maintenance of production machines. Very often, the vibration analyzer is used to assess the state of smaller electric motors.
Highlights
- Keeps the value after every measurement
- Easy to handle, powered by batteries
- Wide frequency range
- Automatic shut-down after 20 seconds of inactivity to protect battery life
- Low battery indicator
Specification
| Parameter | Measuring Range | Frequency Range |
| Acceleration | 0.01 ... 199.9 m/s² peak | 10 Hz ... 1 kHz |
| Vibration speed | 0.01 ... 199.9 mm/s rms | 10 Hz ... 1 kHz |
| Displacement | 0.001 ... 1.999 mm p-p | 10 ... 500 Hz |
| Measurement accuracy | Acceleration: ≤ 3 % Vibration speed: ±5 %, ±2 Digits Displacement: +10/-20 % (10...20 Hz); ±5 % (20...1000 HZ) |
|
| General specifications | ||
| Display | LCD, Response time approx. 1 second | |
| Power supply | 2 x 6 V CR2032 button cell | |
| Battery life | about 5 hours (in continuous operation) | |
| Environmental conditions | 0 ... +40 °C / 32 ... 104°F, 0 ... 84 % r.H. | |
| Dimensions | 155 x 24 x 18.7 mm / 6.1 x 0.9 x 0.7" | |
| Weight | ca. 40 g / 1.4 oz (incl. batteries) | |
Delivery Scope
1 x Vibration Analyzer PCE-VT 1100
1 x PCE-VT-NF-10 standard probe (length 10mm)
2 x Batteries

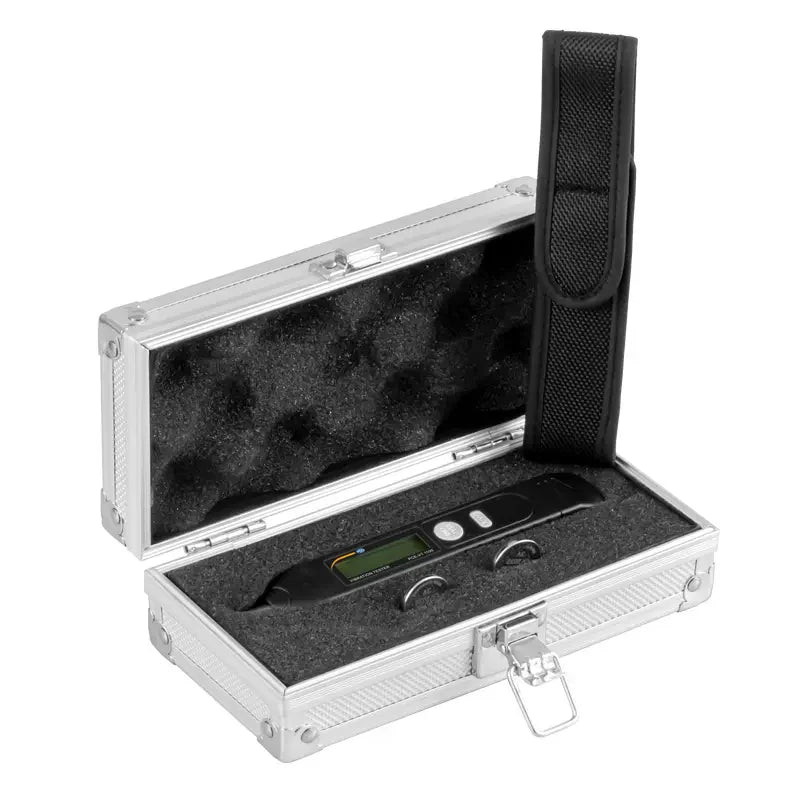

1 x Carrying case
1 x Storage box
1 x User manual
