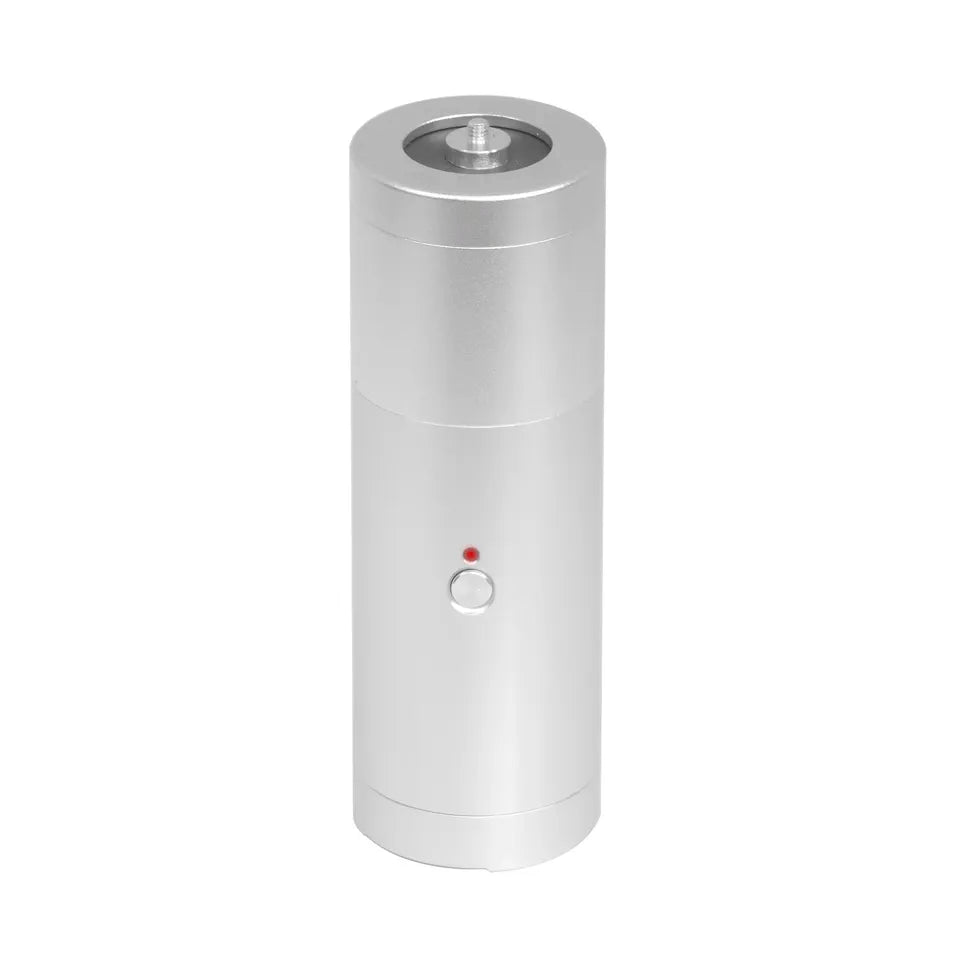

Vibration Meter Calibrator AV-160CAL

Description

The Tomlin Vibration Calibrator AV-160CAL is a compact, handheld device engineered for the precise verification of accelerometers, vibration monitoring systems, and recording devices. It provides a controlled and known RMS vibration output, ensuring reliable testing and calibration of equipment in field or laboratory environments. Built with durability and portability in mind, the AV-160CAL is ideal for professionals in vibration analysis, equipment testing, and quality assurance.

Key Features

• Portable Design: Lightweight and handheld for convenient use in field or laboratory settings.
• Wide Compatibility: Supports accelerometers weighing up to 150 g.
• Controlled RMS Output: Delivers consistent and accurate vibration levels for precise verification.
• Simple Operation: Intuitive interface with minimal setup for quick and efficient calibration.
• Durable Construction: Built to withstand industrial environments and rigorous use.

Applications

• Calibration of accelerometers
• Testing vibration monitoring systems
• Verification of recording devices
• Industrial maintenance and quality control

The Tomlin AV-160CAL Vibration Calibrator is a critical tool for professionals requiring precise performance checks in vibration analysis, ensuring the reliability of monitoring and recording equipment.

Specifications

• Operating Frequency: 159.2 Hz ± 0.5%
• Acceleration Output: 14.14 m/s² (Peak) ± 3%
• Velocity Output: 10 mm/s (RMS) ± 3%
• Displacement Output: 28 μm (Peak-to-Peak) ± 4%
• Transverse Output: < 5%
• Distortion: < 3%
• Maximum Load: 150 g
• Ramp-Up Time: < 3 seconds

Environmental Conditions:

• Operating Temperature: -10°C to 40°C (14°F to 104°F)
• Operating Humidity: 85% RH (non-condensing)

Power Supply:

• 4 × 1.5V AA UM-3 Battery

Dimensions:

• Diameter x Height: 56 × 200 mm (2.2 × 7.9 inches)
• Weight (Without Batteries): 960 g (33.86 oz)

Standard Accessories

• Main Unit
• Screwdriver
• Carrying Case
• Operation Manual

Alternative Names

• Handheld Vibration Calibrator
• Accelerometer Calibration Device
• Tomlin AV-160CAL Precision Tester

Downloads

PDF Specification Sheet - Download
