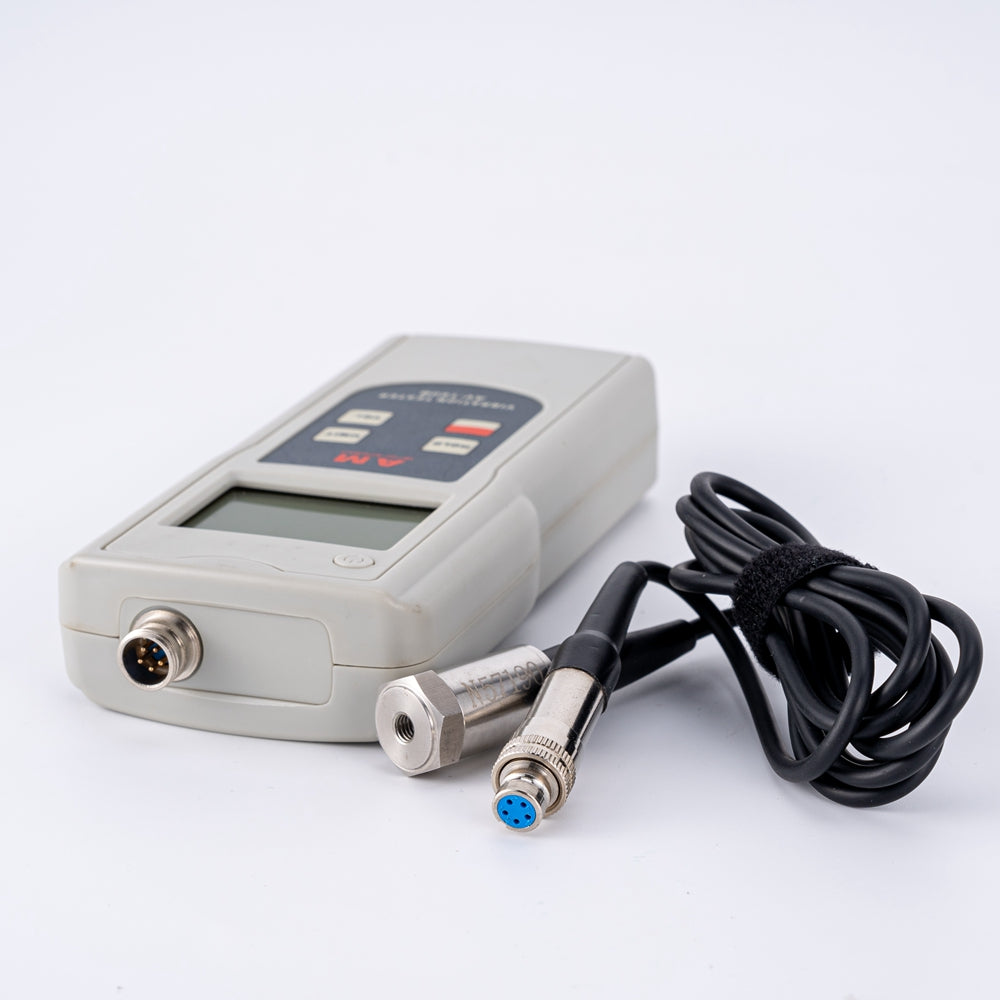

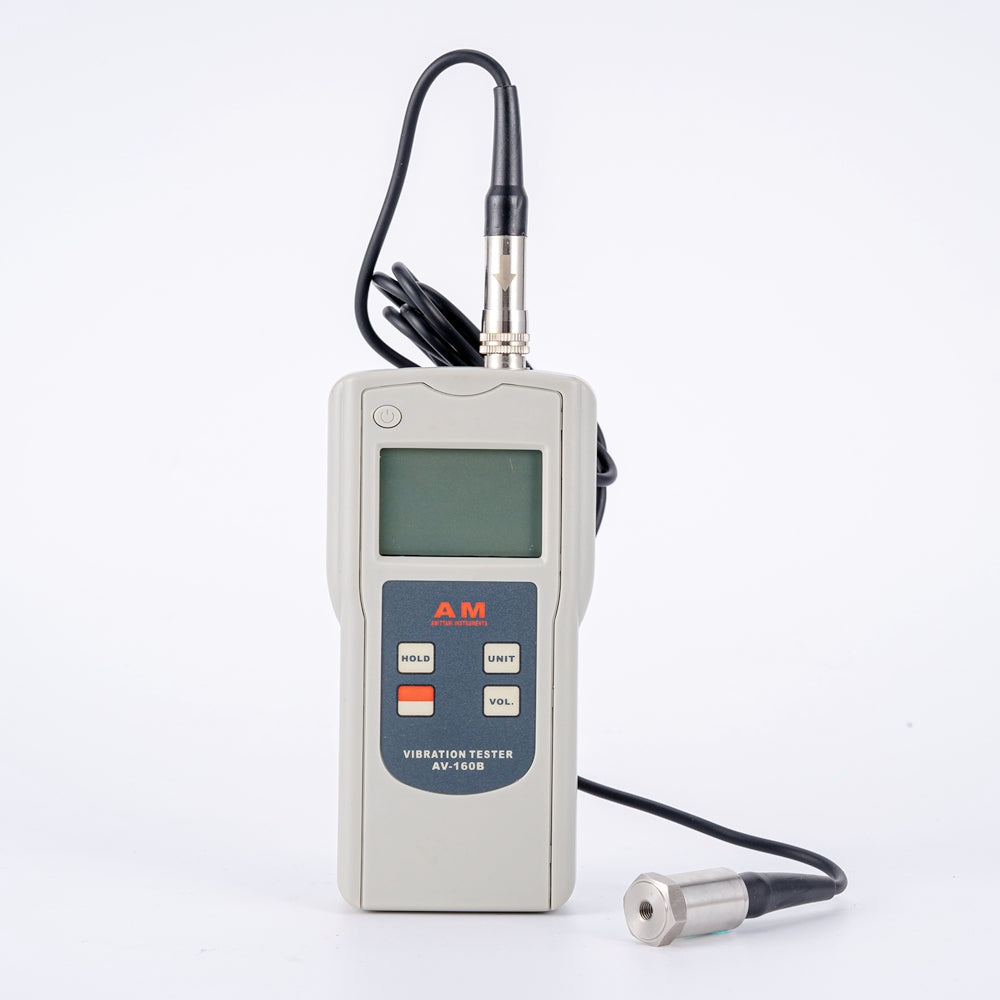

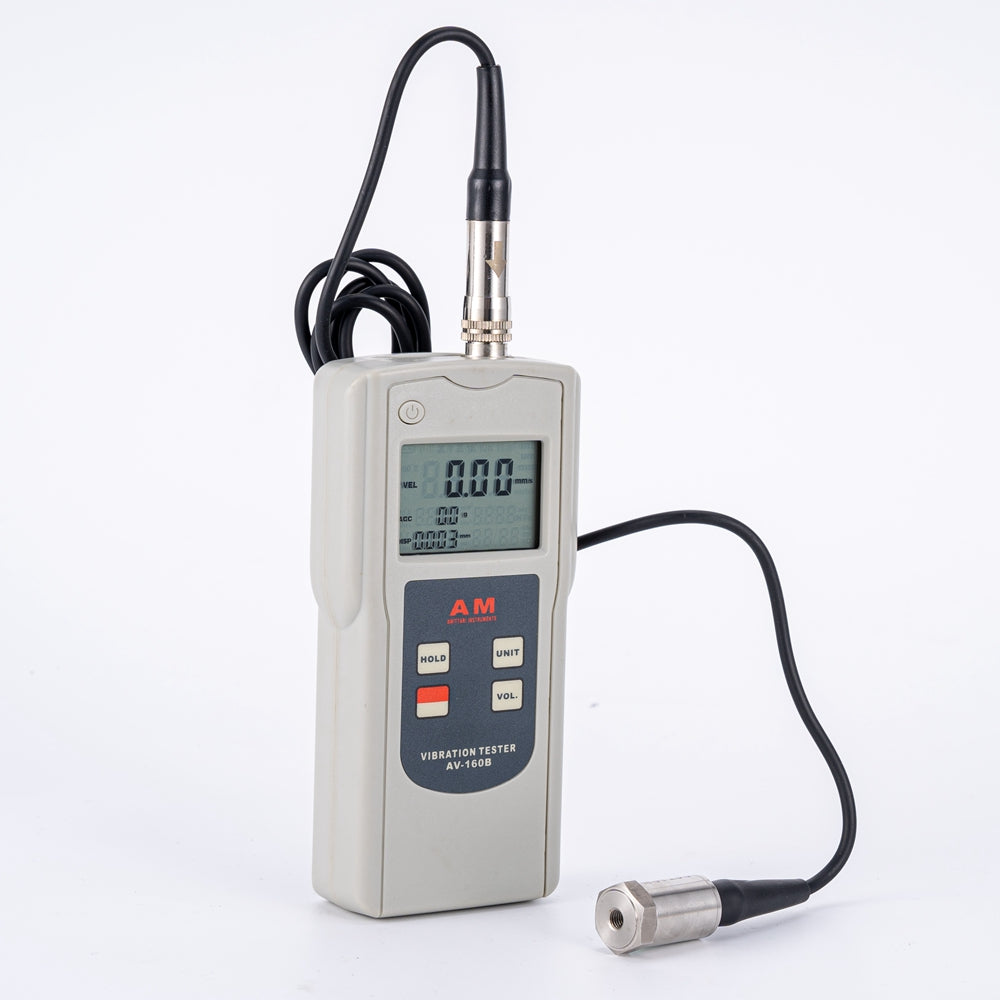

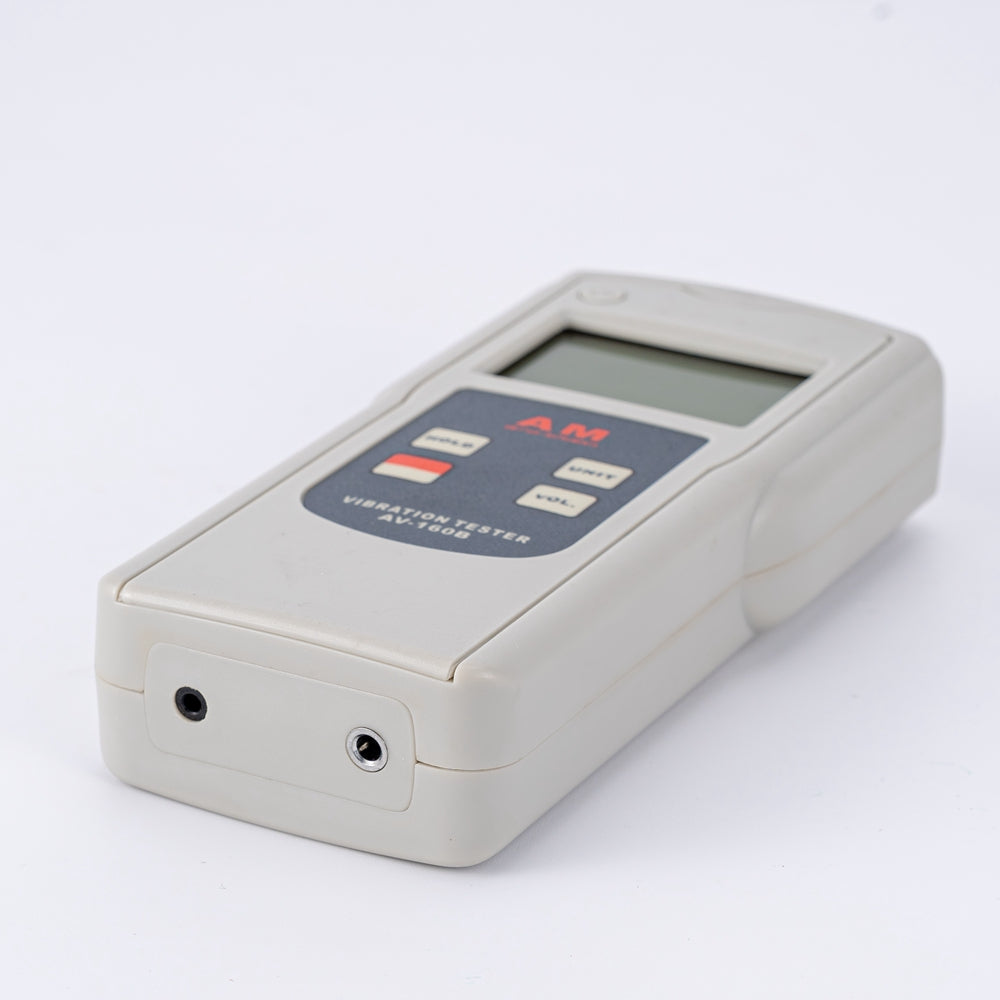

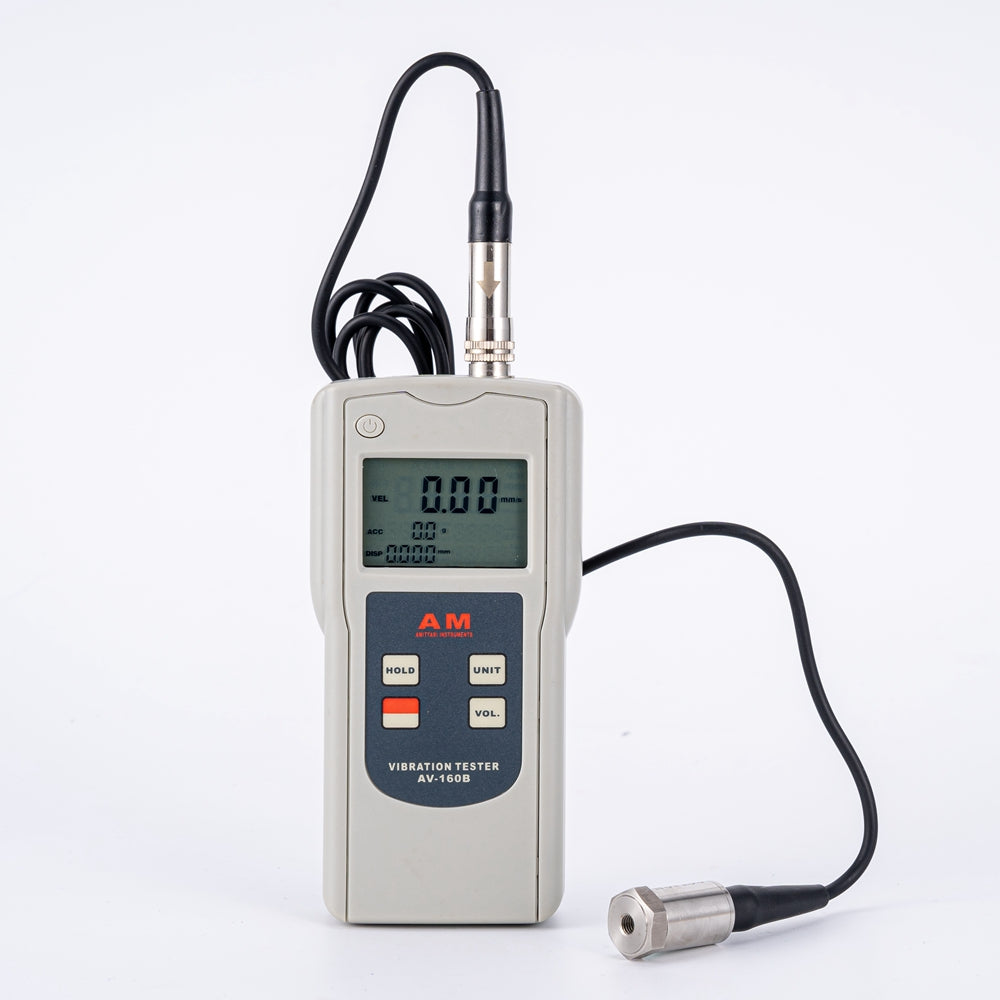

Vibration Tester Model AV-160B

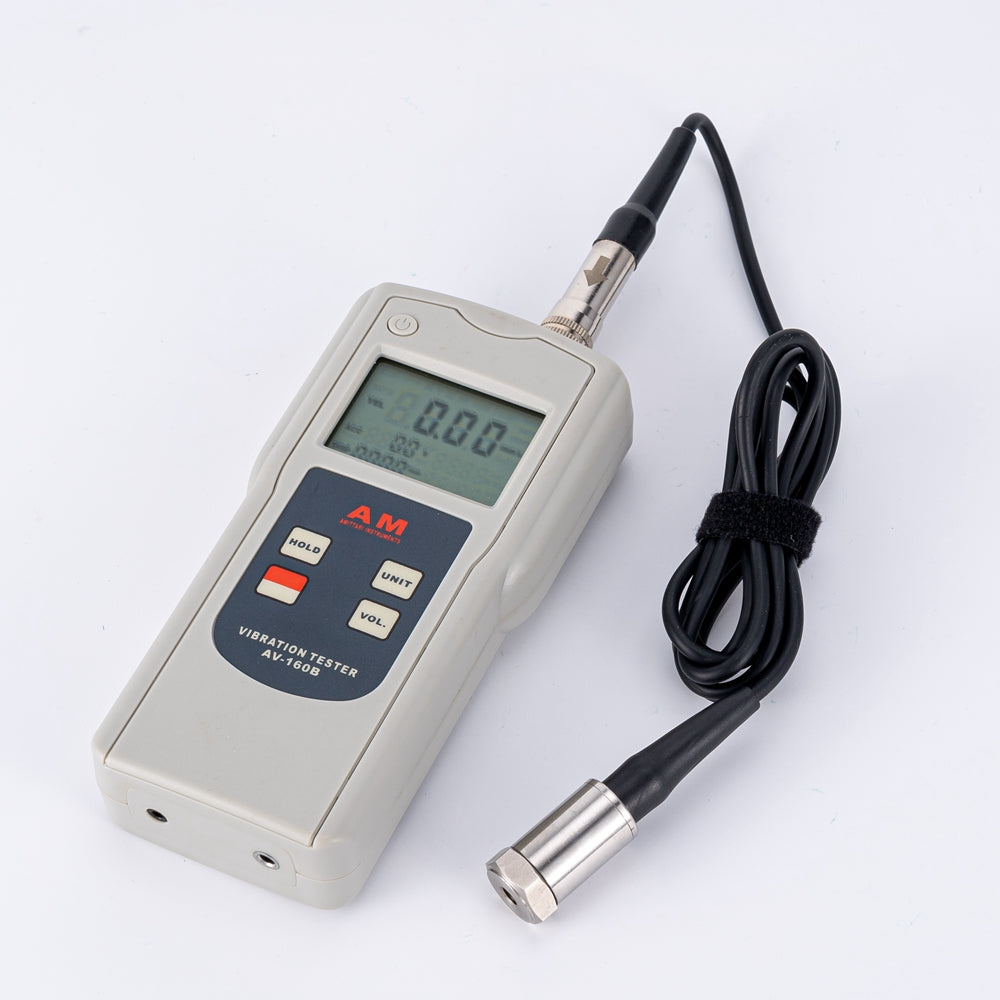

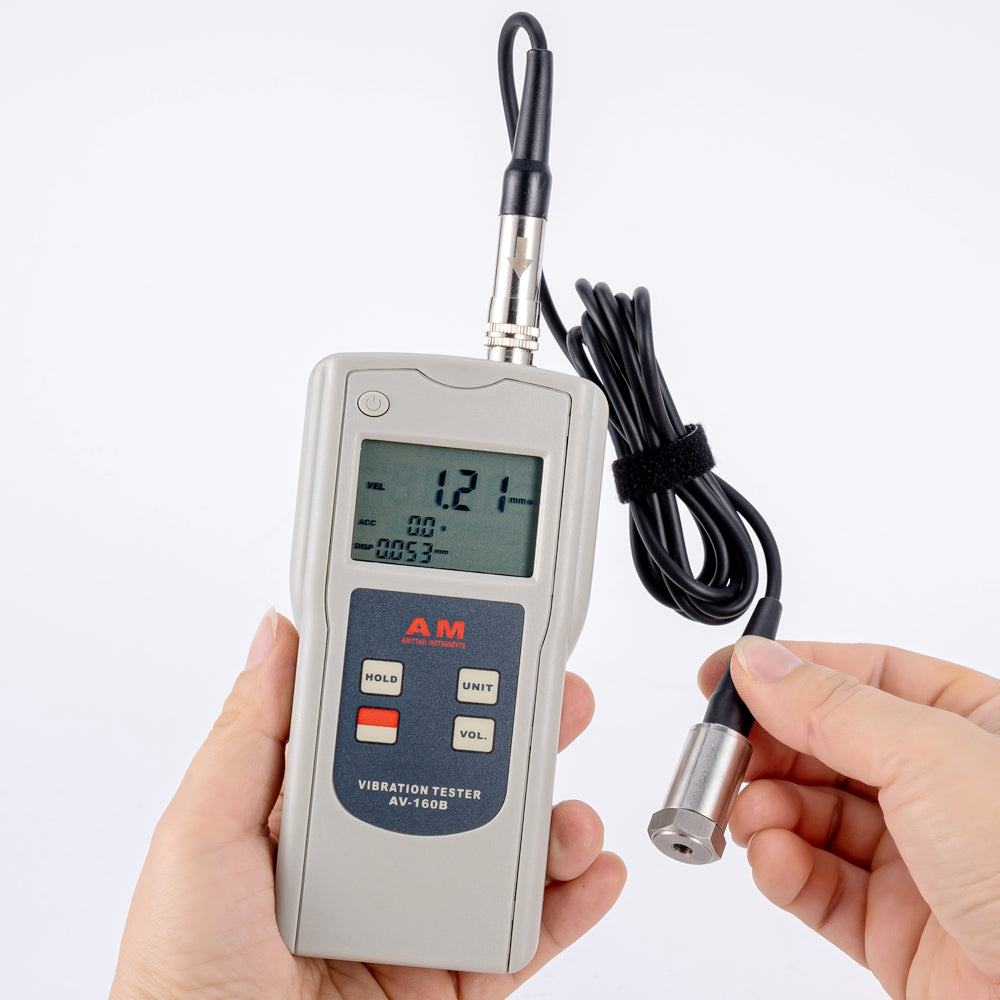

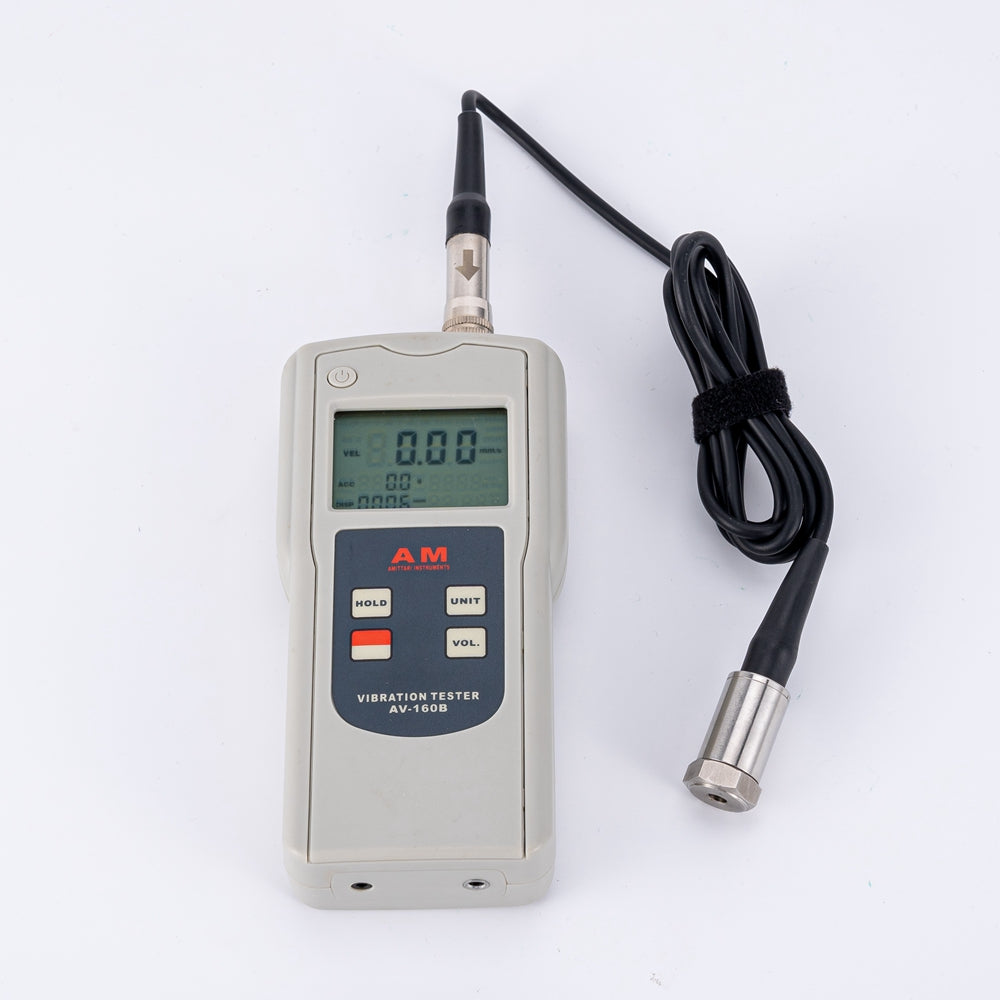

TOMLIN Vibration Tester  (Model AV-160B)

Description:
The TOMLIN Vibration Tester AV-160B is a robust device designed for periodic diagnostics in quality control and maintenance. With the capability to measure displacement, velocity, and acceleration, this tester is ideal for industrial applications requiring precision and repeatability. Its automatic power-off feature ensures efficient battery usage, making it a practical tool for regular vibration analysis.

Applications:

• Periodic Diagnostics: Ideal for routine checks in quality control and maintenance.
• Industrial Use: Designed for troubleshooting, predictive maintenance, and fault detection in machinery.

Features:

1. Measurement Parameters: Measures displacement, velocity, and acceleration for comprehensive vibration analysis.
2. Frequency Range: Covers a wide range of 10Hz to 10kHz in acceleration mode.
3. Auto Power-Off Function: Conserves battery life by automatically turning off when not in use.
4. Metric/Imperial Conversion: Easily switch between metric and imperial units.
5. Max. Value Hold Function: Retains the maximum value measured for analysis.
6. Backlight Display: Ensures clear visibility in low-light environments.
7. Buzzer Sound Reminder: Alerts the user during operations for better usability.
8. Low Battery Indicator: Notifies when the battery needs replacement or charging.
9. Computer Connectivity: Enables data transfer for advanced analysis and reporting.

Specifications

Sensor:

• Type: Piezoelectric Sensor

Measurement Ranges:

• Acceleration:

  • 0.1~400.0 m/s² (Peak)
  • Equivalent:

    0.31312 ft/s² or 0.040g

• Velocity:

  • 0.01~400.0 mm/s (True RMS)
  • Equivalent: 0.000~16.00 inch/s

• Displacement:

  • 0.001~4.000 mm (Peak-Peak)
  • Equivalent: 0.04~160.0 mil

Frequency Ranges:

• Acceleration: 10Hz–10kHz
• Velocity: 10Hz–1kHz
• Displacement: 10Hz–1kHz

Accuracy:

• ±5% of reading + 2 digits

Power Supply:

• Battery Type: 4 × 1.5V AAA batteries

Operation Conditions:

• Temperature: 050°C (32122°F)
• Humidity: <90% RH

Physical Dimensions:

• Size: 140 × 70 × 31 mm (5.5 × 2.8 × 1.2 in)
• Weight: 130 g (without batteries)

Standard Accessories:

1. Main Unit

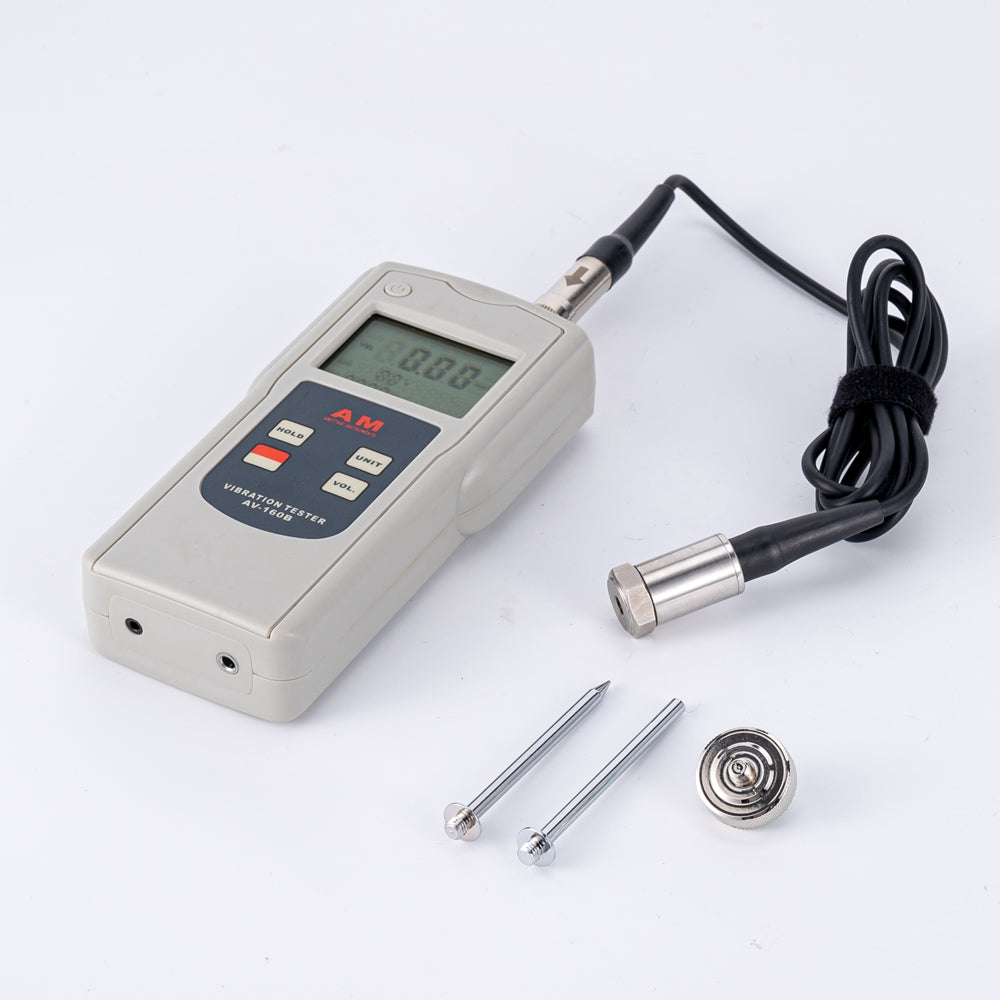

2. Stinger Probes (Cone and Ball)
3. Powerful Rare Earth Magnet

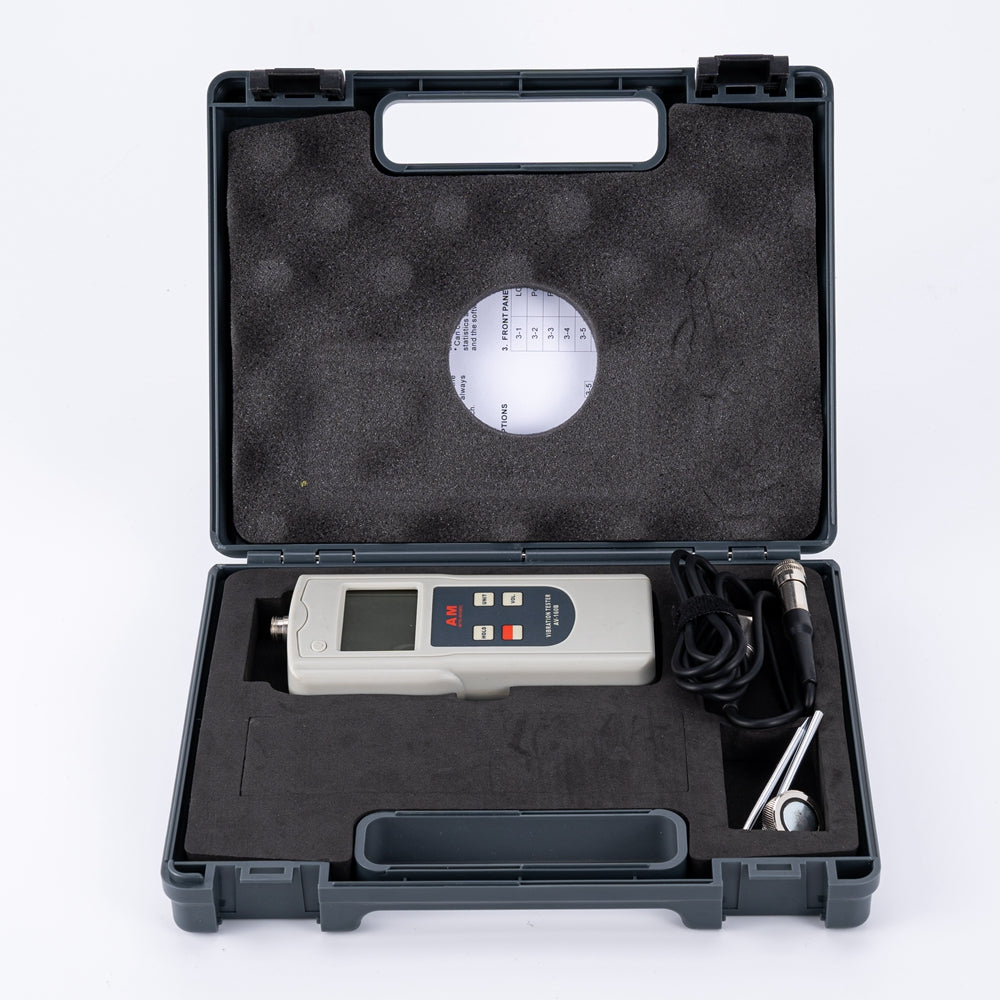

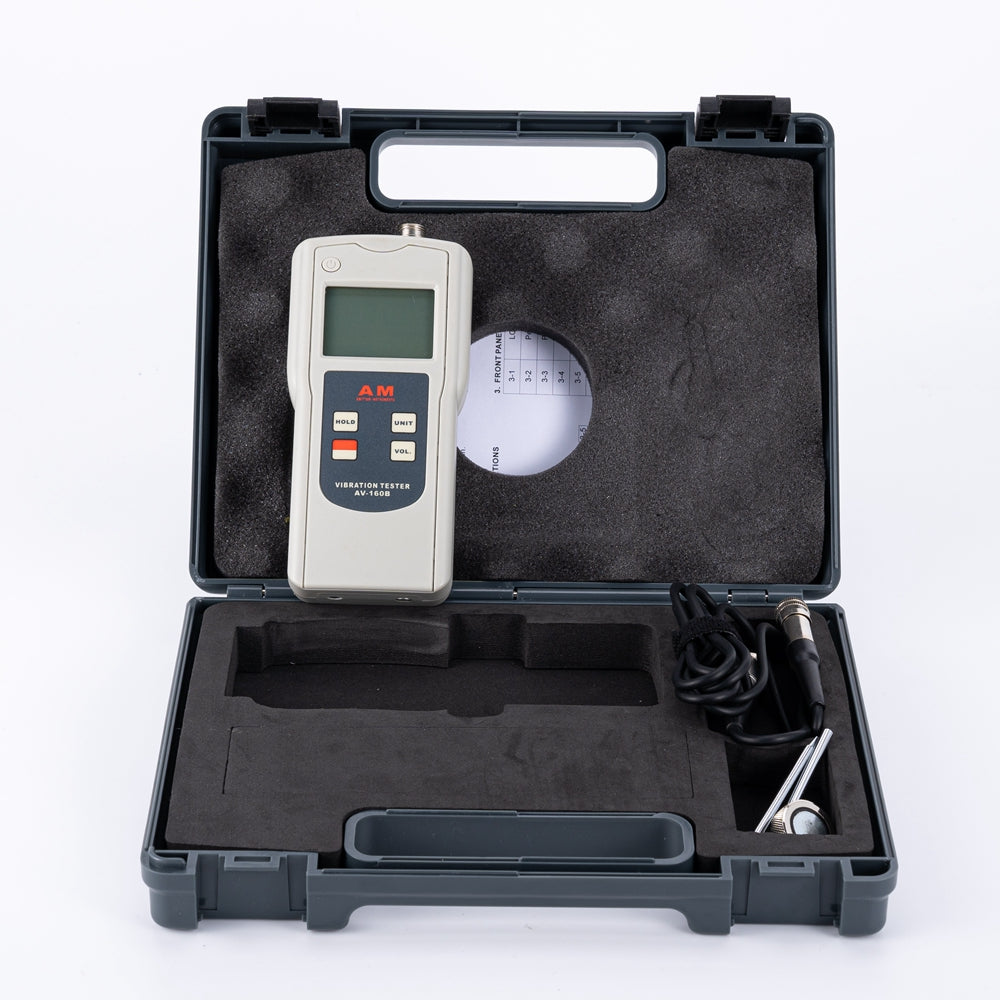

4. Carrying Case
5. Operation Manual

Optional Accessories:

• USB Cable & Software
• Bluetooth Adapter & Software

Alternative Names:

• Industrial Vibration Analyzer with Energy-Saving Features
• Digital Vibration Diagnostic Tool for Periodic Use

Downloads

PDF Specification Sheet - Download Here
