Vibration Tester AV-160T

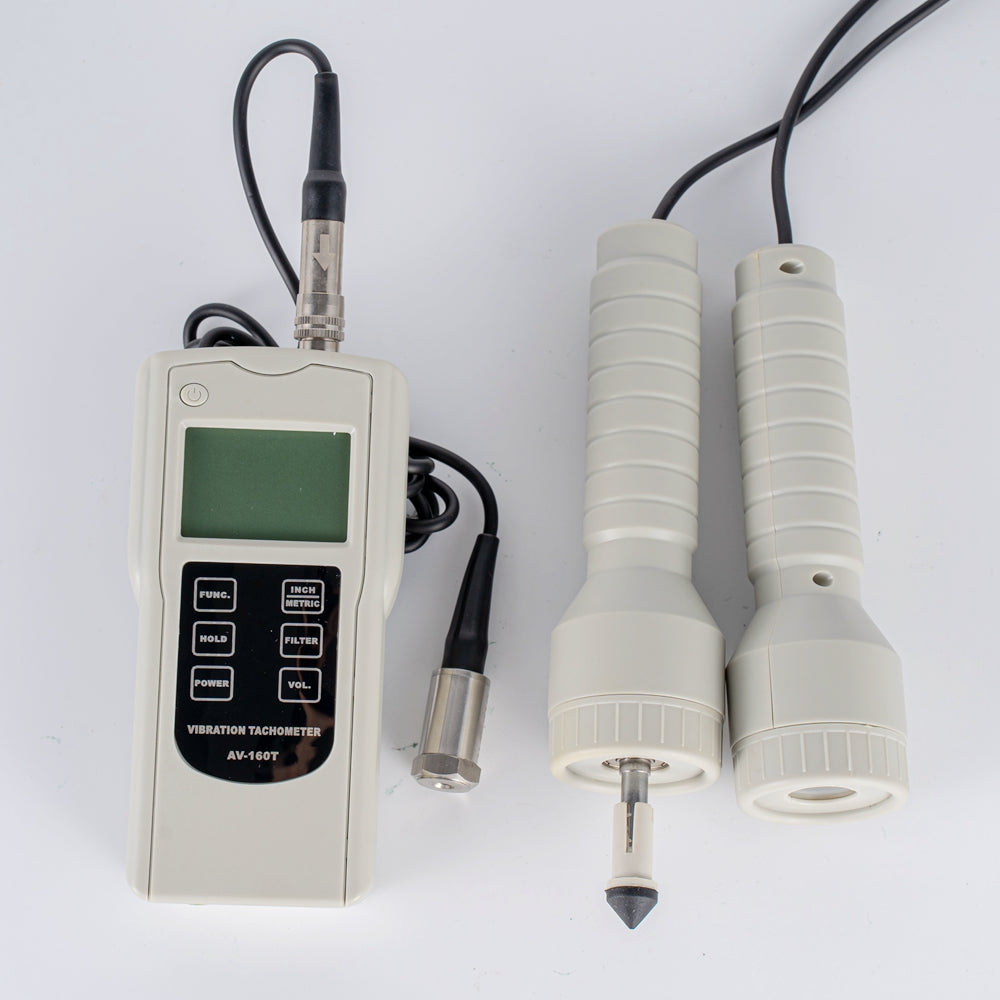

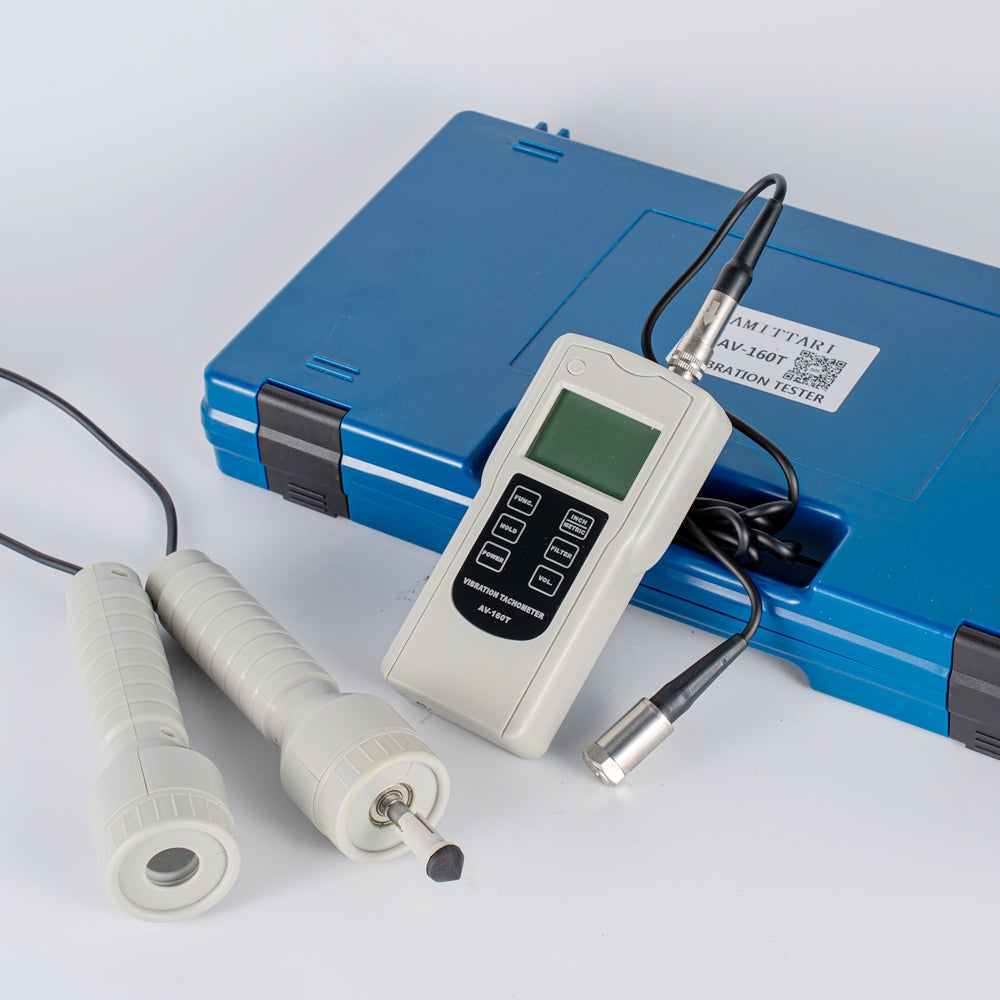

OMLIN Vibration Tachometer (Model AV-160T)

Description:
The TOMLIN Vibration Tachometer AV-160T is a versatile and multifunctional device that combines vibration analysis with rotational speed measurement. Equipped with both photo and contact tachometer sensors, this instrument is ideal for industrial applications requiring accurate vibration testing and RPM measurements. Designed to meet ISO 2954 standards, the AV-160T is an essential tool for quality control, maintenance, and diagnostics in rotating machinery.

Applications:

• Rotational Speed Measurement: Combines vibration testing with RPM and frequency analysis.
• Industrial Diagnostics: Ideal for troubleshooting, predictive maintenance, and quality control in rotating machinery.
• Versatile Use: Suitable for applications in manufacturing, production lines, and field operations.

Key Features:

1. Dual Tachometer Modes: Features both photo and contact tachometer sensors for versatile use.
2. Wide Frequency Range: Measures vibration within 10Hz to 10kHz in acceleration mode.
3. RPM and Frequency Measurements: Accurately measures rotational speed (RPM) and frequency (Hz).
4. Backlight Display: Provides clear readings in various lighting conditions.
5. Computer Connectivity: Enables data transfer for advanced analysis and reporting.
6. Metric/Imperial Conversion: Easily switch between measurement units.
7. Max. Value Hold Function: Retains the highest recorded measurement for analysis.
8. Low Battery Indicator: Alerts users when battery replacement is needed.
9. Lightweight and Portable: Compact design ensures easy handling and transport.

Specifications

Sensor:

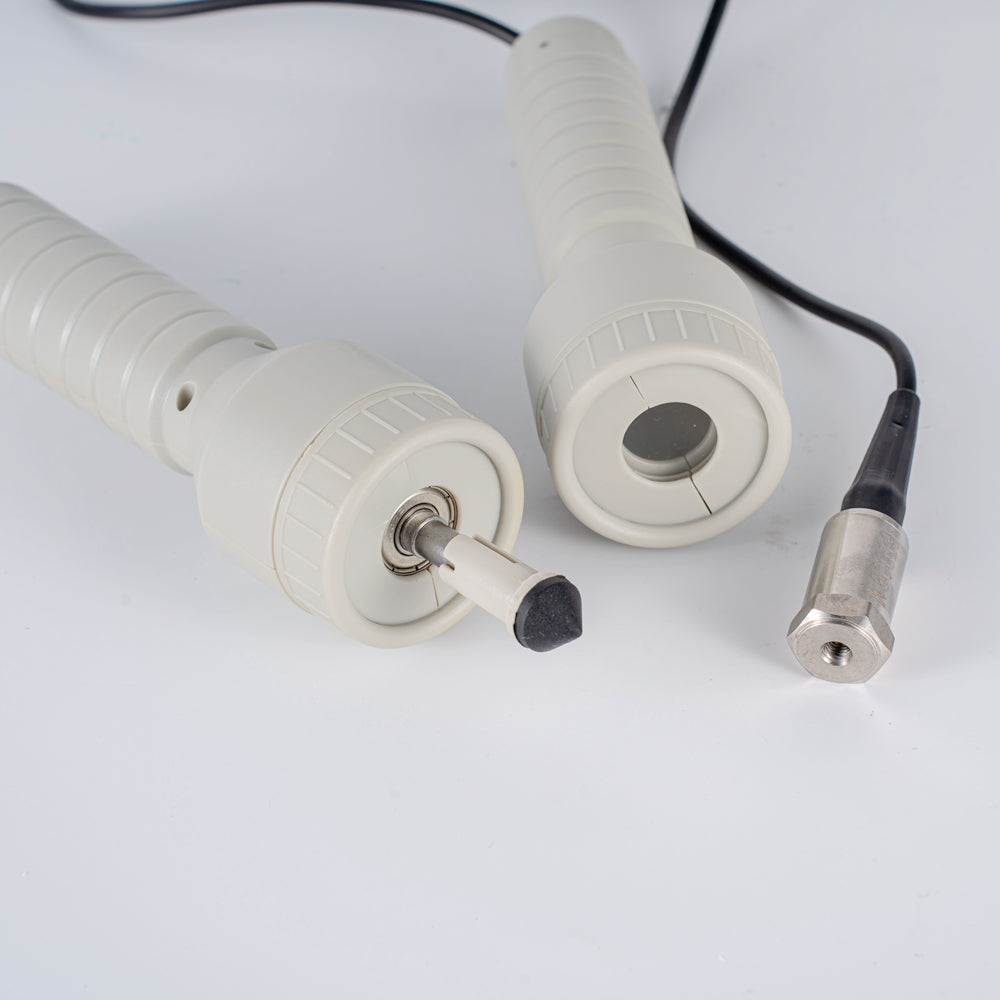

• Type: Photo and Contact Tachometer Sensors

Measurement Ranges:

• Acceleration:

  • 0.1~400.0 m/s² (Peak)
  • Equivalent:

    0.31312 ft/s² or 0.040g

• Velocity:

  • 0.01~400.0 mm/s (True RMS)
  • Equivalent: 0.000~16.00 inch/s

• Displacement:

  • 0.001~4.000 mm (Peak-Peak)
  • Equivalent: 0.04~160.0 mil

• Rotational Speed (RPM):

  • 60~99,990 RPM (Contact Mode)
  • 1~20,000 RPM (Photo Mode)

Frequency Ranges:

• Acceleration: 10Hz–10kHz
• Velocity: 10Hz–1kHz
• Displacement: 10Hz–1kHz

Accuracy:

• ±5% of reading + 2 digits

Power Supply:

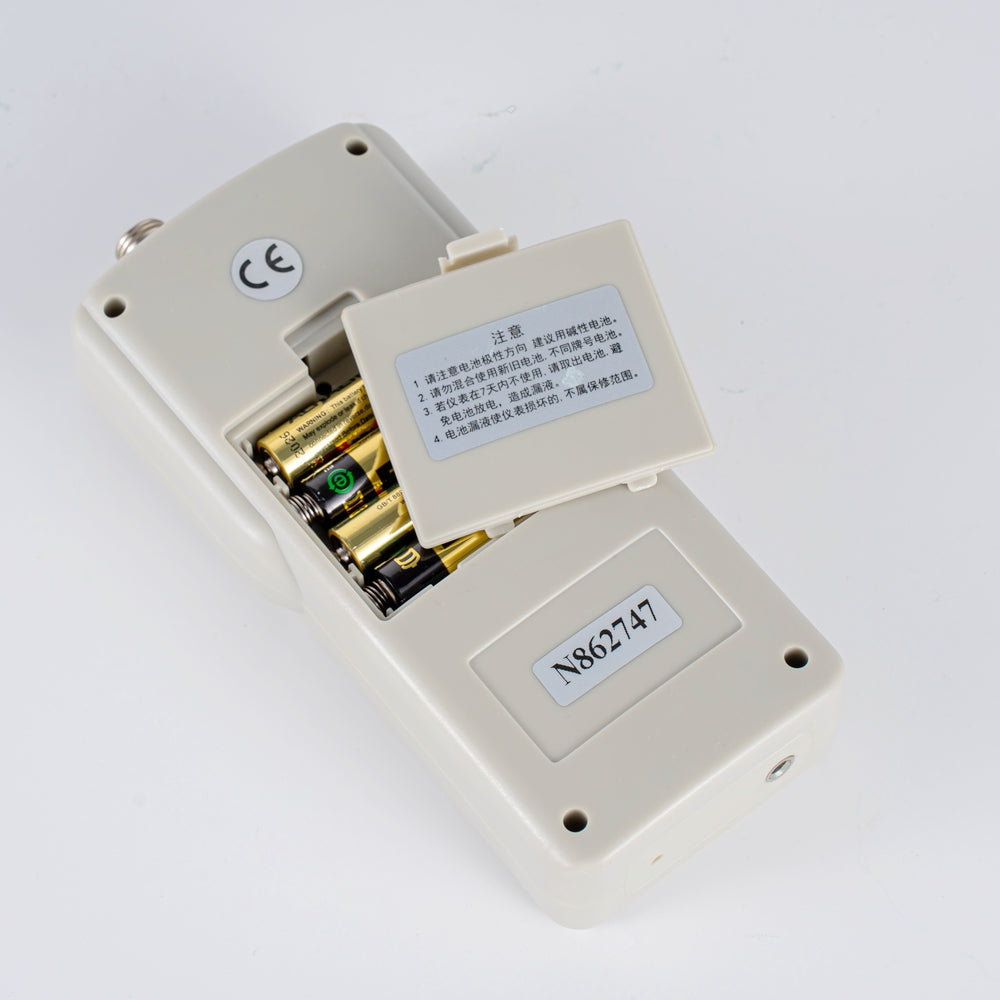

• Battery Type: 4 × 1.5V AAA batteries

Operation Conditions:

• Temperature: 050°C (32122°F)
• Humidity: <90% RH

Physical Dimensions:

• Size: 140 × 70 × 31 mm (5.5 × 2.8 × 1.2 in)
• Weight: 130 g (without batteries)

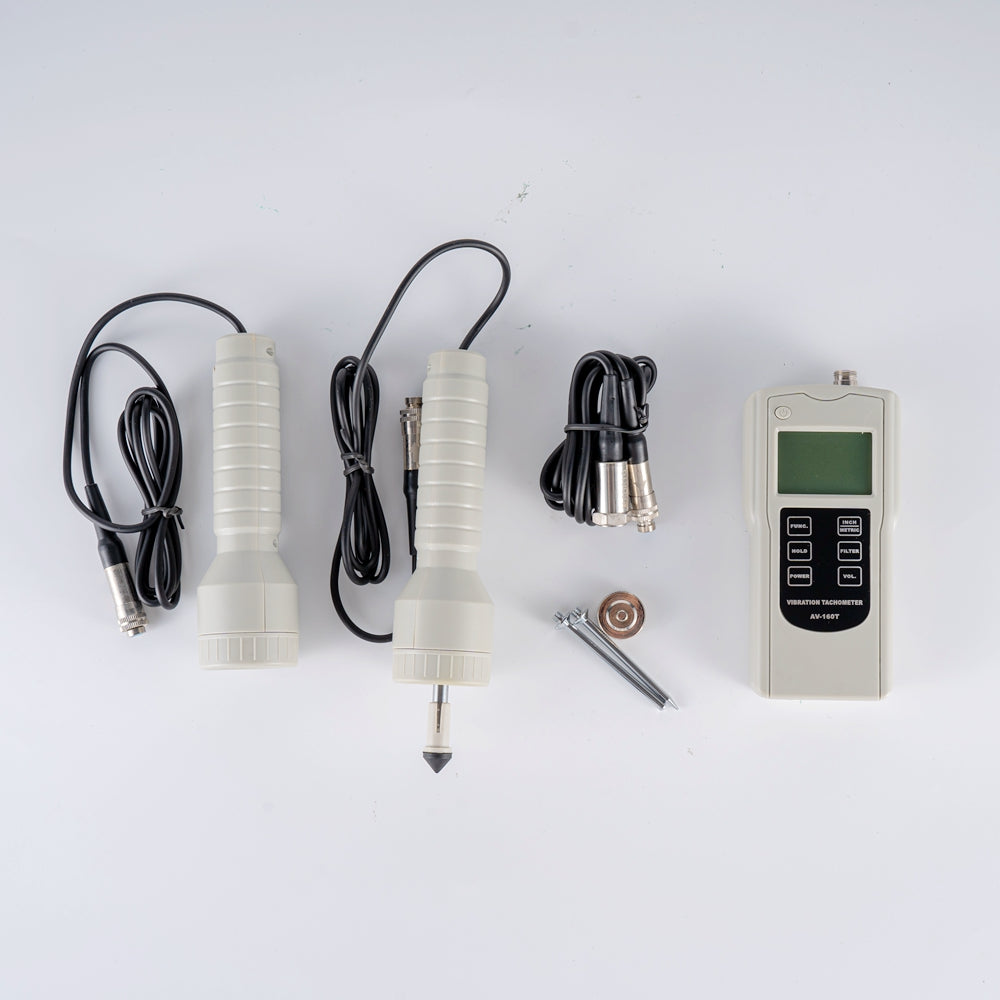

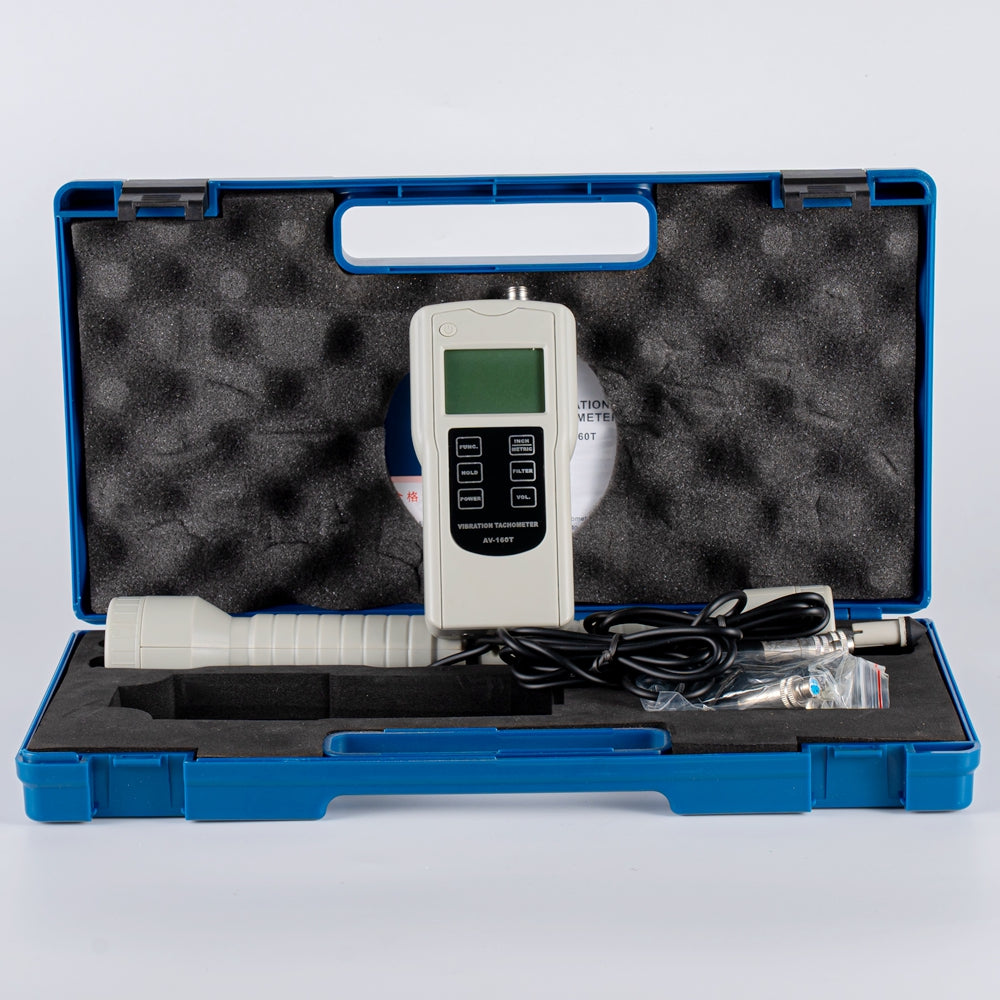

Standard Accessories:

1. Main Unit
2. Stinger Probes (Cone and Ball)
3. Powerful Rare Earth Magnet
4. Reflective Tape Marks

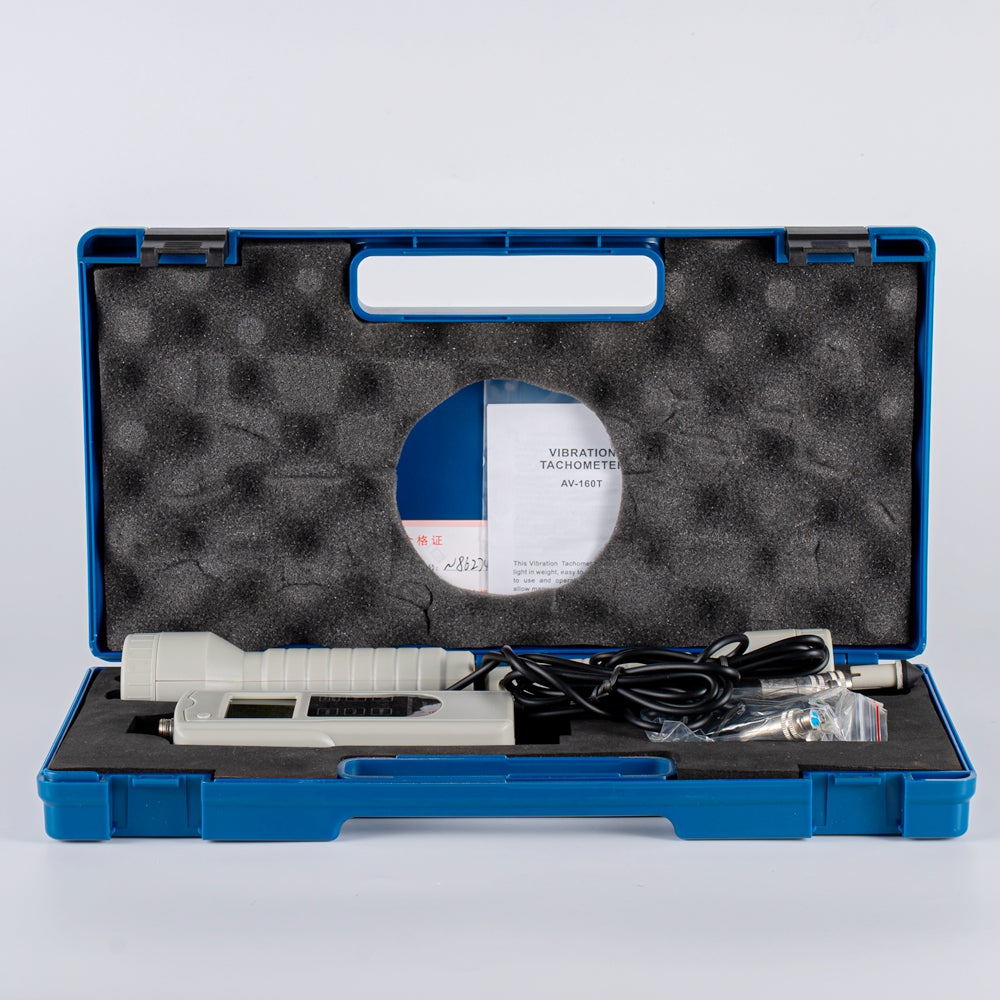

5. Carrying Case
6. Operation Manual

Optional Accessories:

• USB Cable & Software
• Bluetooth Adapter & Software
