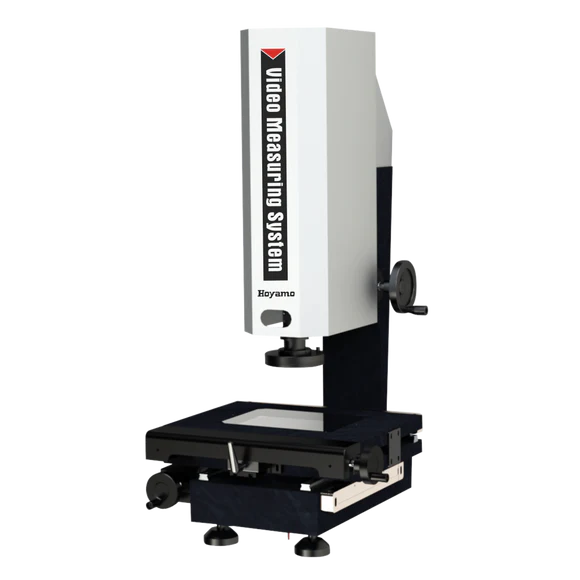

2D Mini Video Measuring System VMS-1510
2D Mini Video Measuring System VMS-1510
Couldn't load pickup availability
Product Description:
Achieve Accurate, Reliable Measurements with the VMS-1510 Video Measuring System
Looking to improve precision in your factory’s quality control process? The VMS-1510 Video Measuring System offers an advanced, cost-effective solution for non-contact measurement with high accuracy and repeatability. Its granite construction, intuitive software, and powerful imaging technology make it a go-to tool for detailed inspection tasks.
Key Features:
-
Granite Base & Column: Ensures structural stability and long-term measurement accuracy by minimizing vibration.
-
Precision Motion Control: Toothless polished rod and quick-lock mechanism maintain repeatability with return error ≤ 2μm.
-
High-Accuracy Optical Ruler: Delivers measurement precision of ≤3.0+L/200μm for XY axes.
-
Crystal-Clear Imaging: Equipped with a high-resolution color digital camera and zoom lens for distortion-free visuals.
-
LED Illumination System: Program-controlled 3-ring, single-zone surface lighting and parallel LED backlight, with intelligent brightness adjustment.
-
Smart Software: Includes iMeasuring Vision software to streamline quality control and dimensional verification.
Specifications
|
Model |
VMS-1510 |
|
Code# |
525-020D |
|
Granite Workbench |
(310*220)mm |
|
Glass Workbench |
(179.5*129.5)mm |
|
X/Y axis travel |
(150*100)mm |
|
Z axis travel |
High-precision linear guide, effective travel 100mm |
|
X/Y Linear Scales |
Resolution：0.5um |
|
Base and Column |
High Precision Granite |
|
Measurement Accuracy* |
XY axis:：≤3.0+L/200(um) ； |
|
Repeat Accuracy |
2um |
|
Illumination System (Software-controlled) |
3-ring single-zone LED cold surface light |
|
Transmissive LED parallel light |
|
|
Optional coaxial light |
|
|
Camera |
1/3"/1.3Mpixel High Resolution Digital Camera |
|
Zoom Lens |
6.5X High-Resolution Zoom lens |
|
Optical Magnification：0.7X~4.5X, Video Magnification: 26X~172X (21.5' Monitor) |
|
|
Measuring Software |
iMeasuring |
|
Operation System |
Support Win 10/11-32/64 Operating System |
|
Language |
English, Simplified Chinese, Traditional Chinese, Optional Other Language Versions |
|
Working Condition |
Temperature 20℃± 2℃, temperature change <1℃ / HR; humidity 30% ~ 80% RH; vibration <0.02g's, 15Hz. |
|
Power Supply |
AC220V/50Hz; 110V/60Hz |
|
Dimension (WxDxH) |
(462*401*725)mm |
|
Gross/Net Weight |
60/48Kg |
