Water Analyser PCE-DRG 10

Water Analyser PCE-DRG 10

$1,060.00
$1,060.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Water Analyser for determinining sodium hydroxide / measurement in Brix and per cent / refractive index 1.32500 ... 1.44100 nD / rechargeable battery / ABS housing with protection class IP65

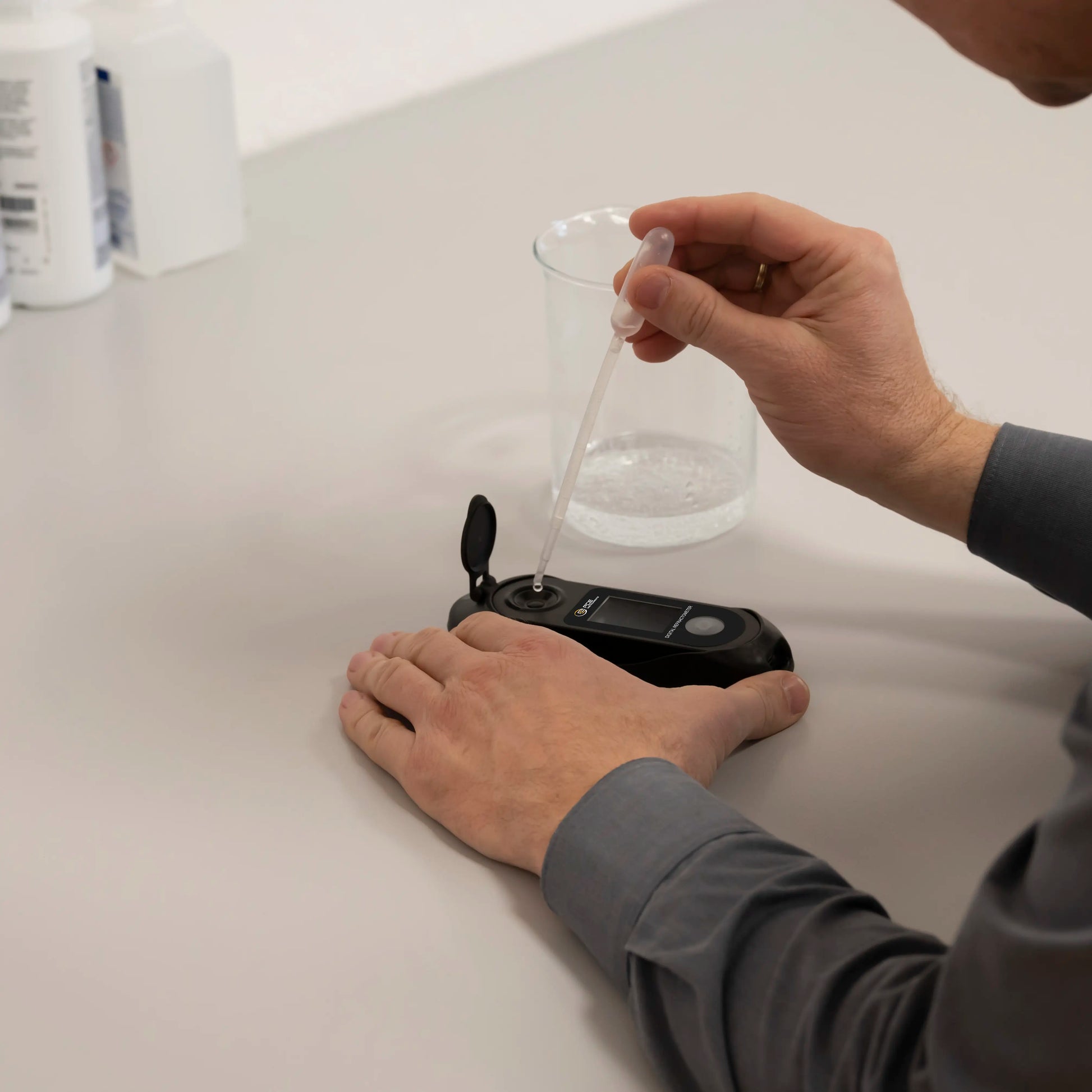

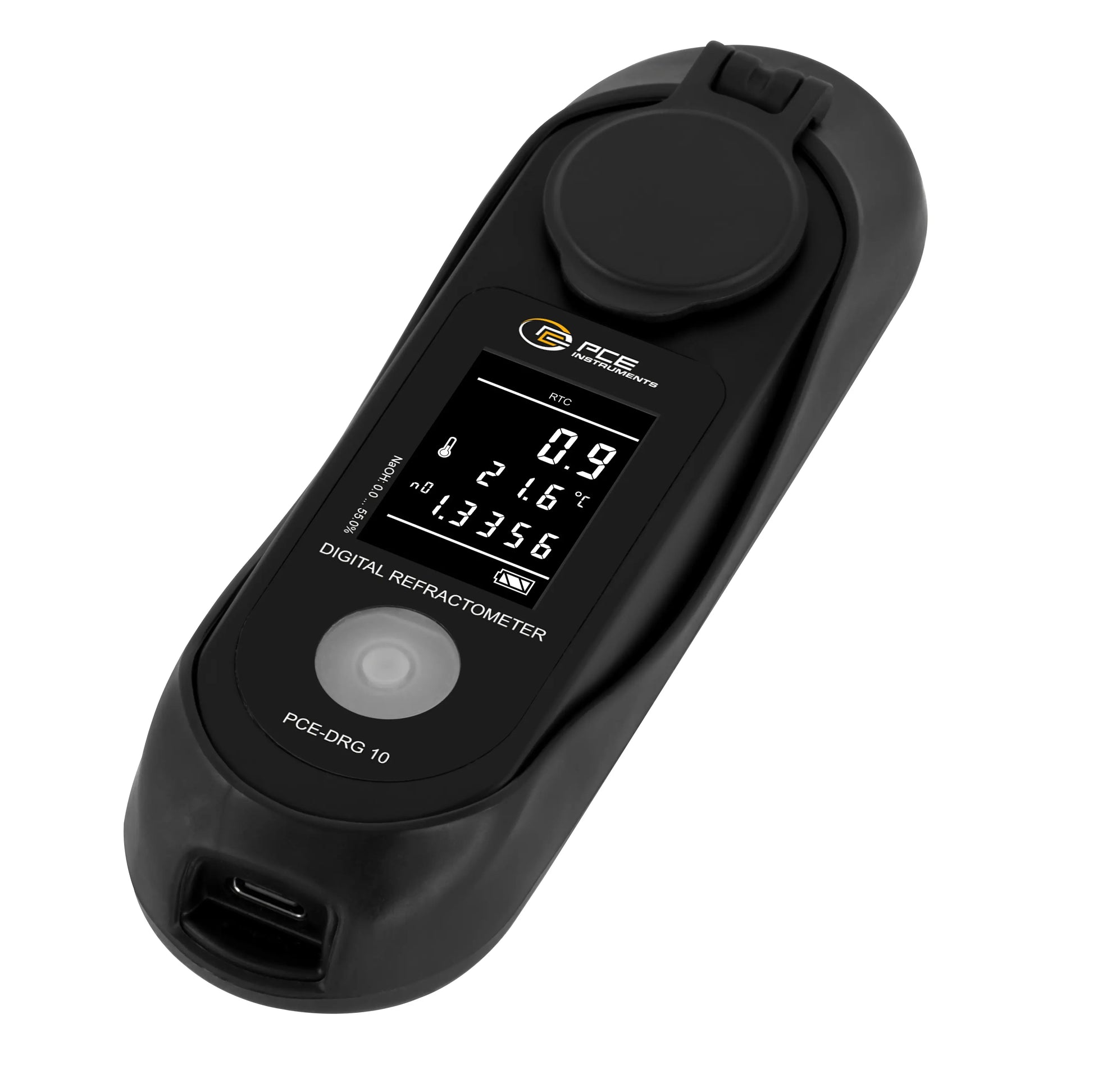

Our Water Analyser determines the percentage of sodium hydroxide in aqueous media with a measurement range of 0 to 55 %. The measurement result and the temperature of the sample are shown in two lines on the LCD display of the Water Analyser. Our Water Analyser can measure various parameters and the refractive index quickly and accurately with just four to five drops of the sample. The Water Analyser has a wide range of applications: it can be used in water analysis, in the chemical industry or in the manufacture of products containing sodium hydroxide.

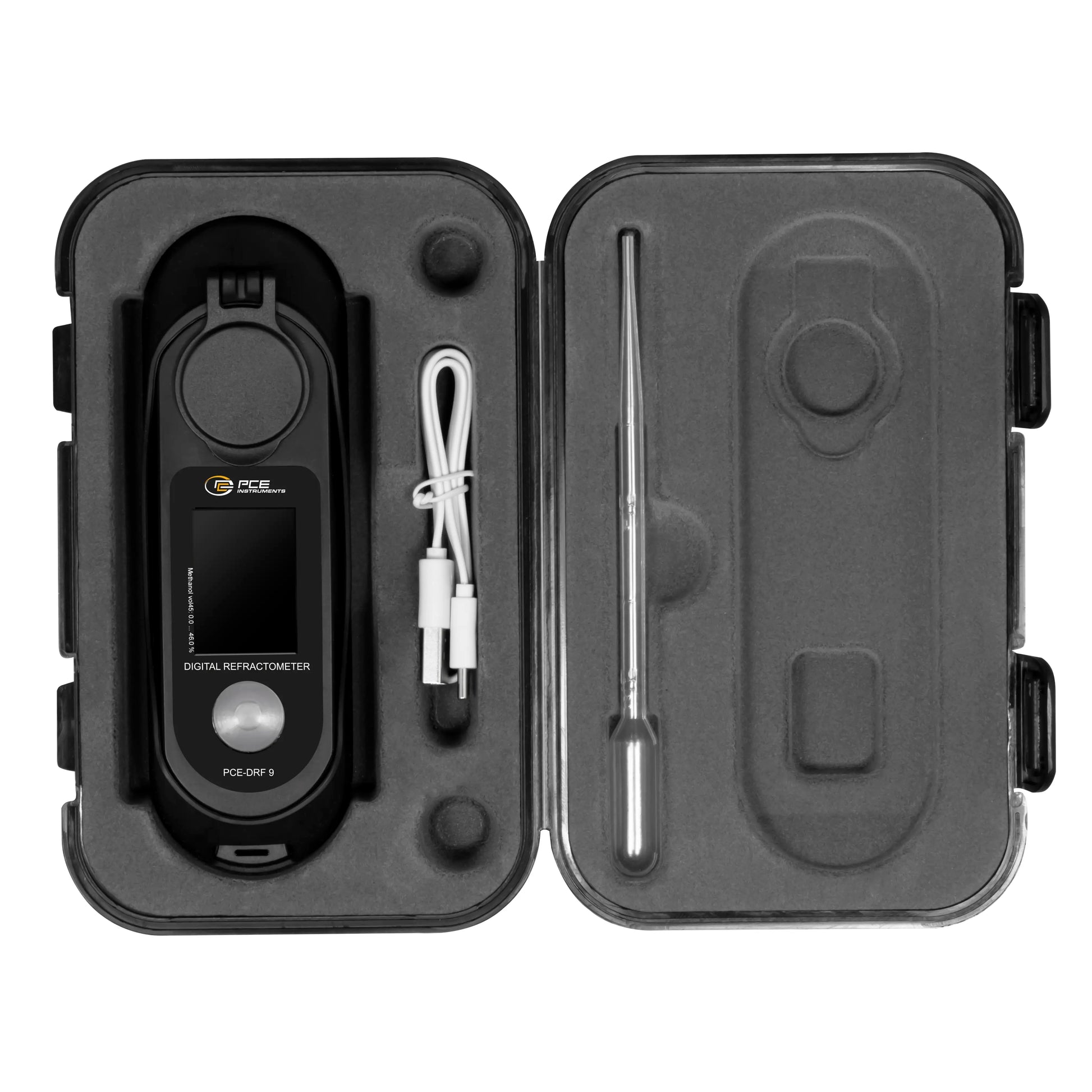

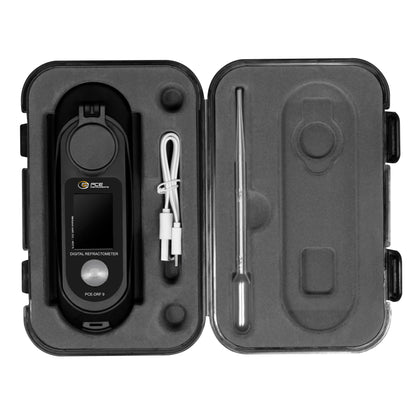

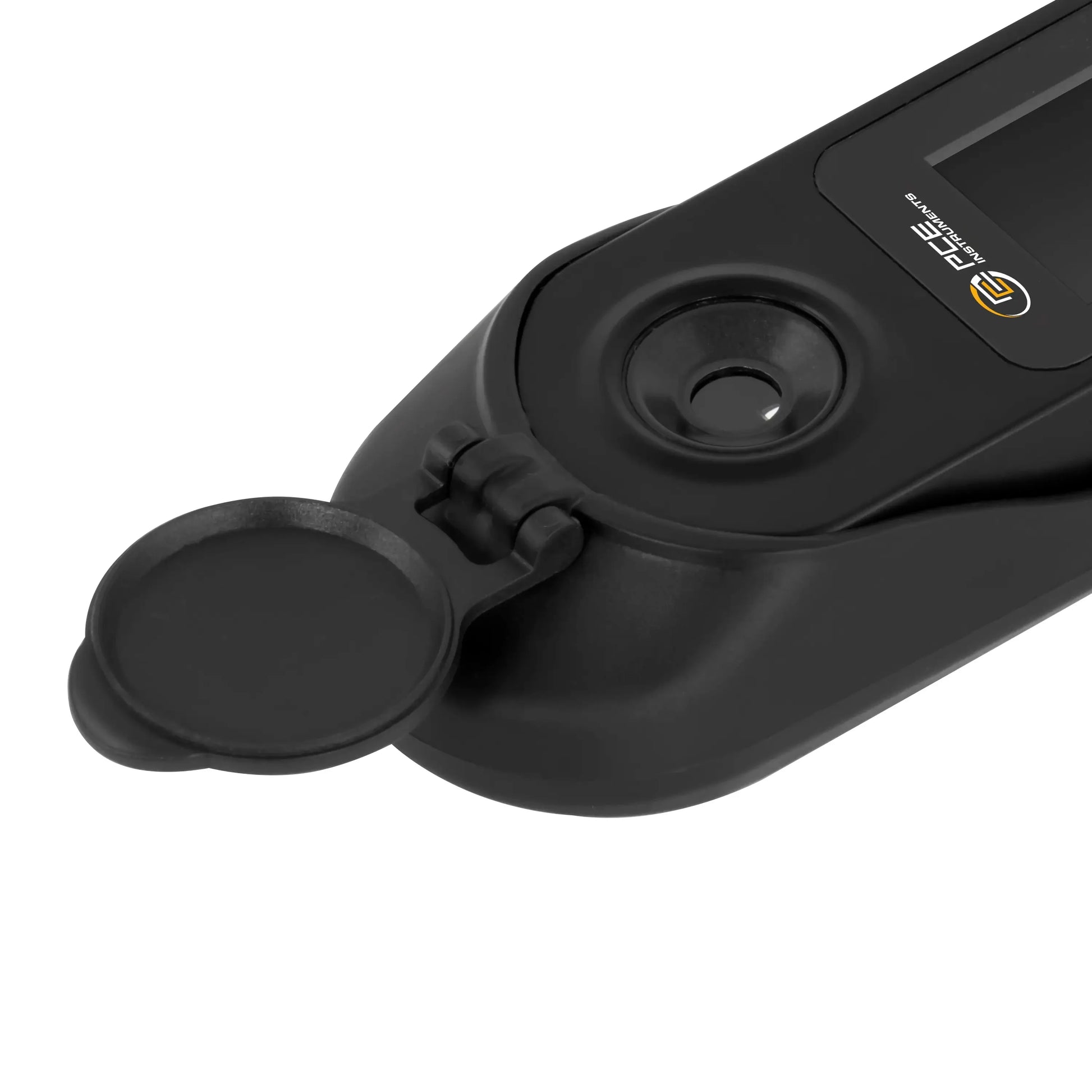

The funnel-shaped stainless steel ring protects the glass prism from damage, into which the liquid sample to be measured is placed. The internal light source enables measurement under poor lighting conditions. Our Water Analyser is supplied in a rugged plastic case with pipette and charging cable.


Highlights

- quick and accurate measurement in approx. 1 s
- large LC display (measured value and temperature)
- easy to use (1-key operation)
- small sample volume
- simple calibration with distilled water
- automatic temperature compensation
- stainless steel sample holder with glass prism
- automatic power-off after 1 min of inactivity

Specification

Refractive index
Measurement range up to   1,325 ... 1,441 nD
Resolution   0,0001 nD
Accuracy   ±0,0003 nD

Sodium hydroxide
Measurement range up to   0 ... 55 %
Resolution   0,1 %
Accuracy   ±0,2 %

Temperature
Measurement range up to   0 ... 40 °C
Resolution   0,1 °C
Accuracy   ±0.5 °C

General technical data
Temperature compensation   automatic 10 ... 40 °C
Display type   LCD
Measuring rate   1 Hz
Automatic power-off   1 min
Sample quantity   0,2 ... 0.3 ml
Menu language   English, English (GB)
Protection class (device)   IP65
Power supply   5V DC, 500mA
Weight   115 g
Operating conditions   0 ... 50 °C , 0 ... 95 % RH
Storage conditions   0 ... 50 °C , 0 ... 95 % RH
Capacity   500 mAh
Dimensions ( L x W x H )   145 x 46 x 27 mm

Delivery Scope

1 x Water Analyser PCE-DRG 10
1 x pipette
1 x plastic case

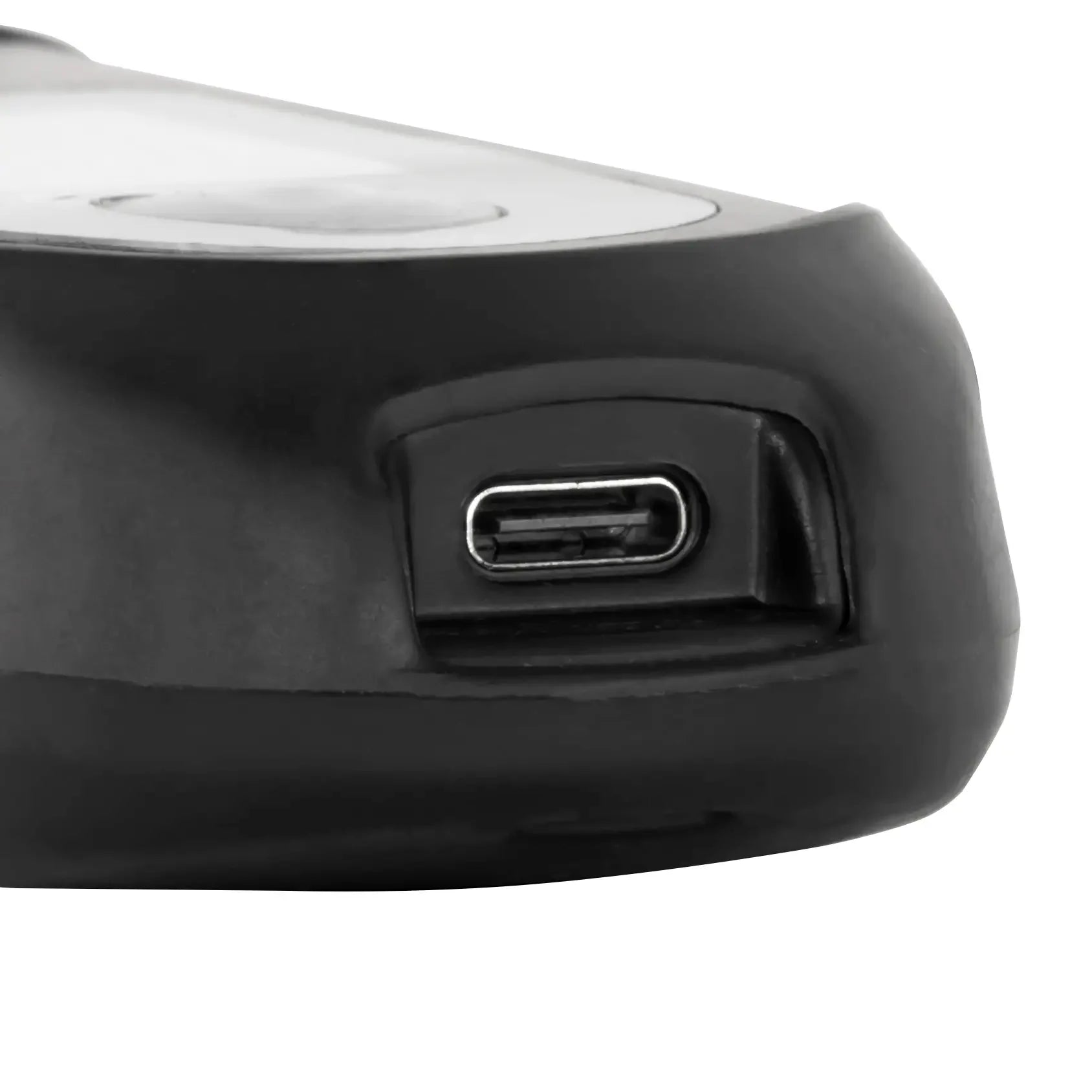

1 x USB-A - USB-C cable (for charging only, mains adaptor not included)
1 x user manual
