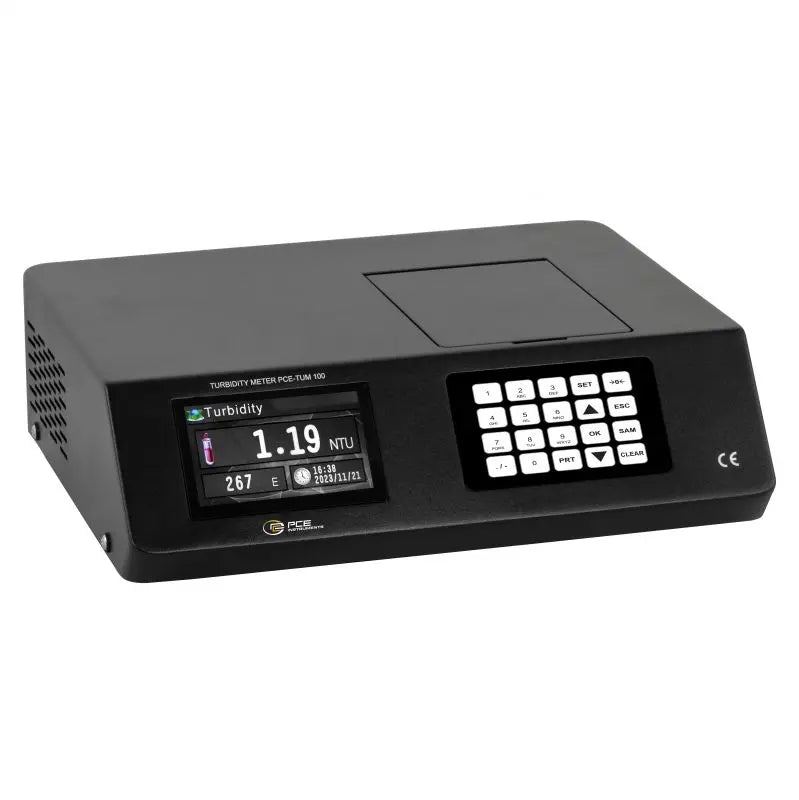

Water Analysis Meter PCE-TUM 100
Water Analysis Meter PCE-TUM 100
Regular price
$3,040.00
Regular price
Sale price
$3,040.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Water Analysis Meter, colour display, measuring range up to 500 NTU, scattered light measuring method 90°, mains operation, USB and printer interface
The precision of the water analysis meter ensures accurate measurements in all relevant applications. With five factory-saved calibration points, the opacimeter offers a ready-to-use solution for different environments. In addition, the water analysis meter offers the option of customised opacity calibration. With up to five calibration points, the turbidity meter can be flexibly adapted to specific requirements and measurement conditions.
The turbidity meter's colour display presents the measurement results in a clear and easy-to-understand manner. This user-friendly interface simplifies operation considerably and also enables new users to utilise the water analysis meter quickly and efficiently. The internal memory allows measurement data to be saved for later analysis or reporting.

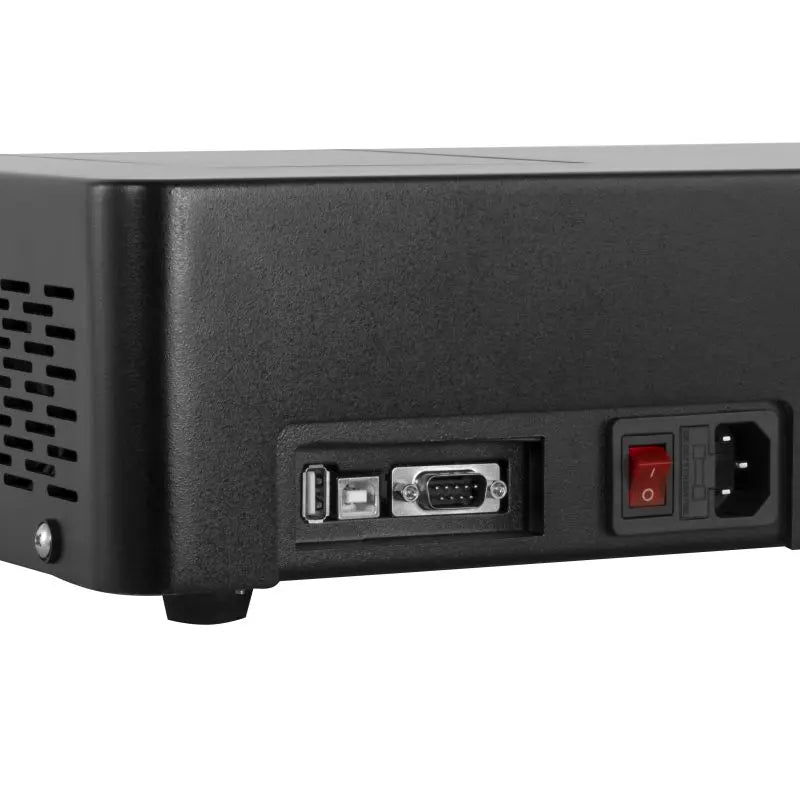

For seamless data management, the water analysis meter is equipped with a USB interface for external data carriers. This makes it easy to save measurement results from the water analysis meter to a USB stick. In addition, the RS232 printer interface on the water analysis meter offers the option of printing measurement logs directly to ensure quick documentation of the results.
Overall, the water analysis meter impresses with its precise measurements, simple operation and wide range of data storage and transfer options. It is the ideal solution for anyone who places the highest demands on turbidity measurements.
Highlights
- Precise measurement
- 5 stored calibration points
- Individual 5-point turbidity calibration possible
- Colour display
- Simple operation
- Internal memory
- USB-A interface for data carriers
- RS232 printer interface
Specification
| Turbidity | |
| Measurement range | 0 NTU ... +500 NTU |
| Resolution | 0.01 |
| Accuracy | ±5 % FS |
| General technical data | |
| Display type | LED |
| Display size | 4.2 inches |
| Interface | RS232, USB A |
| Light source | LED @ 850 nm |
| Number of calibration points | 5 |
| Measurement method | 90 ° |
| Menu language | English |
| Protection class (device) | IP20 |
| Power supply | 110-220V, 50-60Hz |
| Plug type | Cold plug |
| Weight | 3.68 kg |
| Dimensions (L x W x H) | 37 cm x 31 cm x 11.5 cm mm |
| Other dimensions | Cuvette Ø x height 25 x 65 mm |
| Operating conditions | 16 ... 35 °C , 45 ... 80 % RH |
| Storage conditions | 16 ... 35 °C , 45 ... 80 % r.H |
| Instruction languages | English |

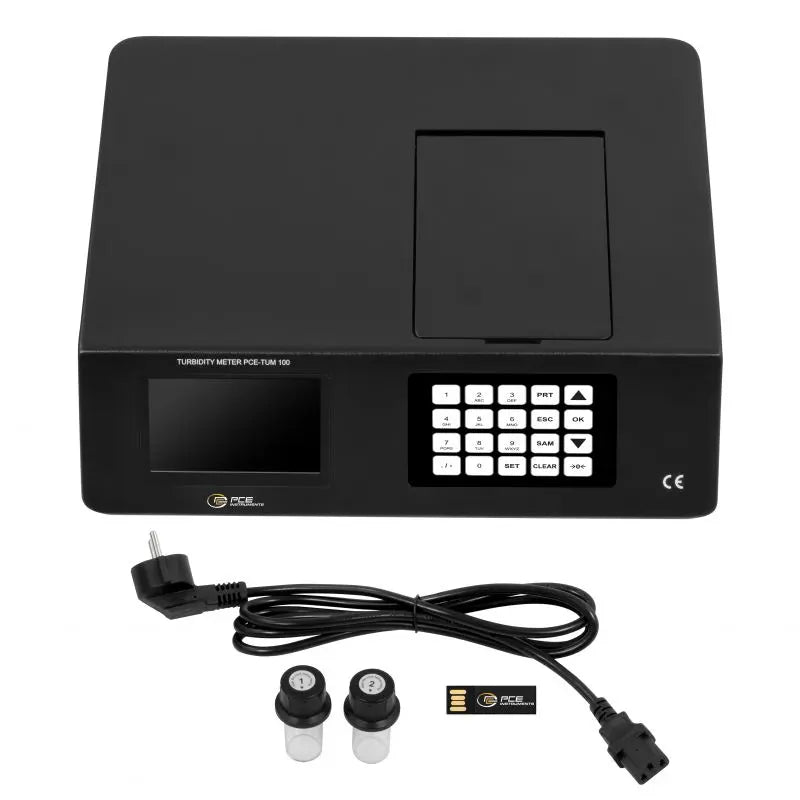

Delivery Scope
1 x Water Analysis Meter PCE-TUM 100

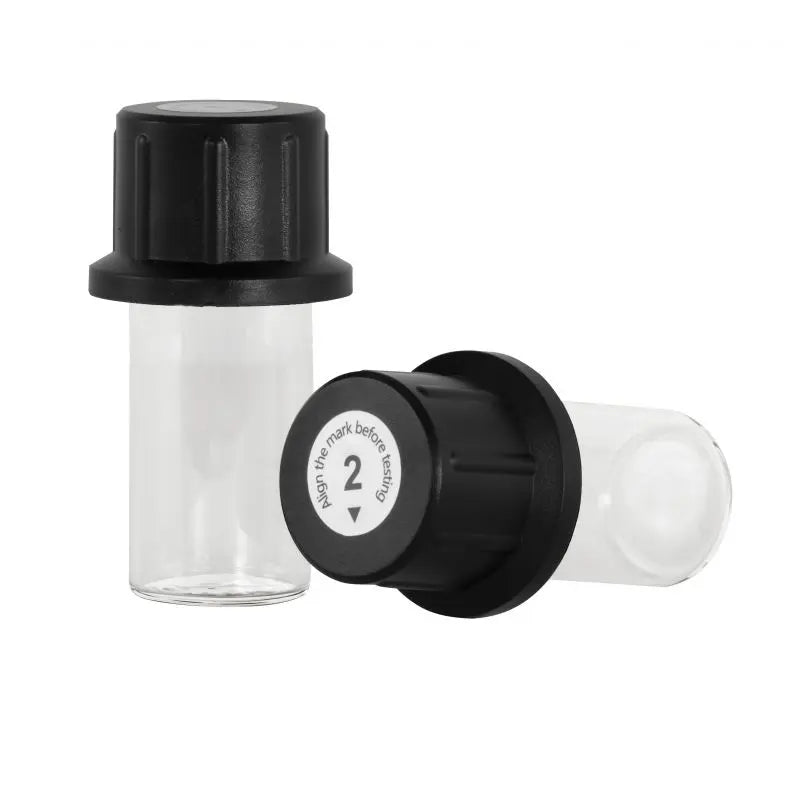

2 x cuvette
1 x power cable
1 x USB stick
1 x operating manual
