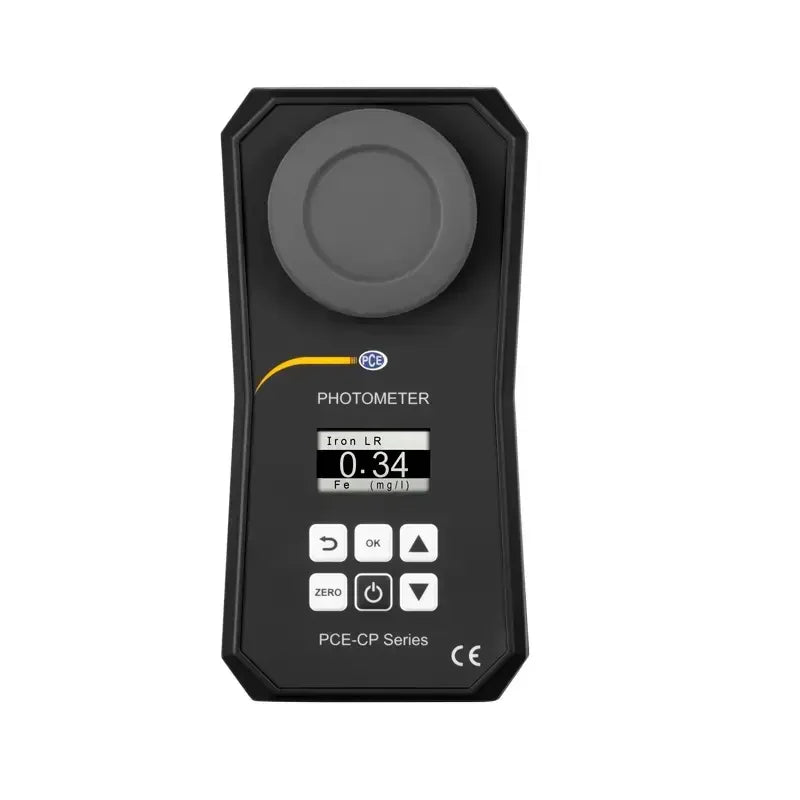

Water Analysis Meter PCE-CP 11
Water Analysis Meter PCE-CP 11
Regular price
$1,310.00
Regular price
Sale price
$1,310.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Multi-parameter water hardness meter with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values / Up to 7 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values

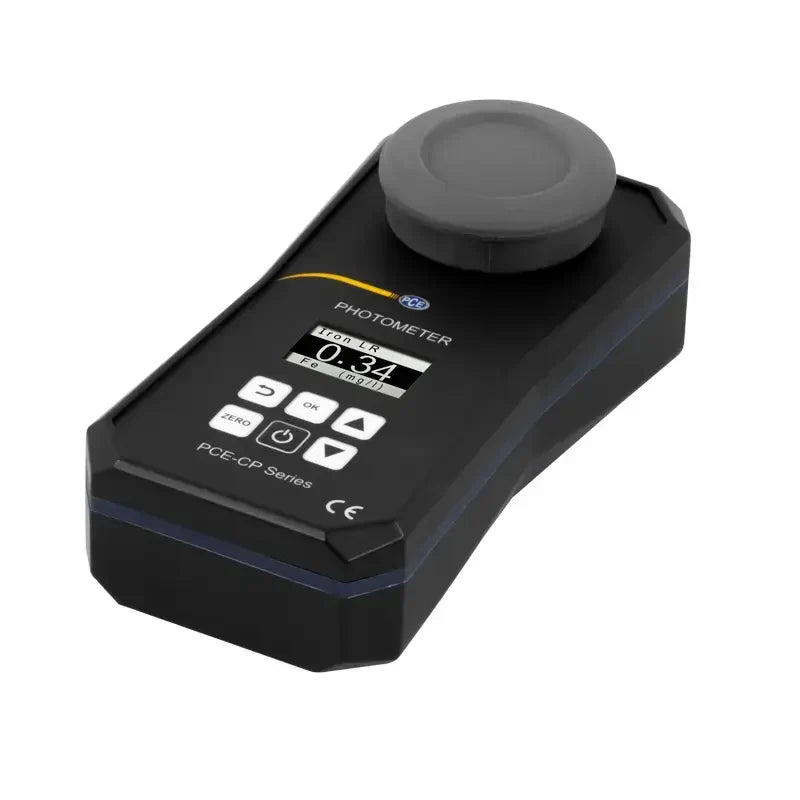

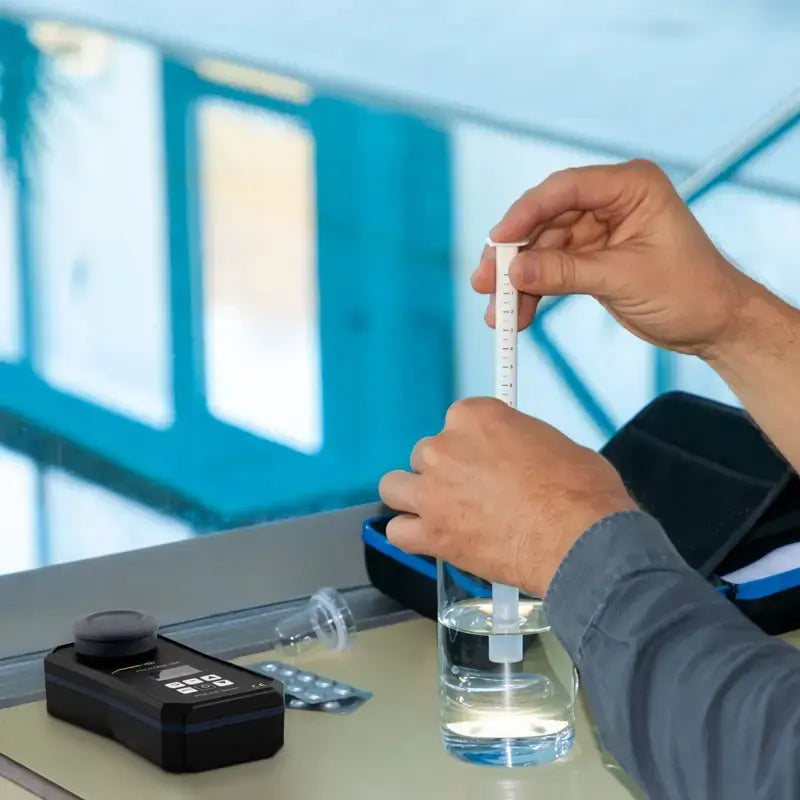

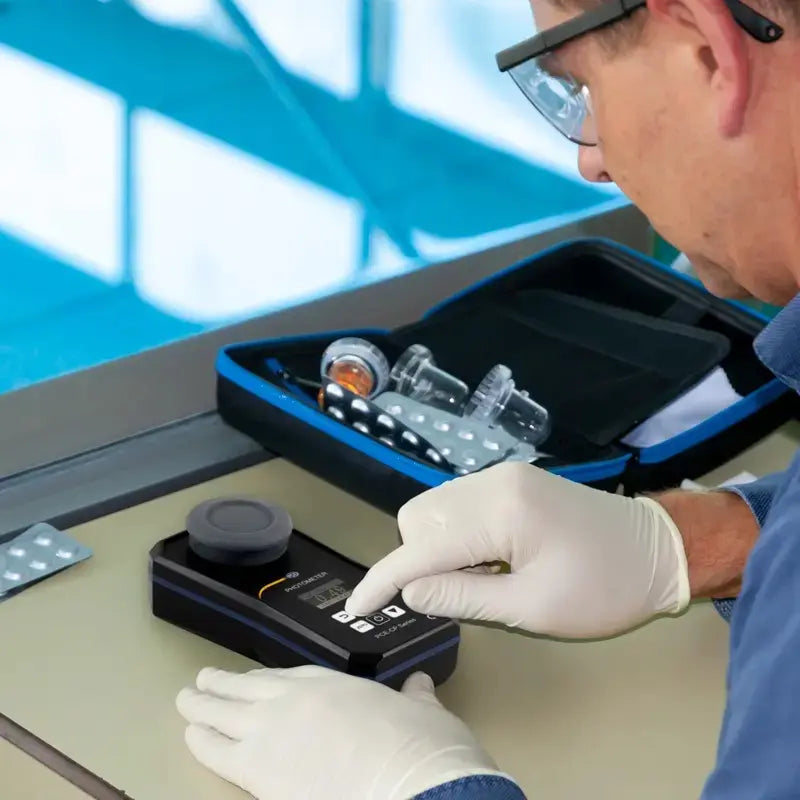

The multi-parameter water hardness meter is a mobile measuring device for liquid analysis. This enables the most varied of measurements to be carried out with the multi-parameter photometer. With this multi-parameter photometer, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the multi-parameter photometer, a water sample of 10 ml must be placed in a cuvette. The built-in LED in the multi-parameter photometer generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.

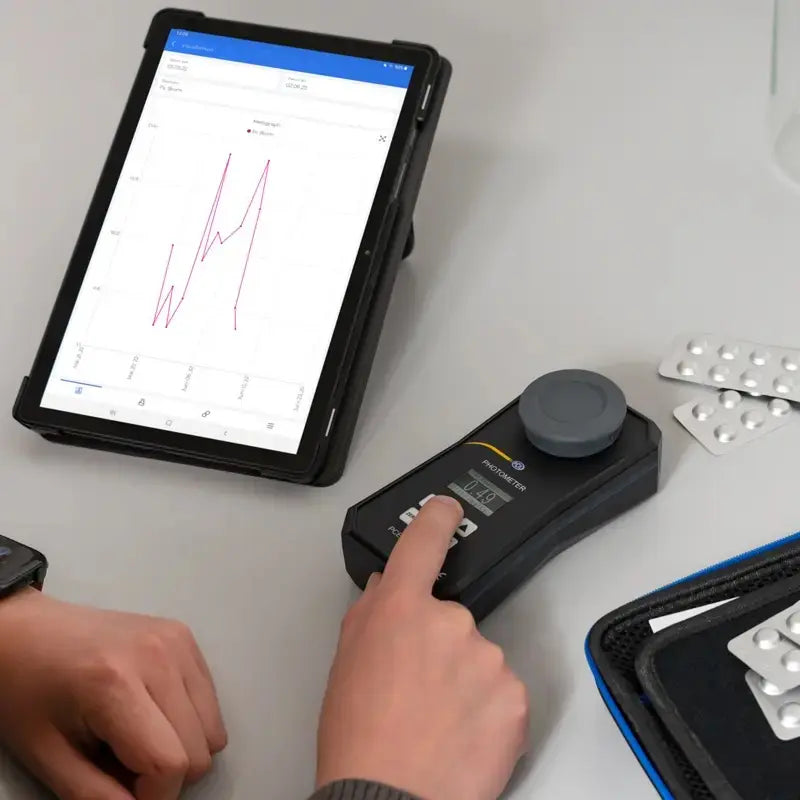

Each measurement is automatically saved by the multi-parameter water hardness meter . The stored measured values can then be read out, for example, via a mobile device via the Bluetooth interface built into the multi-parameter photometer. A free app is available to analyze the measured values from the multi-parameter photometer. It is also possible to establish a Bluetooth connection between the multi-parameter photometer and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the multi-parameter photometer, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the multi-parameter photometer is also free of charge.
Highlights
- Up to 7 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
Specification
| Chlorine | |
| Measuring range | 0.00 … 2.00 mg/l |
| 2.00 … 3.00 mg/l | |
| 3.00 … 4.00 mg/l | |
| 4.00 … 8.00 mg/l | |
| Accuracy | 0.10 mg/l |
| 0.23 mg/l | |
| 0.75 mg/l | |
| 1.00 mg/l | |
| Resolution | 0.01 mg/l |
| pH | |
| Measuring range | 6.50 ... 8.40 pH |
| Accuracy | 0.11 pH |
| Resolution | 0.01 pH |
| Iron | |
| Measuring range | 0.00 … 0.20 mg/l |
| 0.20 … 0.60 mg/l | |
| 0.60 … 1.00 mg/l | |
| Accuracy | 0.02 mg/l |
| 0.04 mg/l | |
| 0.08 mg/l | |
| Resolution | 0.01 mg/l |
| Total hardness | |
| Measuring range | 0… 30 mg/l |
| 30… 60 mg/l | |
| 60… 100 mg/l | |
| 100… 200 mg/l | |
| 200 ... 300 mg/l | |
| 300 ... 500 mg/l | |
| Accuracy | 3 mg/l |
| 5 mg/l | |
| 10 mg/l | |
| 17 mg/l | |
| 22 mg/l | |
| 58 mg/l | |
| Resolution | 1 mg/l |
| Further specification | |
| Units |
mg/l, ppm |
| Hardness units |
mg/l CaCO3, ppm, mmol/l KS 4.3, |
| °dH (degree of German hardness), |
|
| °e (degree English hardness / Degree Clark), |
|
| °f (degree of French hardness) |
|
| Calibration | Zero point calibration |
|
Light source |
503 nm / 570 nm / 620 nm LED |
| Light detector | Photodiode |
|
Power supply |
4 x 1.5V AA batteries |
| Dimensions of the cuvette | 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml) |
| Menu languages | English, German, French, Spanish and Italian |
| Storage | Automatic storage of measured values and readout |
| Storage space | 256 values |
| Interface | Bluetooth connection with app and PC software |
| Automatic shutdown | After 300 seconds of inactivity |
| Operating conditions | 5… 45 °C, 20 ... 90% RH non-condensing |
| Storage conditions | 5… 45 °C, 20 ... 90% RH non-condensing |
| Dimensions | 165 x 95 x 50 mm / 6.5 x 3.7 x 2 in |
| Weight | 230 g / 8.1 oz |

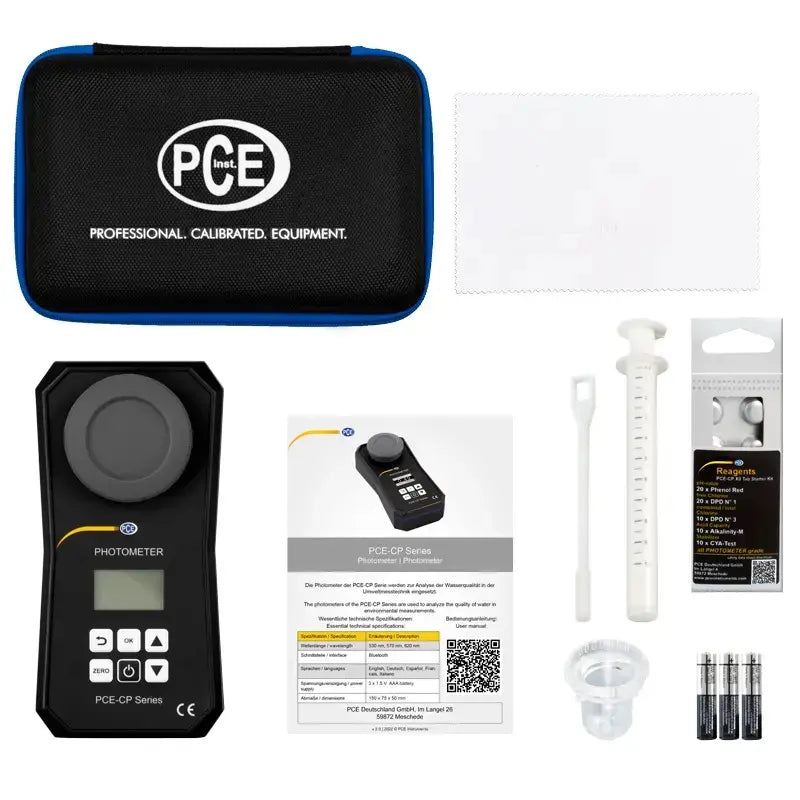

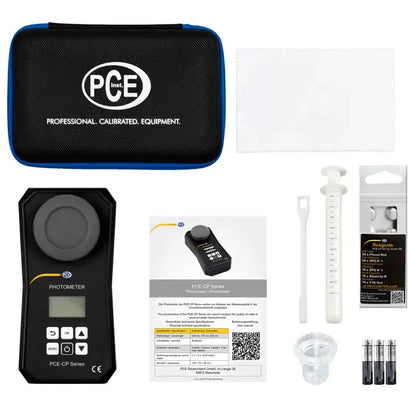

Delivery Scope
1 x Multi-parameter Water Hardness Meter PCE-CP 11 incl. cuvette
1 x Replacement cuvette
1 x Light protection cover
1 x Microfiber cloth
1 x Plunger
1 x 10 ml dosing pipette
3 x AAA batteries
1 x Quick start guide
1 x Service bag
1 x Free app
1 x Free PC software
1 x Free cloud service
1 x Replacement cuvette
1 x Light protection cover
1 x Microfiber cloth
1 x Plunger
1 x 10 ml dosing pipette
3 x AAA batteries
1 x Quick start guide
1 x Service bag
1 x Free app
1 x Free PC software
1 x Free cloud service
