Water Analysis Meter Photometer PCE-CP 30
Water Analysis Meter Photometer PCE-CP 30
Regular price
$1,300.00
Regular price
Sale price
$1,300.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Parameters:
Alkalinity
Chlorine
Cyanuric acid
pH
Total hardness
Calcium hardness
Active oxygen
Chlorine dioxide
Bromine
Ozone
Hydrogen peroxide
PHMB (polyhexanide)
Urea
Alkalinity
Chlorine
Cyanuric acid
pH
Total hardness
Calcium hardness
Active oxygen
Chlorine dioxide
Bromine
Ozone
Hydrogen peroxide
PHMB (polyhexanide)
Urea
***Reagnet Kits Sold Separately

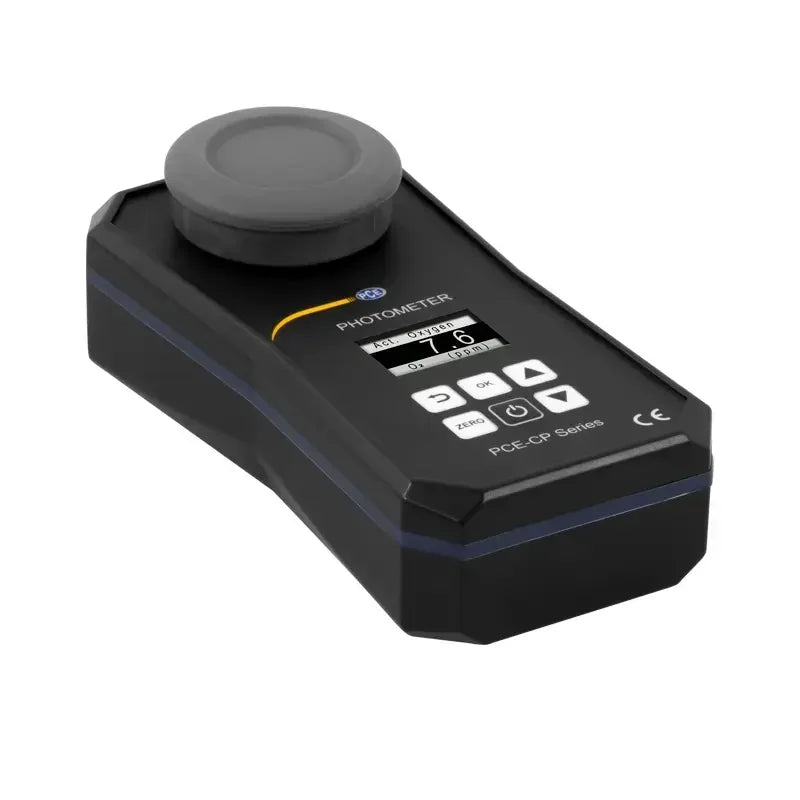

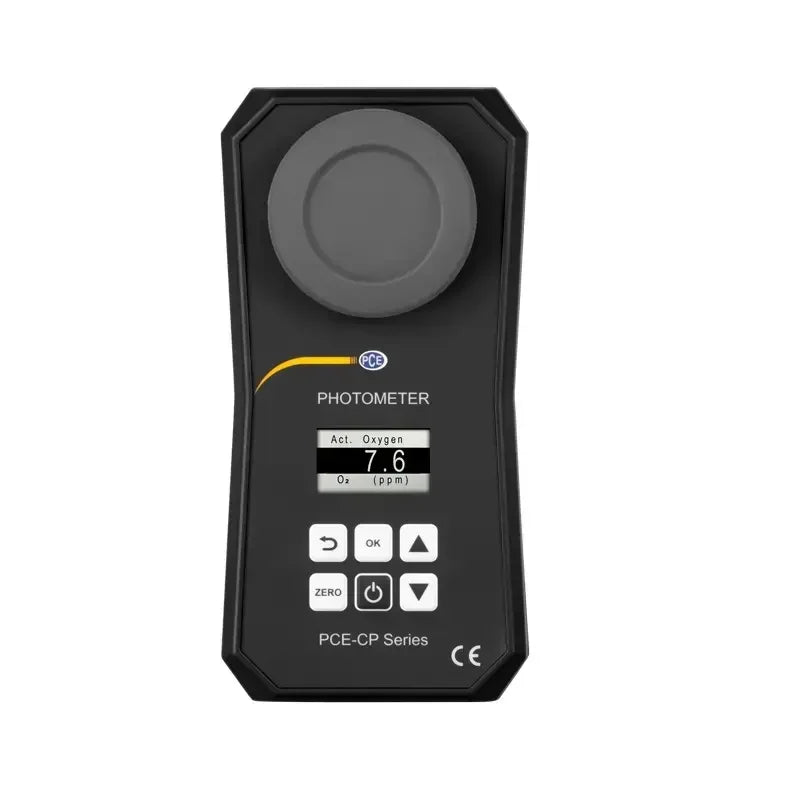

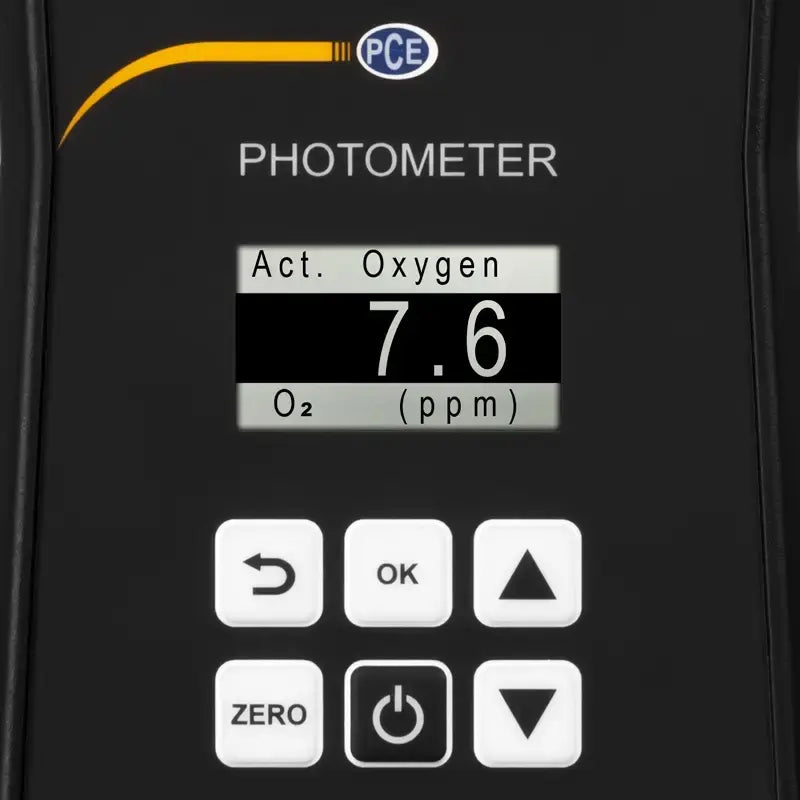

Water analysis meter PCE-CP 30
Multi-parameter photometer with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values / Up to 13 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values

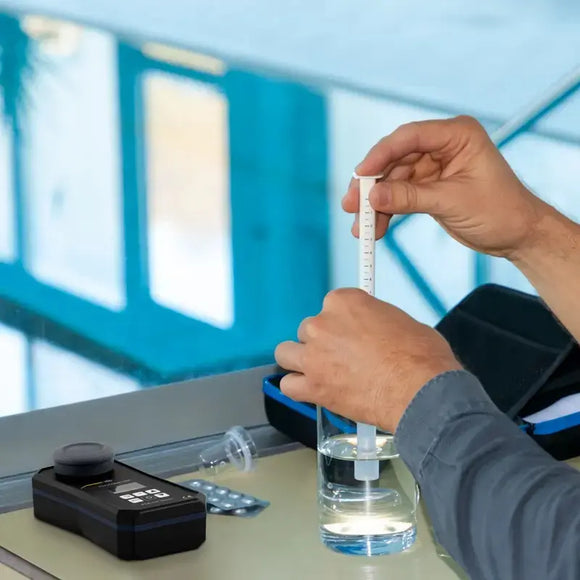

The multi-parameter water analysis meter is a mobile measuring device for liquid analysis. This means that the most varied of measurements can be carried out with the multi-parameter water analysis meter. With this multi-parameter water analysis meter, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the multi-parameter water analysis meter, a water sample of 10 ml must be placed in a cuvette. The LED built into the multi-parameter water analysis meter generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.

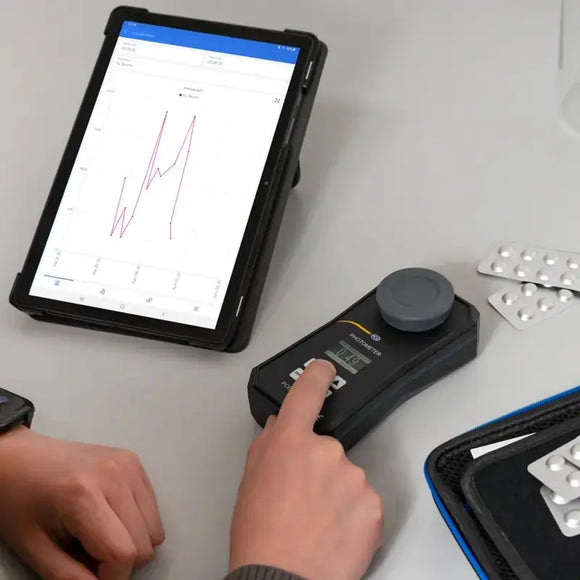

Each measurement is automatically saved by the multi-parameter water analysis meter. The stored measured values can then be read out, for example, via a mobile device via the Bluetooth interface built into the multi-parameter water analysis meter. A free app is available to analyze the measured values from the multi-parameter water analysis meter. It is also possible to establish a Bluetooth connection between the multi-parameter water analysis meter and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the multi-parameter water analysis meter, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the multi-parameter water analysis meter is also free of charge.
Highlights
- Up to 13 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
Specification
| Alkalinity | |
| Measuring range | 0… 30 mg / l |
| 30… 60 mg / l | |
| 60… 100 mg / l | |
| 100… 200 mg / l | |
| Accuracy | 3 mg / l |
| 7 mg / l | |
| 12 mg / l | |
| 18 mg / l | |
| Resolution | 1 mg / l |
| Chlorine | |
| Measuring range | 0.00 ... 2.00 mg / l |
| 2.00 ... 3.00 mg / l | |
| 3.00 ... 4.00 mg / l | |
| 4.00 ... 8.00 mg / l | |
| Accuracy | 0.10 mg / l |
| 0.23 mg / l | |
| 0.75 mg / l | |
| 1.00 mg / l | |
| Resolution | 0.01 mg / l |
| Cyanuric acid | |
| Measuring range | 0… 15 mg / l |
| 15… 50 mg / l | |
| 50… 120 mg / l | |
| 120… 160 mg / l | |
| Accuracy | 1 mg / l |
| 5 mg / l | |
| 13 mg / l | |
| 19 mg / l | |
| Resolution | 1 mg / l |
| pH | |
| Measuring range | 6.50 ... 8.40 pH |
| Accuracy | 0.11 pH |
| Resolution | 0.01 pH |
| Total hardness | |
| Measuring range | 0… 30 mg / l |
| 30… 60 mg / l | |
| 60… 100 mg / l | |
| 100… 200 mg / l | |
| 200 ... 300 mg / l | |
| 300 ... 500 mg / l | |
| Accuracy | 3 mg / l |
| 5 mg / l | |
| 10 mg / l | |
| 17 mg / l | |
| 22 mg / l | |
| 58 mg / l | |
| Resolution | 1 mg / l |
| Calcium hardness | |
| Measuring range | 0… 25 mg / l |
| 25… 100 mg / l | |
| 100 ... 300 mg / l | |
| 300 ... 500 mg / l | |
| Accuracy | 8 mg / l |
| 22 mg / l | |
| 34 mg / l | |
| 45 mg / l | |
| Resolution | 1 mg / l |
| Active oxygen | |
| Measuring range | 0.0 ... 5.0 mg / l |
| 5.0… 15.0 mg / l | |
| 15.0 ... 25.0 mg / l | |
| 25.0 ... 30.0 mg / l | |
| Accuracy | 0.5 mg / l |
| 1.3 mg / l | |
| 3.8 mg / l | |
| 5.0 mg / l | |
| Resolution | 0.1 mg / l |
| Chlorine dioxide | |
| Measuring range | 0.00 ... 2.00 mg / l |
| 2.00 ... 6.00 mg / l | |
| 6.00 ... 10.00 mg / l | |
| 10.00 ... 11.40 mg / l | |
| Accuracy | 0.19 mg / l |
| 0.48 mg / l | |
| 1.43 mg / l | |
| 1.90 mg / l | |
| Resolution | 0.01 mg / l |
| Bromine | |
| Measuring range | 0.0 ... 2.5 mg / l |
| 2.5… 6.5 mg / l | |
| 6.5 ... 11.0 mg / l | |
| 11.0 ... 13.5 mg / l | |
| Accuracy | 0.2 mg / l |
| 0.6 mg / l | |
| 1.7 mg / l | |
| 2.3 mg / l | |
| Resolution | 0.1 mg / l |
| Ozone | |
| Measuring range | 0.00… 1.00 mg / l |
| 1.00 ... 2.00 mg / l | |
| 2.00 ... 3.00 mg / l | |
| 3.00 ... 4.00 mg / l | |
| Accuracy | 0.07 mg / l |
| 0.17 mg / l | |
| 0.51 mg / l | |
| 0.68 mg / l | |
| Resolution | 0.01 mg / l |
| Hydrogen peroxide - small measuring range (LR) | |
| Measuring range | 0.00 ... 0.50 mg / l |
| 0.50… 1.50 mg / l | |
| 1.50 ... 2.00 mg / l | |
| 2.00 ... 2.90 mg / l | |
| Accuracy | 0.05 mg / l |
| 0.12 mg / l | |
| 0.36 mg / l | |
| 0.48 mg / l | |
| Resolution | 0.01 mg / l |
| Hydrogen peroxide - large measuring range (HR) | |
| Measuring range | 0… 50 mg / l |
| 50… 110 mg / l | |
| 110… 170 mg / l | |
| 170… 200 mg / l | |
| Accuracy | 5 mg / l |
| 6 mg / l | |
| 11 mg / l | |
| 13 mg / l | |
| Resolution | 1 mg / l |
| PHMB (polyhexanide) | |
| Measuring range | 5… 60 mg / l |
| Accuracy | 5 mg / l |
| Resolution | 1 mg / l |
| Urea | |
| Measuring range | 0.00 ... 0.30 mg / l |
| 0.30… 0.60 mg / l | |
| 0.60… 1.00 mg / l | |
| 1.00… 1.50 mg / l | |
| 1.50 ... 2.50 mg / l | |
| Accuracy | 0.05 mg / l |
| 0.06 mg / l | |
| 0.09 mg / l | |
| 0.12 mg / l | |
| 0.19 mg / l | |
| Resolution | 0.01 mg / l |
| Further specification | |
| Calibration | Zero point calibration |
|
Light source |
503 nm / 570 nm / 620 nm LED |
| Light detector | Photodiode |
|
Power supply |
4 x 1.5V AA batteries |
| Dimensions of the cuvette | 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml) |
| Menu languages | English, German, French, Spanish and Italian |
| Storage | Automatic storage of measured values and readout |
| Storage space | 256 values |
| interface | Bluetooth connection with app and PC software |
| Automatic shutdown | After 300 seconds of inactivity |
| Operating conditions | 5 … 45°C / 41 ... 113°F, 20 ... 90% RH non-condensing |
| Storage conditions | 5 … 45°C / 41 ... 113°F, 20 ... 90% RH non-condensing |
| Dimensions | 165 x 95 x 50 mm / 6.5 x 3.7 x 2 in |
| Weight | 230 g / < 1 lb |

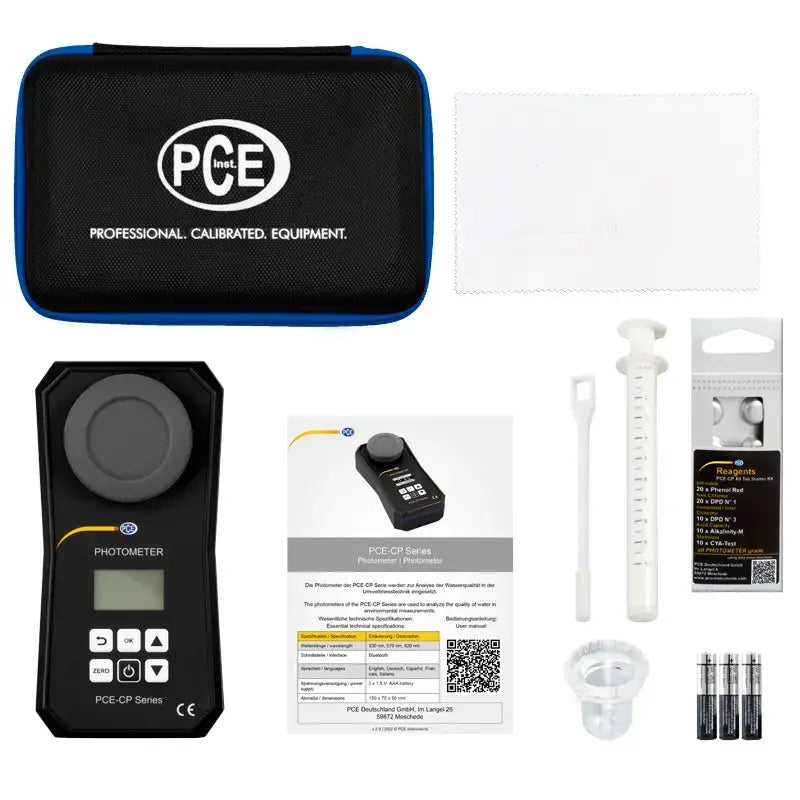

Delivery Scope
1 x Multi-parameter water analysis meter PCE-CP 30 incl. Cuvette
1 x Replacement cuvette
1 x Light protection cover
1 x Microfiber cloth
1 x Plunger
1 x 10 ml dosing pipette
3 x AAA batteries
1 x Quick start guide
1 x Service bag
1 x Free app
1 x Free PC software
1 x Free cloud service
1 x Reagent starter kit (20x pH, 20x free chlorine, 10 x combined / total chlorine, 10x alkalinity, 10 x cyanuric acid)
1 x Replacement cuvette
1 x Light protection cover
1 x Microfiber cloth
1 x Plunger
1 x 10 ml dosing pipette
3 x AAA batteries
1 x Quick start guide
1 x Service bag
1 x Free app
1 x Free PC software
1 x Free cloud service
1 x Reagent starter kit (20x pH, 20x free chlorine, 10 x combined / total chlorine, 10x alkalinity, 10 x cyanuric acid)
