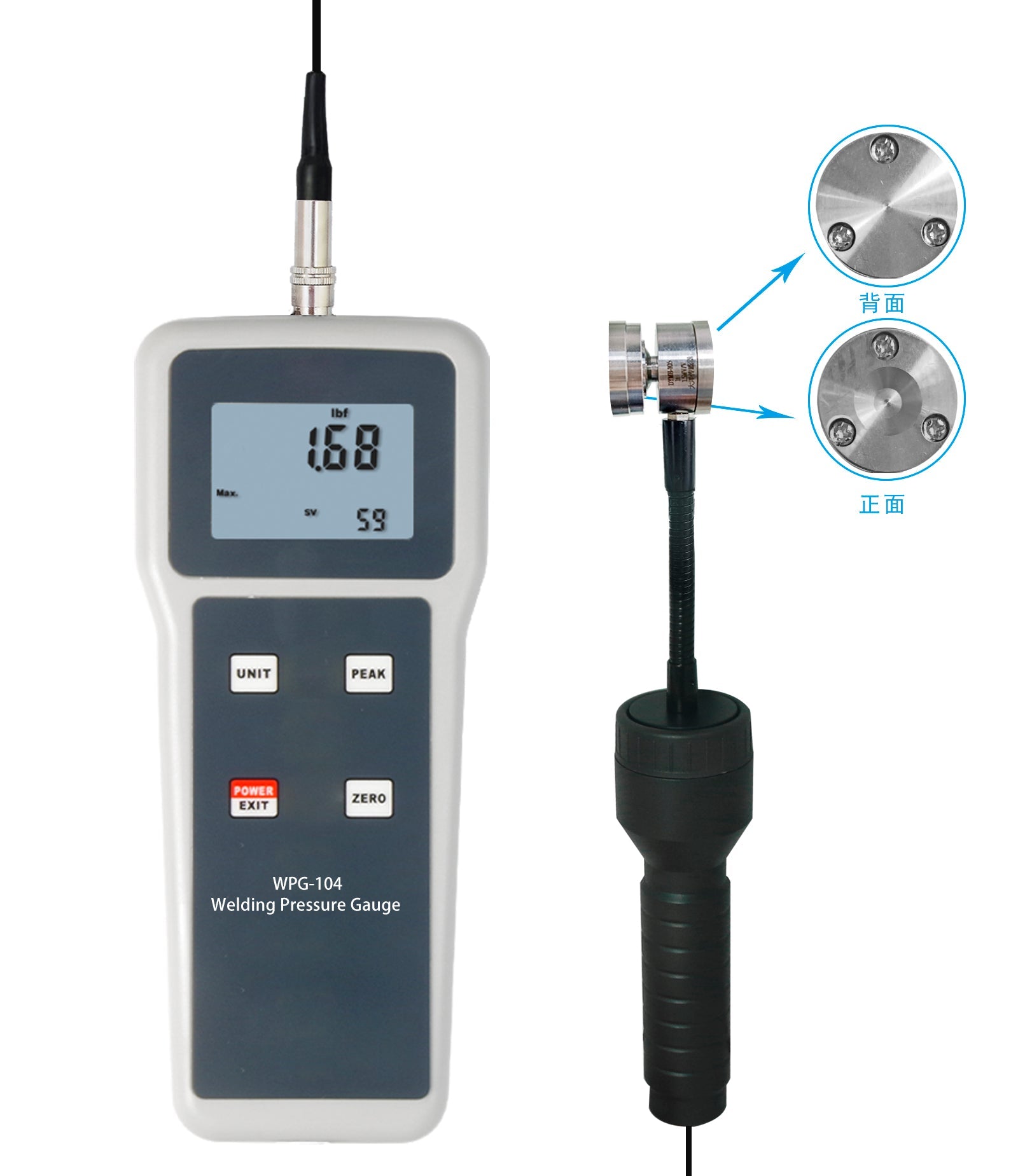

TOMLIN Welding Pressure Gauge (Model WPG-104 Series)
Description:
The TOMLIN Welding Pressure Gauge is a microelectronic digital instrument designed for precise pressure and weight (strain gauge) measurements. With its dynamometer input, it excels in both static and dynamic systems, making it an essential tool for quality control, testing, and calibration. Featuring a high precision of ±0.02%, it integrates a modular system with a 16-bit A/D converter and thermal drift transmission, ensuring stable and reliable performance with up to 65,000 internal divisions.
Applications:
- Material testing machines
- Printing machines
- Test benches
- Automatic equipment
Key Features:
- High Accuracy and Resolution: Digital display ensures precise and error-free measurements.
- Multi-Unit Conversion: Supports measurements in N, kg, and lb for versatile applications.
- Peak Value Hold Function: Captures and retains maximum values for analysis.
- Power Efficiency: Features a 10-minute auto power-off and manual power-off option.
- Flexible Power Supply: Operates on both alkaline batteries and 5V DC power.
- Blue Backlight Display: Ensures readability even in low-light environments.
- Robust Design: Handles up to 150% of full-scale load with a buzzer alarm at 110%.
Specifications
| Parameter | Details |
|---|---|
| Force Range | ±10 kgf, ±100 kgf, ±1000 kgf |
| Resolution | 0.01 kgf (<100 kgf), 0.1 kgf (≥100 kgf) |
| Accuracy | ±0.2% FS ± 1 Digit |
| Units | N, kg, lb |
| Measurement State | Peak Value Measurement, Real-Time Measurement |
| Display | LCD with blue backlight |
| Power Off | 10-minute auto power-off, manual power-off |
| Safe Load | 150% FS (Buzzer Alarm Over 110% FS) |
| Power Supply | 2 × 1.5V AA (UM-3) Battery or 5V DC Power Supply |
| Operating Conditions | 0~40°C, <80% Humidity |
| Size (Main Unit) | 175 × 80 × 36 mm |
| Size (Sensor) | 268 × φ44.6 mm |
Model Variants:
| Model | Force Range | Resolution |
|---|---|---|
| WPG-104-10KG | ±10 kgf, ±98 N, ±22 lbf | 0.01 kgf (<100 kgf), 0.1 kgf (≥100 kgf) |
| WPG-104-100KG | ±100 kgf, ±980 N, ±220 lbf | 0.01 kgf (<100 kgf), 0.1 kgf (≥100 kgf) |
| WPG-104-1000KG | ±1000 kgf, ±9800 N, ±2200 lbf | 0.01 kgf (<100 kgf), 0.1 kgf (≥100 kgf) |
Standard Accessories:
- Host Device
- Dynamometer Sensor
- Portable Carrying Case
- Operation Manual
Optional Accessories:
- USB Cable & Software
- Bluetooth Adapter & Software
Alternative Names:
- Digital Welding Pressure Tester
- Strain Gauge Digital Dynamometer
- Multi-Unit Welding Force Measurement Tool
- Industrial Pressure and Weight Analyzer
Downloads
PDF Specification Sheet - Download Here
