Weighing Hook PCE-DDM 5WI
Weighing Hook PCE-DDM 5WI
Couldn't load pickup availability
Description

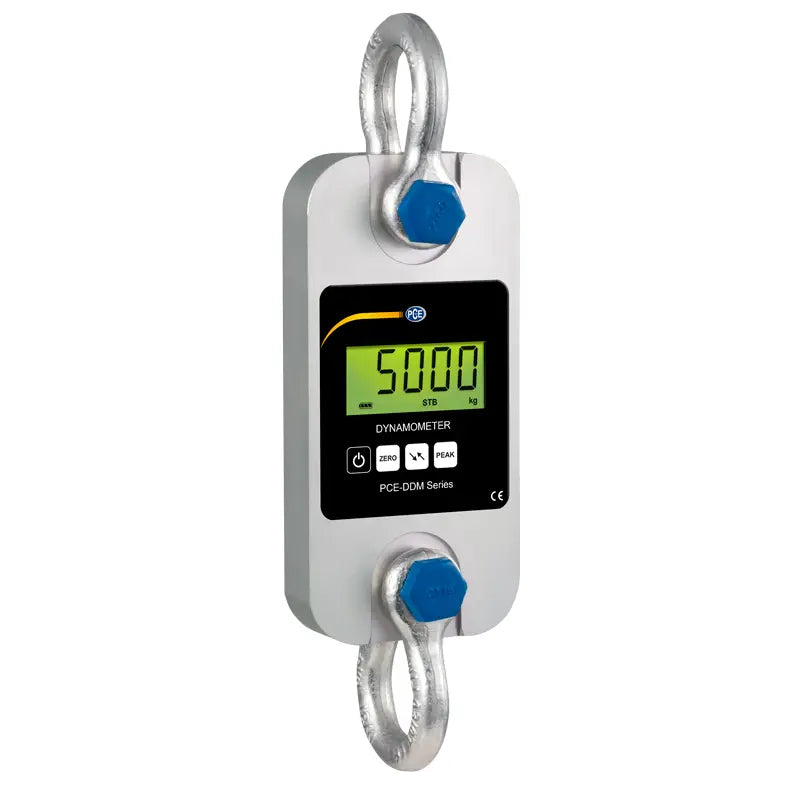

Weighing Hook PCE-DDM 5WI
Max. capacity up to 5 tons / Peak hold, sum and tare functions / Includes shackles, protective carrying case and two-year warranty against manufacturer defects
PCE-DDM 5WI is a rugged weighing hook designed to weigh large hanging loads. PCE-DDM 5WI is also a durable digital dynamometer specially crafted to measure strong tensile forces. This high-capacity device is delivered in a protective carrying case and includes two shackles made of heavy-duty aluminum. Each PCE-DDM 5WI is manufacturer calibrated, but can be certified to ISO standards for an additional fee (see accessories for details).
Despite its high capacity and rugged durability, the PCE-DDM 5WI is a compact and portable device with a low net weight. The PCE-DDM 5WI has many useful practical features including peak hold, tare, sum and the ability to select different units of measurement such as kg / t / lbs / N / kN.
Please note that this device is only suitable for weighing and for tension force testing. For compression force testing, please see the PCE-FM series force gauges (visit similar items tab for details).
Highlights
- Heavy duty, rugged and durable yet compact and portable
- Selectable units of measurement: kg / t / lb / N / kN
- Peak hold, sum and tare functions
- Long battery life - approx. 50 hours of continuous use at full charge
- Includes shackles, protective carrying case and two-year warranty against manufacturer defects
- Manufacturer calibrated, but can be certified to ISO standards for an additional fee
(see accessories for details)
Specification
| Maximum capacity | 5 t / 11023 lbs / 5000 kg / 50 kN |
| Resolution | 4 lbs / 2 kg / 20 N |
| Minimum capacity | 88 lbs / 40 kg |
| Device weight (with shackles) |
6.6 lbs / 3 kg /
(13 lbs / 6 kg)
|
| Accuracy | ± 0.1 % of measurement range |
| Tare range | Max. 20 % of measurement range |
| Display | LCD with 0.9" / 22 mm digit height |
| Units of measurement | kg / t / lb / N / kN |
| Sampling rate | 2.5 Hz |
| Operating temperature range | -10° C ... +40° C / +14° F ... +104° F |
| Power supply | 3 x 1.5 V AA batteries |
| Battery life | Approx. 50 hours of continuous use at full charge |
| Technical drawing | ||||||||||||||
 |
||||||||||||||
|

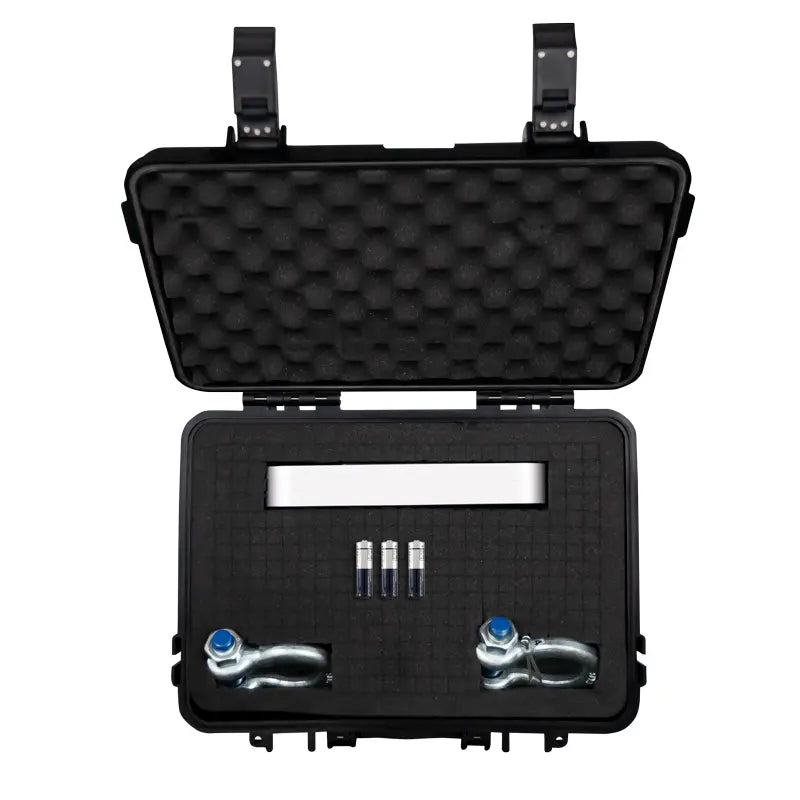

Delivery Scope
2 x shackles
3 x 1.5 V AA batteries
1 x user manual
1 x protective carrying case
Note: This model does not come with a remote control. If a remote control is desired, please see the PCE-DDM 5 (visit similar items for details).
