Weld Purge Monitor PurgEye API100

PDF Specification Sheet- Download Here

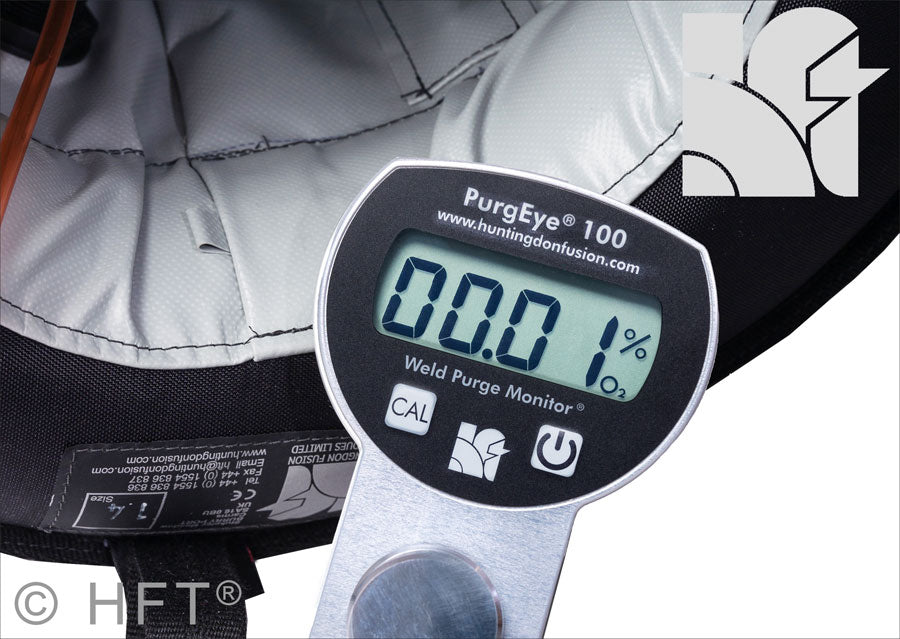

Argweld® PurgEye® 100 Hand Held IP65 Weld Purge Monitor®

Product Overview:

Keeping your 'Eye' on the Purge! The most advanced handy Weld Purge Monitor® is here, invented and developed with real science by HFT® in the 1970s. Registered Trademarks in the USA and Europe. The Argweld® PurgEye® 100 IP65 Sealed Dustproof and Waterproof Weld Purge Monitor® features innovative push button auto calibration, an enlarged screen, a low sensor indicator, a tripod mount, sleep mode, a vacuum-sealed leak-tight probe assembly, wrist or neck strap, rubber housing protector, and much more.

Key Features:

• IP65 dustproof and waterproof accredited
• Vacuum brazed leak-tight probe assembly
• Push button "Auto Calibration" feature
• Low battery indicator and low sensor indicator
• Enlarged screen with large size digits
• Tripod mount for fixed and gorilla tripods
• Automatic sleep mode when not in use
• Leak-tight quick connect/disconnect fittings for gas purge tubing
• Optional protective rubber cover
• More robust carry/presentation storage case

Specification:

• Measuring Range: 20.94% down to 100 ppm oxygen
• Size: 94 mm (top width), 58.5 mm (handle width), 199 mm high (from bottom to top of eyelet), 63 mm deep (with flow adaptor), 44 mm deep (without flow adaptor)
• Power: Battery type 2 x AA (included)
• Scale: LCD (Liquid crystal display) 24 mm
• Weight: 0.870 kg

Supplied with:

• 2 x AA batteries
• Leak-tight stainless steel probe for sampling
• 2 meters of gas sampling hose
• Sampling bulb (vacuum pump)
• Carry strap for neck or wrist
• User instruction booklet
• Storage and presentation case
• Calibration certificate for Quality Control Procedures and Management Systems

Product Description:

The Argweld® PurgEye® 100 IP65 Weld Purge Monitor® is a state-of-the-art device for monitoring oxygen levels in weld purging. It offers enhanced features such as auto calibration, a durable IP65-rated dustproof and waterproof case, and a low battery indicator. This model replaces the obsolete Argweld® Mark V (MKV) and provides superior technology for accurate oxygen level measurement down to 100 ppm, ensuring a clean and oxide-free welding environment.

This advanced Weld Purge Monitor® is suitable for a wide range of applications, including tungsten inert gas welding of stainless steels and other reactive metals. It helps ensure the oxygen content in the welding volume is reduced to a satisfactory level before commencing the weld. The PurgEye® 100 IP65 is recognized internationally as a leading instrument for weld purge monitoring.

Additional features include an auto safety break wrist or neck carry strap, a robust presentation storage carrying case, and the ability to use the monitor with various pipe welding systems or weld purging chambers.
