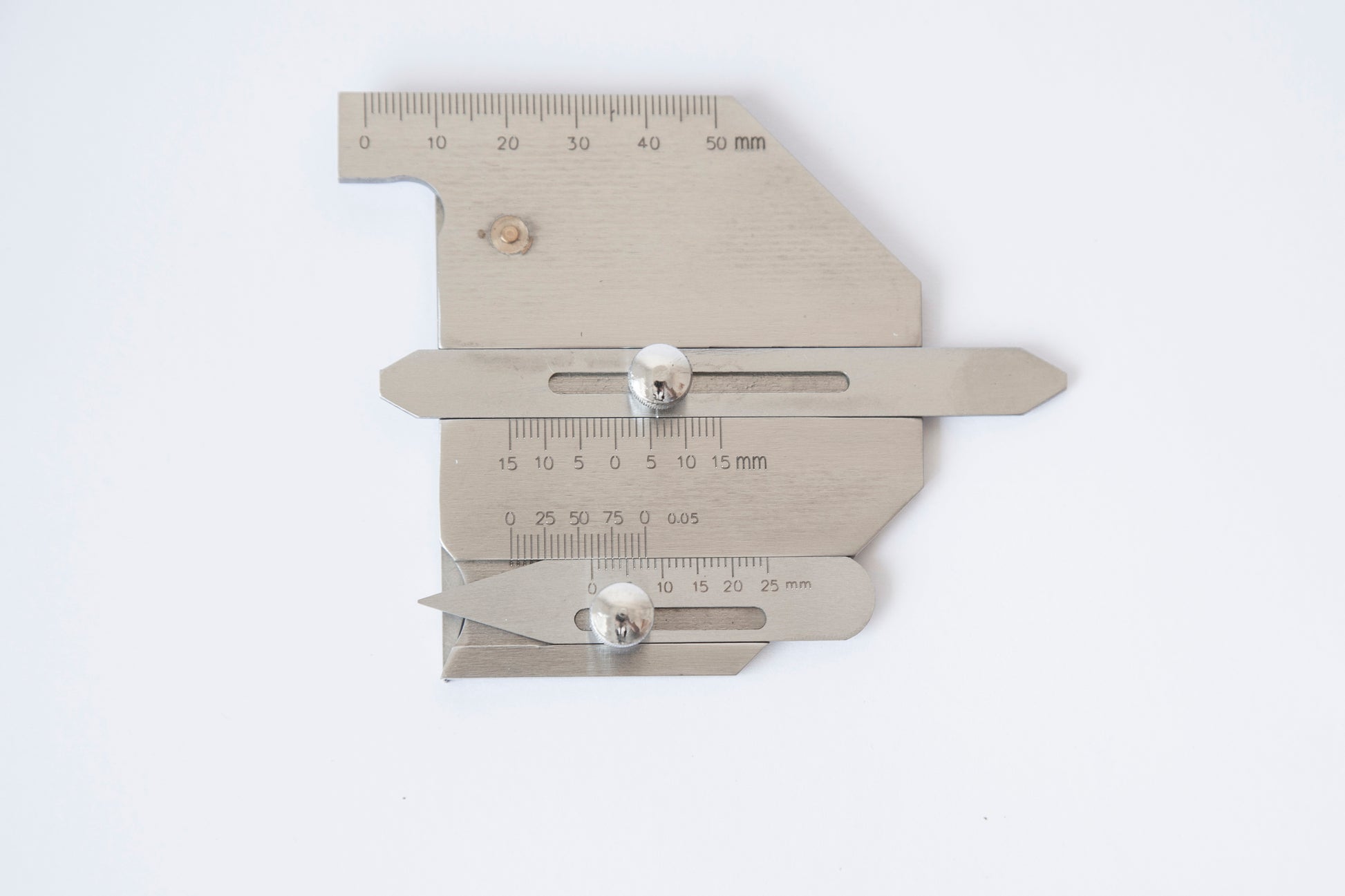

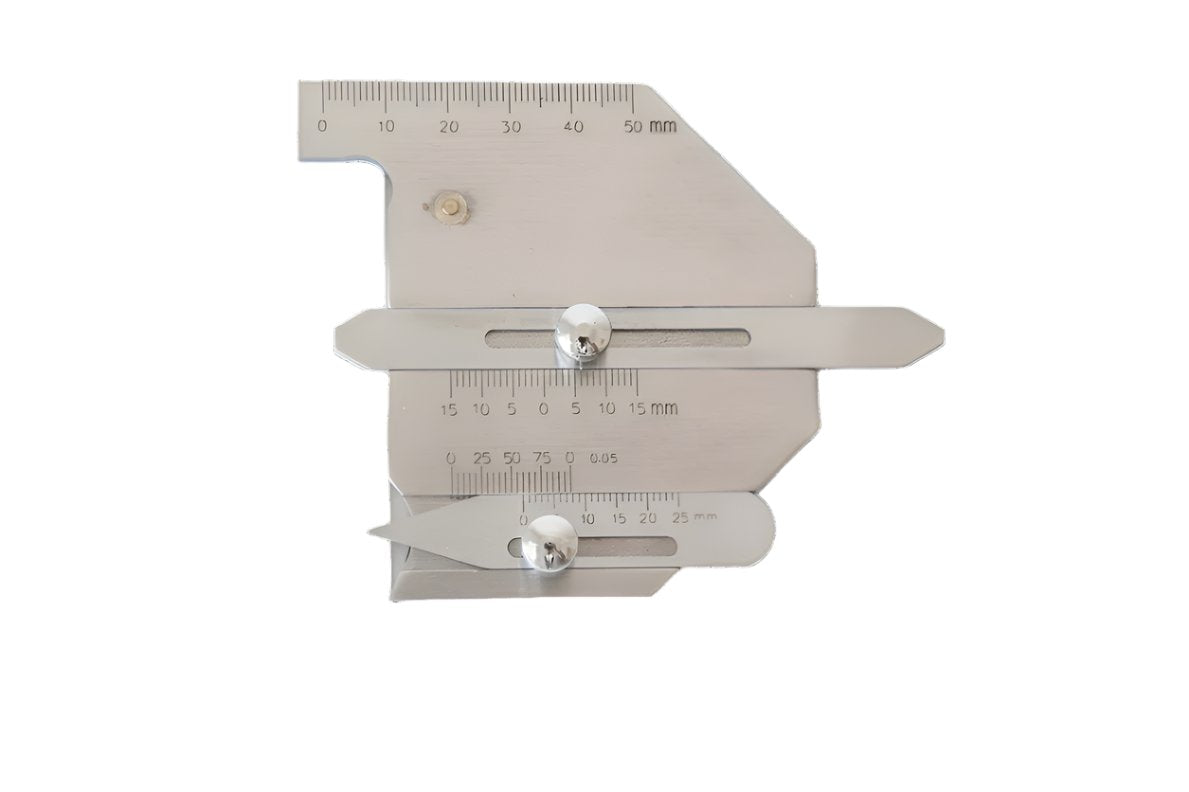

Welding Gauge Multi Purpose

Welding Gauge Multi Purpose

Regular price $85.00
Regular price Sale price $85.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

This Multi-Purpose Welding Gauge is an essential tool for welders, inspectors, and quality control professionals, providing accurate measurements for multiple weld parameters. Constructed from high-quality stainless steel, this gauge is designed to withstand heavy use in industrial environments. With its compact and user-friendly design, this gauge is perfect for measuring critical weld dimensions including weld height, undercut depth, bevel angle, gap size, fillet weld thickness, and more. Ideal for on-site and workshop inspections, this tool ensures that every weld meets industry standards for quality and safety.

Key Features:

  • Versatile Measurement Capabilities: Measures a wide range of weld parameters, including:
    • Weld Height – Ensures the correct weld height for structural integrity
    • Undercut Depth – Checks for depth of undercuts to avoid weak spots
    • Bevel Angle – Verifies the correct angle for weld joint preparation
    • Gap Size – Measures the gap between welded materials for proper fit-up
    • Fillet Weld Thickness – Confirms accurate weld thickness for fillet welds
    • Solder Foot Size – Measures size to ensure correct soldering dimensions
    • Weld Length – Provides quick measurement of weld length
    • Length Measurement – General length measurement capability for added versatility
  • High-Quality Construction: Made from durable stainless steel for corrosion resistance and longevity
  • Easy-to-Read Markings: Clear, etched scales for precise and repeatable measurements in both inches and millimeters
  • Compact and Portable: Lightweight design, making it easy to carry for on-site inspections

Specifications:

  • Material: Stainless steel
  • Measurement Functions: Weld height, undercut depth, bevel angle, gap size, fillet weld thickness, solder foot size, weld length, and general length measurement
  • Markings: Dual-scale (inches and millimeters)
  • Applications: Suitable for welding inspection, fabrication, and quality control

Package Includes:

  • 1 x Multi-Purpose Welding Gauge

Achieve accurate and efficient weld inspections with this Multi-Purpose Welding Gauge, a versatile and reliable tool for maintaining quality and compliance in all welding applications.
