WiFi Wireless Temperature & Humidity Data Logger – Smart Multi-Sensor Environmental Monitoring System S700 Series

Product Description:

The S700 Series WiFi Wireless Temperature and Humidity Data Logger is a high-performance IoT-enabled monitoring device designed for real-time environmental data acquisition. With support for multiple sensor types—including temperature, humidity, thermocouple, PT100, CO₂, and differential pressure—it’s ideal for precise monitoring in smart warehouses, labs, and industrial settings.

Featuring 2.4G/5G WiFi connectivity, the S700 series enables wireless data transmission and remote server access through the ToMonitor platform. The built-in alarm system provides sound and light alerts when readings exceed thresholds, while its large-capacity memory stores up to 43,000 readings for reliable offline logging.

This compact, IP54-rated device combines durability, flexibility, and intelligent control for modern environmental monitoring systems.

Key Features:

• Dual-band WiFi support (2.4G / 5G) for reliable wireless communication

• Ultra-long battery life — up to 1 month standby with 10-minute upload intervals

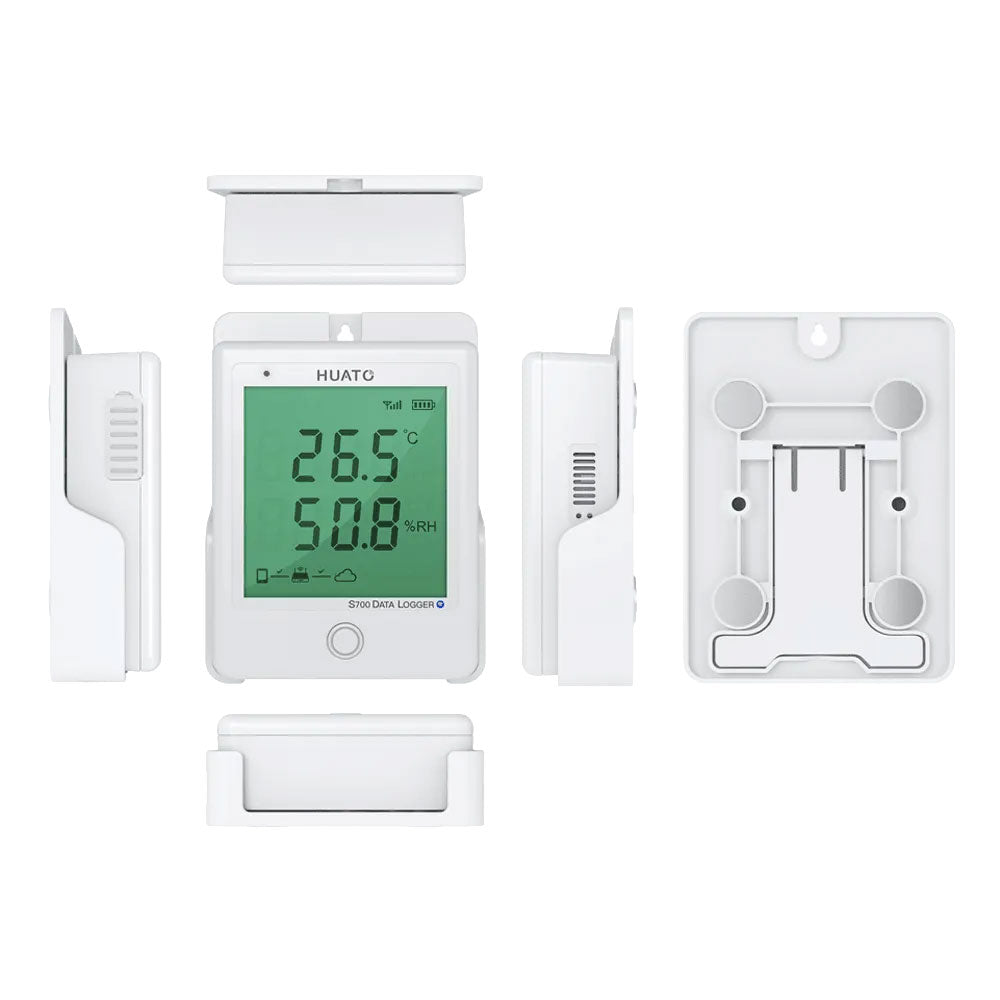

• Flexible installation — wall mount, magnetic back, or desktop setup

• Large data storage — stores up to 43,000 readings

• Sound & light alarm system for real-time alerts

• Large LCD display (58.8 × 56.4 mm) for clear data visualization

• IP54 protection rating – dust and splash resistant

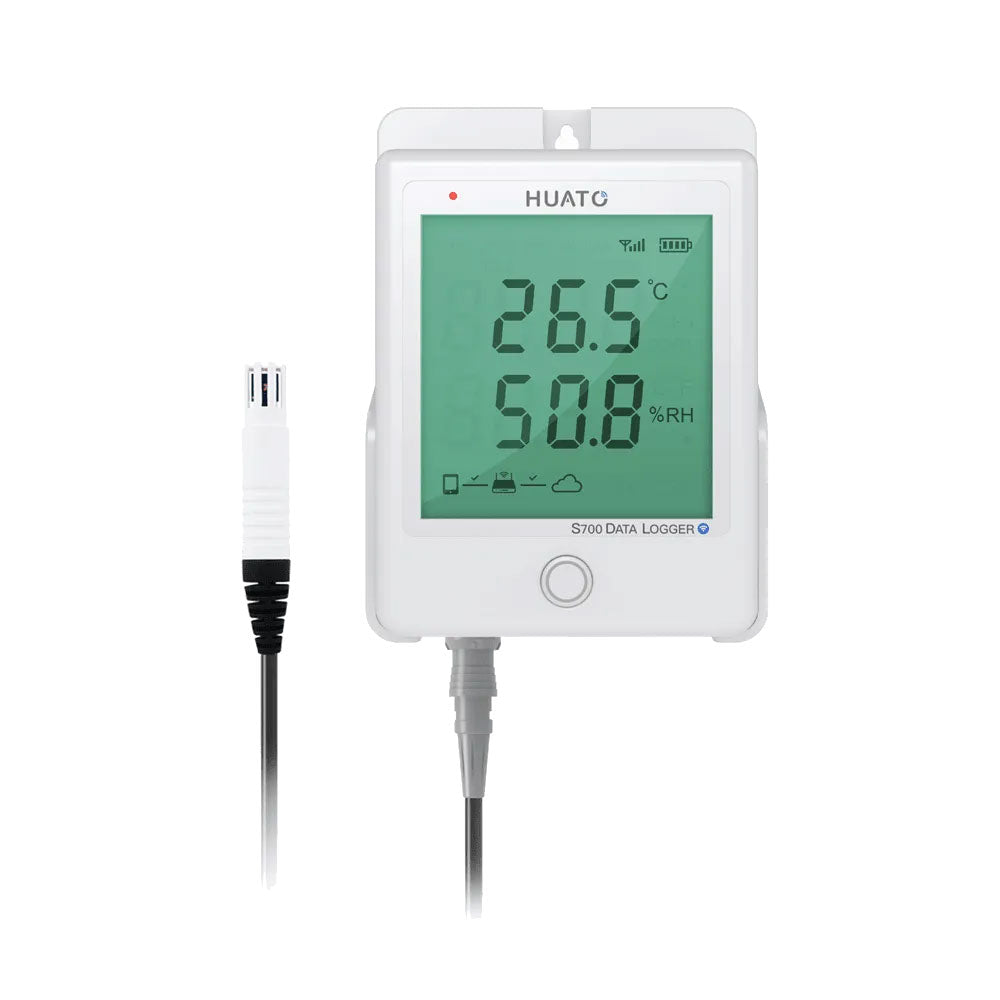

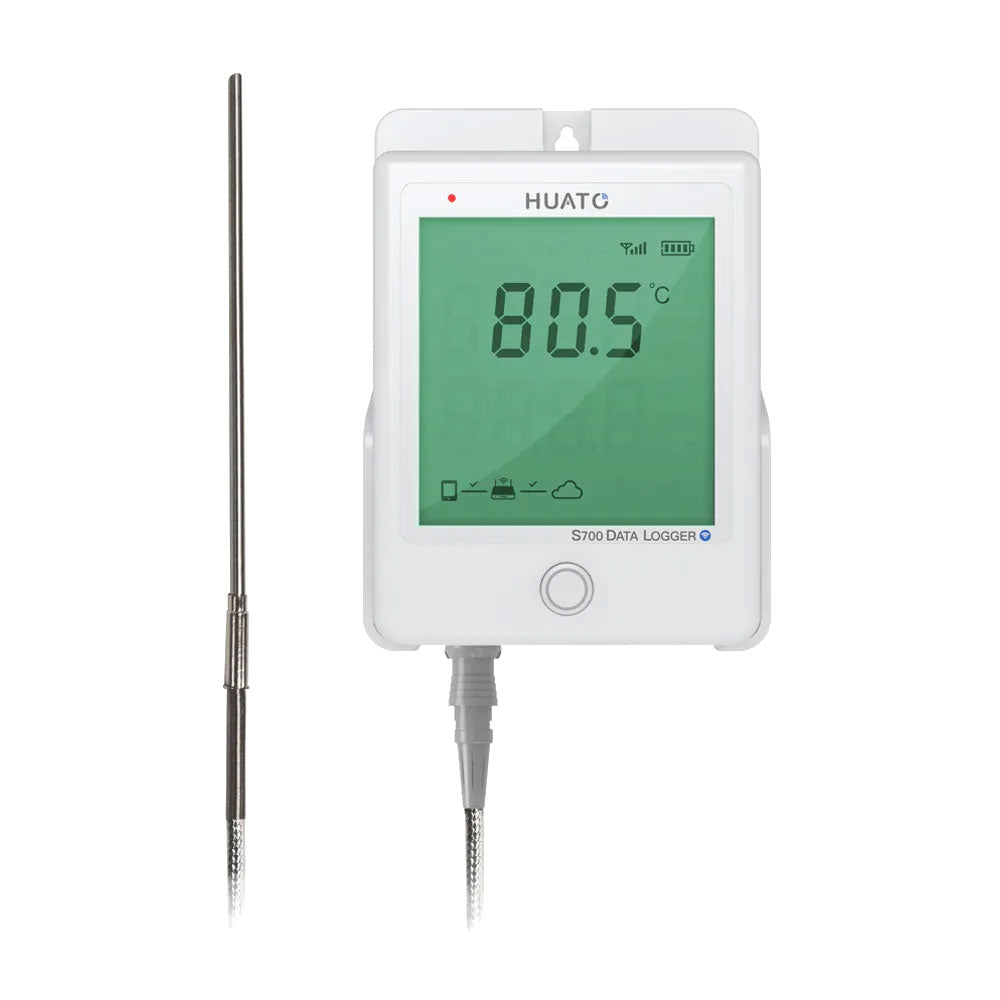

• Supports multiple sensor types (internal or external) for temperature, humidity, and more

• Compatible with ToMonitor software for centralized remote monitoring and control

Model Variants & Technical Details

•

  Software Integration:

  ToMonitor Software

  • Real-time monitoring and data storage

  • TCP/IP protocol for stable and secure communication

  • Multi-layer architecture for independent control and monitoring

  • Configurable alarms for data limits, device offline, or power failure

  • Supports hybrid networking (RJ45, GPRS, RS485, WiFi)

  ToClient Software

  • Local client for viewing and analyzing real-time and historical data

  • Graphical data visualization (trend curves, live data list)

  • Encrypted data transfer for secure communication

  • Easy LAN access without direct server connection

  ---

  Applications:

  Perfect for use in areas covered by WiFi such as:

  • Industrial warehouses

  • Food and pharmaceutical storage

  • Laboratories and research centers

  • Cold storage and cleanrooms

  • Office or server rooms

  Mountable via wall bracket, magnetic back, or desktop configuration for easy integration into any environment.
