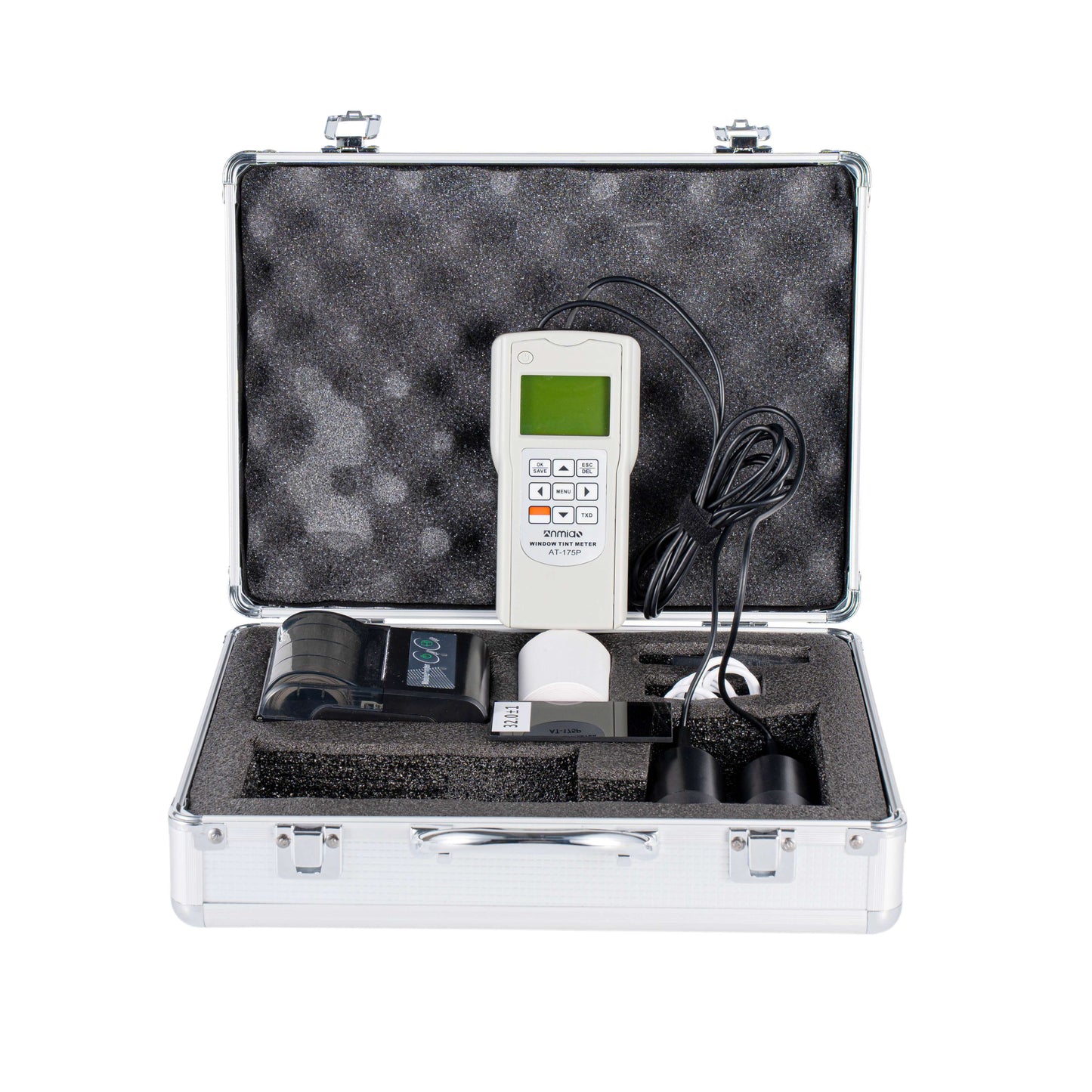

Window Tint Meter with Printer Model AT-175P

• TOMLIN Window Tint Meter with Printer (Model AT-175P)

  Description:

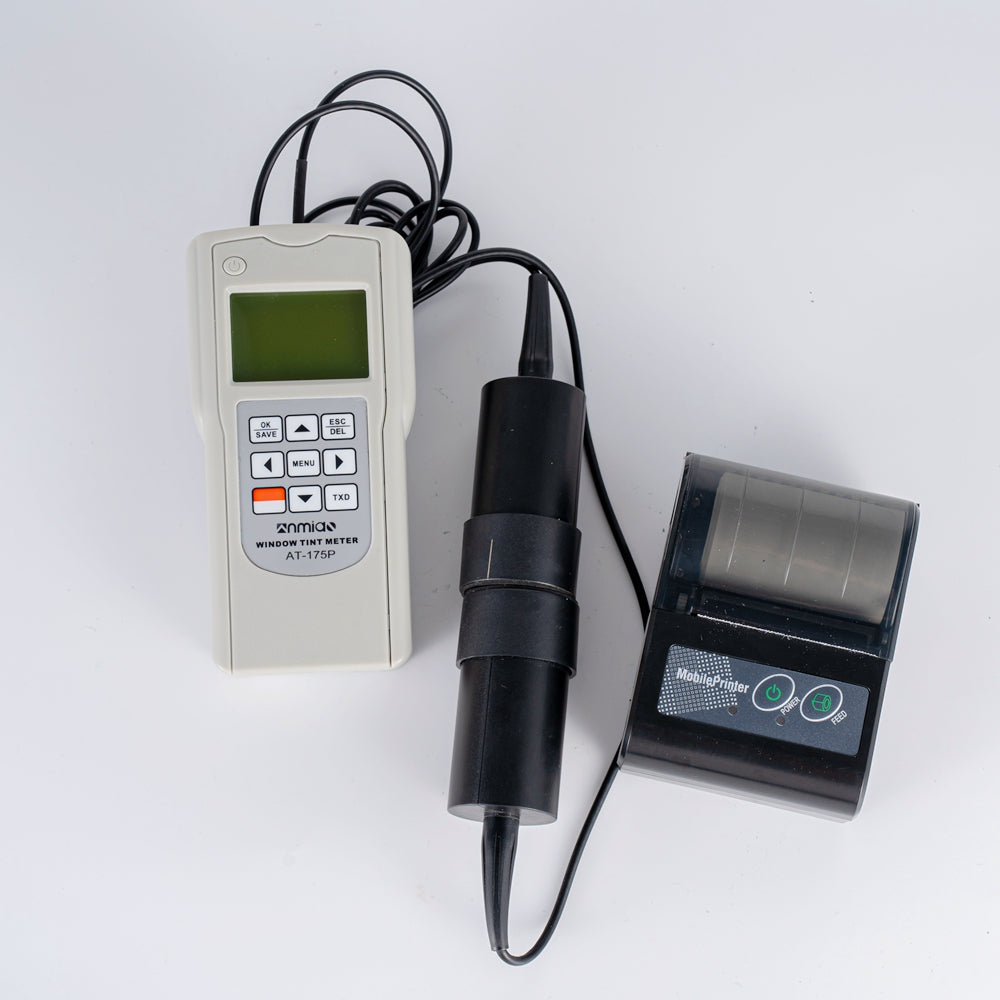

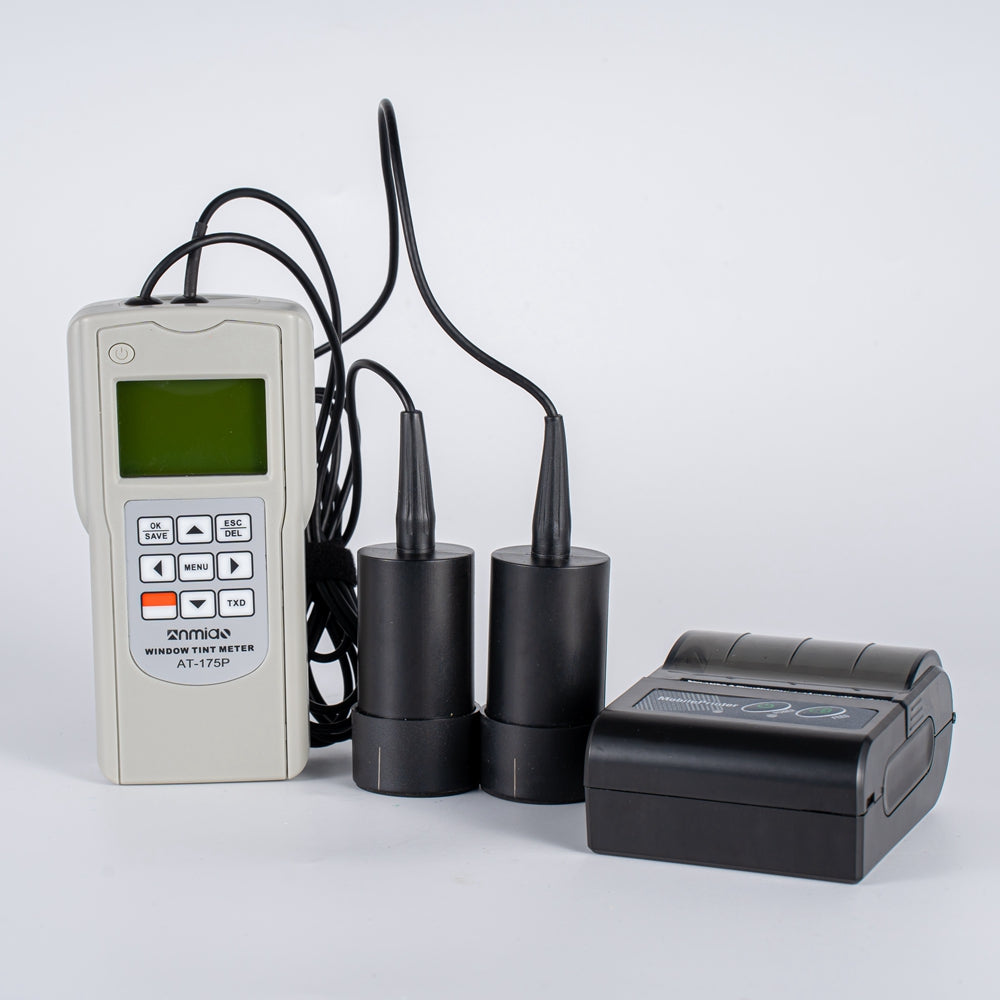

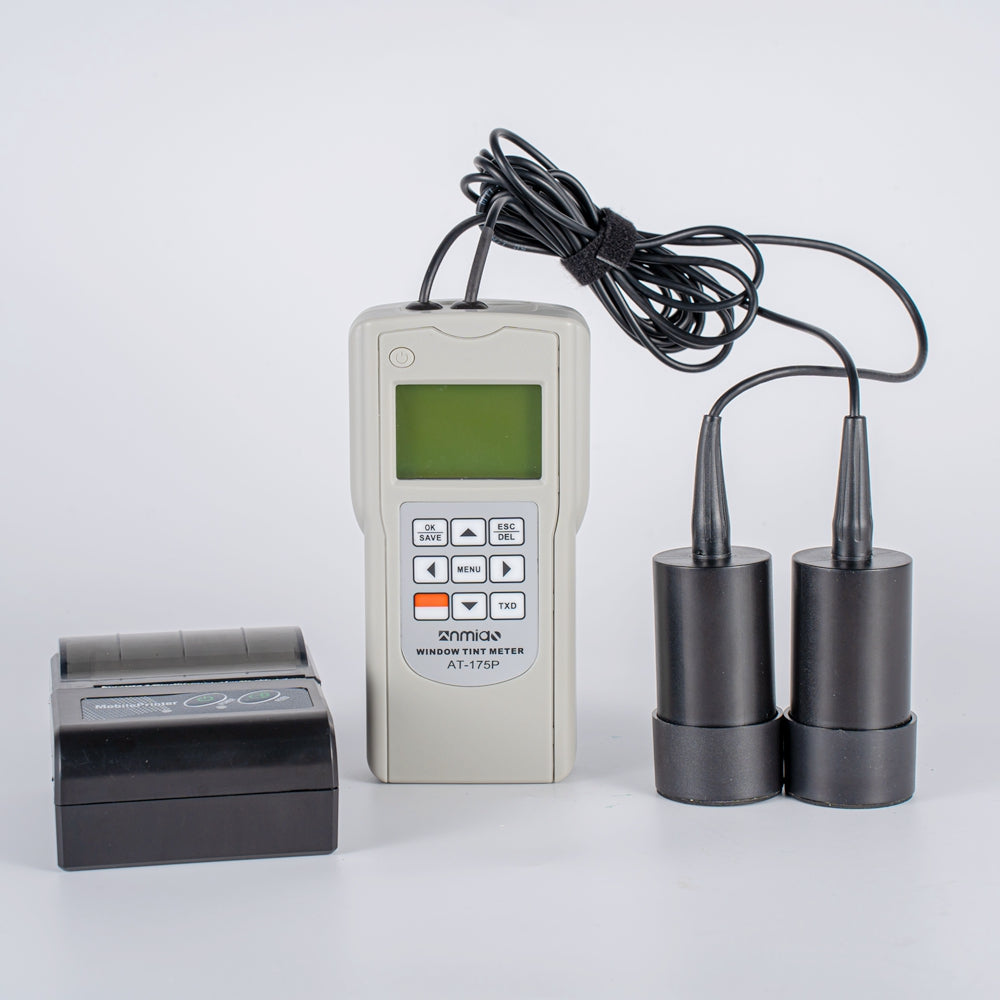

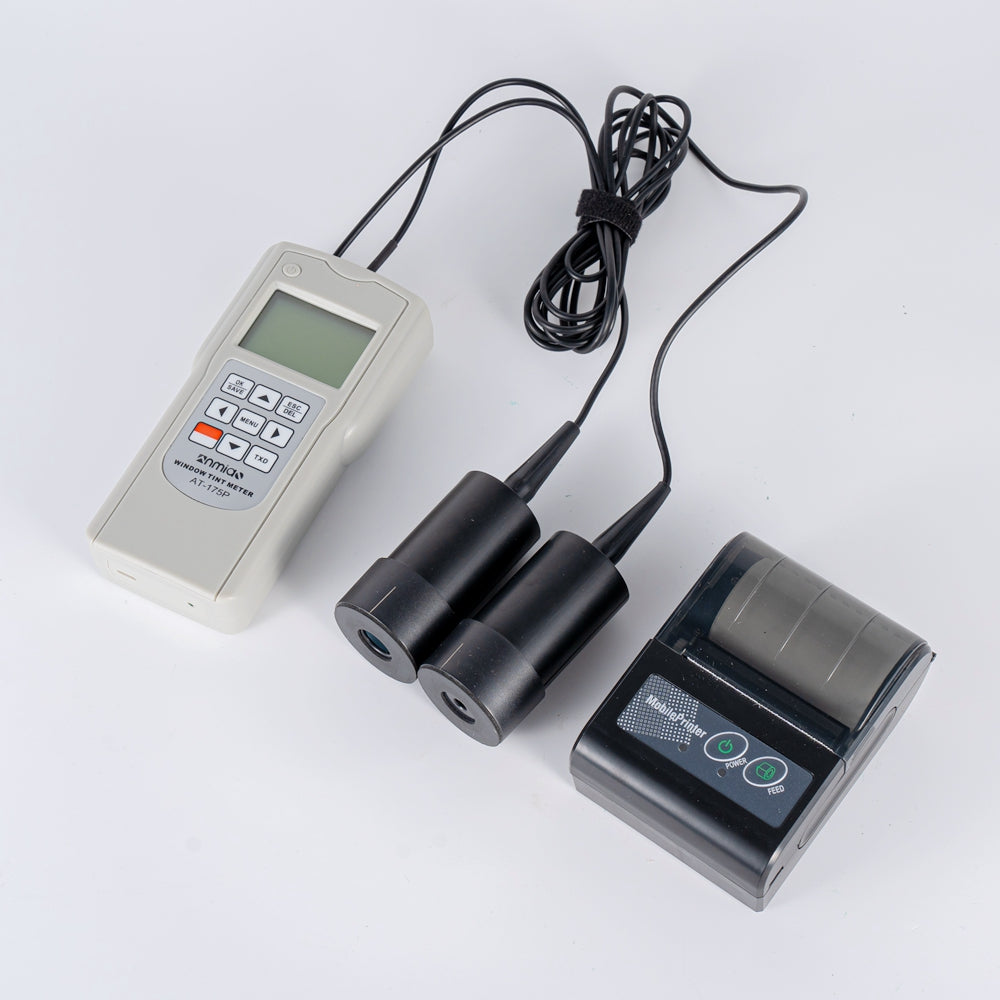

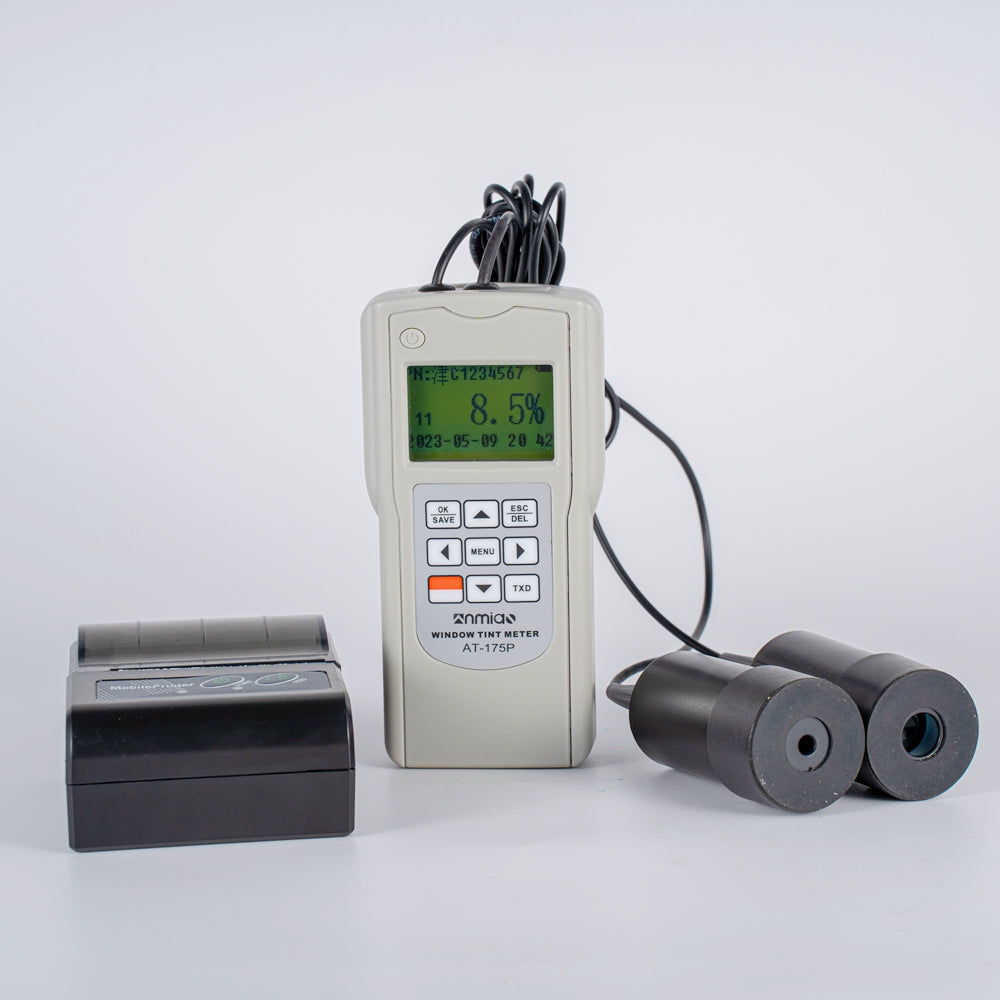

  The TOMLIN Window Tint Meter AT-175P is a high-performance instrument designed for advanced light transmittance analysis. Equipped with built-in wired sensors and a portable printer, this model is ideal for professionals requiring real-time measurement and documentation of results. The AT-175P provides comprehensive transmittance testing for visible, ultraviolet (UV), and infrared (IR) light, making it suitable for automotive, industrial, and research applications. Compliant with GB 2410-80, ASTM D1033-61, and JIS K7105-81 standards, it ensures precision and reliability for professional use.

  Applications:

  • Automotive Industry: Analyze UV, IR, and visible light transmittance in vehicle windows for compliance and quality assurance.
  • Industrial Glass Manufacturing: Monitor and control light transmission for transparent and translucent materials.
  • Research and Laboratories: Test light clarity and transmittance for scientific studies.
  • On-Site Quality Control: Real-time measurements with immediate printouts for client or internal reporting.

  Key Features:

  1. Integrated Printer: Delivers on-the-spot printouts of test results for documentation and record-keeping.
  2. Comprehensive Light Measurement: Measures UV, visible, and IR transmittance.
  3. High Precision: ±2% accuracy ensures reliable and repeatable results.
  4. Portable Design: Compact, lightweight, and easy to use for on-site and fieldwork.

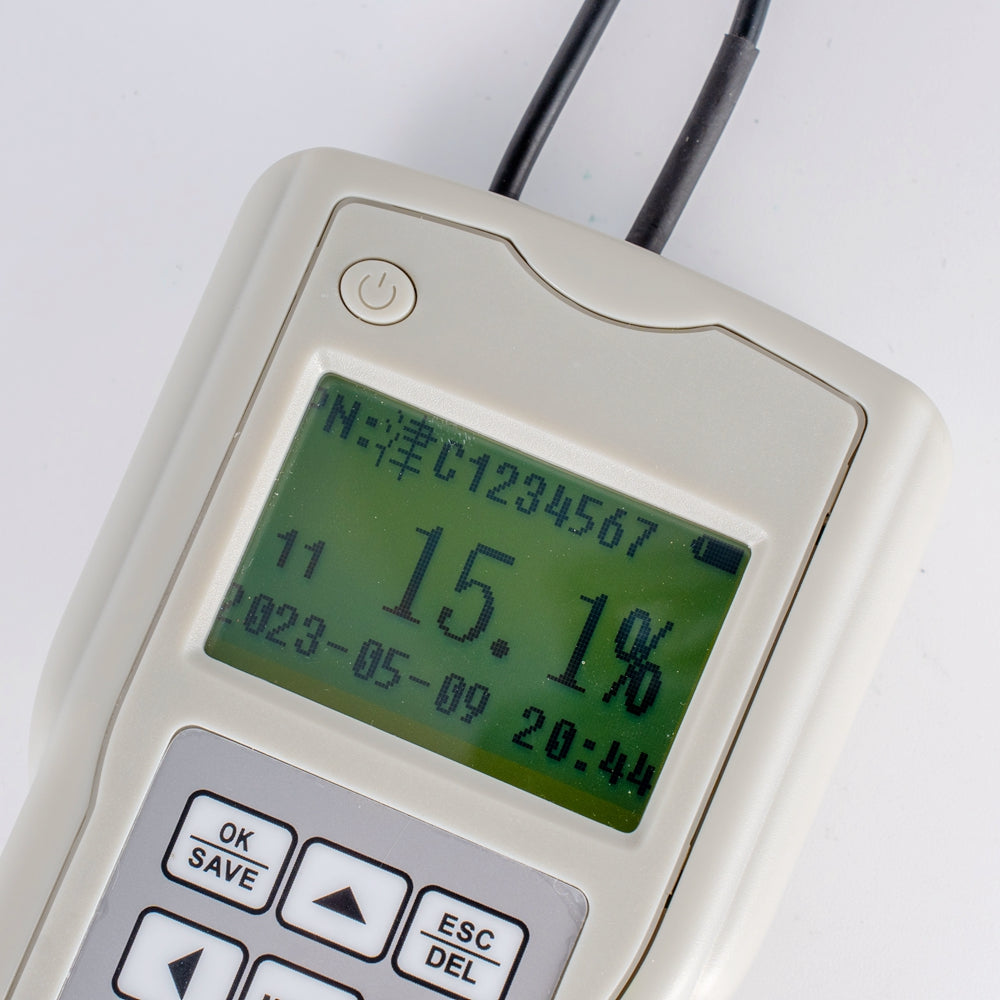

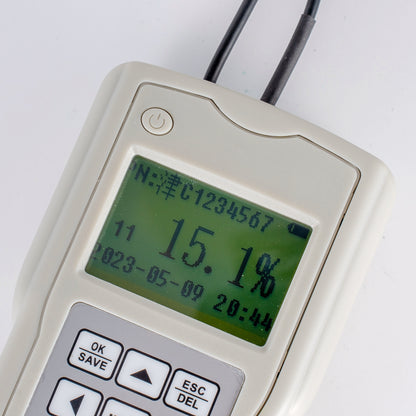

  5. Backlight Display: Ensures readability in various lighting conditions.
  6. Real-Time Data Logging: Saves time by providing instant feedback.
  7. Buzzer Sound Reminder: Alerts during operations for enhanced usability.
  8. Low Battery Indicator: Prevents interruptions during critical tasks.

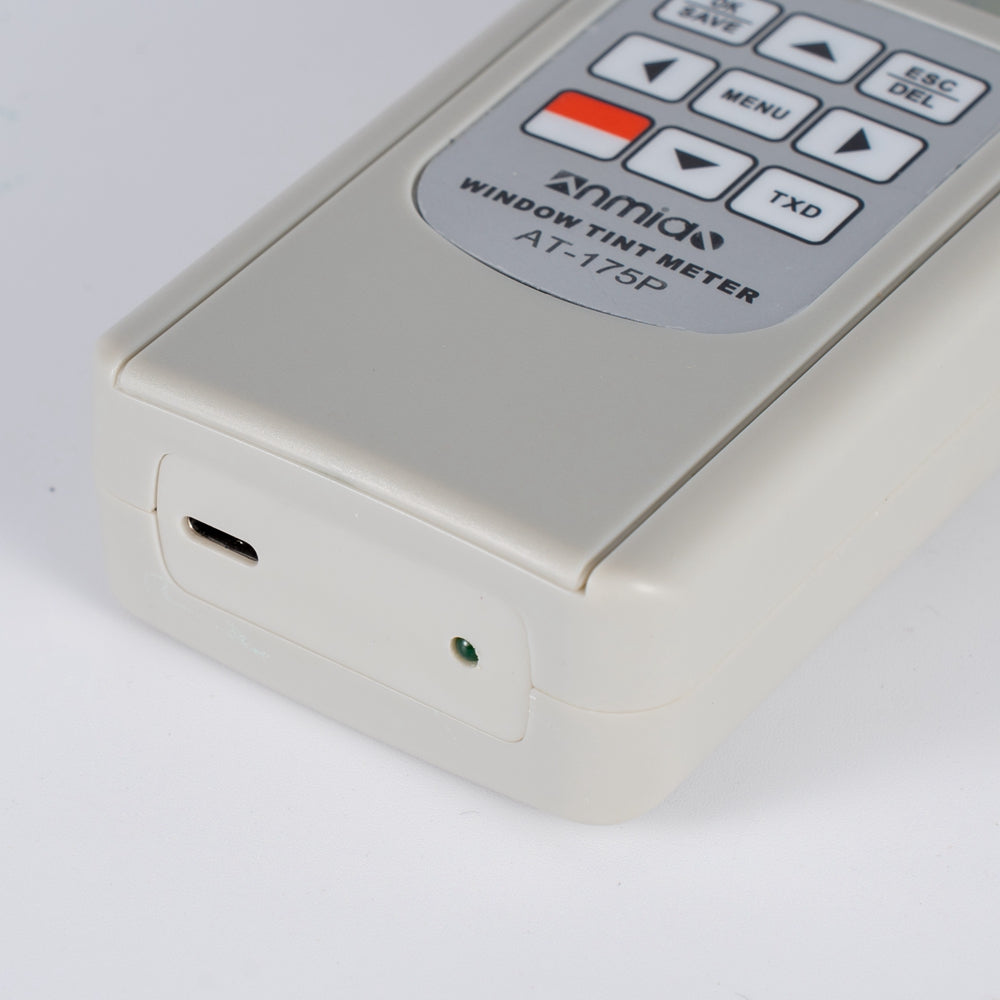

  9. Computer Connectivity: Enables data export for advanced analysis and long-term storage.

  ---

  Specifications

  Parameter	Details
  Measurement Range	0~100%
  Resolution	0.1
  Light Source	LED
  Sample Thickness	Less than 18 mm (0.7")
  Accuracy	±2%
  UV Wavelength	380 nm
  Visible Light Wavelength	380–760 nm
  Infrared Wavelength	Central Wavelength 950 nm
  Operating Temperature	050°C (32122°F)
  Operating Humidity	<90%

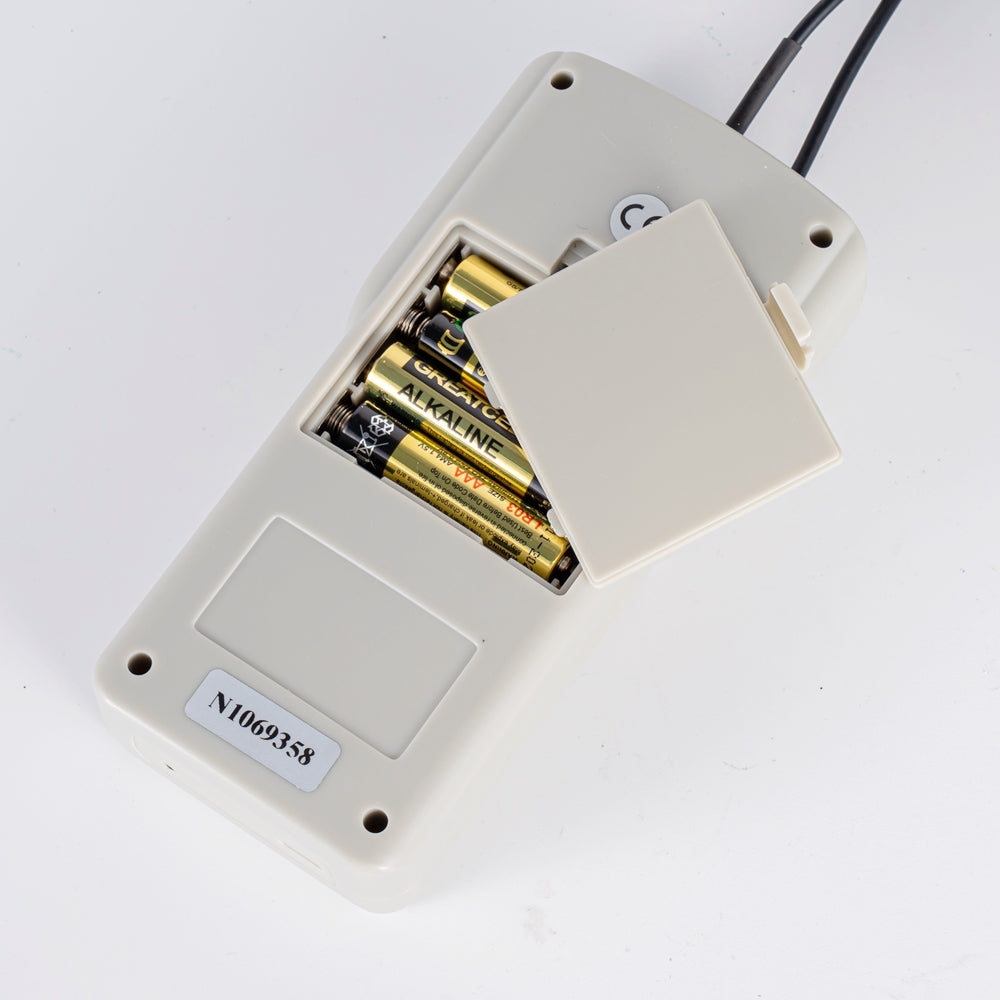

  Power Supply	2 × 1.5V AAA batteries (Main Unit) / Built-in Battery (Printer)
  Size (Main Unit)	175 × 80 × 36 mm
  Size (Printer)	100 × 75 × 50 mm
  Weight (Without Battery)	280 g (Main Unit), 200 g (Printer)

  ---

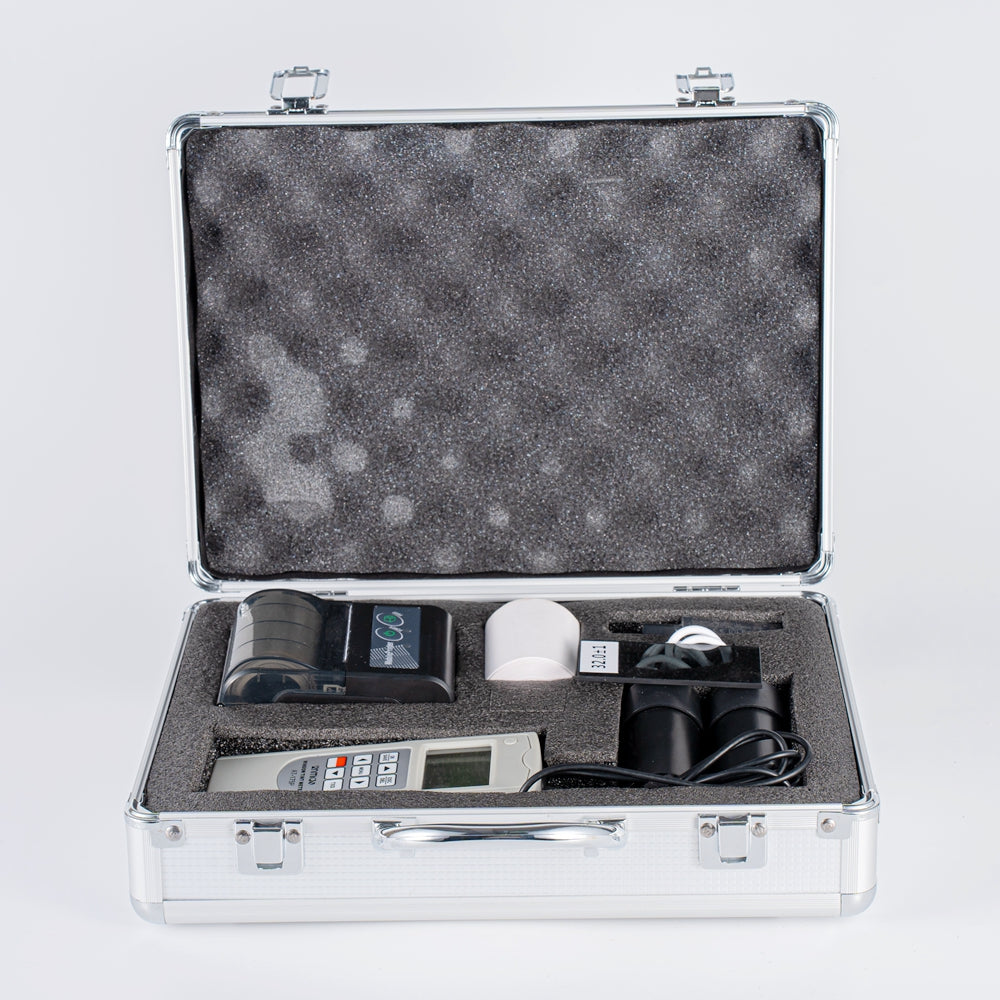

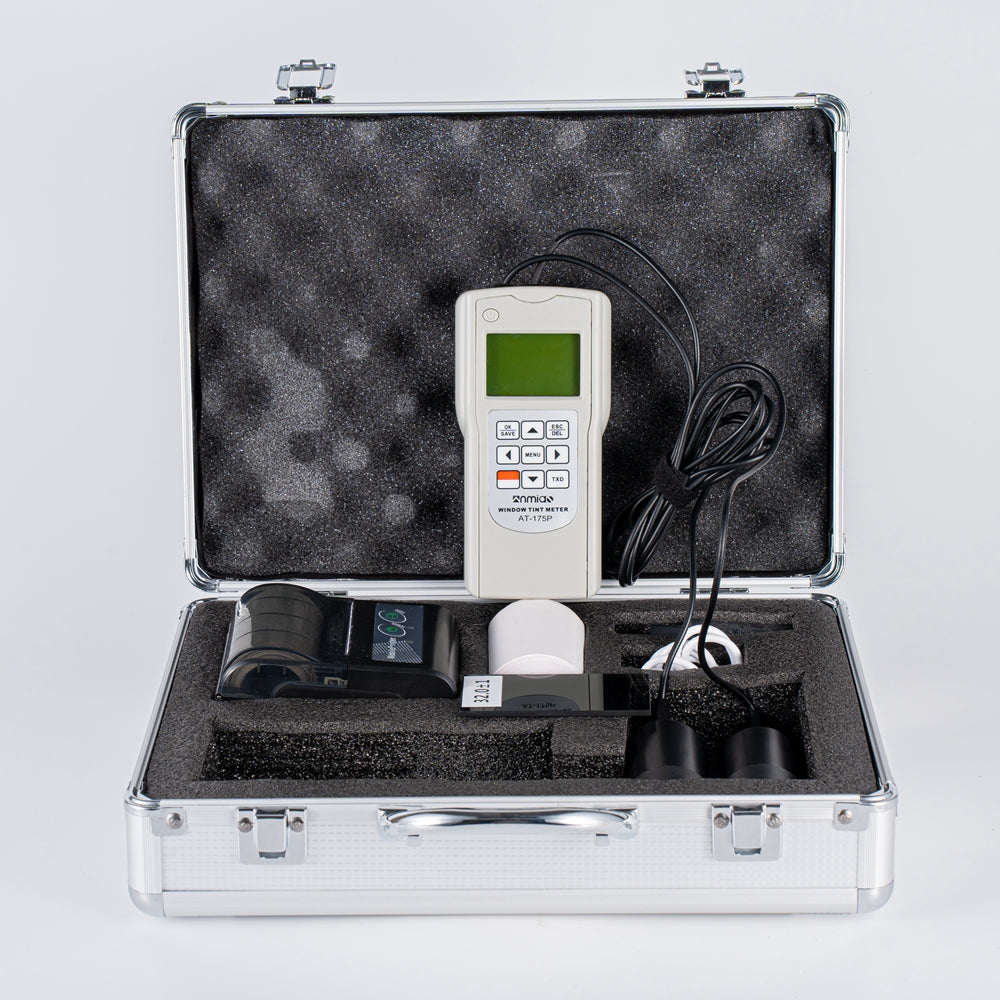

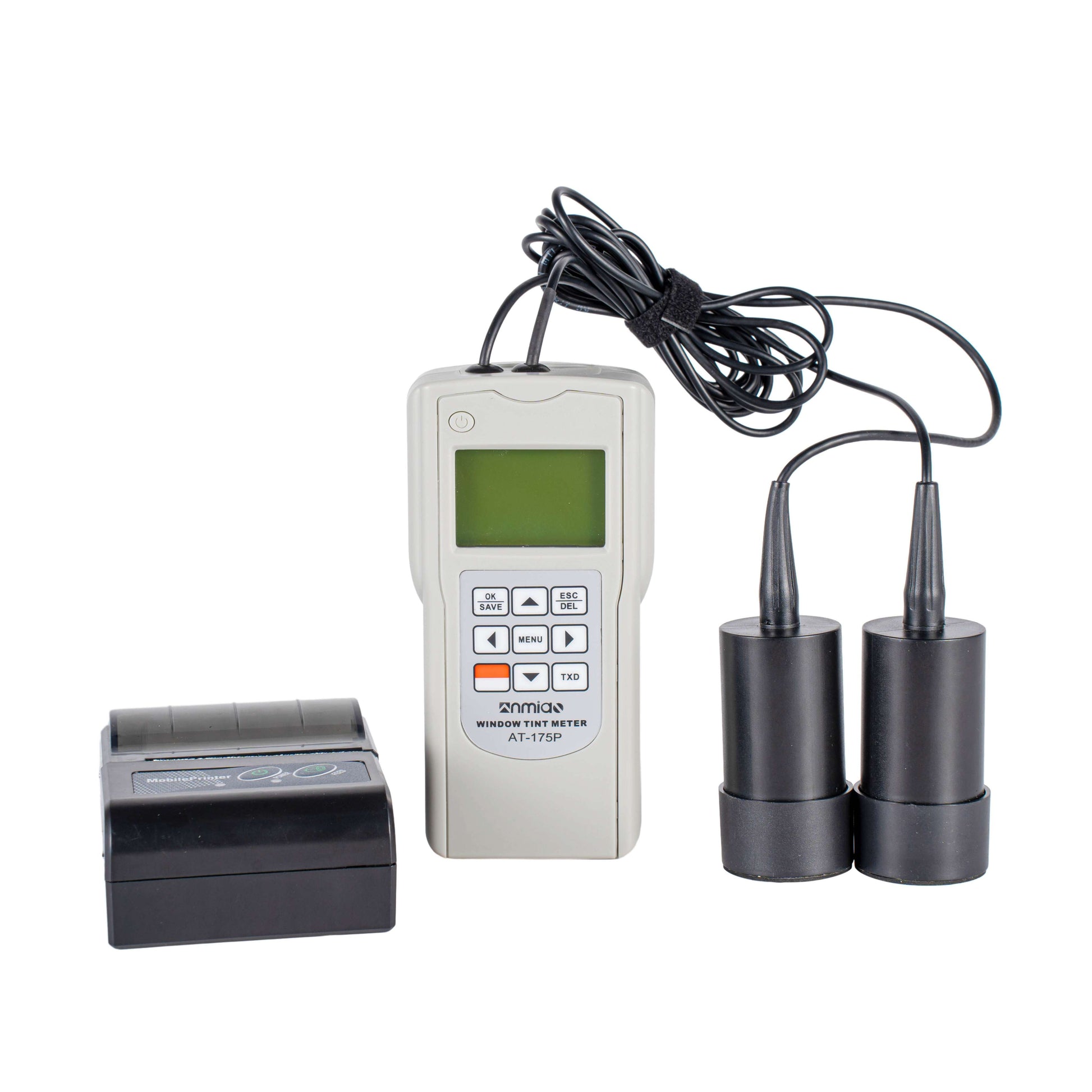

  Standard Accessories:

  • Main Unit
  • Wired Light Sensors
  • Portable Printer
  • Printer Paper Roll
  • Carrying Case
  • Operation Manual

  Optional Accessories:

  • Additional Printer Paper Rolls
  • USB Cable & Software
  • Bluetooth Adapter & Software

  ---

  Alternative Names:

  • Window Tint Meter with Printing Capability
  • UV/IR/Visible Light Transmittance Analyzer
  • Portable Tint Tester with Data Logging
  • Automotive Glass Testing Meter

Downloads

PDF Specification Sheet - Download Here
