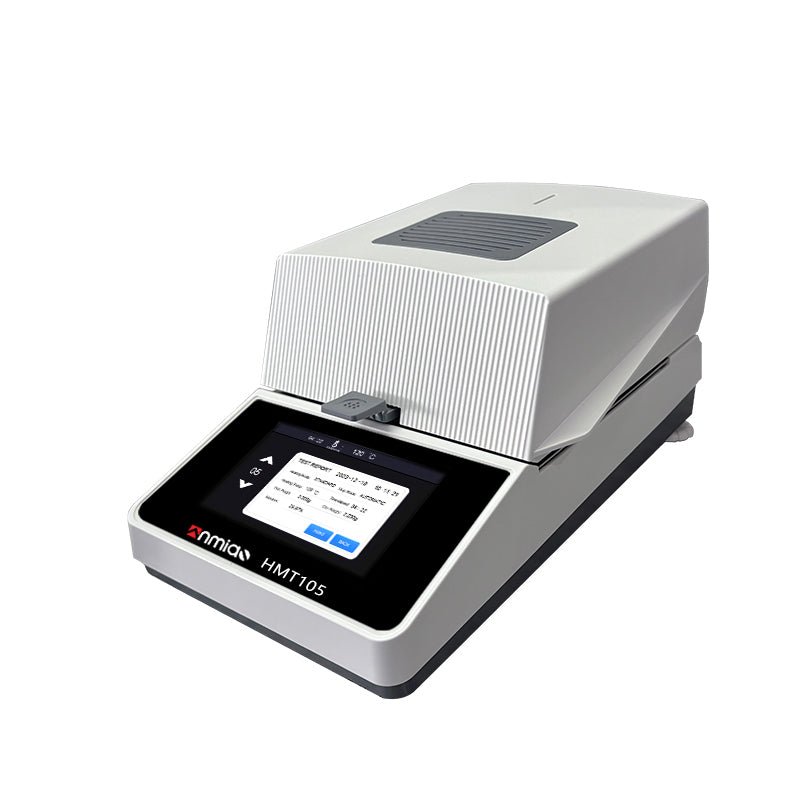

TOMLIN Halogen Moisture Meter (Models HMT105-10, HMT105-5, HMT105-1)
Description:
The TOMLIN Halogen Moisture Meter HMT105 Series is a cutting-edge instrument designed for precise moisture analysis across a wide range of industries, including food, chemicals, plastics, and pharmaceuticals. With its advanced halogen lamp heating technology, real-time testing capabilities, and high-resolution readability, this device ensures fast and accurate results. The series includes models with varying readability to cater to different application needs.
Applications:
- Food Industry: Moisture testing for grains, powders, and baked goods.
- Chemicals and Plastics: Monitor moisture levels in chemical compounds and polymer materials.
- Pharmaceuticals: Ensure compliance with moisture content standards.
- Quality Control: Reliable testing for production and laboratory environments.
Key Features:
- 5-Inch Touch Screen: User-friendly interface for easy operation and real-time monitoring.
- Real-Time Testing Curve: Provides a visual representation of moisture levels during the test.
- Standard/Fast/Soft Modes: Optimized settings for various material types and testing conditions.
- Silent Fast Cooling Fan: Accelerates cooldown time for continuous operations.
- Adaptive Input Voltage: Suitable for global use with flexible voltage requirements.
- Test Frequency Selection: Customizable for enhanced accuracy.
- Clock Function: Tracks testing history and scheduling.
- Historical Test Report Storage: Retains up to 20 groups of data for traceability.
- Automatic/Manual/Timed Stop Mode: Allows customized control over testing duration.
Specifications
| Parameter | HMT105-10 | HMT105-5 | HMT105-1 |
|---|---|---|---|
| Capacity | 110 g | 110 g | 110 g |
| Readability | 0.01 g | 0.005 g | 0.001 g |
| Sensor | Strain Formula | Strain Formula | Strain Formula |
| Pan Size | Φ96 mm | Φ96 mm | Φ96 mm |
| Display | 5-Inch Touch Screen | 5-Inch Touch Screen | 5-Inch Touch Screen |
| Operating Temperature | 5°C–35°C | 5°C–35°C | 5°C–35°C |
| Heating Source | Halogen Lamp | Halogen Lamp | Halogen Lamp |
| Temperature Sensor | PT-100-2 | PT-100-2 | PT-100-2 |
| Temperature Range | 40°C–160°C | 40°C–160°C | 40°C–160°C |
| Temperature Setting | 1°C | 1°C | 1°C |
| Moisture Range | 90.00%–10.00% | 95.00%–5.00% | 100.00%–0.00% |
| Moisture Readability | 0.1% | 0.05% | 0.01% |
| Testing Range | 90.00%–10.00% | 95.00%–5.00% | 100.00%–0.00% |
| Dry% Readability | 0.1% | 0.05% | 0.01% |
| Storage Capacity | 20 Groups | 20 Groups | 20 Groups |
| Analysis Curve | Real-Time Dynamic Curve | Real-Time Dynamic Curve | Real-Time Dynamic Curve |
| Testing Height | 30 mm | 30 mm | 30 mm |
| Power Supply | 220V 50Hz / 110V 60Hz | 220V 50Hz / 110V 60Hz | 220V 50Hz / 110V 60Hz |
| Dimensions | 336 × 214 × 166 mm | 336 × 214 × 166 mm | 336 × 214 × 166 mm |
| Packing Size | 415 × 310 × 255 mm | 415 × 310 × 255 mm | 415 × 310 × 255 mm |
| Gross/Net Weight | 4.0 kg / 3.5 kg | 4.0 kg / 3.5 kg | 4.0 kg / 3.5 kg |
Standard Accessories:
- Main Unit
- Testing Pan
- Halogen Heating Lamp
- Carrying Case
- Operation Manual
Optional Accessories:
- Extra Testing Pans
- Calibration Weights
- USB Cable & Software
Alternative Names:
- Halogen Moisture Analyzer
- Digital Moisture Content Tester
- High-Precision Moisture Balance
- Industrial Moisture Measurement Tool
