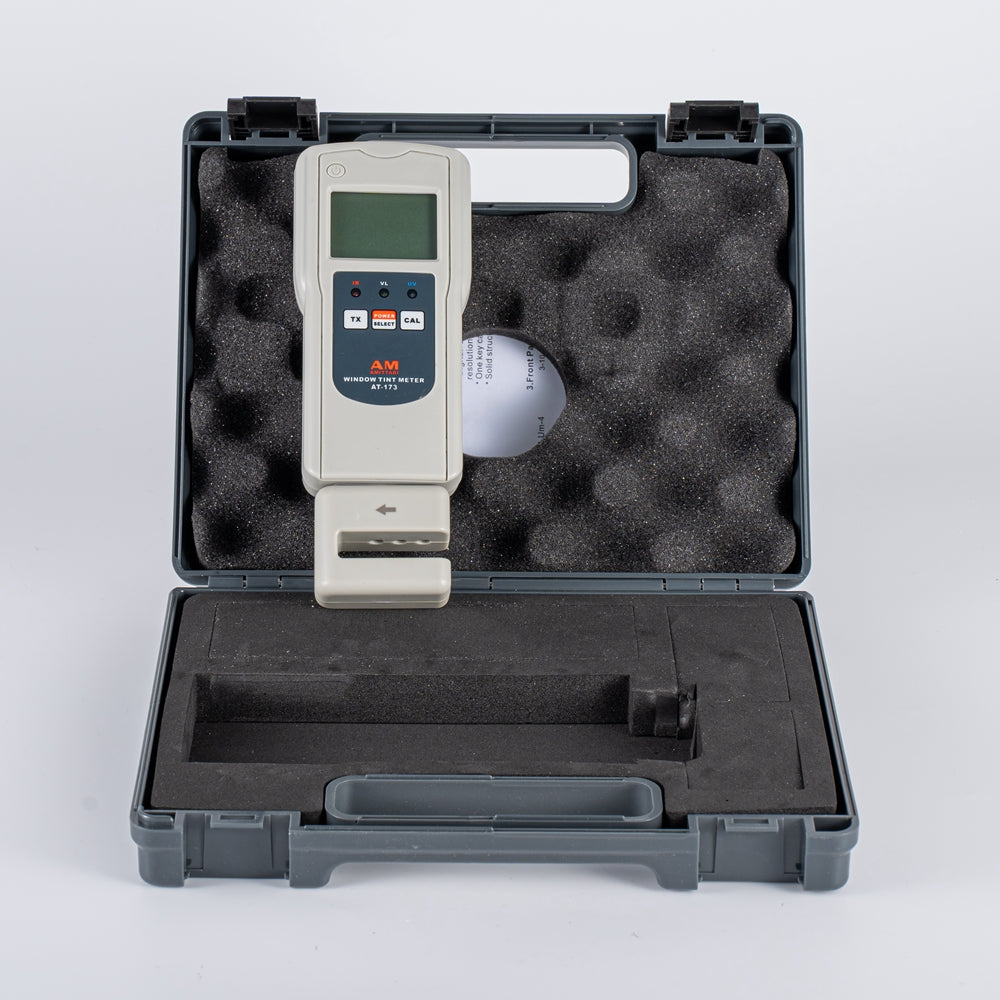

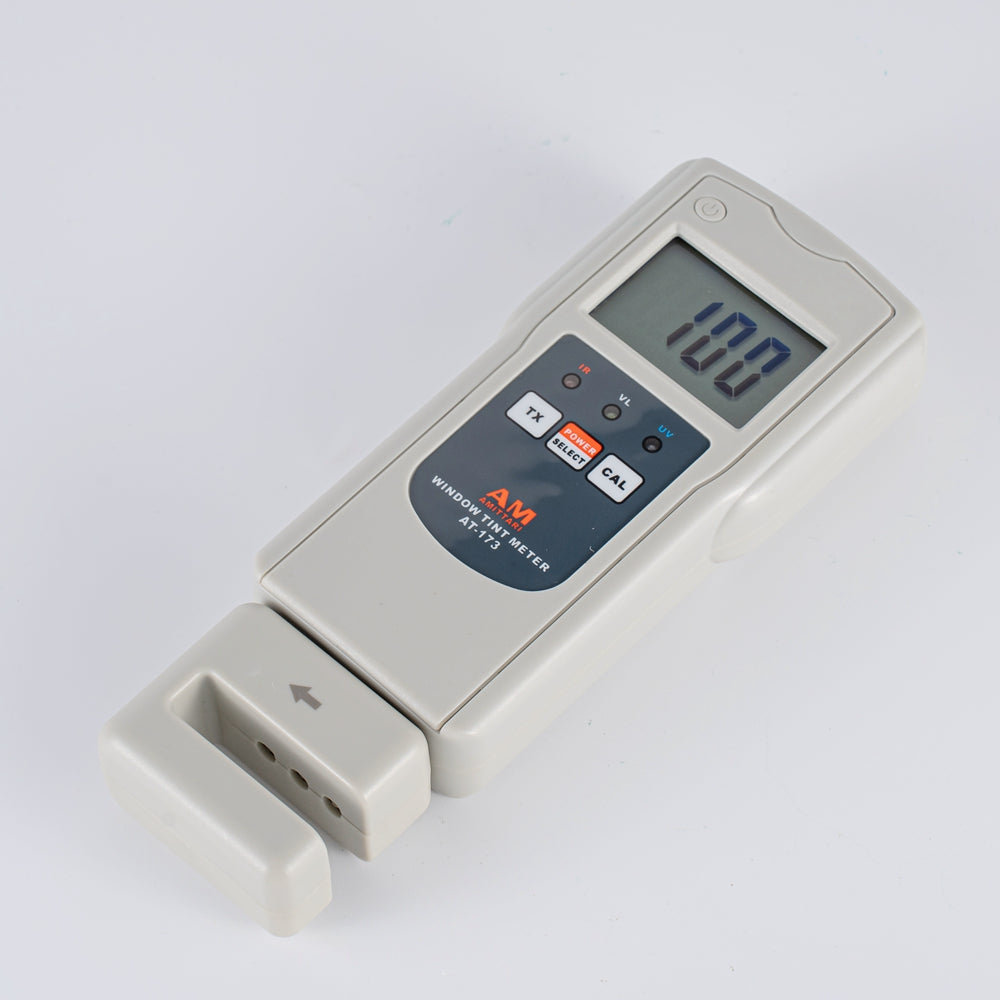

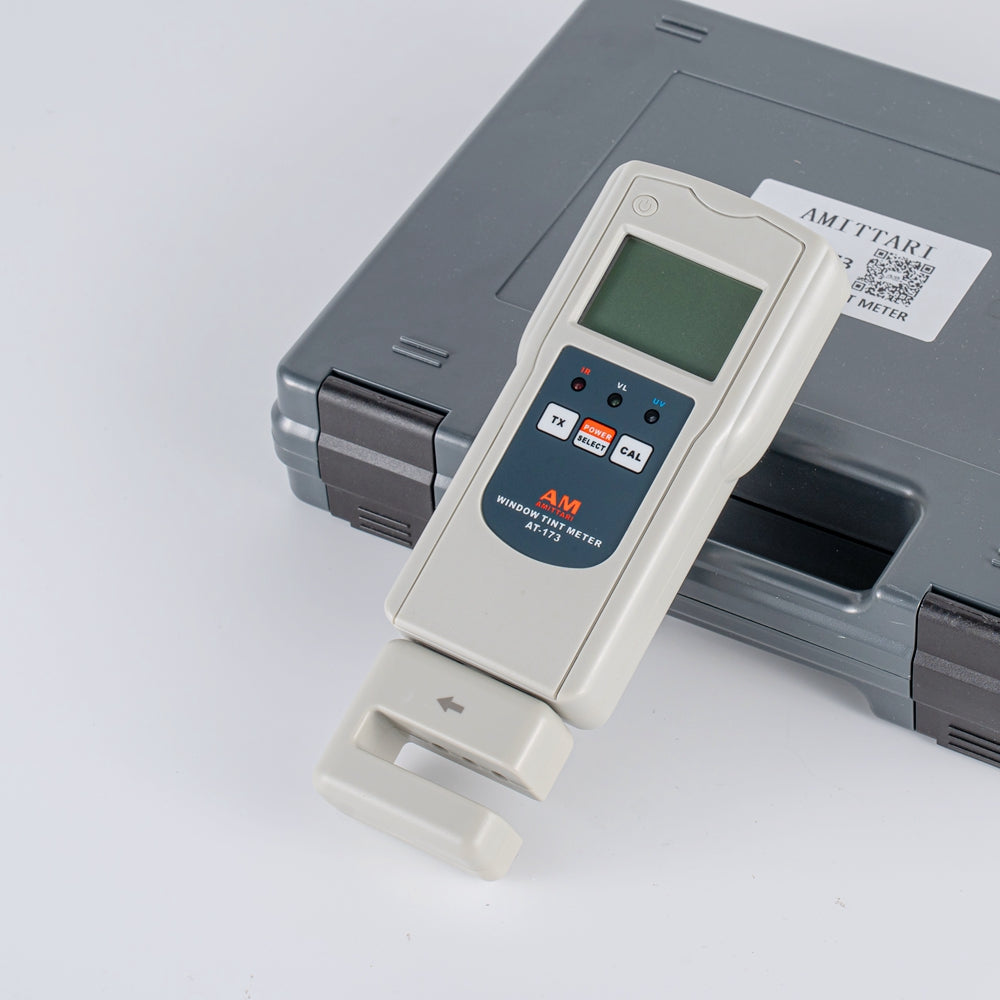

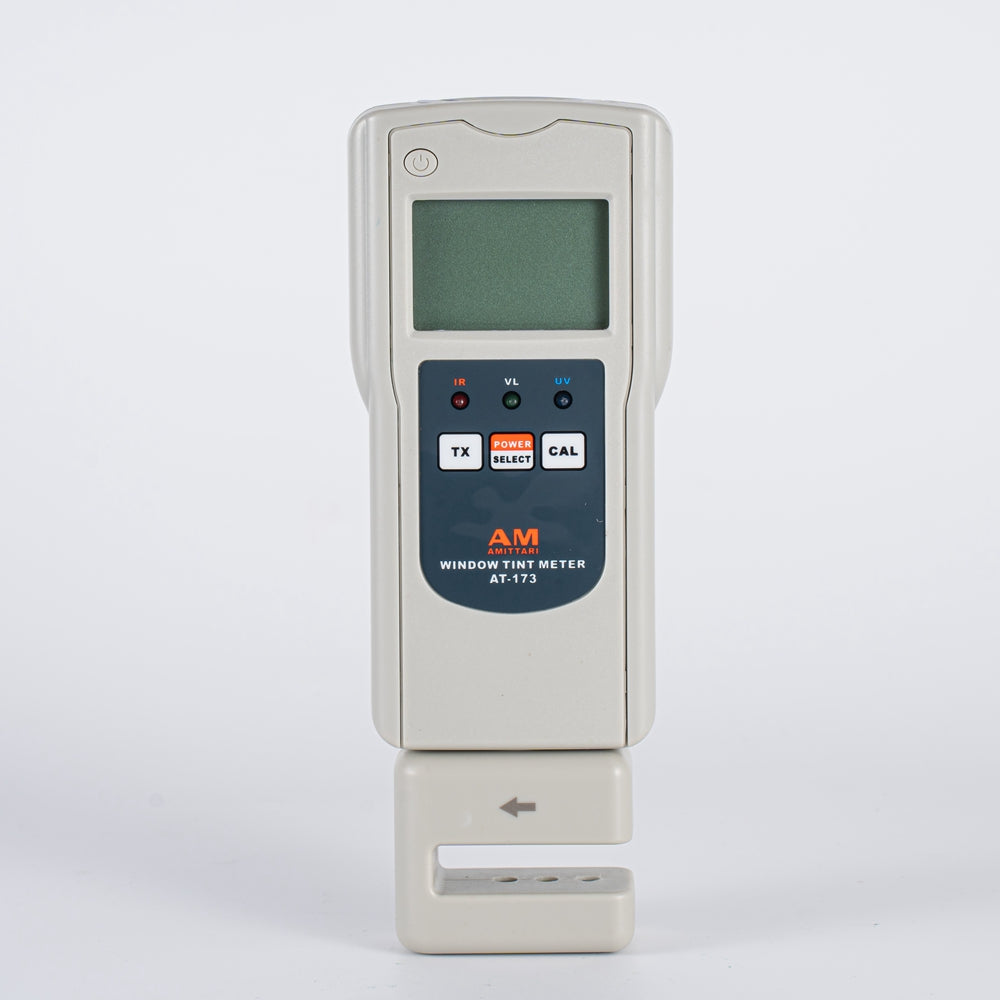

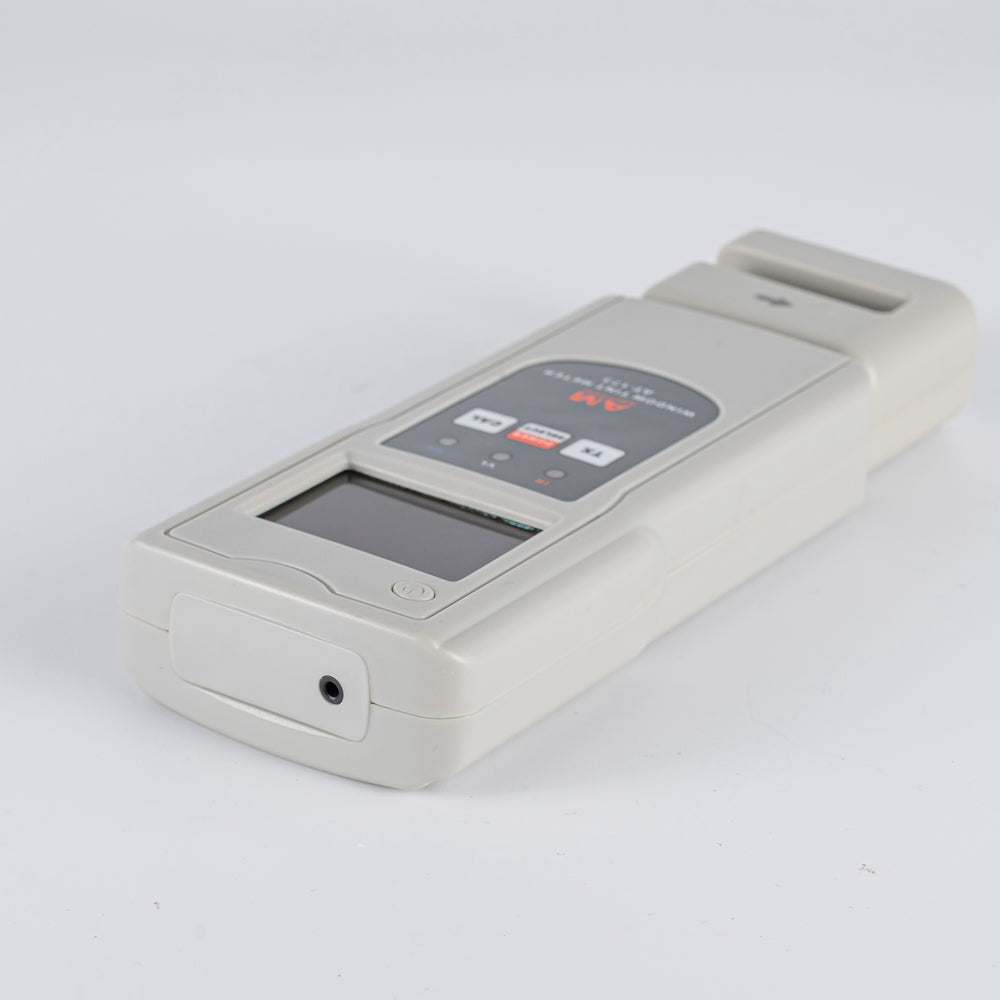

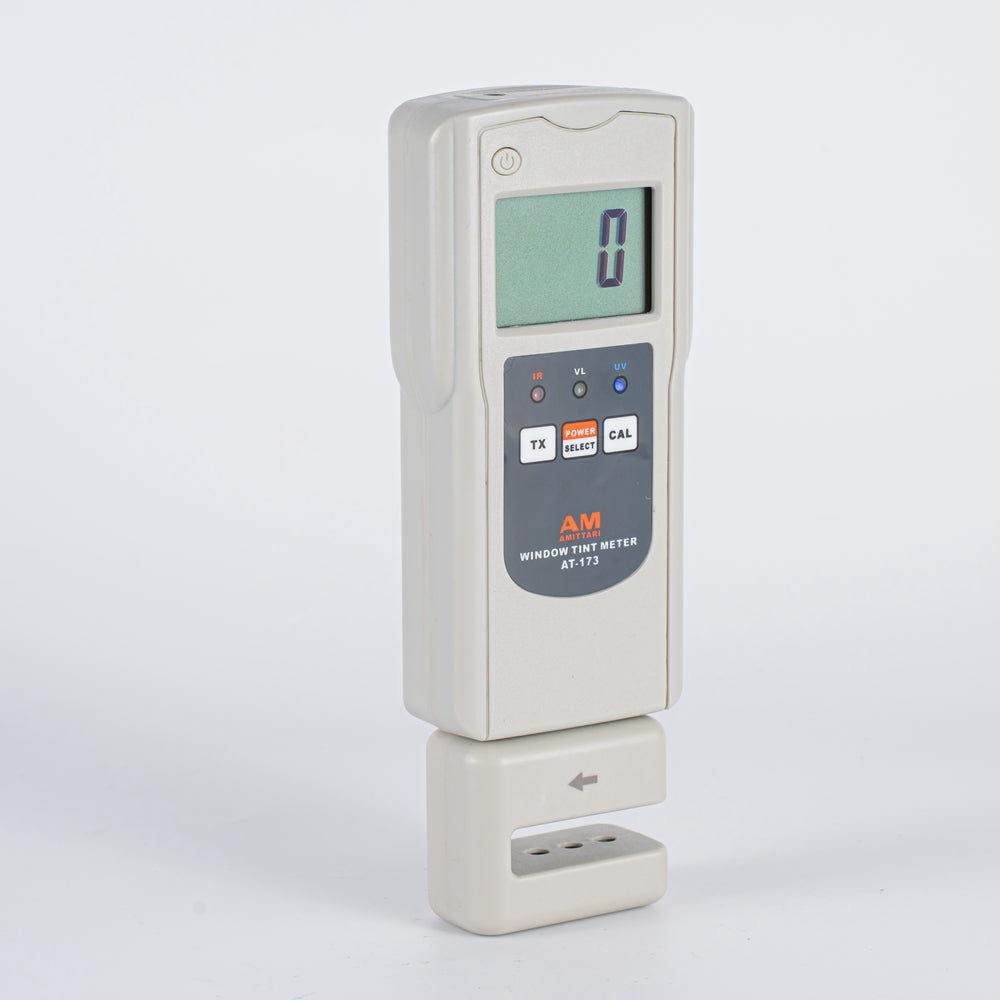

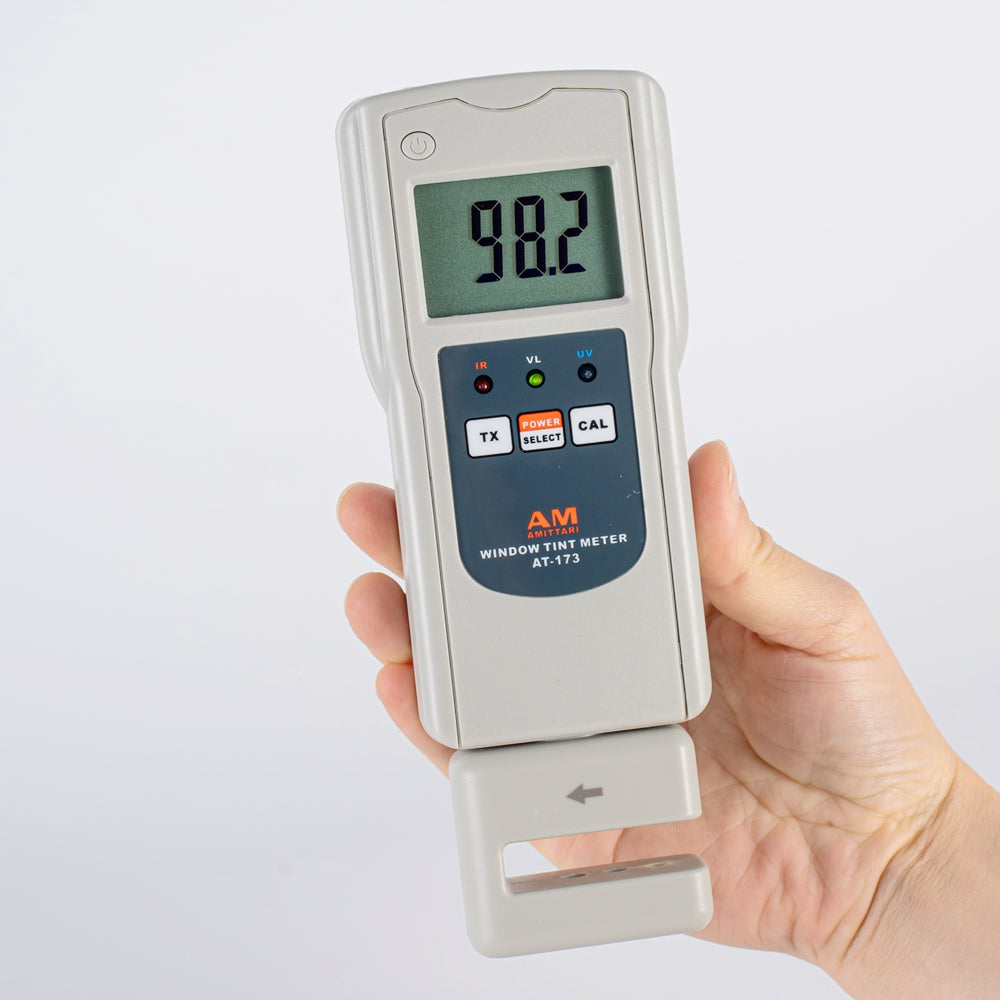

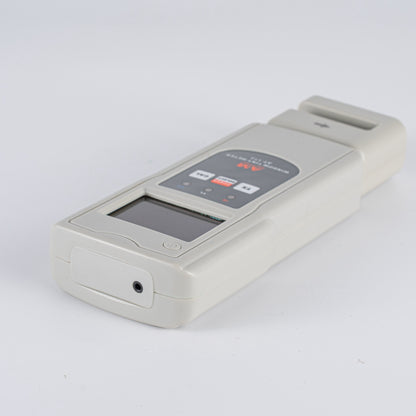

TOMLIN Window Tint Meter (Model AT-173)

Description:
The TOMLIN Window Tint Meter AT-173 is a versatile tool for analyzing ultraviolet (UV), visible, and infrared (IR) light transmittance through transparent and translucent materials. Equipped with a rotatable sensor, it is ideal for automotive, industrial, and scientific applications, providing comprehensive light analysis with high accuracy.

Applications:

  • Automotive Glass Testing: Measures UV, visible, and IR transmittance of vehicle windows.
  • Industrial Glass and Plastic Testing: Ensures quality of materials by analyzing light transmittance.
  • Scientific Research: Provides precise light measurement for laboratory applications.

Key Features:

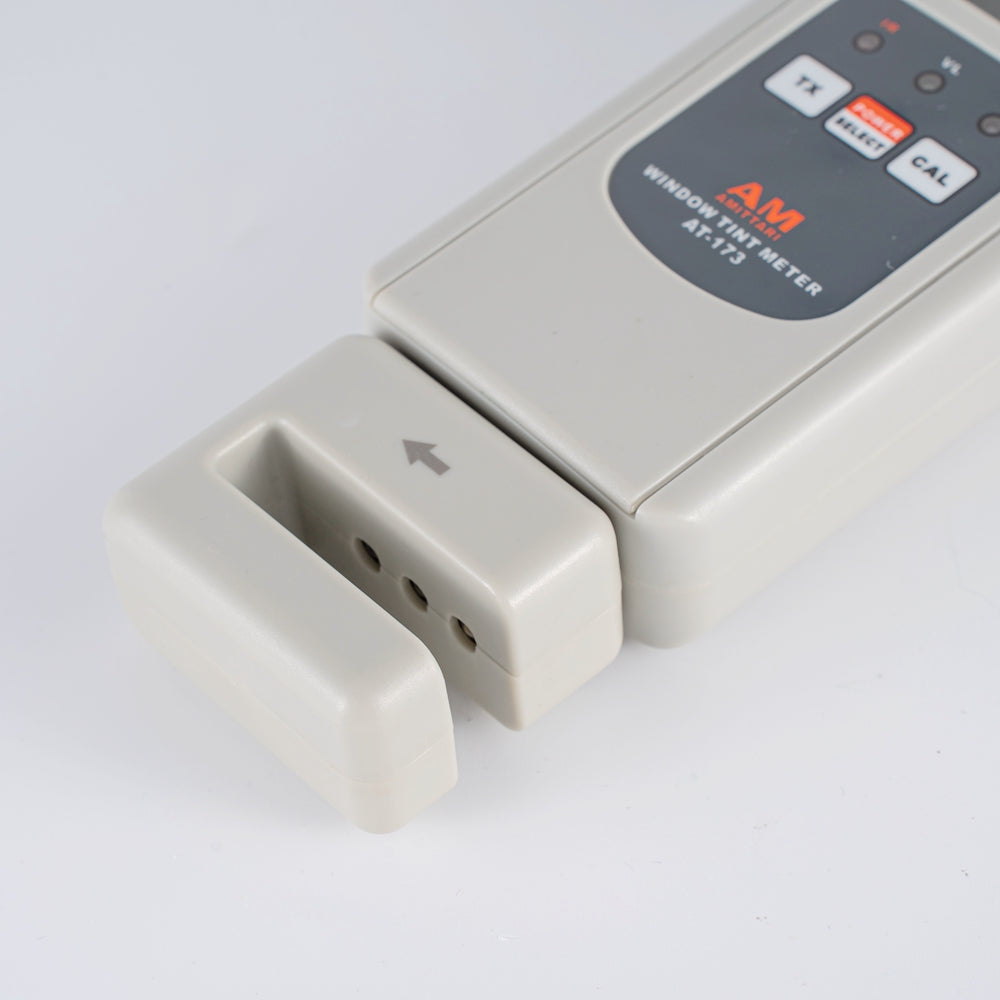

  1. Rotatable Sensor: Allows measurement of materials at various angles.
  2. UV, Visible, and IR Measurement: Covers a comprehensive range of light transmittance.
  3. High Precision: Accurate light analysis with ±2% accuracy.
  4. Backlight Display: Enables clear readings in all conditions.
  5. Manual/Auto Power Off: Ensures battery efficiency.
  6. Low Battery Indicator: Provides timely notification for battery replacement.
  7. Computer Connectivity: Allows for data export and advanced analysis.
Specifications
Parameter Details
Measurement Range 0~100%
Resolution 0.1
Light Source LED
Sample Thickness Less than 10 mm (0.4")
Accuracy ±2%
UV Wavelength 380 nm
Visible Light Wavelength 380–760 nm
Infrared Wavelength Central Wavelength 950 nm
Sensor Rotation Angle 0~340°
Operating Temperature

050°C (32122°F)
Operating Humidity <90%

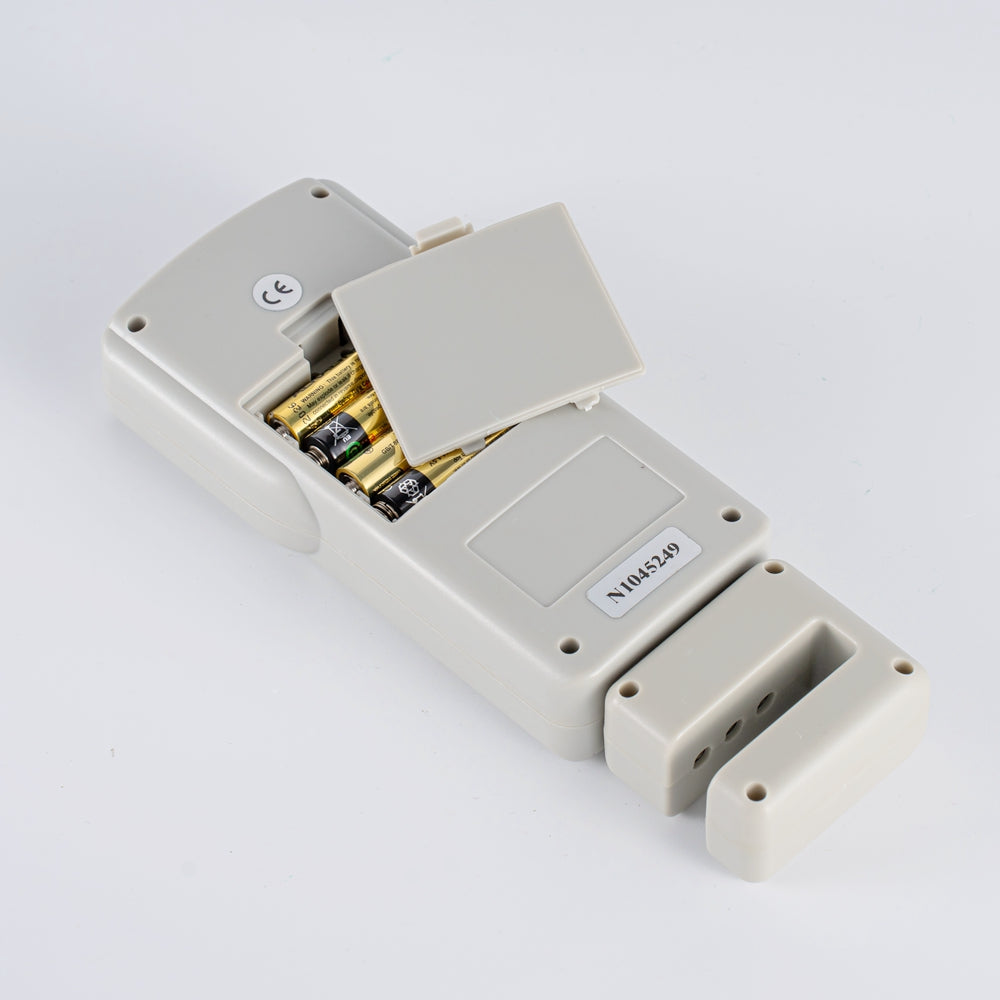

Power Supply 4 × 1.5V AAA batteries
Size (Main Unit) 184 × 70 × 30 mm
Weight (Without Battery) 160 g (5.64 oz)

Standard Accessories:

  • Main Unit
  • Testing Block

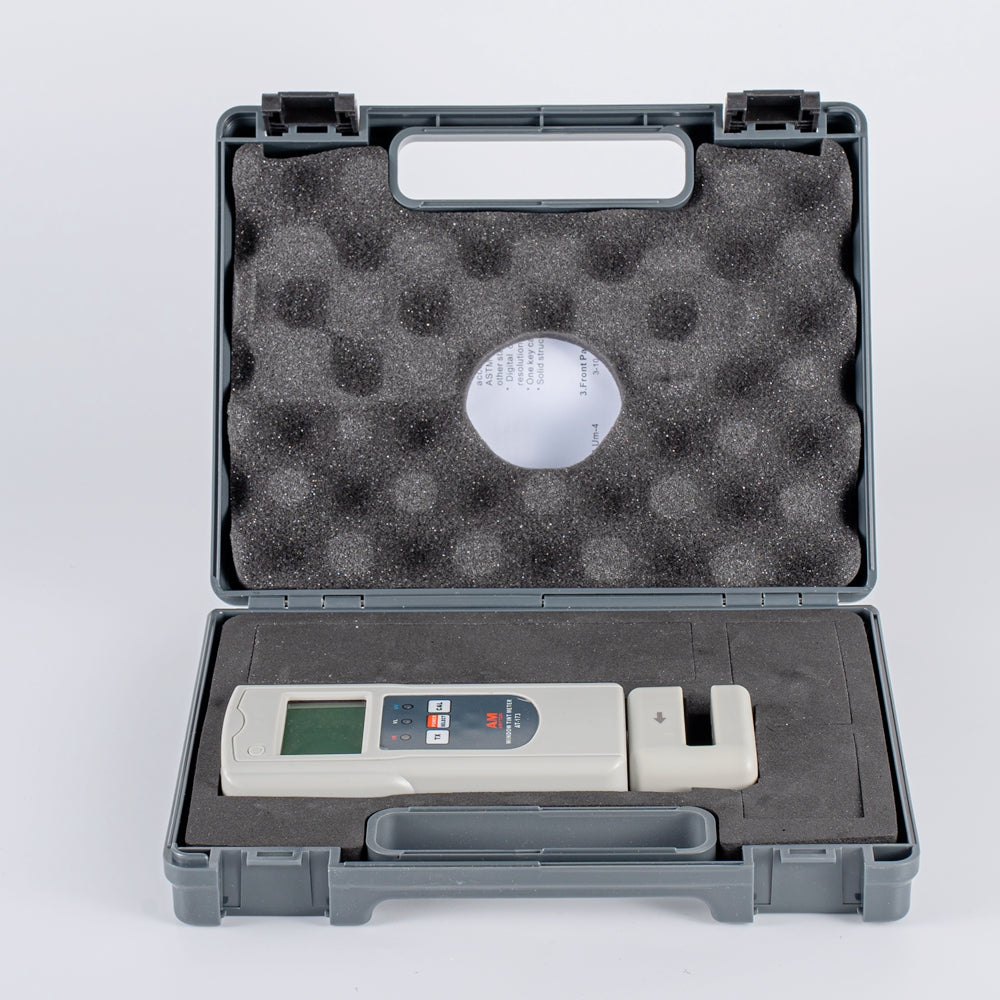

  • Carrying Case
  • Operation Manual

Optional Accessories:

  • USB Cable & Software
  • Bluetooth Adapter & Software

Alternative Names for Search Optimization:

  • UV/IR Window Tint Meter
  • Comprehensive Light Transmittance Tester
  • Automotive Glass Analyzer
Downloads

PDF Specification Sheet - Download Here
